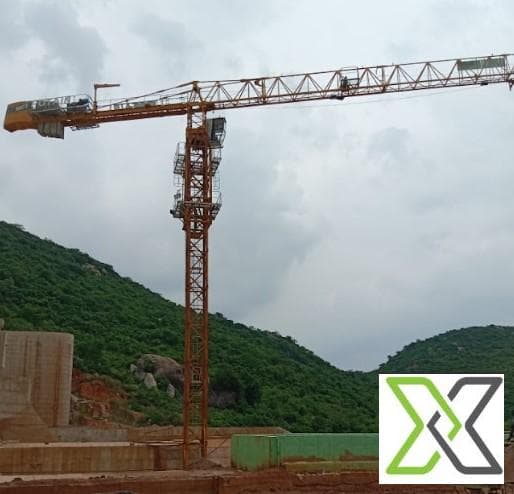

Zoomlion TC7013-10E Flat-Top Tower Crane – 10 Ton, 70m Jib - 2014

The Zoomlion TC7013-10E is a robust flat-top tower crane manufactured in 2014, designed for demanding construction applications including high-rise developments and large industrial projects. With a maximum lifting capacity of 10 metric tons and an extensive 70-meter jib, it can handle a tip load of approximately 1.3 tons at maximum radius. The crane offers a free-standing height of approximately 50 meters, expandable up to 200 meters when anchored.

It is built on a stable 2.0 × 2.0 meter mast section, providing excellent structural integrity. The hoisting system utilizes a Variable Frequency Drive (VFD) for precise speed control and smooth lifting operations. A full 360° slewing capability with limiter ensures safe and efficient movement, while the motorized trolley system allows accurate load positioning.

The operator cabin is fully enclosed and ergonomically designed with joystick controls, a real-time load monitoring display, and excellent visibility. The TC7013-10E operates on a standard 380V, 3-phase, 50Hz power supply. Safety systems include a load moment limiter, overload protection, overwind and overspeed limiters, and an optional anti-collision interface for multi-crane environments.

Specifications:

– Model: Zoomlion TC7013-10E
– Year of Manufacture: 2014
– Crane Type: Flat-top Tower Crane
– Max Lifting Capacity: 10 metric tons
– Jib Length: 70 meters
– Tip Load at Max Radius: ~1.3 tons
– Free-Standing Height: ~50 meters
– Max Height (Anchored): Up to 200 meters
– Mast Section: 2.0 m × 2.0 m
– Hoisting Mechanism: VFD (Variable Frequency Drive)
– Slewing: 360° rotation with limiter
– Trolley: Motorized, smooth positioning
– Operator Cabin: Enclosed, joystick control, load monitor
– Power Requirement: 380V / 50Hz / 3-phase

For further specifications or to inquire about this equipment and ReflowX's logistics services, please contact ReflowX at info@reflowx.com
