AUMA MDE 71-2/60 Electric Valve Actuator | Flameproof

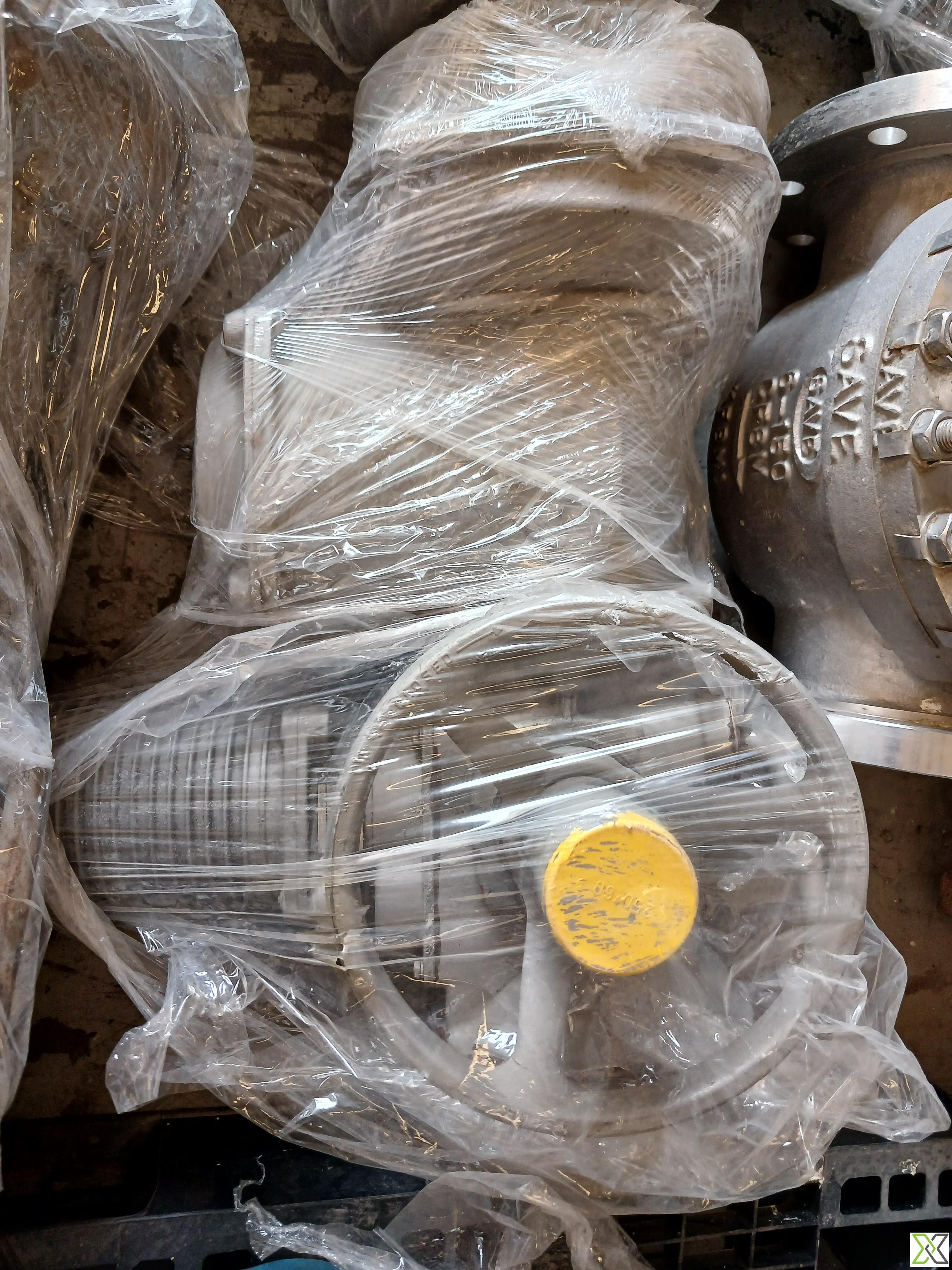

The AUMA MDE 71-2/60 Electric Actuator is a heavy-duty motorized unit built for high-performance valve automation in hazardous areas. It features an explosion-proof design compliant with EEx d IIC T4 standards, making it suitable for use in environments with explosive gases. The actuator carries a PTB-certified explosion protection rating (PTB Nr. Ex 80/1071 U) and is engineered to ensure operational reliability in demanding conditions. With a 4.6A current rating and robust build, it is ideal for oil and gas, chemical, and petrochemical industries. Inspected in May 1987, this actuator remains a reliable choice for legacy systems.

Specifications:

– Actuator Type: Electric Valve Actuator

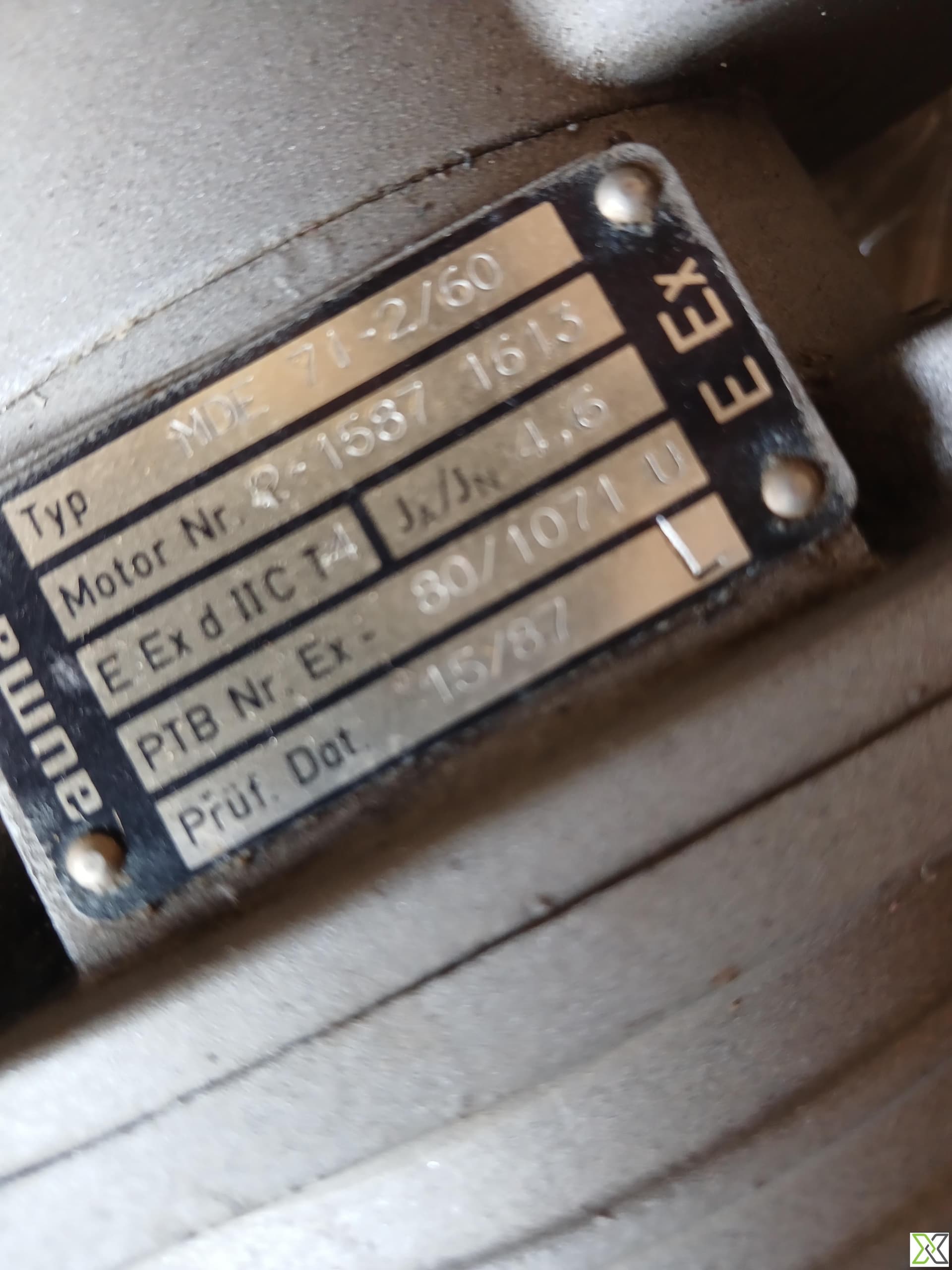

– Model: AUMA MDE 71-2/60
– Motor Number: R-1587 1615
– Rated Current (Jx/Jn): 4.6 A
– Explosion Protection: EEx d IIC T4 (Flameproof Enclosure)
– Explosion Certification: PTB Nr. Ex 80/1071 U
– Inspection Date: 15/87 (May 1987)
– Mounting Type: Flange-mounted (ISO Standard)
– Ingress Protection: Estimated IP65 / IP68 (based on actuator type)
– Control Type: Likely On/Off or Modulating (depending on configuration)
– Ambient Temperature Range: -20°C to +60°C (typical for this model type)
– Direction of Rotation: Bidirectional (CW/CCW)
– Duty Cycle: S2 / S4 (intermittent or continuous with start-stop frequency)
– Housing Material: Cast aluminum with protective coating
– Applicable Valve Types: Gate, globe, butterfly, and ball valves
– Mounting Interface: ISO 5210 (typical for AUMA models)
– Industries: Oil & Gas, Petrochemical, Hazardous Environments
– Country of Manufacture: Germany
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
