Specifications

General Information

Brand: Biffi Italia S.r.l.

Model: 500-106/600-97

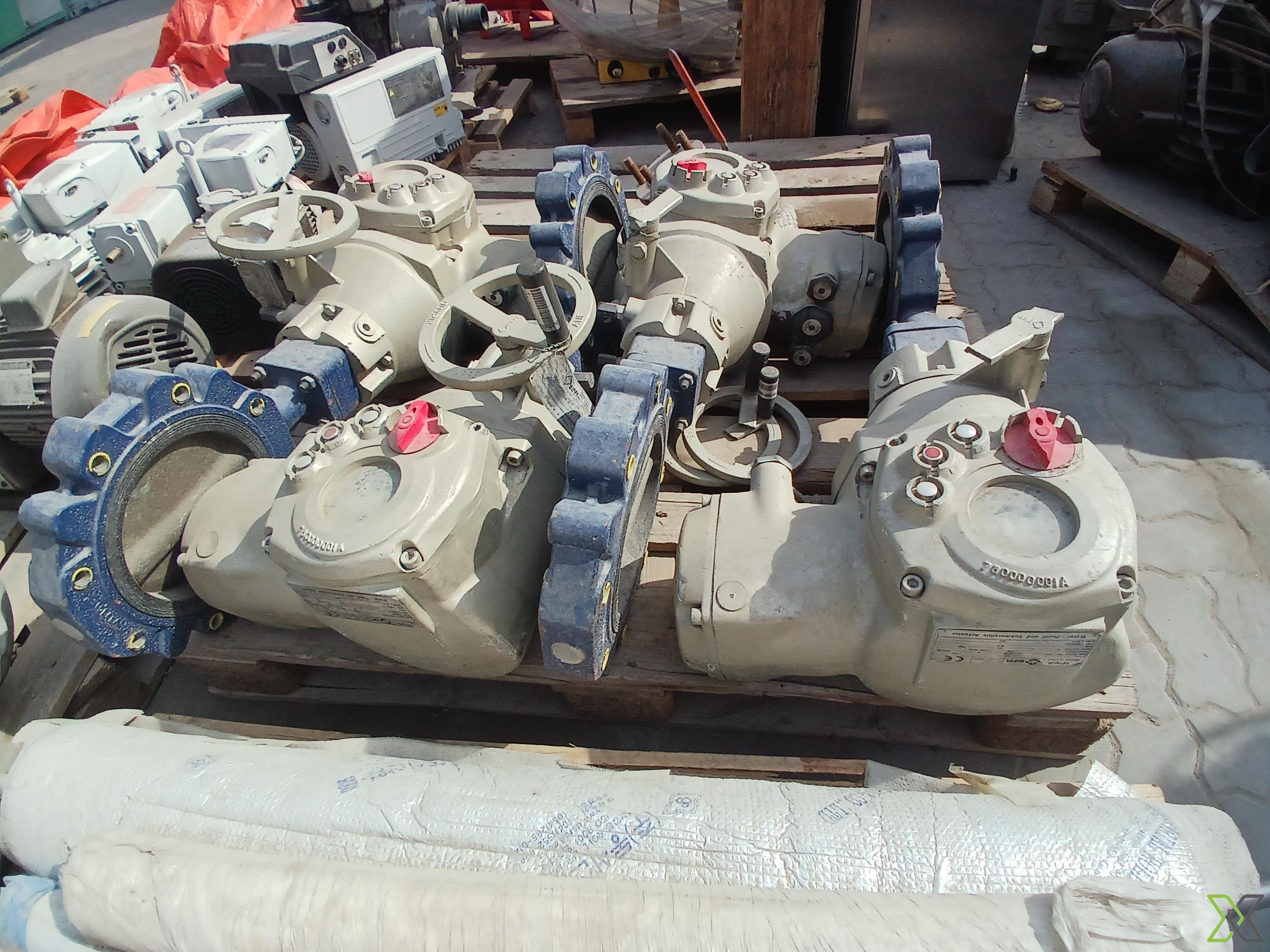

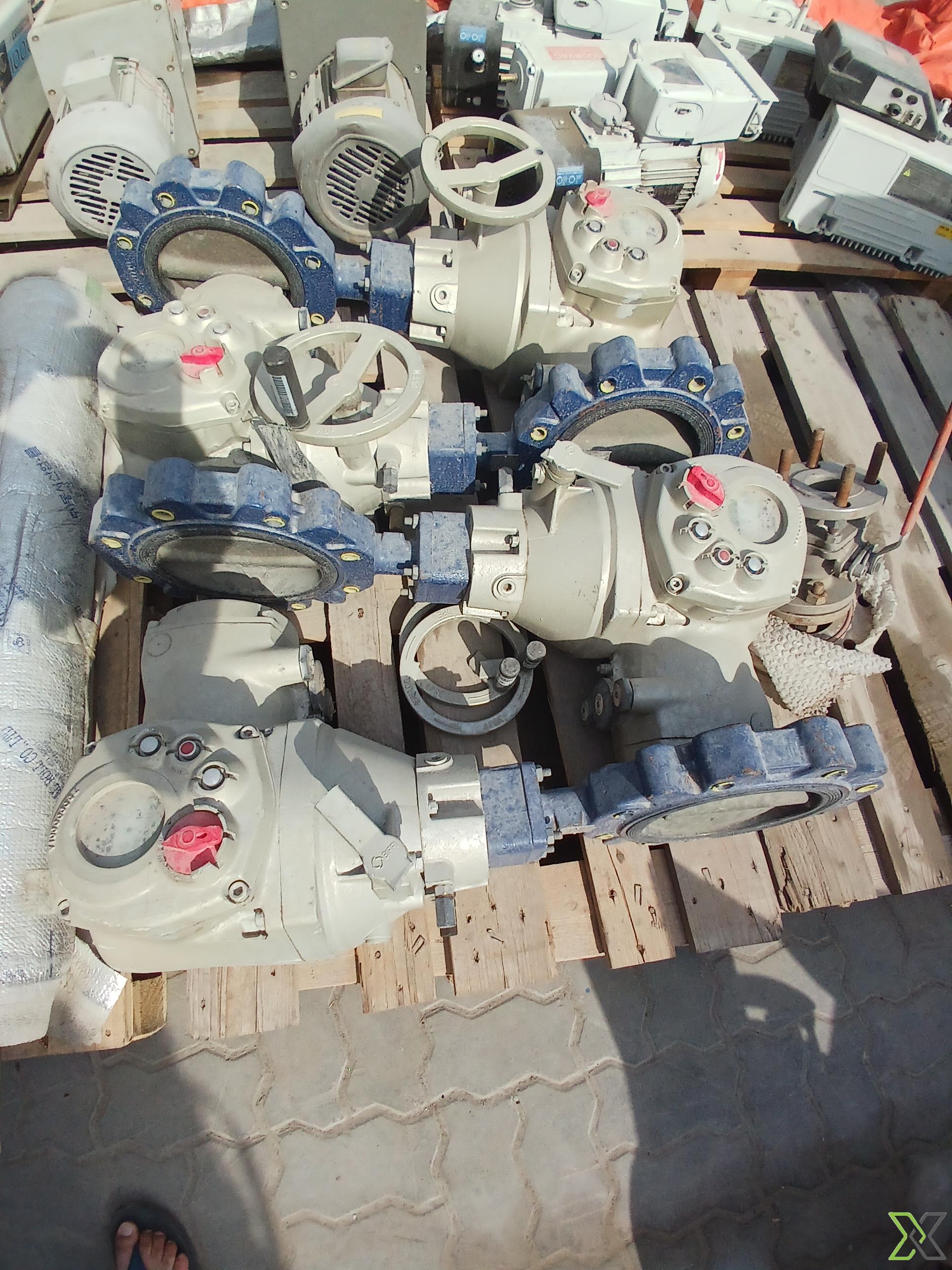

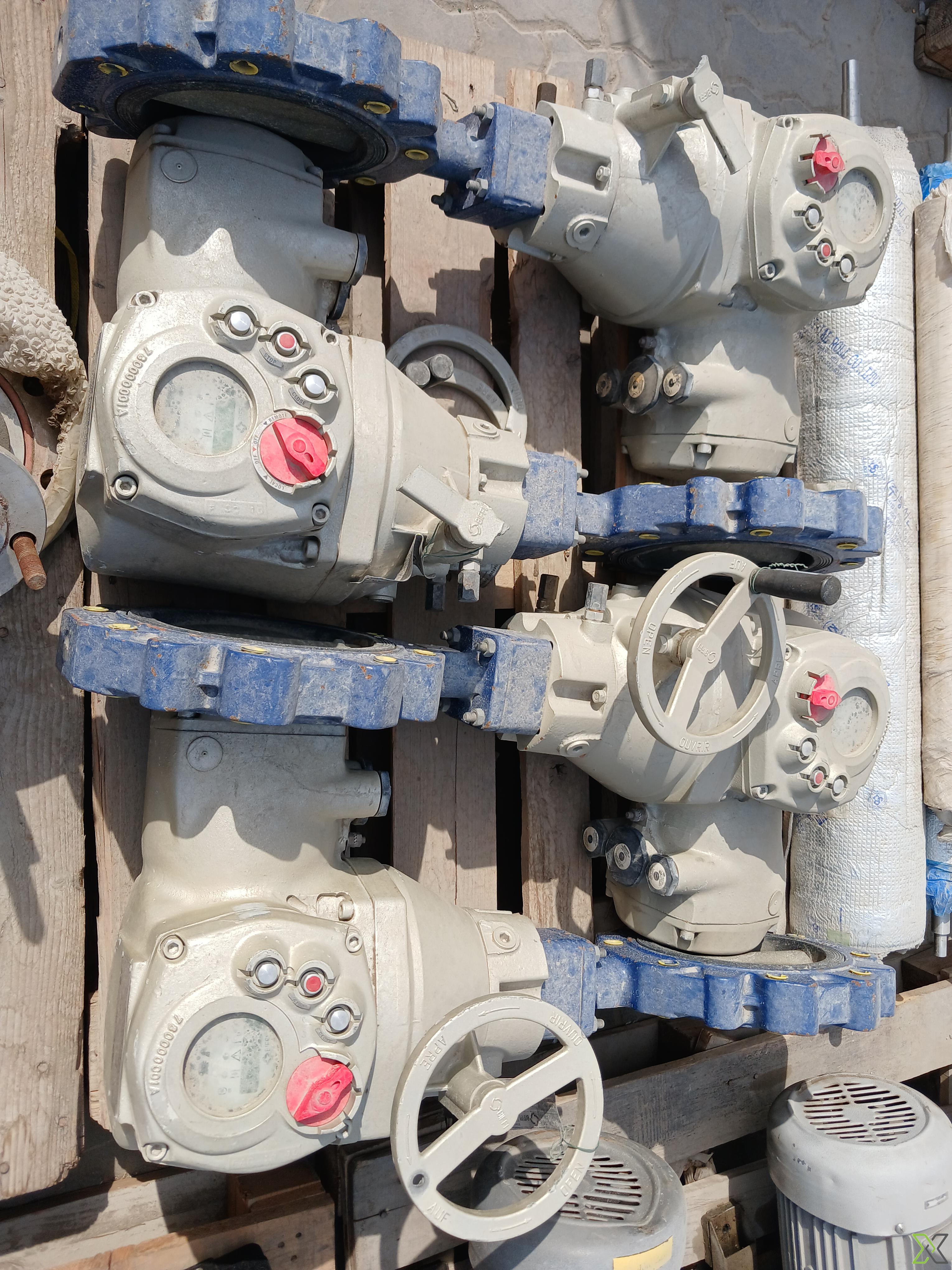

Type: Waterproof and Submersible Electric Actuator

Application: Designed for use in harsh, submersible, or underwater environments

Actuator Type: Electric Linear Actuator

Protection Rating: IP68 (Fully submersible)

Environment: Suitable for both offshore and underwater applications

Performance & Features

Torque Output: 50 Nm (37 lb-ft)

Stroke Length: 100 mm (3.94 in)

Operating Voltage: 24V DC / 110V AC / 220V AC

Control Mode: On/Off or Modulating (optional)

Speed of Operation: 2-10 mm/s (0.08 - 0.39 in/s), adjustable

Duty Cycle: Continuous operation under full load

Temperature Range: -40°C to +80°C (-40°F to +176°F)

Submersible Depth: Suitable for depths up to 100 meters (328 ft)

Construction & Materials

Body Material: Corrosion-resistant marine-grade aluminum alloy

Seal Materials: High-performance elastomers for water-tight sealing

Shaft Material: Stainless steel for enhanced strength and corrosion resistance

Finish: Epoxy resin coating for added protection in underwater environments

Electrical and Control System

Feedback Mechanism: Potentiometer or position transmitter for precise control

Control Options:

Local control with manual switches

Remote control via Modbus, CANBus, or other industrial communication protocols

Limit Switches: Integrated mechanical and electronic limit switches for position feedback and safety

Safety Features:

Overload protection

Automatic shut-off in case of malfunctions

Hydraulic & Operational Features

Power Consumption: 200 W max under load

Operating Pressure: 10 bar (145 psi)

Lubrication: Self-lubricating components for efficient operation in submerged conditions

Mounting Type: Flange or direct mounting depending on system design

Manual Override: Available for emergency operation in case of power failure

Safety & Environmental Features

IP68 Rating: Protection against continuous immersion in water up to 100 meters depth

UV and Saltwater Resistant Coating: Ideal for offshore installations

Shock and Vibration Resistance: Built to withstand harsh conditions

Explosion-proof Options: Available for hazardous area applications

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
