Rotork Fluid Systems RCIO260-SR060HT Pneumatic Actuator

ReflowX SKU: REF-9595

Product Details

Quantity

10
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

CFIHOS-30000607

Get Quotation Whatsapp

Short Description

High-precision pneumatic actuator by Rotork Fluid Systems, model RCIO260-SR060HT ±3°, designed for ON/OFF and modulating control applications. Built for robust industrial use with 8 bar pressure rating and 2.38-liter volume capacity.

Description

Rotork Fluid Systems RCIO260-SR060HT Pneumatic Actuator

The Rotork Fluid Systems RCIO260-SR060HT is a high-performance pneumatic actuator engineered for industrial valve automation applications. Featuring an F12/F10–27 actuator configuration, this unit offers precise angular movement with ±3° control tolerance. Designed to handle non-dangerous fluids in accordance with Group 2 of Directive 97/23/EC, the actuator provides reliable and consistent operation in demanding environments. Manufactured in Sweden, this unit includes a robust enclosure and is optimized for high-cycle performance in oil, gas, water treatment, and general industrial sectors.

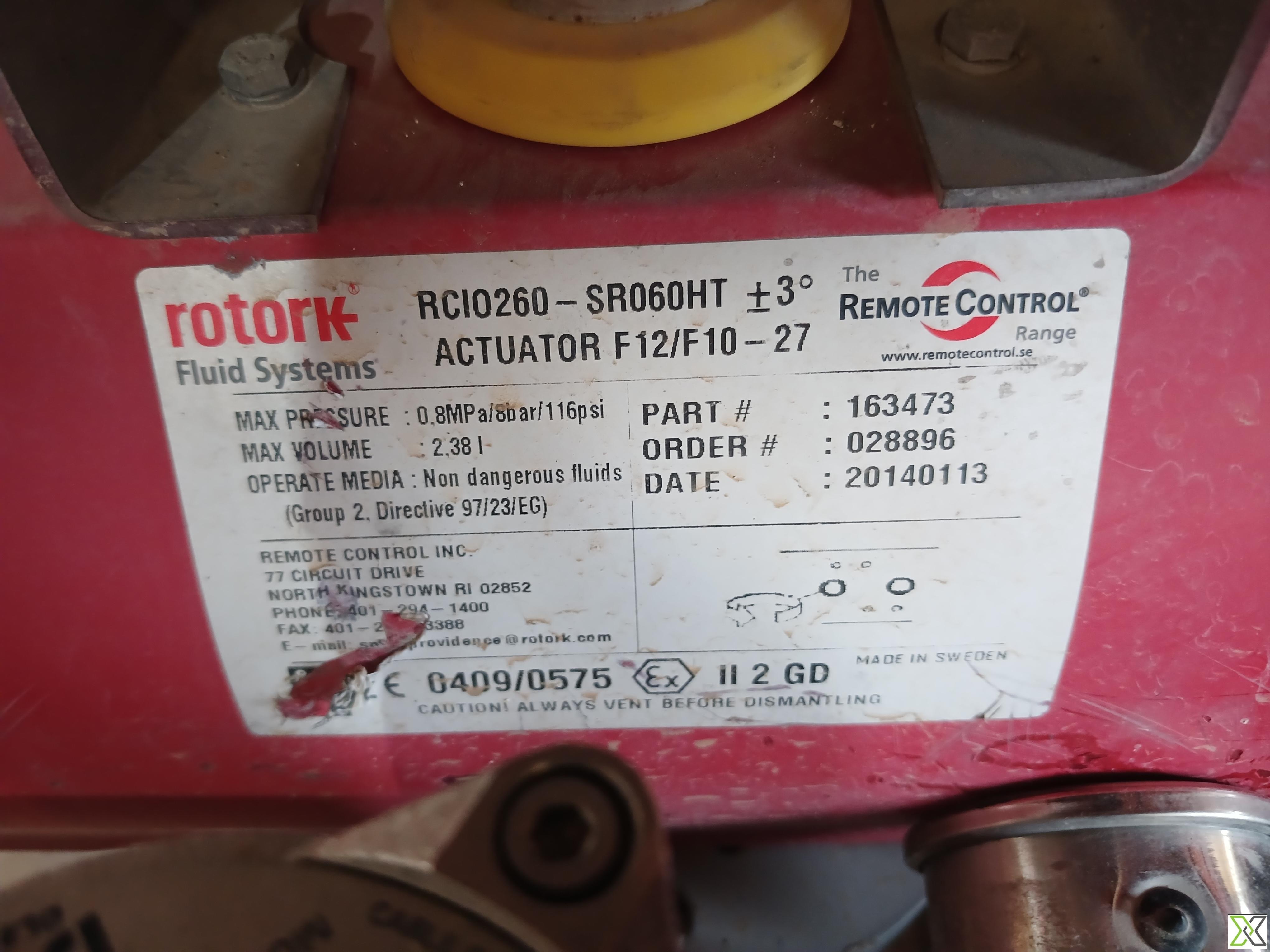

Specifications:

– Brand: Rotork Fluid Systems
– Model: RCIO260-SR060HT ±3°
– Actuator Type: F12/F10–27
– Maximum Pressure: 0.8 MPa / 8 bar / 116 psi
– Volume Capacity: 2.38 liters
– Media Compatibility: Non-dangerous fluids (Group 2, Directive 97/23/EC)
– Part Number: 163473
– Order Number: 028896
– Date of Manufacture: 2014-01-13
– Country of Origin: Sweden
– Angular precision: ±3°
– Suitable for modulating or ON/OFF valve control
– Built to withstand industrial pressure limits with strong media compatibility

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	250 mm
Width	200 mm
Length	400 mm
Weight	~18–25 kg
Model Number	RCIO260-SR060HT ±3°
Year of Manufacturing	2014
Color	Red
Model Number	RCIO260-SR060HT ±3°
Year of Manufacturing	2014
Height	250 mm
Width	200 mm
Length	400 mm
Weight	~18–25 kg
Temperature Range	-20°C to +70°C
Color	Red
ISO 15926 Pt 4	4219
PCA RDS Code	RDS418769
CFIHOS ID	CFIHOS-30000607
IFC Class	IfcActuator
Explosion Protection Gas Group	IIB
Explosion Protection Temperature Class	T6
Explosion Protection Zone	Zone 1 (Gas), Zone 21 (Dust)
UNSPSC Code	31251500
