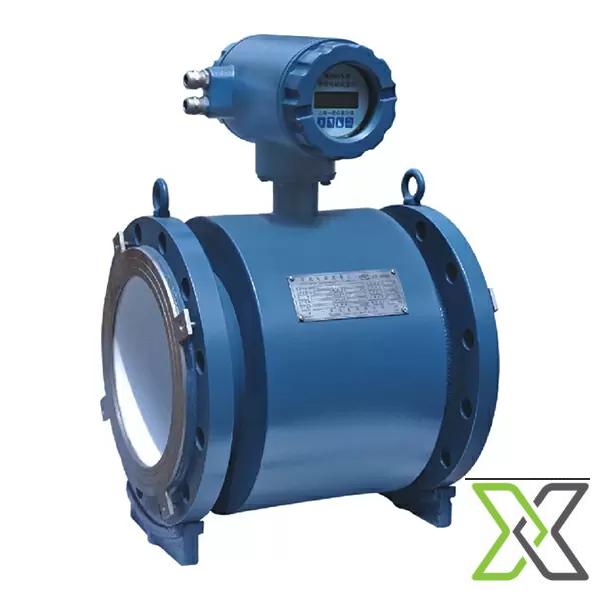

- MAGYN Electromagnetic Flowmeter DN15–DN1200 (Integral / Separate Type)
.jpg_69d0c495efb33.jpg)
.jpg_69d0c495efb33.jpg&w=256&q=75)
Description
Product Description
The MAGYN Series Electromagnetic Flowmeter operates based on Faraday’s Electromagnetic Induction principle to measure the flow of conductive liquids. As fluid passes through a magnetic field, an induced voltage proportional to the flow velocity is generated and measured, enabling accurate flow rate calculation.
The system is designed to provide stable and reliable measurement independent of fluid characteristics such as temperature, pressure, viscosity, and density. With no moving parts in the measuring tube, the unit offers simplified maintenance and long-term operational reliability.
The flowmeter supports installation in multiple orientations, provided the pipeline remains full, and requires minimal straight pipe lengths for optimal performance. It is suitable for a wide range of conductive liquids, including those containing solids or suspended materials, depending on the selected lining and electrode materials.
The unit is equipped with an intelligent transmitter featuring LCD display, menu-based configuration, self-diagnostics, and alarm functions. Multiple output and communication options are available, including analog, pulse, and digital interfaces. Explosion-proof configurations and customizable flange standards are available as specified.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Electromagnetic Flowmeter |
| Model | MAGYN |
| Measurement Principle | Faraday Electromagnetic Induction |
| Measured Medium | Conductive Liquids (≥5 µS/cm) |
| Nominal Diameter (DN) | 15 – 1200 mm |
| Accuracy | 0.3%, 0.5%, 1.0% |
| Repeatability | 0.15%, 0.25%, 0.5% |
| Nominal Pressure | 0.6 – 32 MPa |
| Fluid Temperature | Integral Type ≤ 80°C; Separate Type ≤ 80°C (Rubber), ≤ 120°C (PTFE) |
| Ambient Temperature | Sensor: -20°C to +70°C; Converter: -20°C to +50°C; Integral: -10°C to +50°C |
| Humidity | 5% – 95% RH (non-condensing) |
| Vibration Resistance | 55 Hz / 0.55 mm amplitude |
| Ambient Magnetic Field | ≤ 400 A/m |
| Power Supply | 24 VDC ±5% or 100–240 VAC, 47–63 Hz |
| Output Signal | Pulse Output, 4–20 mA or 0–10 mA |
| Communication | RS485, HART |
| Alarm Output | Available |
| Enclosure Rating | IP68 (separate type with rubber lining) |
| Explosion Rating | Exdeia II CT4 |
| Electrode Material | Stainless Steel, Hastelloy, Titanium, Tantalum, Tungsten Carbide, Platinum-Iridium |
| Lining Material | PTFE, Synthetic Rubber |
| Flange Material | Cast Steel, Stainless Steel |
| Measuring Tube | Stainless Steel |
| Installation Requirement | 5D upstream / 2D downstream straight pipe |
| Turndown Ratio | Up to 1:100 |
| Display | LCD with menu control and password protection |
If you require any further information on this listing please contact info@reflowx.com
