- Handheld Transit Time Ultrasonic Flowmeter
Description
Description

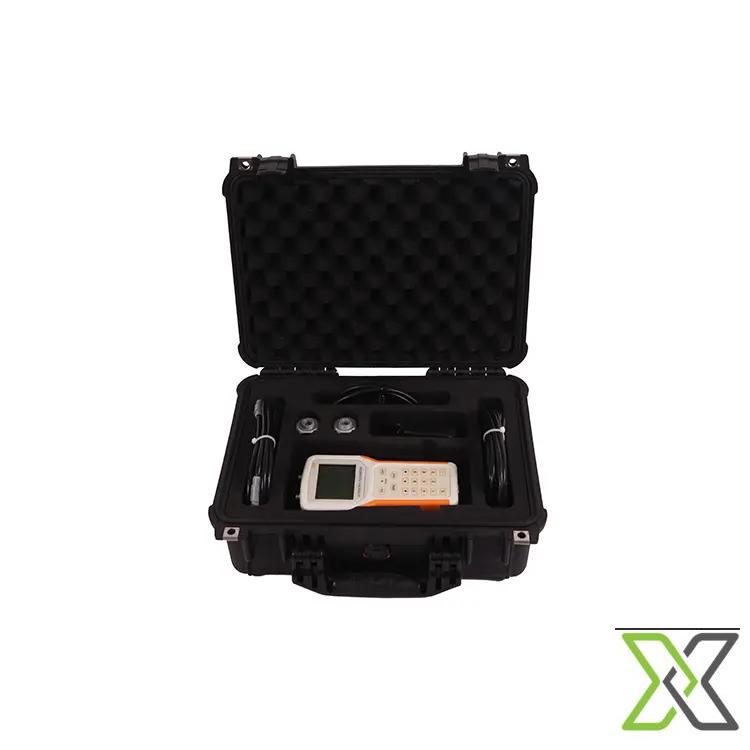

The Handheld Transit-Time Ultrasonic Flowmeter TF1100-CH is designed for portable measurement of liquid flow in closed pipeline systems using transit-time ultrasonic technology. The device measures flow velocity by transmitting ultrasonic signals between external sensors mounted on the pipe and calculating the transit-time difference between upstream and downstream signals.
The handheld configuration provides a compact and lightweight solution for field measurements, inspections, and flow verification tasks. Clamp-on ultrasonic sensors enable non-intrusive installation without cutting the pipe or interrupting system operation, allowing the device to be deployed quickly across different pipeline locations.
This flowmeter is suitable for measuring clean liquids and is designed for applications where flexible, portable measurement is required for diagnostics, temporary monitoring, or system performance verification.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic Flowmeter |
| Model | TF1100-CH |
| Technology | Transit-Time Ultrasonic |
| Installation Type | Handheld / Portable |
| Sensor Type | Clamp-On Ultrasonic Sensors |
| Measurement Accuracy | ±1% of reading |
| Repeatability | ±0.2% |
| Velocity Range | 0.01 – 12 m/s |
| Pipe Size Range | DN25 – DN1200 |
| Pipe Materials | Steel, stainless steel, cast iron, PVC, copper and other common pipe materials |
| Liquid Type | Clean liquids |
| Data Storage | Built-in data logger |
| Output Signal | Pulse output |
| Communication | RS232 |
| Power Supply | Rechargeable battery |
If you require any further information on this listing please contact info@reflowx.com
