- Insertion Transit Time Ultrasonic Flowmeter
Description
Description

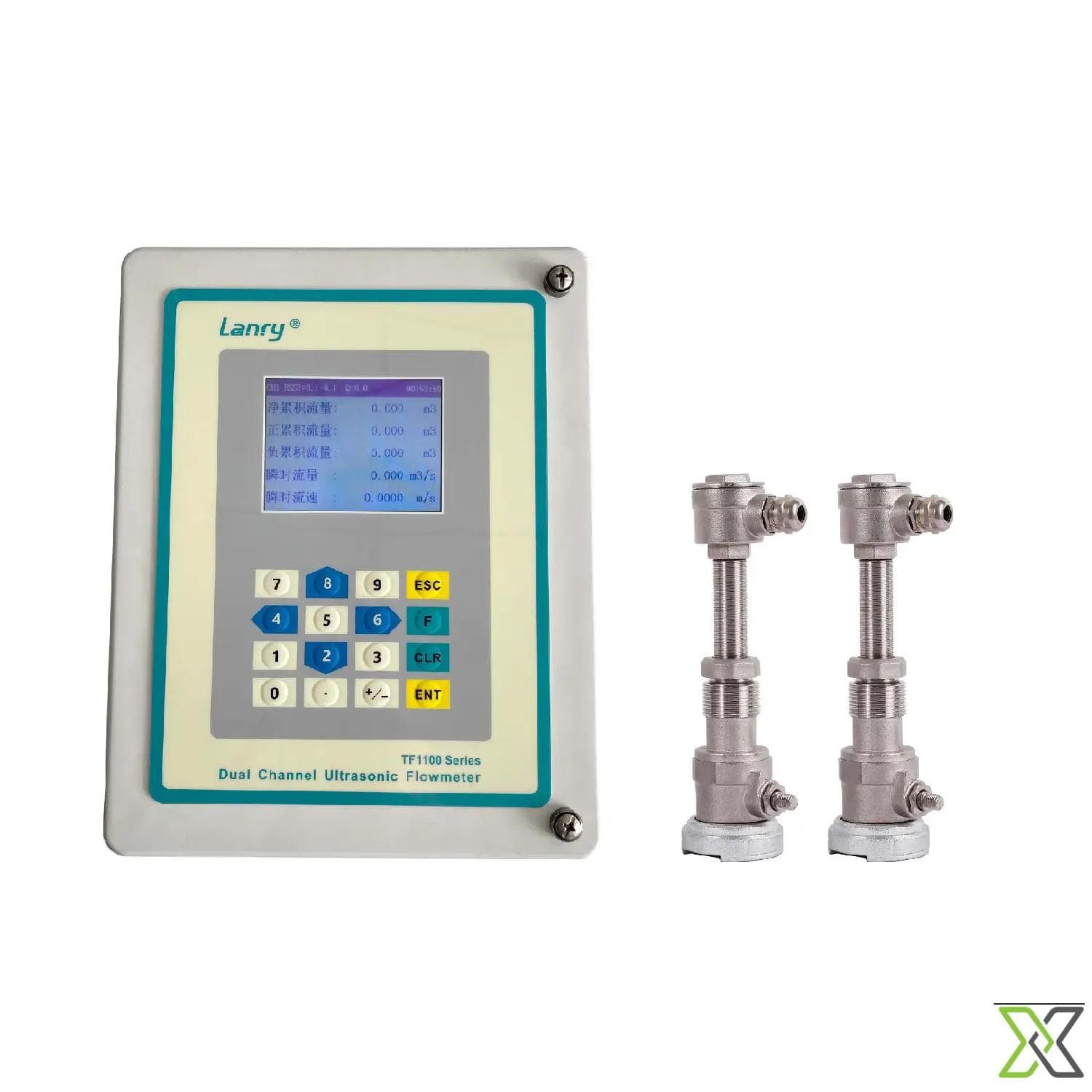

The Insertion Transit-Time Ultrasonic Flowmeter TF1100-EI is designed for reliable measurement of liquid flow in closed pipeline systems using transit-time ultrasonic technology. The system determines flow velocity by transmitting ultrasonic signals between insertion sensors installed through the pipe wall and calculating the transit-time difference between upstream and downstream signals.
The insertion sensor configuration allows the flowmeter to be installed on medium to large diameter pipelines where clamp-on sensors may not provide optimal signal strength. The sensors are mounted directly through the pipe wall, enabling stable signal transmission and consistent measurement performance.
This flowmeter is suitable for continuous flow monitoring in industrial pipeline systems and is designed to measure clean liquids across a wide range of pipe materials and sizes. The instrument can be integrated into monitoring and control systems through standard output and communication interfaces.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic Flowmeter |
| Model | TF1100-EI |
| Technology | Transit-Time Ultrasonic |
| Installation Type | Insertion |
| Sensor Type | Insertion Ultrasonic Sensors |
| Measurement Accuracy | ±1% of reading |
| Repeatability | ±0.2% |
| Velocity Range | 0.01 – 12 m/s |
| Pipe Size Range | DN80 – DN6000 |
| Pipe Materials | Steel, stainless steel, cast iron, PVC, copper and other common pipe materials |
| Liquid Type | Clean liquids |
| Output Signal | 4–20 mA, pulse and relay output |
| Communication | RS485 |
| Power Supply | 85–264 VAC or 24 VDC |
If you require any further information on this listing please contact info@reflowx.com
