Description
Description

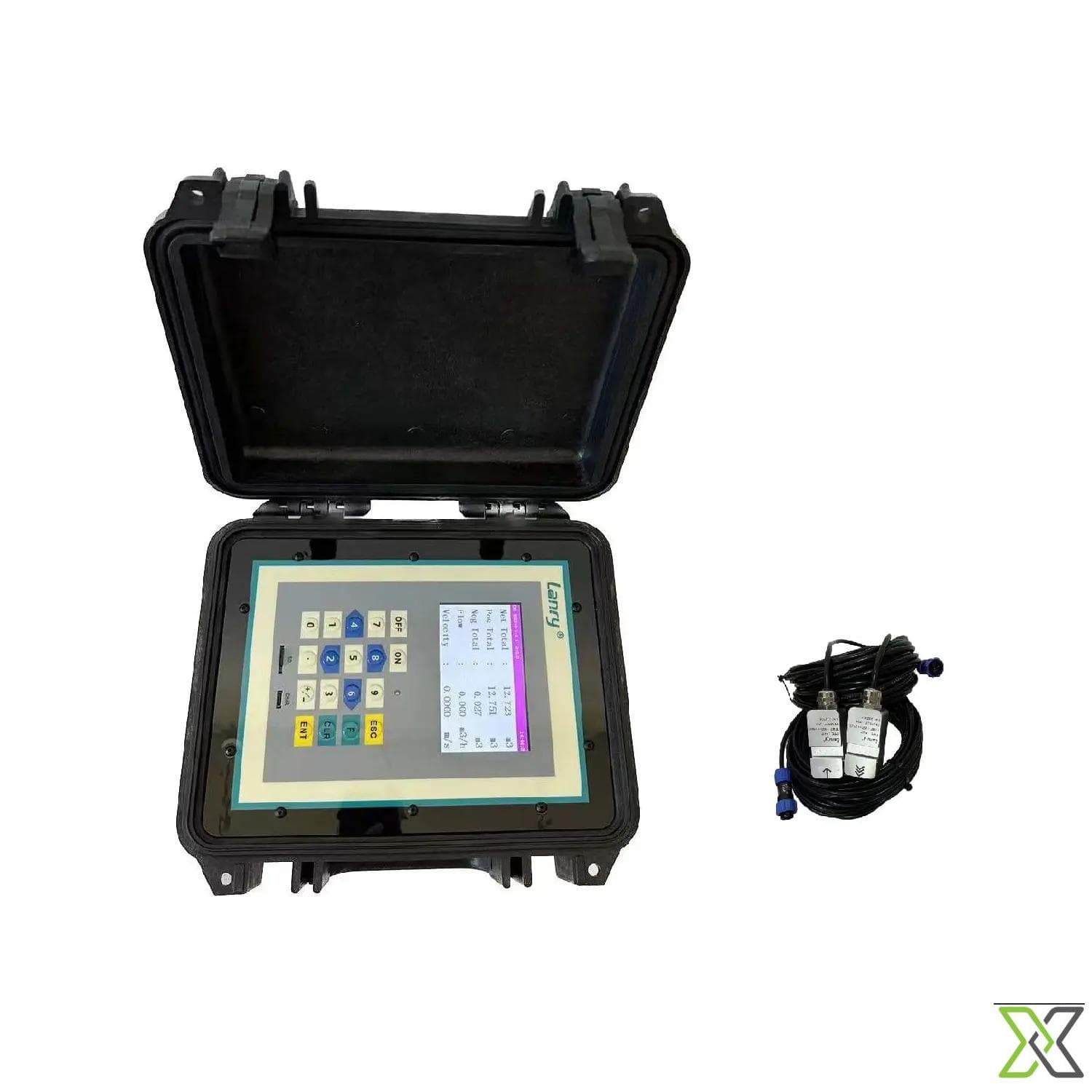

The Portable Transit-Time Ultrasonic Flowmeter TF1100-EP is designed for accurate measurement of liquid flow in closed pipeline systems using transit-time ultrasonic technology. The system determines flow velocity by transmitting ultrasonic signals between sensors mounted externally on the pipe, enabling flow measurement without cutting the pipeline or interrupting operations.
The portable configuration allows the device to be easily transported and deployed for temporary measurement, field inspections, and system diagnostics. Clamp-on ultrasonic sensors allow quick installation and removal, making the instrument suitable for measuring flow at multiple locations within a pipeline network.
This flowmeter is suitable for monitoring clean liquids in industrial pipeline systems and supports flexible field measurement tasks where permanent installation is not required.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic Flowmeter |
| Model | TF1100-EP |
| Technology | Transit-Time Ultrasonic |
| Installation Type | Portable |
| Sensor Type | Clamp-On Ultrasonic Sensors |
| Measurement Accuracy | ±1% of reading |
| Repeatability | ±0.2% |
| Velocity Range | 0.01 – 12 m/s |
| Pipe Size Range | DN25 – DN1200 |
| Pipe Materials | Steel, stainless steel, cast iron, PVC, copper and other common pipe materials |
| Liquid Type | Clean liquids |
| Data Storage | Built-in data logger |
| Output Signal | 4–20 mA, pulse and relay output |
| Communication | RS485 |
| Power Supply | Rechargeable battery |
