Description
Description

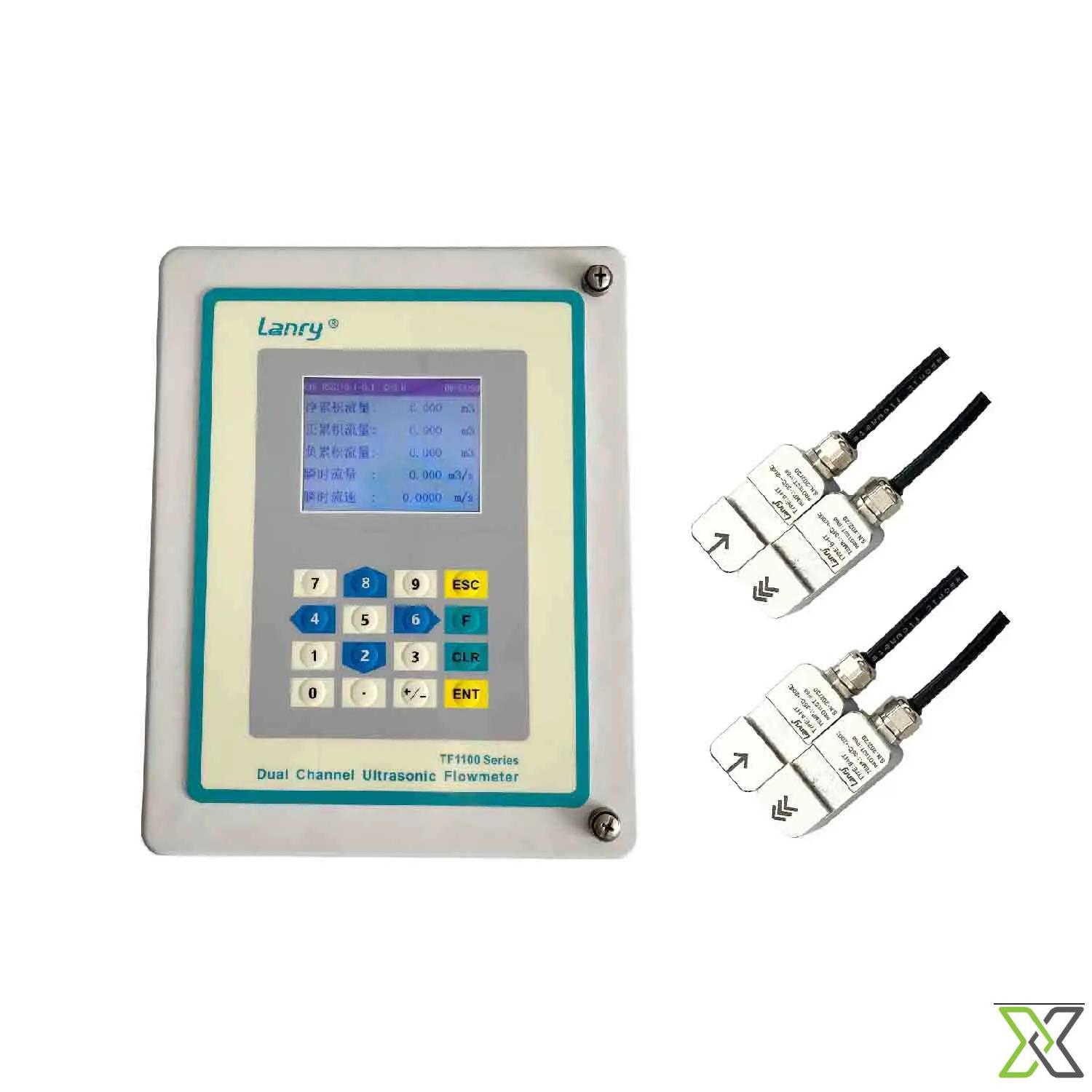

The Dual Channel Wall Mounted Transit-Time Ultrasonic Flowmeter TF1100-DC is designed for continuous measurement of liquid flow in closed pipeline systems using transit-time ultrasonic technology. The system determines flow velocity by transmitting ultrasonic signals between external sensors mounted on the pipe and calculating the transit-time difference between upstream and downstream signals.
The wall mounted configuration provides a permanent installation for industrial environments requiring reliable and continuous monitoring. The clamp-on sensor design enables non-intrusive measurement without cutting the pipe or interrupting system operation, allowing easy installation and maintenance.
The dual-channel configuration enables the system to measure two independent flow points simultaneously or perform comparative flow monitoring across pipeline systems. This capability makes the instrument suitable for applications where multi-point monitoring or verification of flow performance is required.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic Flowmeter |
| Model | TF1100-DC |
| Technology | Transit-Time Ultrasonic |
| Configuration | Dual Channel |
| Installation Type | Wall Mounted |
| Sensor Type | Clamp-On Ultrasonic Sensors |
| Measurement Accuracy | ±1% of reading |
| Repeatability | ±0.2% |
| Velocity Range | 0.01 – 12 m/s |
| Pipe Size Range | DN25 – DN1200 |
| Pipe Materials | Steel, stainless steel, cast iron, PVC, copper and other common pipe materials |
| Liquid Type | Clean liquids |
| Output Signal | 4–20 mA, pulse and relay output |
| Communication | RS485 |
| Power Supply | 85–264 VAC or 24 VDC |
If you require any further information on this listing please contact info@reflowx.com
