- Wall Mounted Transit Time Ultrasonic Flowmeter
Description
Description

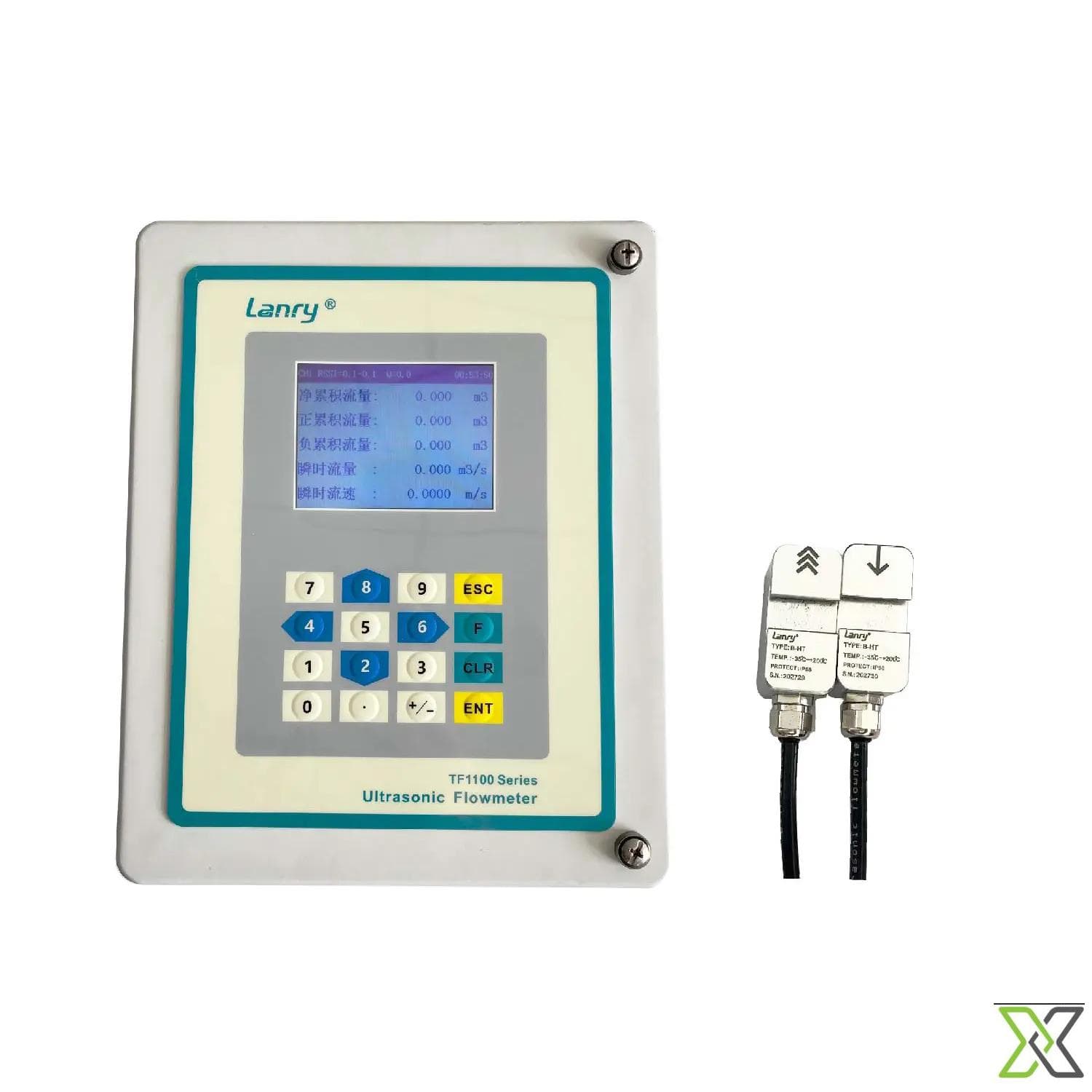

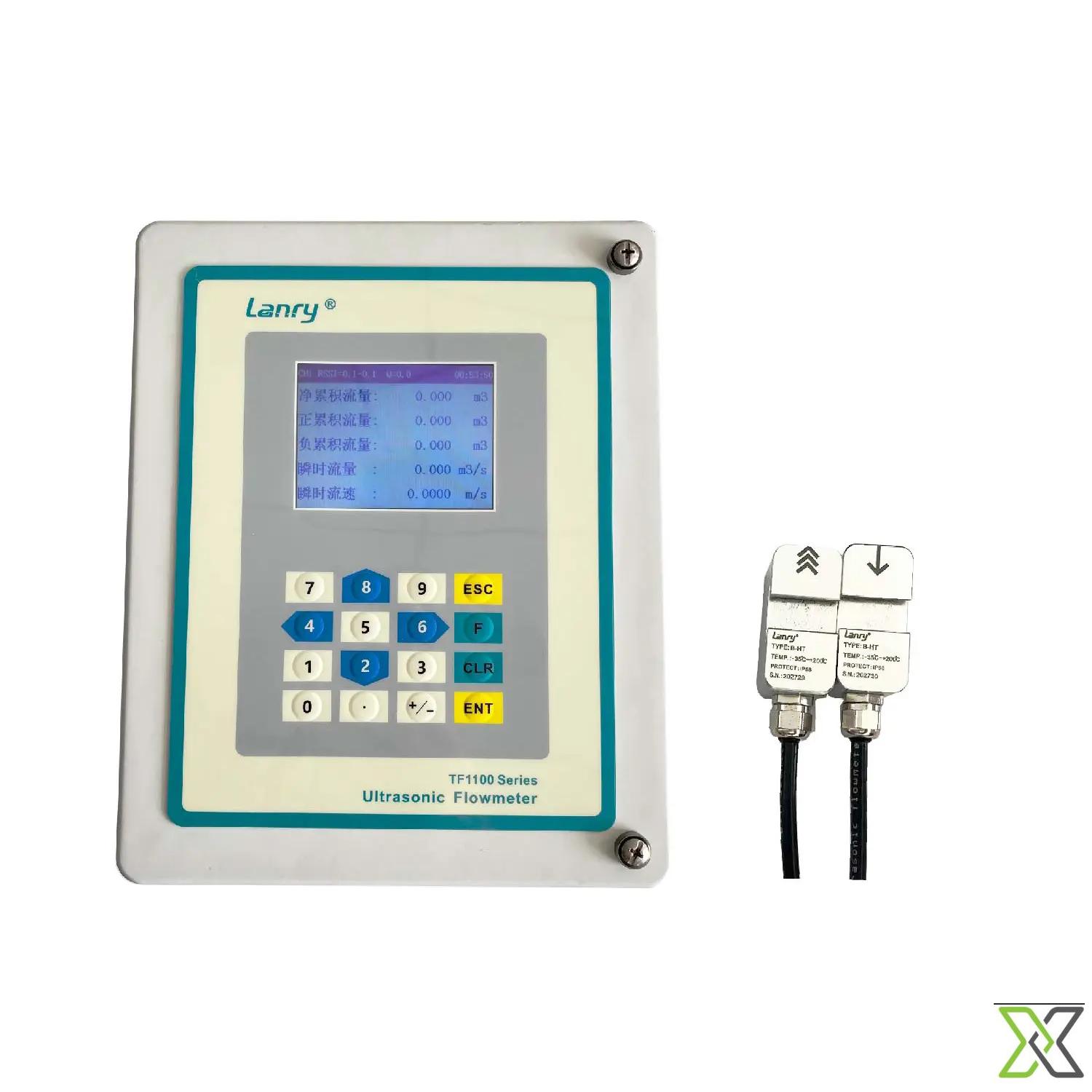

The Wall Mounted Transit-Time Ultrasonic Flowmeter TF1100-EC is designed for accurate and reliable measurement of liquid flow in closed pipeline systems. The instrument uses transit-time ultrasonic technology, transmitting ultrasonic signals between two external sensors mounted on the pipe to determine flow velocity and calculate volumetric flow rate.
The system utilizes clamp-on sensors, allowing non-intrusive installation without cutting the pipeline or interrupting operations. This configuration makes the device suitable for applications where maintaining system integrity and avoiding downtime is important.
The wall mounted configuration provides a fixed installation for continuous monitoring in industrial environments. The flowmeter supports measurement of clean liquids in pipelines and can be used across a wide range of pipe materials and diameters.
Specifications
| Parameter | Details |
|---|---|
| Product Type | Ultrasonic Flowmeter |
| Model | TF1100-EC |
| Technology | Transit-Time Ultrasonic |
| Installation Type | Wall Mounted |
| Sensor Type | Clamp-On Ultrasonic Sensors |
| Measurement Accuracy | ±1% of reading |
| Repeatability | ±0.2% |
| Velocity Range | 0.01 – 12 m/s |
| Pipe Size Range | DN25 – DN1200 |
| Pipe Materials | Steel, stainless steel, cast iron, PVC, copper and other common pipe materials |
| Liquid Type | Clean liquids |
| Output Signal | 4–20 mA, pulse and relay output |
| Communication | RS485 |
| Power Supply | 85–264 VAC or 24 VDC |
If you require any further information on this listing please contact info@reflowx.com
