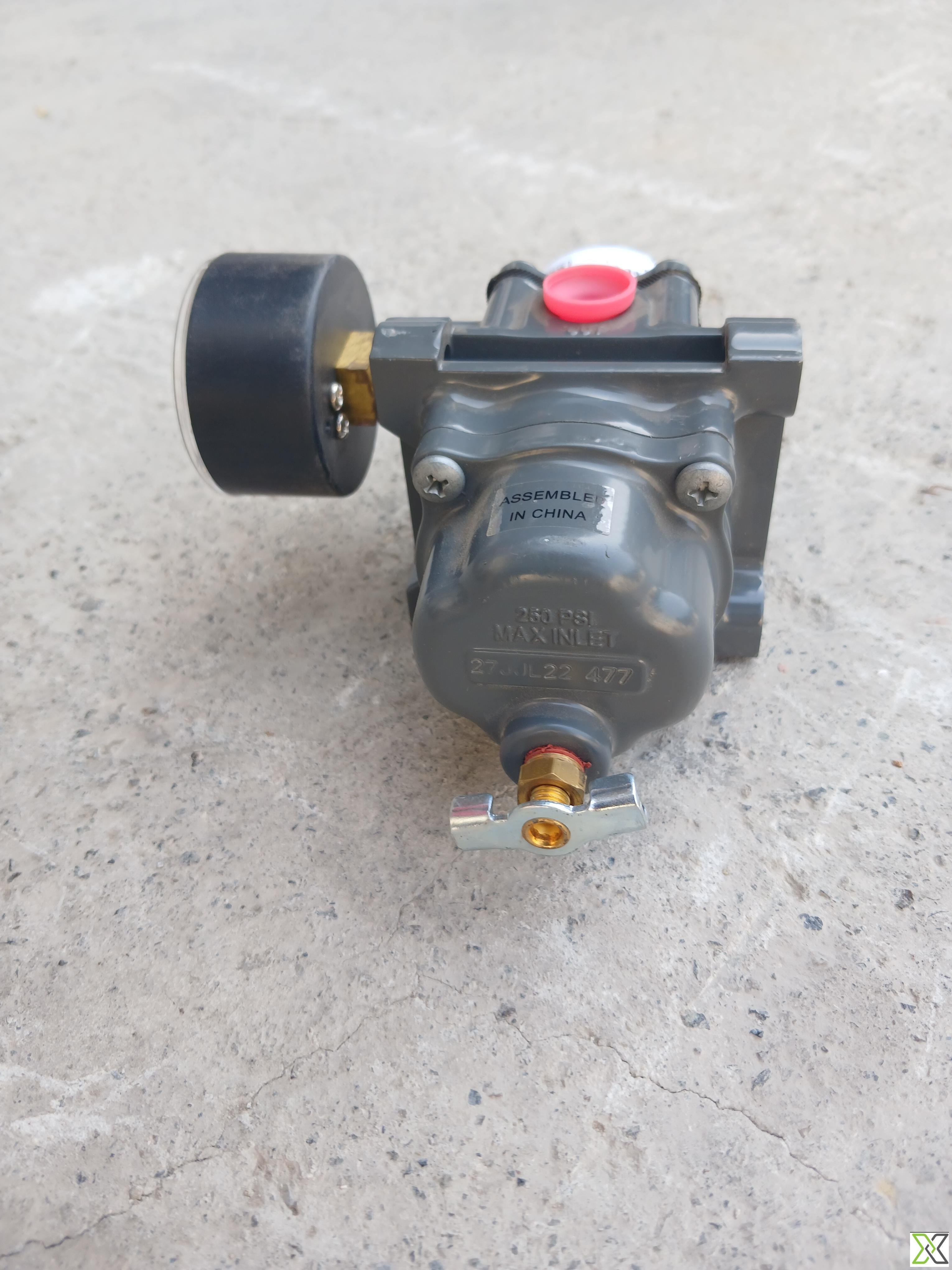

Fisher Type 67CFR Pressure Regulator – 1/4” NPT – 0-125 PSI – With Gauge – Model 477

The Fisher Type 67CFR is a compact pressure-reducing regulator designed for general-purpose air and gas service. This model features a 1/4” NPT inlet/outlet configuration and includes an integrated pressure gauge for real-time outlet pressure monitoring. The spring range supports outlet pressure adjustment from 0 to 125 PSI. Built with durable materials and a corrosion-resistant body, the unit also includes a manual drain and is assembled in China. The regulator is ideal for pneumatic instruments and industrial automation requiring stable downstream pressure.

Specifications:

Manufacturer: Fisher

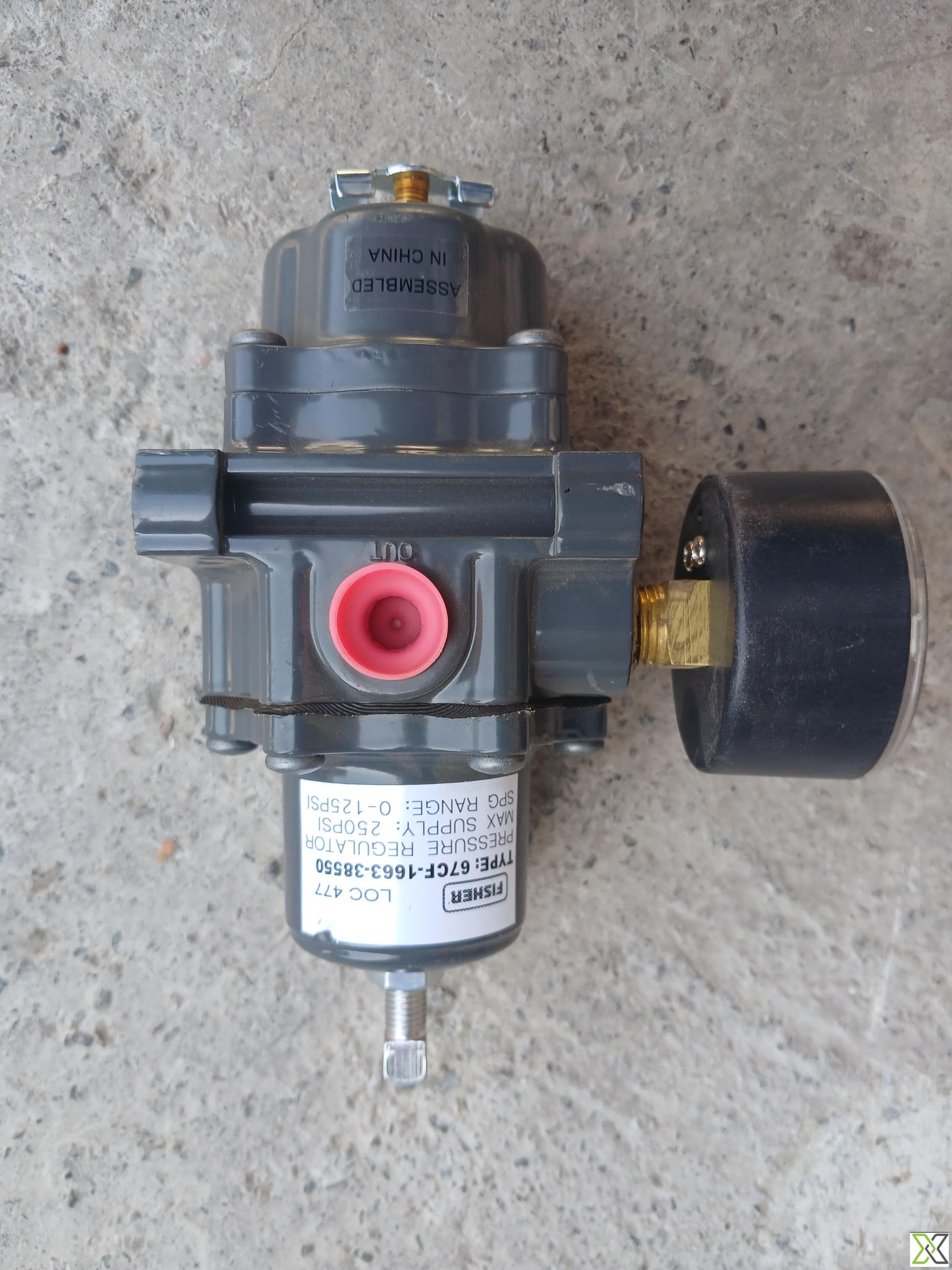

Model: 67CFR-1663-38560

Body Size: 1/4" NPT

Type: Air/Gas Pressure Regulator

Max Supply Pressure: 250 PSI

Set Pressure Range: 0–125 PSI

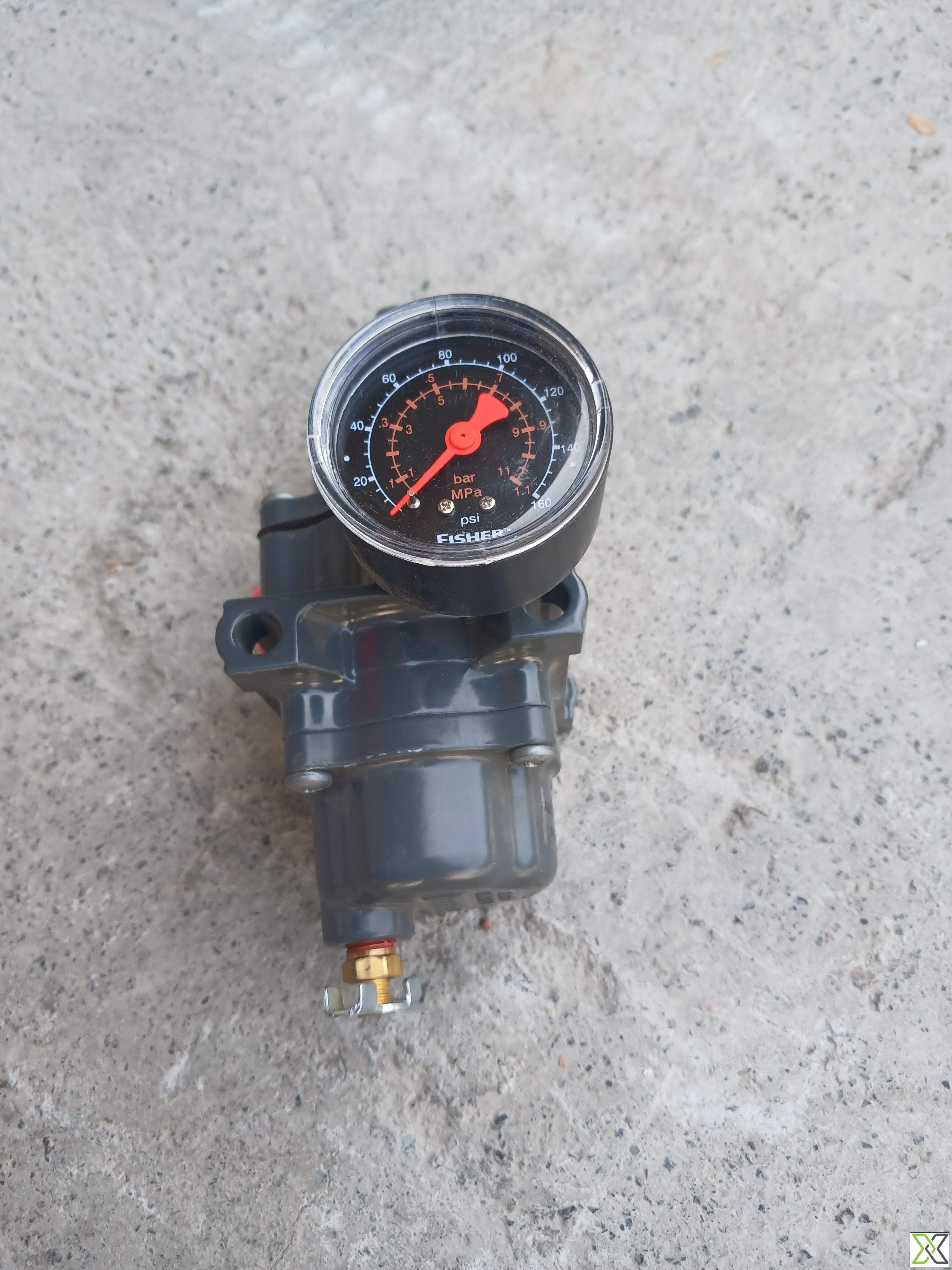

Pressure Gauge: Included (dual scale PSI/bar)

Gauge Reading Range: 0–160 PSI / 0–11 bar / 0–1.0 MPa

Assembly Origin: Assembled in China

Drain Type: Manual

Material: High-durability composite/plastic body

Gauge Face: Black with red needle

Weight: Approx. 0.9 kg

Mounting: Inline or bracket mountable
