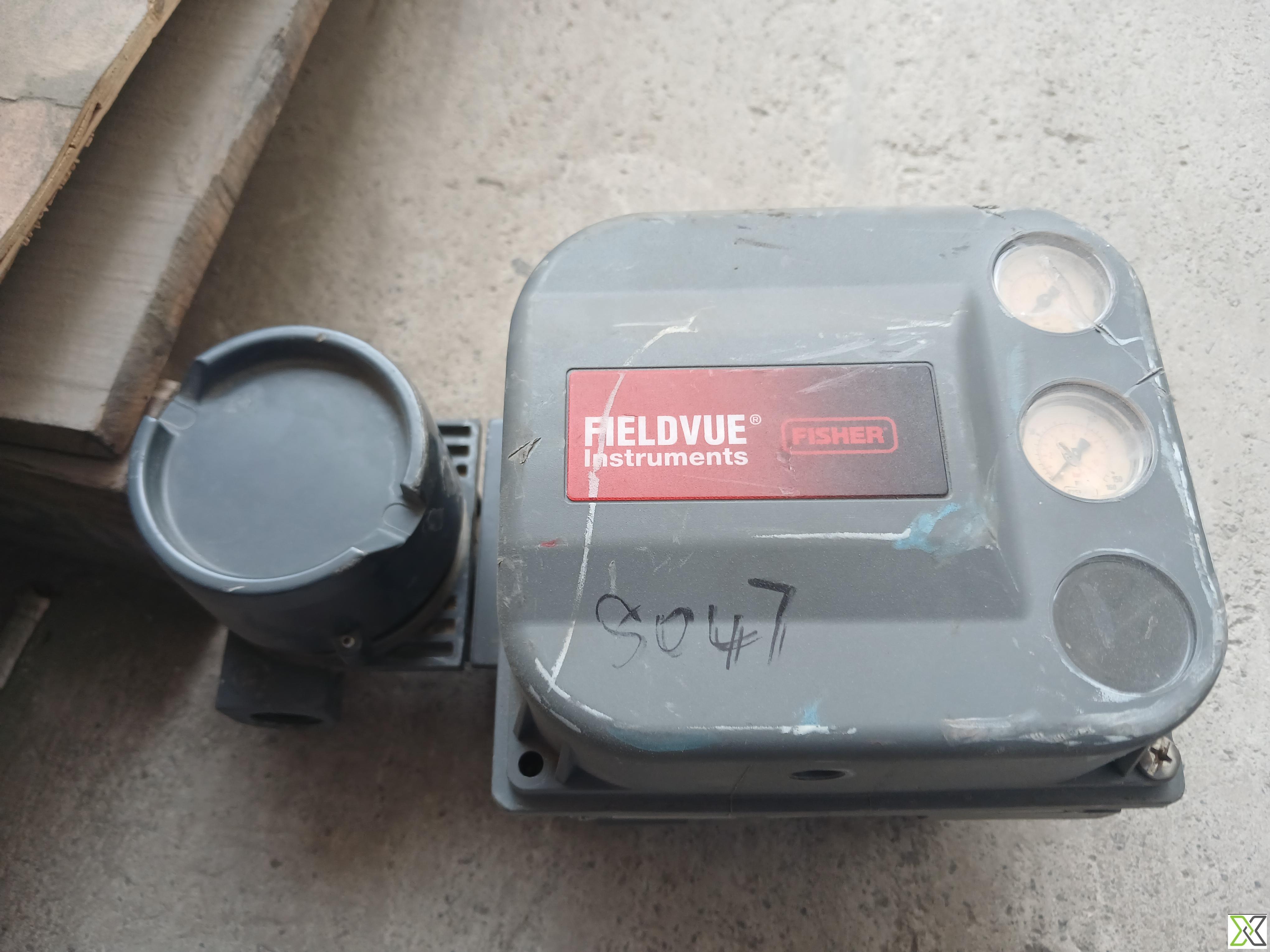

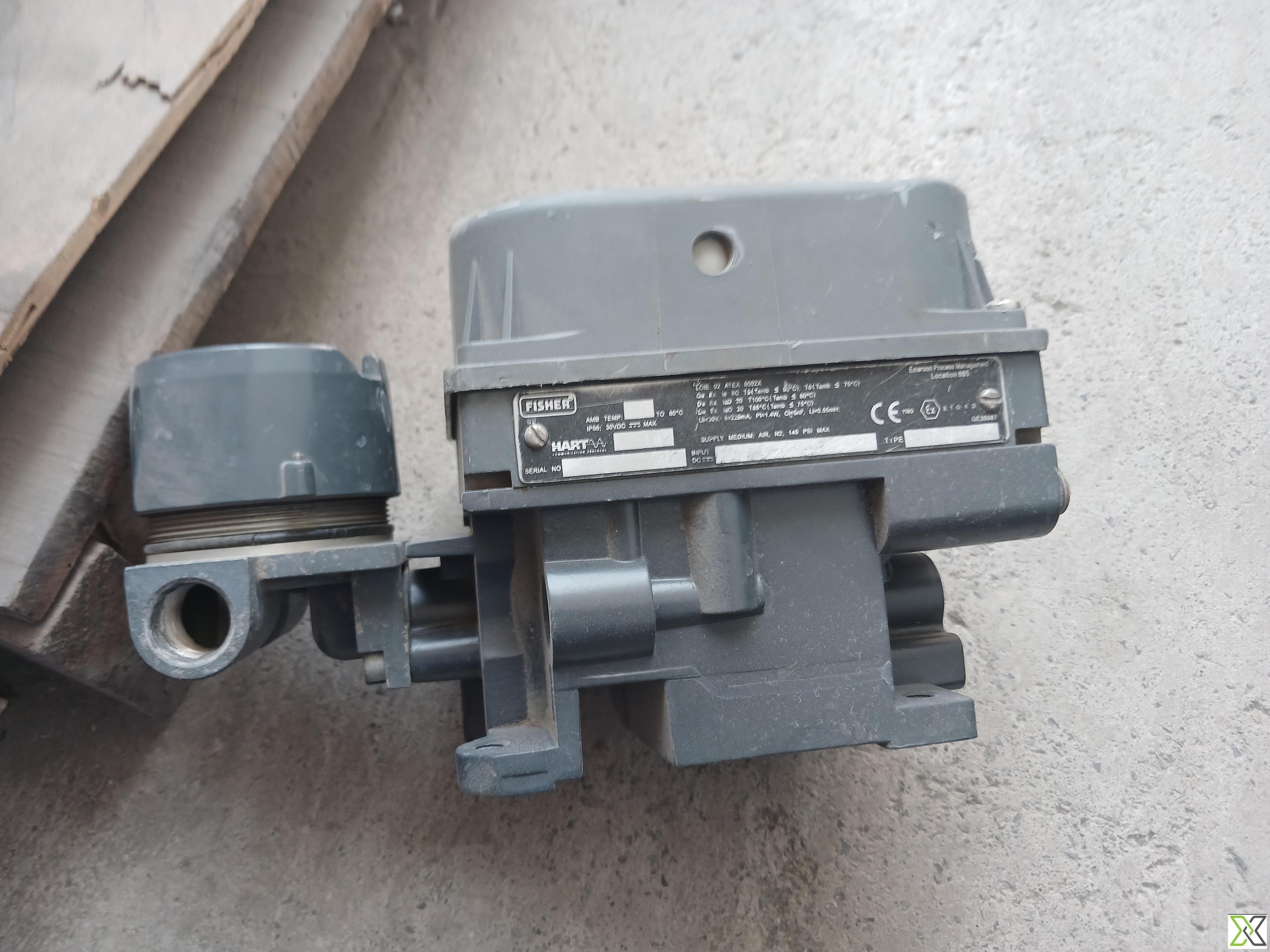

Fisher FIELDVUE® DVC6000 Series Digital Valve Controller

The Fisher FIELDVUE® DVC6000 Series is a digital valve controller designed for high-accuracy positioning and performance monitoring of pneumatic control valves. Manufactured by Emerson Process Management, this FIELDVUE® instrument integrates seamlessly with control systems and is commonly used in process industries such as oil & gas, refining, chemical, and power generation.

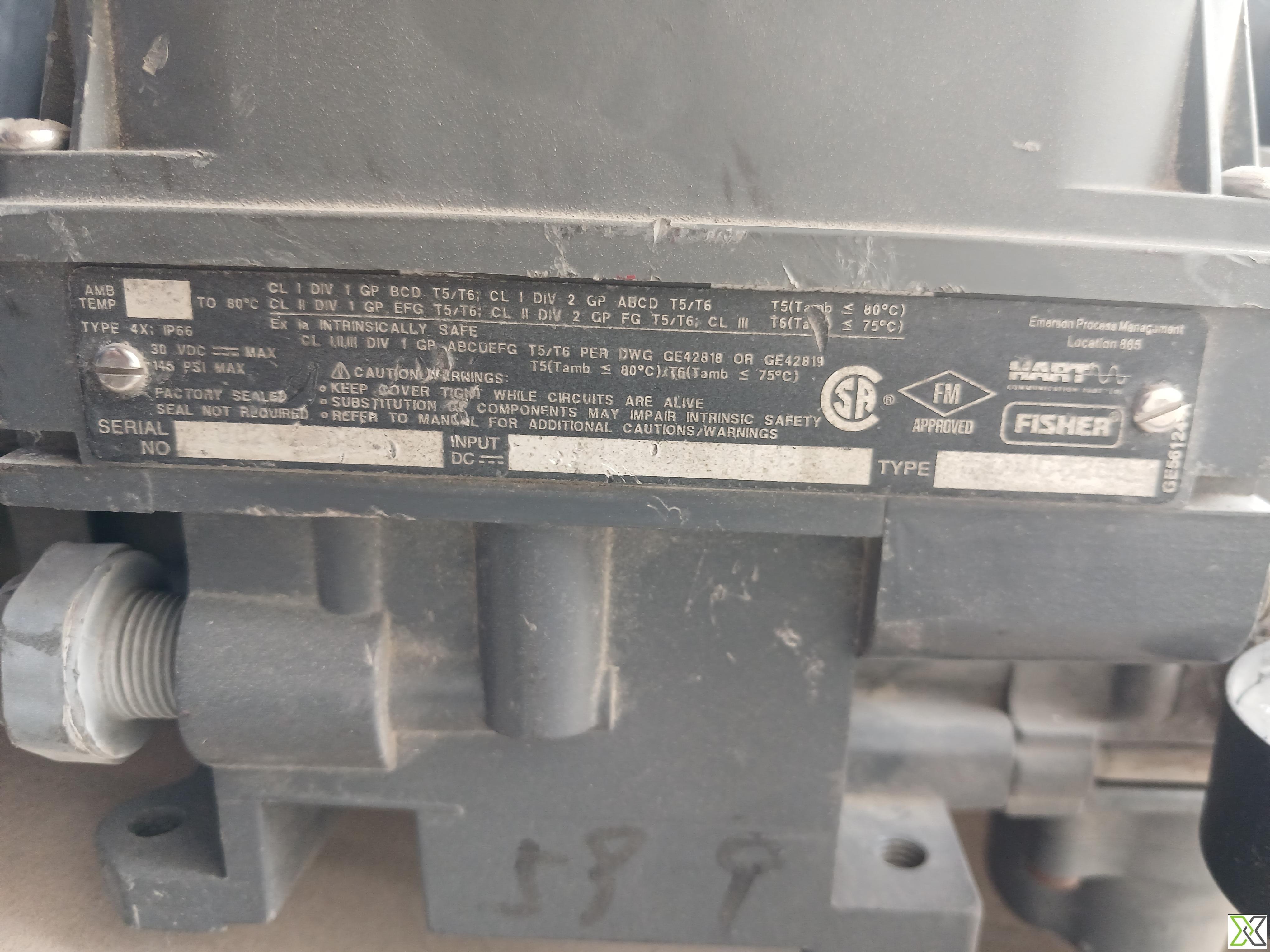

This model features an intrinsically safe design (Ex ia IIC) and is certified by FM, CSA, and CE standards, making it ideal for installation in hazardous areas. With an IP66 rating, the unit is protected against dust ingress and high-pressure water jets, ensuring dependable operation in outdoor or demanding plant environments.

The controller accepts a maximum input voltage of 30 VDC and is designed to operate in ambient temperatures up to 80°C. Its factory-sealed construction ensures simplified installation without the need for additional sealing components. The device supports real-time valve diagnostics and predictive maintenance via digital communications, enhancing process reliability and performance.

Specifications:

– Manufacturer: Fisher (Emerson Process Management)
– Series: FIELDVUE® Instruments
– Model Type: DVC6000 Series (typical based on label)
– Input Voltage: 30 VDC Max
– Intrinsic Safety Rating: Ex ia IIC (Intrinsically Safe)
– Certification Standards: FM, CSA, CE
– Enclosure Protection: IP66 (Dust tight, protected against powerful water jets)
– Factory Sealed: Yes (no external sealing required)
– Maximum Operating Pressure: 145 PSI
– Ambient Temperature Range: Up to 80°C
– Valve Compatibility: Pneumatic control valves
– Mounting: Valve-mounted (typical for DVC6000 series)
– Diagnostic Capabilities: Real-time valve health and position feedback
– Communication Protocol: HART (typical for DVC6000 series)
– Construction: Industrial-grade corrosion-resistant housing
– Availability: 1 unit in stock or per inquiry

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
