- Boge S 75 2 Rotary Screw Air Compressor – 55 kW
Description

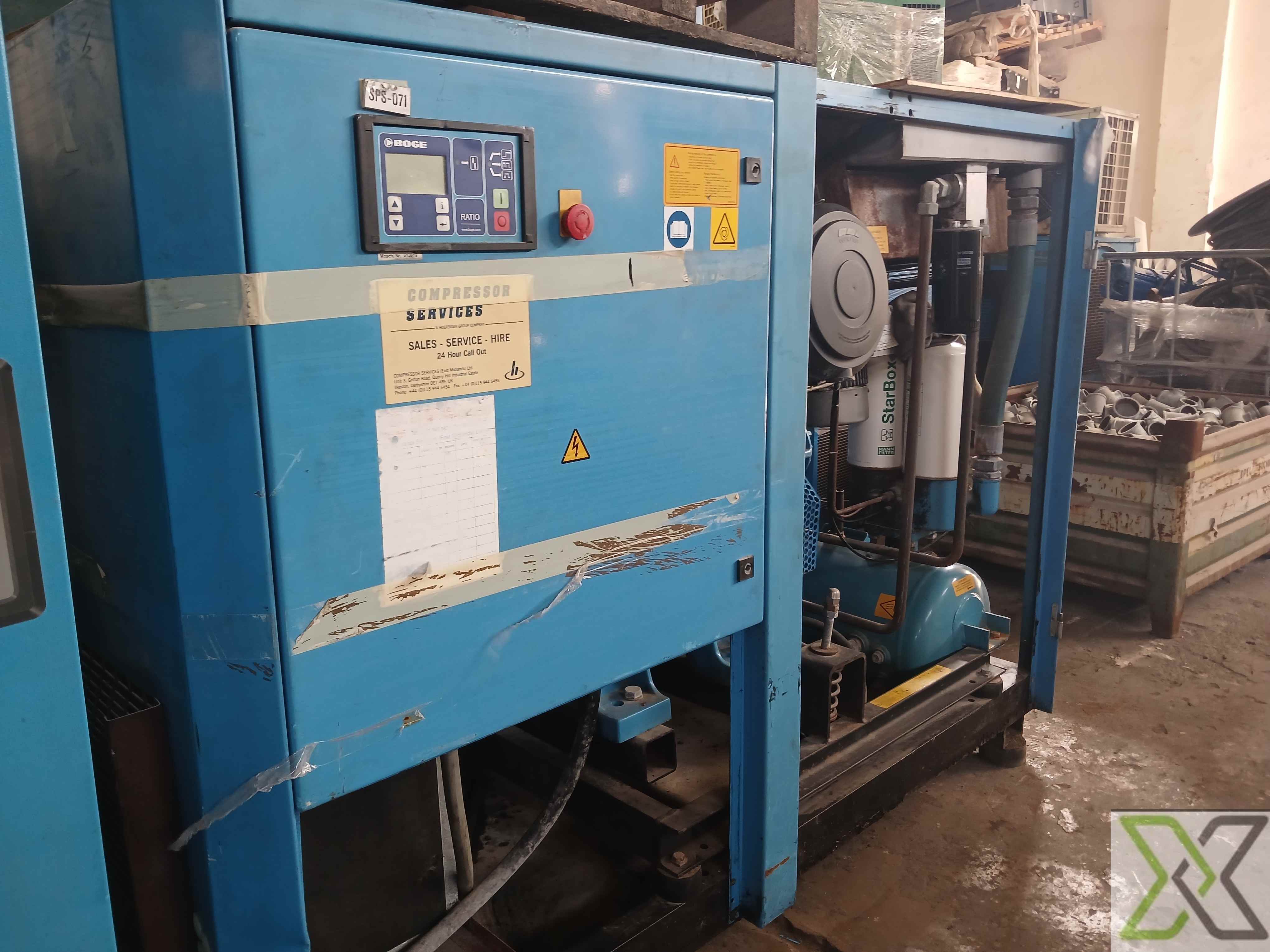

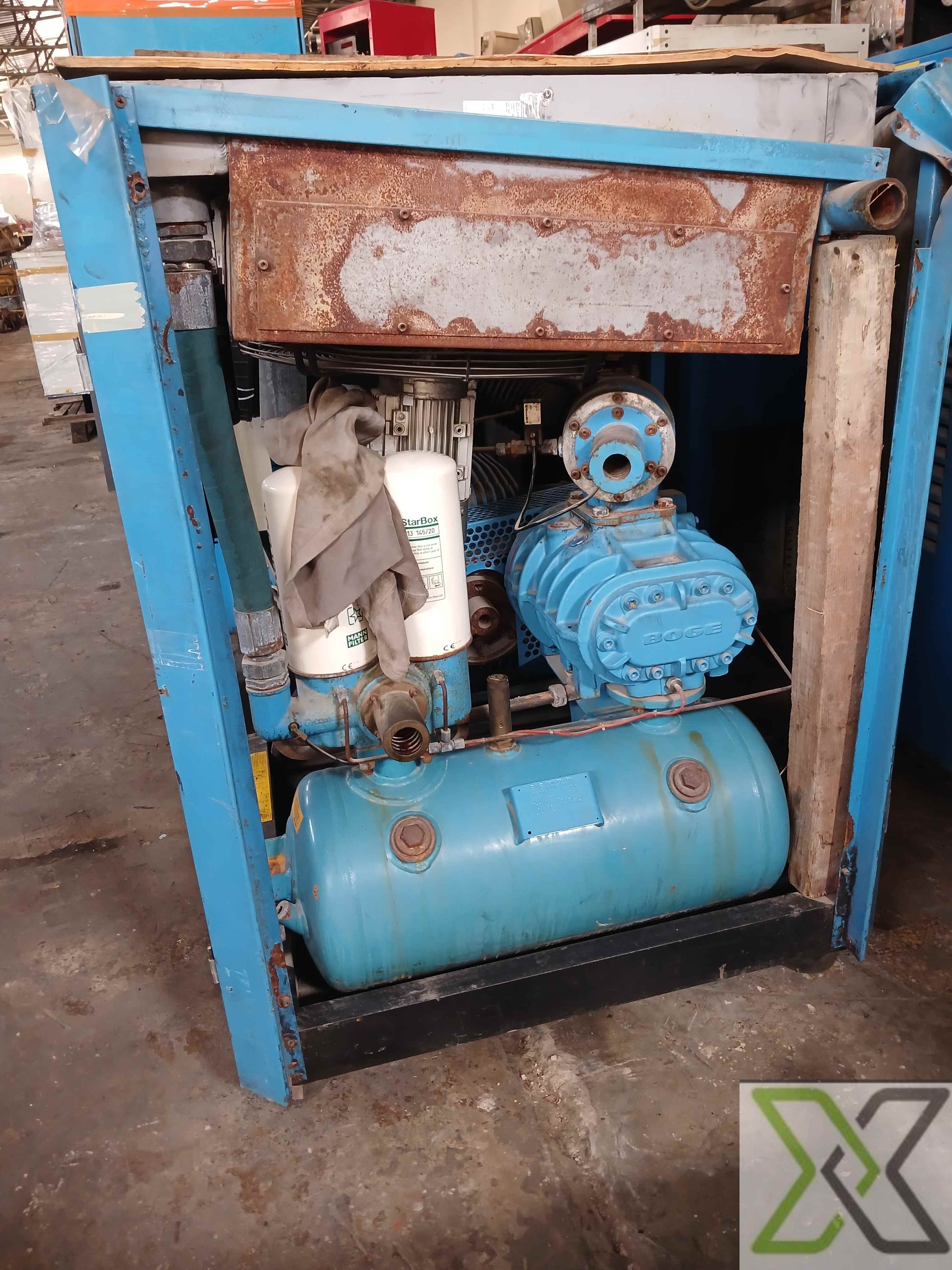

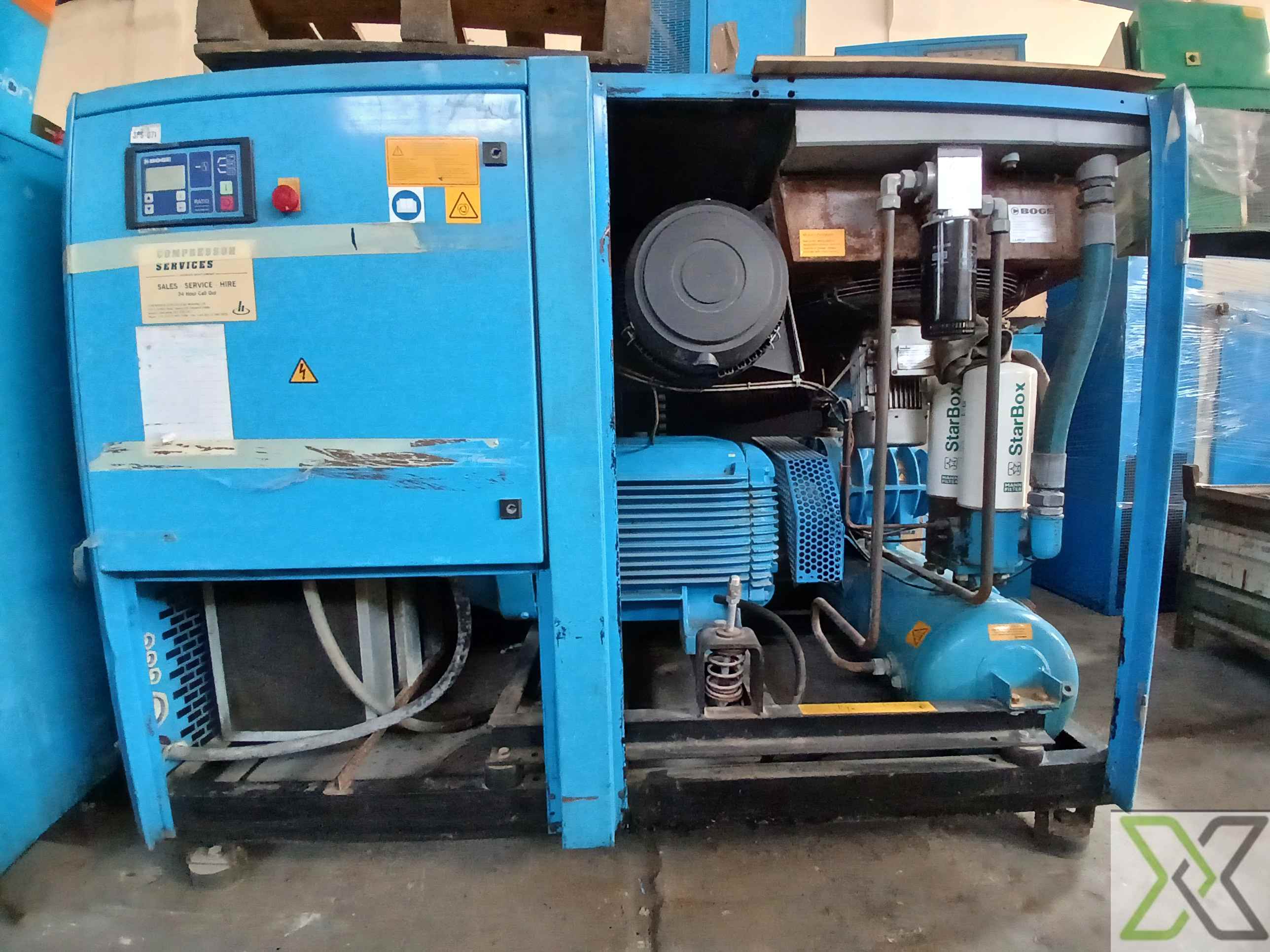

Boge S 75-2 Rotary Screw Air Compressor – 55 kW
The Boge S 75-2 is a high-performance rotary screw air compressor, engineered for reliable and efficient compressed air delivery in industrial settings. Manufactured in 2005, it features a main motor rated at 55 kW and an additional auxiliary motor of 2.2 kW, operating at a speed of 3000 RPM. It delivers a maximum free air delivery (FAD) of 9.33 m³/min at a maximum pressure of 8 bar, making it suitable for a wide range of manufacturing and processing applications.
While the cooling system and drive type are not explicitly mentioned, the S series from Boge typically uses an oil-lubricated, air-cooled, and direct or belt-driven system. The assumed voltage rating is 400V with a frequency of 50 Hz, which is standard for industrial power supplies in Europe and other regions.
The ingress protection is typically IP54 or IP55, and the motor is built with Class F insulation, supporting operation in ambient temperatures of -10°C to +40°C, and altitudes up to 1000 meters above sea level. The sound level is generally within 65–75 dB(A), depending on enclosure design.
Specifications:

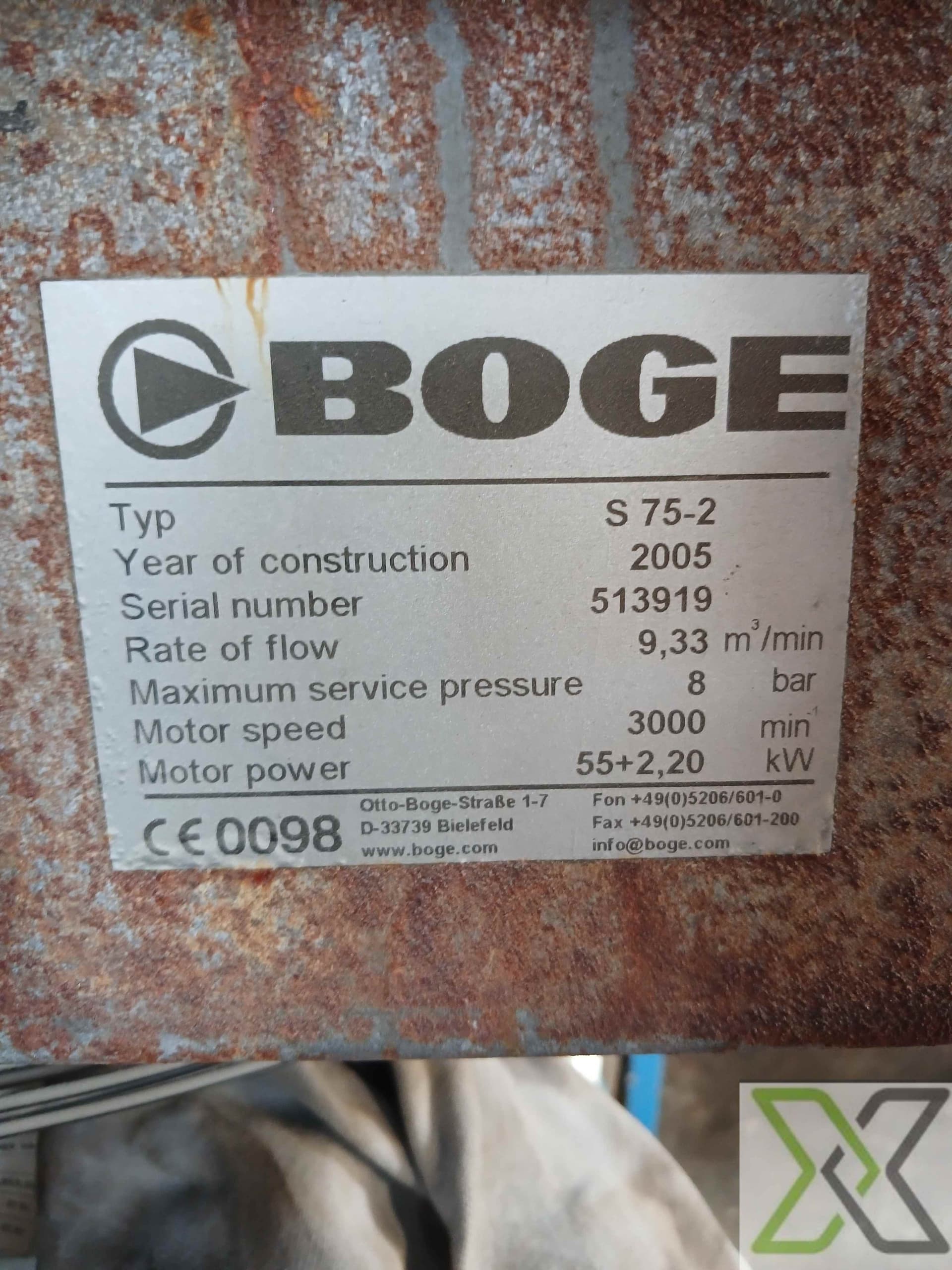

– Manufacturer: Boge (Germany)
– Model: S 75-2
– Type: Rotary Screw Air Compressor
– Year of Manufacture: 2005
– Serial Number: 513919
– Free Air Delivery (FAD): 9.33 m³/min
– Maximum Operating Pressure: 8 bar
– Main Motor Power Output: 55 kW
– Auxiliary Motor Output: 2.2 kW
– Motor Speed: 3000 RPM
– Cooling Method: Not specified (typically Air-Cooled)
– Lubrication Type: Not specified (typically Oil-Lubricated)
– Drive Type: Not specified (typically Direct Drive or Belt Drive)
– Voltage Rating: Not specified (typically 400V, 3-phase)
– Frequency: Not specified (typically 50 Hz)
– Insulation Class: Assumed Class F
– Ingress Protection: Assumed IP54 or IP55
– Noise Level: Typically 65–75 dB(A)
– Ambient Temperature Range: Typically -10°C to +40°C
– Altitude Limit: ≤1000 m above sea level
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Model Number | S 75-2 |
|---|---|
| Model Number | S 75-2 |
| Color | Blue |
| ISO 15926 Pt 4 | 7459 |
| PCA RDS Code | RDS14286497 |
| CFIHOS ID | CFIHOS-30000524 |
| Direction of Rotation | Clockwise |
| IFC Class | IfcCompressor |
| Fluid Name | Compressed Air |
| Explosion Protection Gas Group | Not applicable |
| Explosion Protection Temperature Class | Not applicable |
| Explosion Protection Zone | Not applicable |
| Test Medium | Air |
| Test Pressure | ~10.4 bar |
| Insulation Class | Class F |
| UNSPSC Code | 40151600 |
| Compressibility Factor Z at Inlet | Approx. 1.0 |
| Molecular Weight | 28.97 g/mol (air) |
| Upper Limit Allowable Speed | 3000 RPM |
| Lower Limit Design Outlet Temperature | Approx. +5°C |
| Lower Limit Operating Suction Pressure | non-vacuum type |
| Upper Limit Design Outlet Temperature | 80–100°C |
| Specific Heat Ratio Cp/Cv at Inlet | 1.4 (for dry air at room temperature) |
