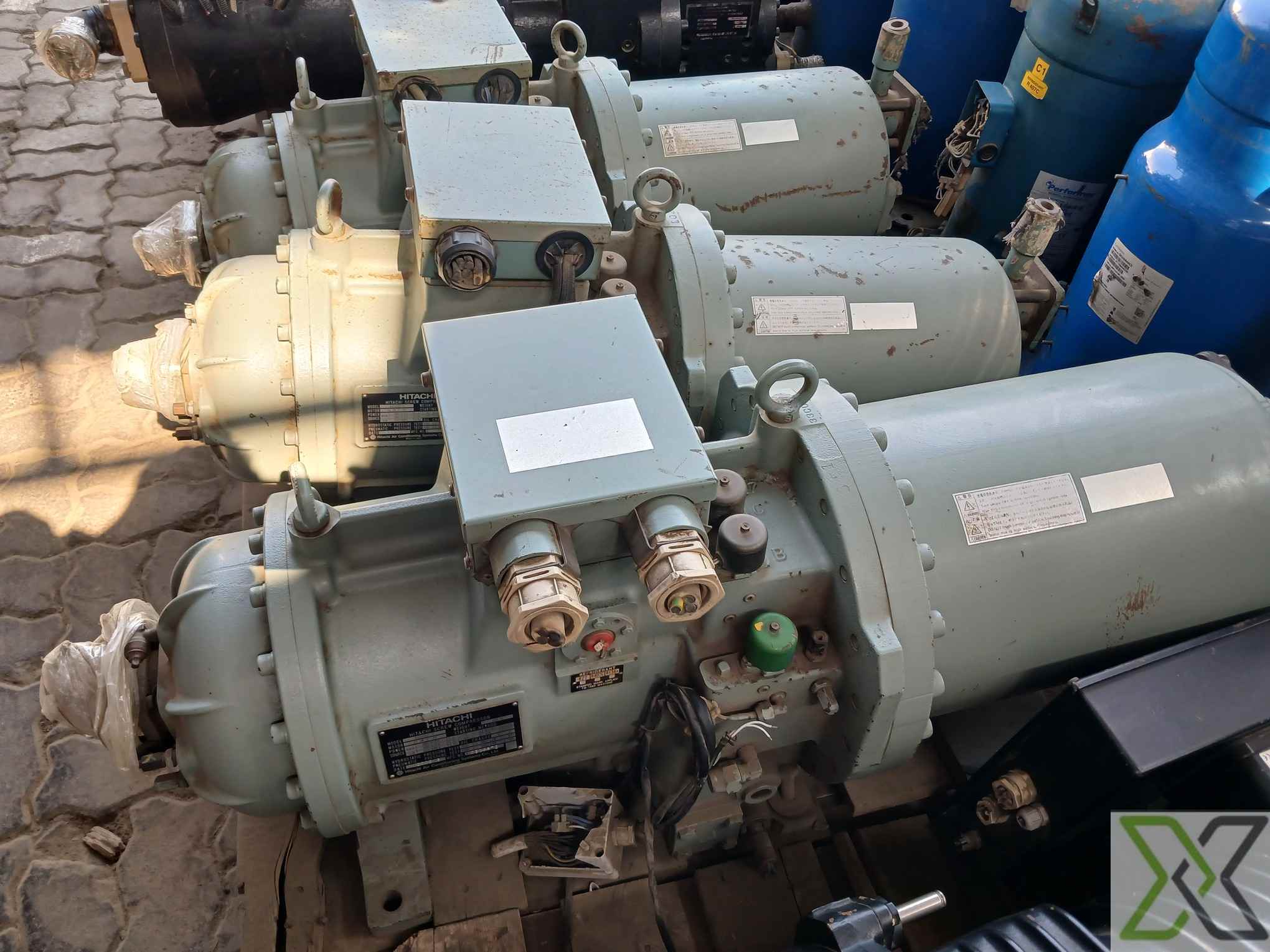

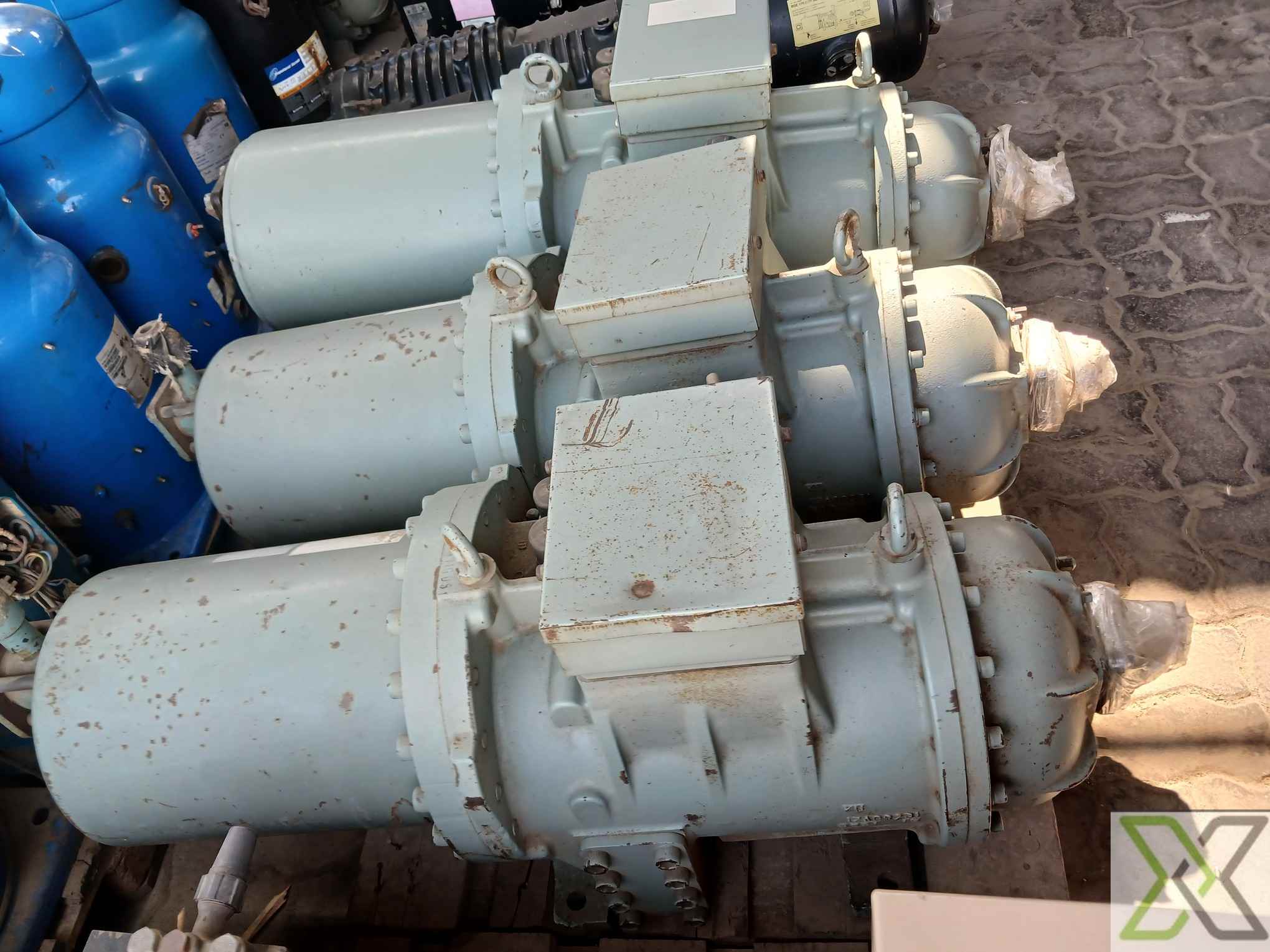

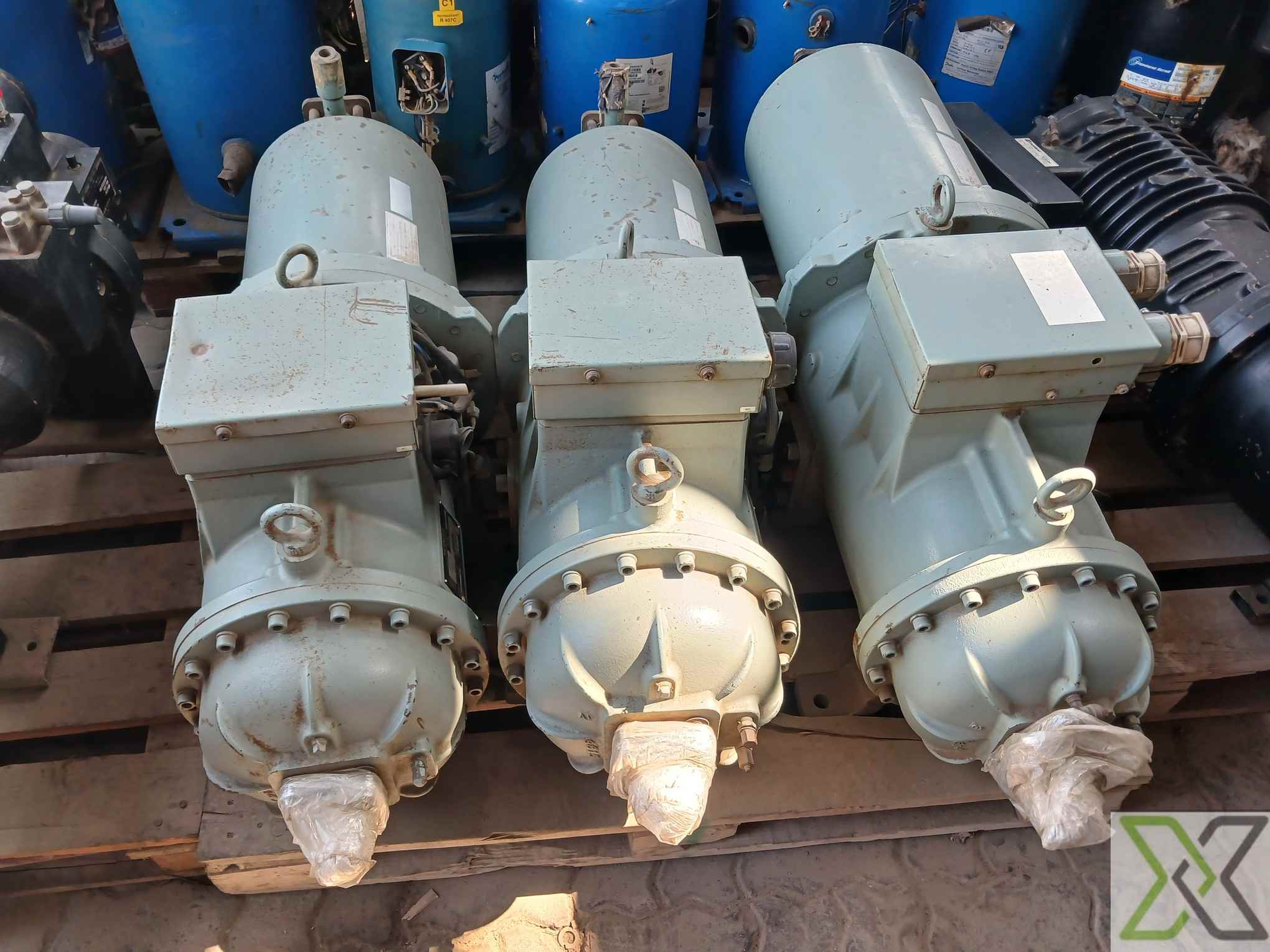

Hitachi Screw Compressor - 4005SC-H

ReflowX SKU: REF-8493

Product Details

Quantity

3
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition
OEM

ReflowX
Equipment code

CFIHOS-30000524

Get Quotation Whatsapp

Description

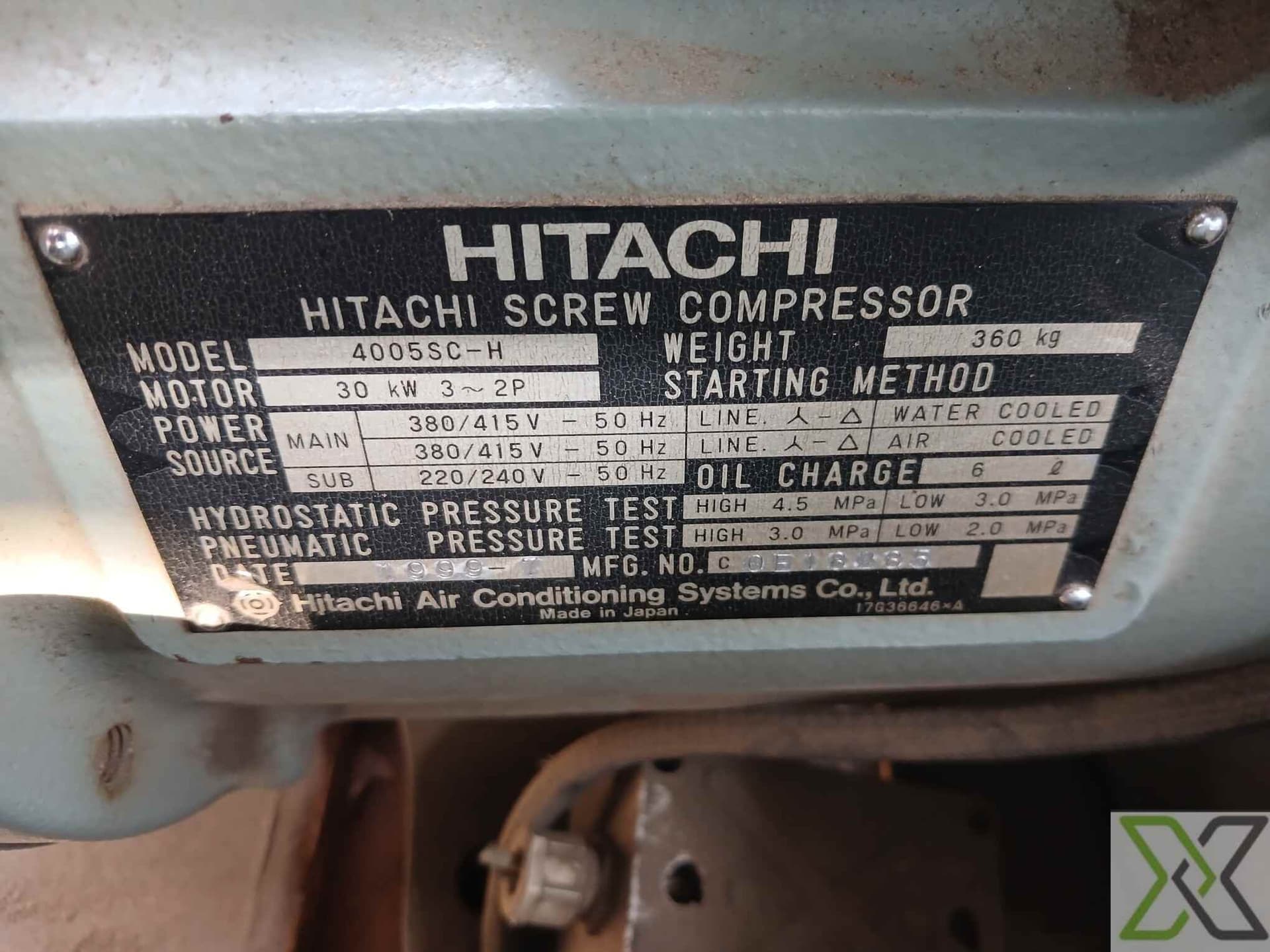

Hitachi 4005SC-H – Full Technical Specifications

General Information

Manufacturer: Hitachi Air Conditioning Systems Co., Ltd.

Model: 4005SC-H

Origin: Japan

Electrical Specifications

Motor Power: 30 kW

Phase: 3-Phase

Main Power Source: 380V / 415V – 50Hz

Sub Power Source: 220V / 240V – 50Hz

Starting Method: Line Start

Cooling & Lubrication

Cooling Type: Water & Air Cooled

Oil Charge Capacity: 6 Liters

Pressure Testing & Safety

Hydrostatic Test Pressure:

High Side: 4.5 MPa

Low Side: 3.0 MPa

Pneumatic Test Pressure:

High Side: 3.0 MPa

Low Side: 2.0 MPa

Physical Attributes

Weight: 360 kg

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	4005SC-H
Model Number	4005SC-H
ISO 15926 Pt 4	7459
PCA RDS Code	RDS14286497
CFIHOS ID	CFIHOS-30000524
Direction of Rotation	Clockwise
IFC Class	IfcCompressor
Fluid Name	Refrigerant
Test Medium	Water
Insulation Class	Class F
UNSPSC Code	40151600
Compressibility Factor Z at Inlet	~0.98
Molecular Weight	R134a: 102.03 g/mol
Upper Limit Allowable Speed	3600 RPM
Lower Limit Design Outlet Temperature	15°C
Lower Limit Operating Suction Pressure	0.2 MPa
Upper Limit Design Outlet Temperature	80–90°C
Specific Heat Ratio Cp/Cv at Inlet	R134a: ~1.12
