Kaeser CSG 90-2 SFC W Oil-Free Screw Compressor – Water-Cooled

ReflowX SKU: REF-1801

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Kaeser Kompressoren AG
Equipment code

CFIHOS-30000524

Get Quotation Whatsapp

Short Description

Premium oil-free rotary screw compressor by Kaeser, model CSG 90-2 SFC W, featuring 55.0 kW motor power, 10 bar pressure, and integrated speed control for energy-efficient air delivery.

Description

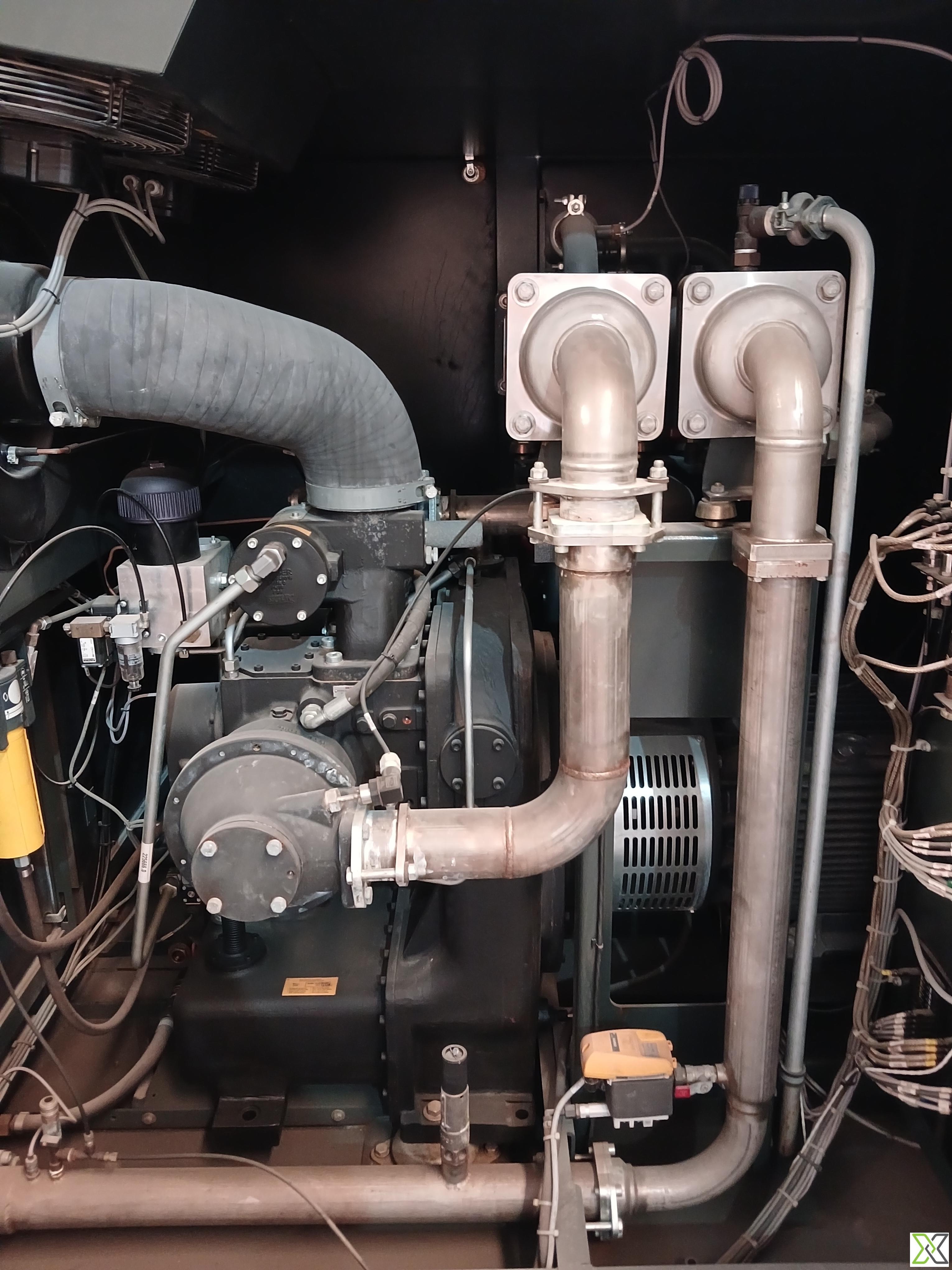

Kaeser CSG 90-2 SFC W Oil-Free Screw Compressor – Water-Cooled

The Kaeser CSG 90-2 SFC W is a high-performance, oil-free rotary screw compressor designed for demanding industrial and clean air applications. Manufactured by Kaeser Kompressoren AG in 2013, this model delivers reliable compressed air at a maximum pressure of 10.0 bar using a 55.0 kW drive motor operating at 2965 RPM. It features a water-cooled design to maintain optimal thermal efficiency and is fitted with SFC (Sigma Frequency Control) variable-speed drive technology for precise and energy-efficient performance. Operating at a supply voltage of 400V (3-phase, 50Hz), and control voltage of 230V (1-phase, 50Hz), the unit draws a rated current of 130 A. The model includes factory-installed options K11 and C3, enhancing its customization and operational flexibility. Ideal for industries requiring clean, oil-free air, including food & beverage, electronics, and pharmaceuticals.

Specifications:

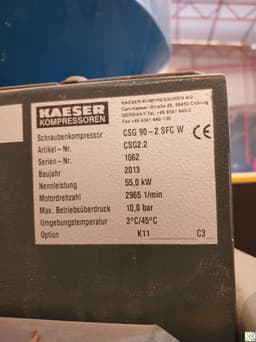

– Brand: Kaeser Kompressoren AG
– Compressor Model: CSG 90-2 SFC W
– Article Number: CSG2.2
– Serial Number: 1062
– Year of Manufacture: 2013
– Rated Power: 55.0 kW
– Motor Speed: 2965 RPM
– Maximum Operating Pressure: 10.0 bar
– Rated Current: 130 A
– Ambient Temperature Range: 3°C to 45°C
– Rated Voltage (Main Supply): 400V / 3Ph / 50Hz
– Control Voltage: 230V / 1Ph / 50Hz
– Electrical Diagram Reference: SCSG.F–03009.01
– Options Installed: K11, C3
– Cooling Type: Water-Cooled
– Compressor Type: Oil-Free Rotary Screw
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	CSG 90-2 SFC W
Year of Manufacturing	2013
Model Number	CSG 90-2 SFC W
Year of Manufacturing	2013
ISO 15926 Pt 4	7459
PCA RDS Code	RDS14286497
CFIHOS ID	CFIHOS-30000524
Direction of Rotation	Counterclockwise
IFC Class	IfcCompressor
Fluid Name	Air
Test Medium	Air
Test Pressure	10 bar
Insulation Class	Class F
UNSPSC Code	40151600
Molecular Weight	28.97 g
Upper Limit Allowable Speed	2965 RPM
Specific Heat Ratio Cp/Cv at Inlet	1.4
