ALUP EK 051522 Piston-Type Air Compressor Unit – 16 bar

ReflowX SKU: REF-3347

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

ALUP Kompressoren GmbH
Equipment code

CFIHOS-30000524

Get Quotation Whatsapp

Short Description

Robust 1993 ALUP piston-type air compressor unit rated for 16 bar, featuring a 350-liter receiver and a 9.0 kW ABM motor. Suitable for continuous-duty operation in industrial environments.

Description

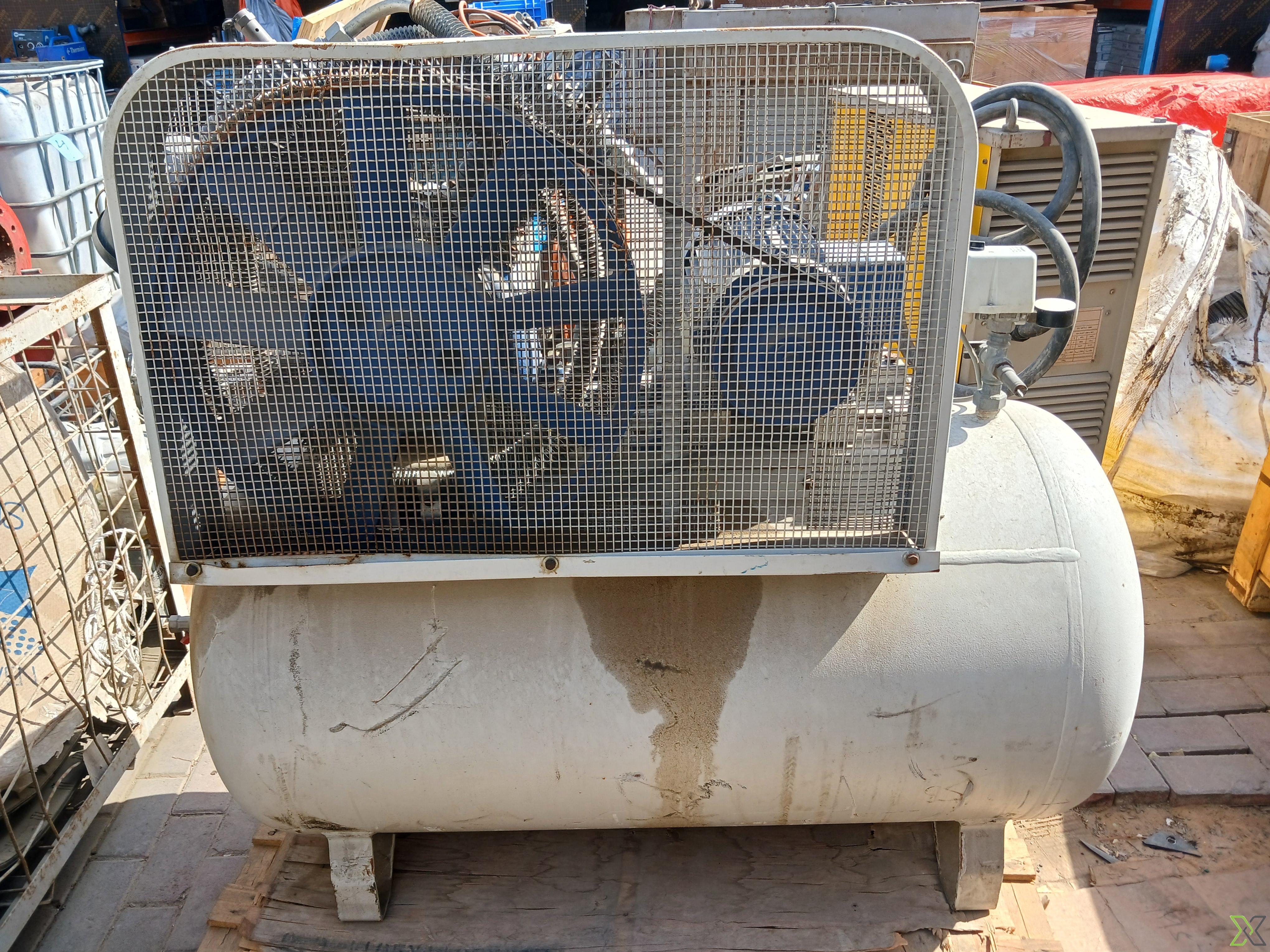

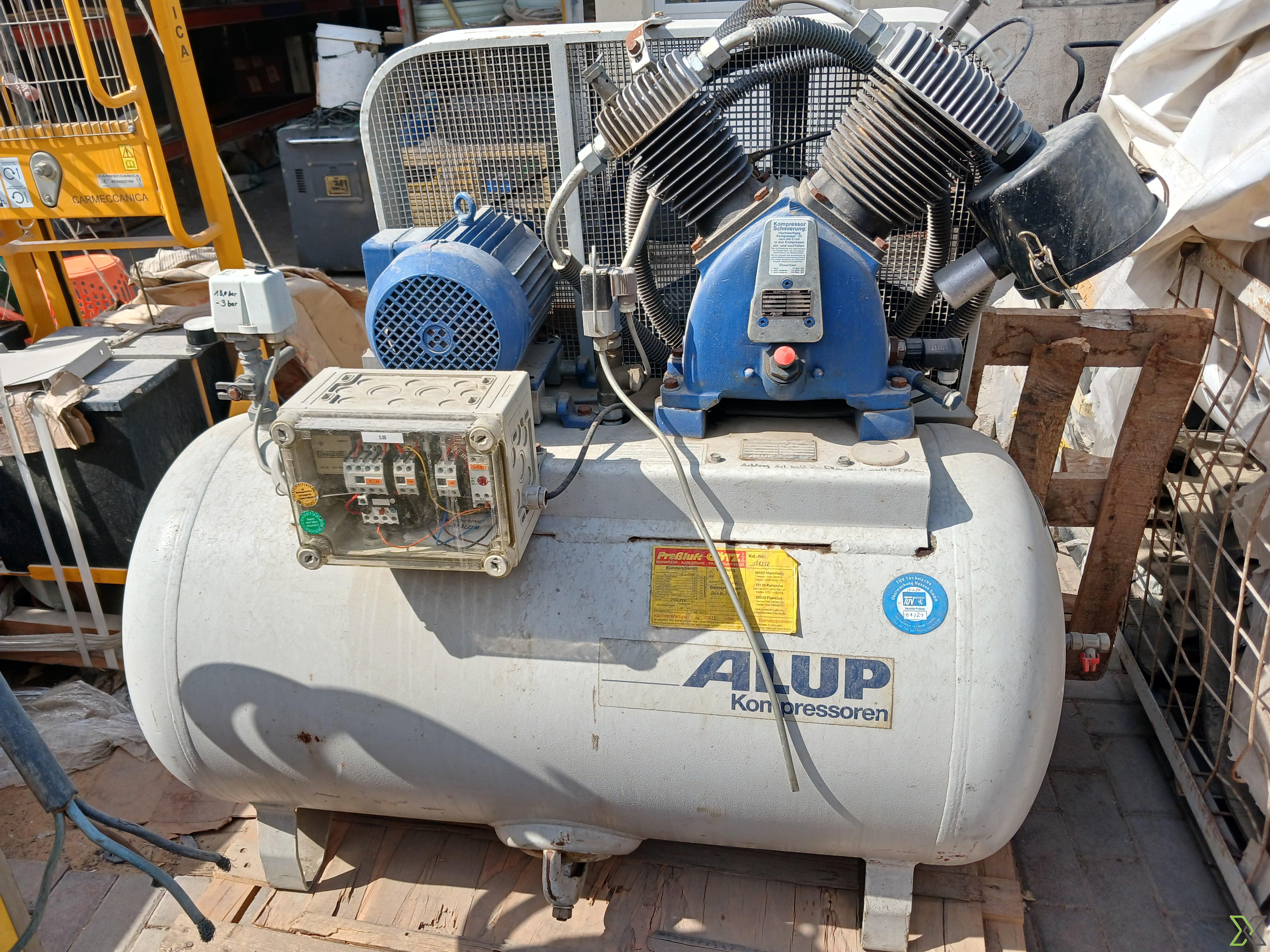

ALUP EK 051522 Piston-Type Air Compressor Unit – 16 bar

The ALUP EK 051522 is a heavy-duty piston-type air compressor unit designed for reliable performance in high-pressure applications. Manufactured in 1993 by ALUP Kompressoren GmbH, the unit is CE-marked and equipped with a 350-liter air receiver and a rated pressure of 16 bar, making it suitable for medium to heavy industrial air systems.

This compressor operates within a wide temperature range from -10°C to +50°C and is powered by a robust 9.0 kW motor supplied by ABM Greiffenberger Antriebstechnik GmbH (Germany). The motor runs at 2850 RPM, operates at 380V/50Hz, and is designed for continuous-duty operation (S1) with IP54 protection and F-class insulation.

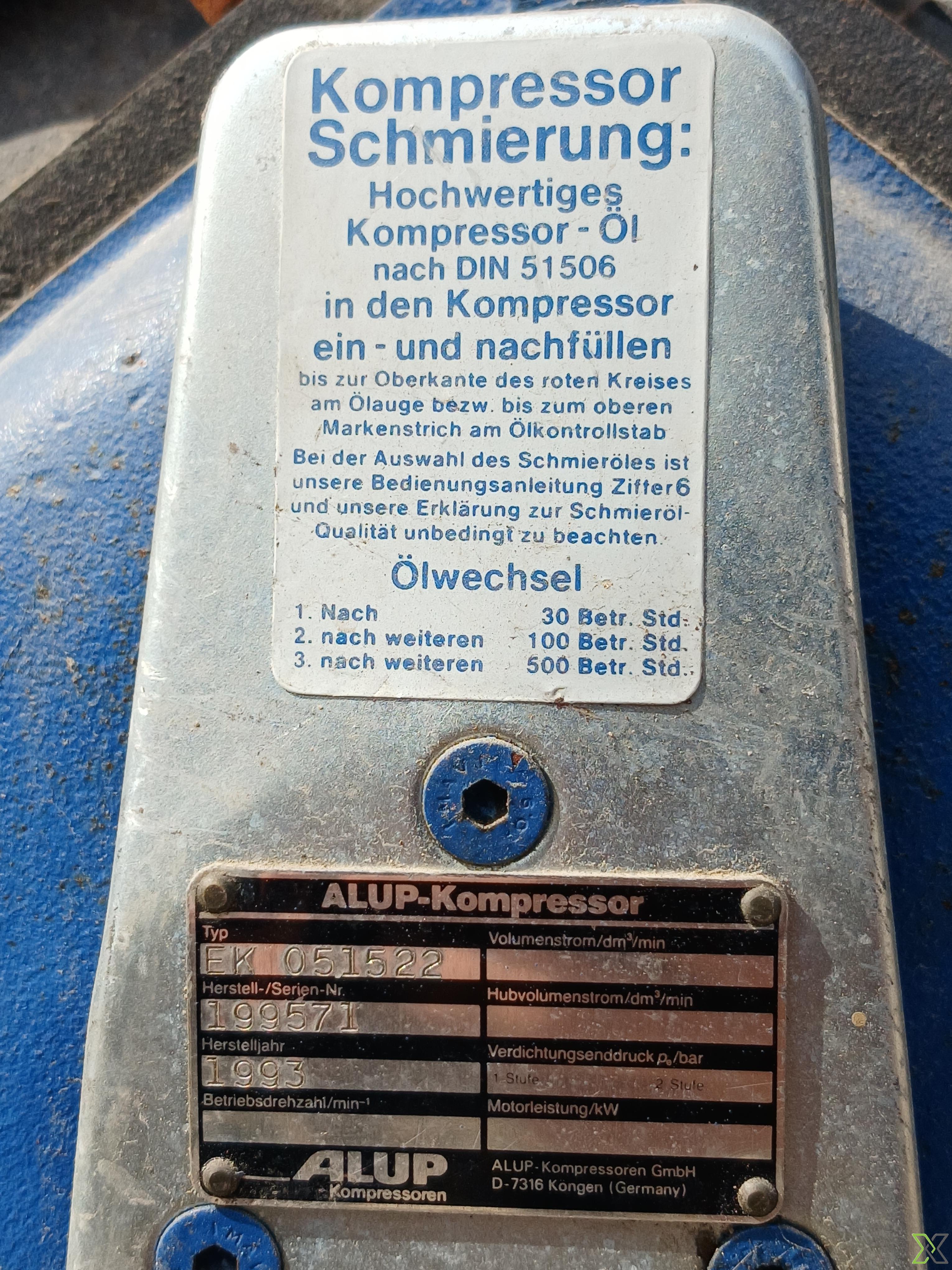

Lubrication guidelines specify the use of high-quality compressor oil conforming to DIN 51506, with initial oil changes at 30 and 100 operating hours, followed by a regular interval of every 500 hours.

This unit is suitable for stationary air supply in workshops, manufacturing plants, or utility rooms where durability and consistent performance are required.

Specifications:

– Equipment Type: Piston-Type Air Compressor Unit
– Manufacturer: ALUP Kompressoren GmbH
– Compressor Model: EK 051522
– Serial Number: 199571
– Year of Manufacture: 1993

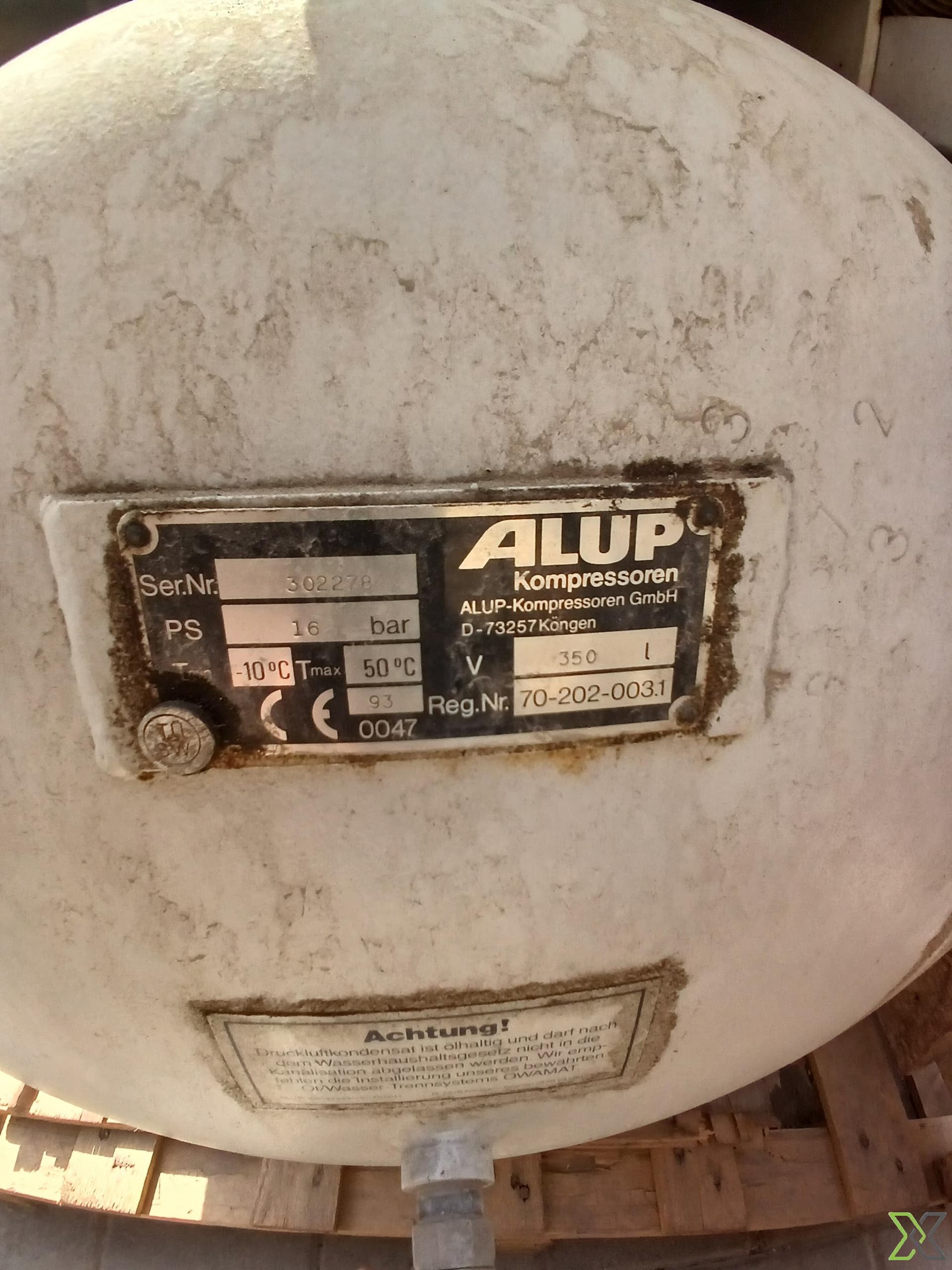

– Rated Pressure: 16 bar
– Receiver Volume: 350 liters
– Temperature Range: -10°C to +50°C
– Regulatory Number: 70-202-003.1
– CE Marked: Yes

Electric Motor Specifications (ABM Greiffenberger):
– Model: 30100LB-2
– Power Rating: 9.0 kW
– Voltage: 380 V
– Frequency: 50 Hz
– Current: 15 A
– Speed: 2850 RPM
– Insulation Class: F
– Protection Class: IP54
– Power Factor (Cos φ): 0.83
– Duty Cycle: S1 (Continuous Operation)
– Country of Origin: Germany
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Year of Manufacturing	1993
Year of Manufacturing	1993
Color	Blue
ISO 15926 Pt 4	7459
PCA RDS Code	RDS14286497
CFIHOS ID	CFIHOS-30000524
IFC Class	IfcCompressor
Fluid Name	Air
Explosion Protection Gas Group	IIB
Explosion Protection Temperature Class	T3
Explosion Protection Zone	Zone 2
Test Medium	Air or Nitrogen (N₂)
Test Pressure	1.5 × Maximum Allowable Working Pressure (MAWP)
Insulation Class	F (maximum permissible temperature rise of 105°C)
UNSPSC Code	40151600
Compressibility Factor Z at Inlet	~1.000 (ideal gas assumption for air)
Molecular Weight	28.97 g/mol (for air)
Upper Limit Allowable Speed	1200 RPM
Lower Limit Design Outlet Temperature	80°C
Lower Limit Operating Suction Pressure	.0 bara (atmospheric)
Upper Limit Design Outlet Temperature	200°C
Specific Heat Ratio Cp/Cv at Inlet	1.4 (for diatomic gases like air)
