- TEKA VIROLINE Compact Air Filtration Unit 2021
Description
TEKA VIROLINE COMPACT – FULL SPECIFICATION

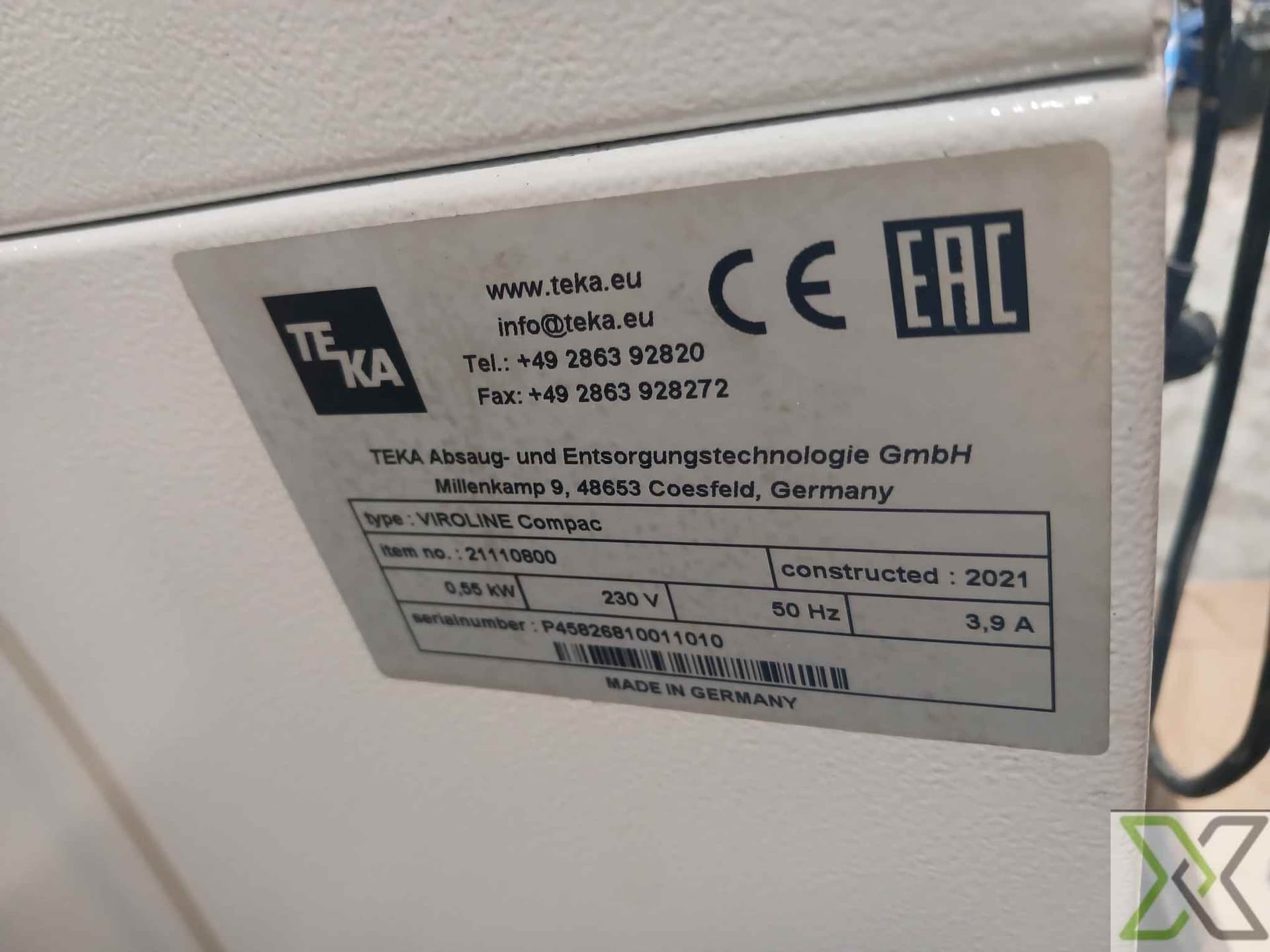

GENERAL INFORMATION
Manufacturer: TEKA Absaug- und Entsorgungstechnologie GmbH
Model: VIROLINE Compact
Item Number: 21110800
Serial Number: P45826810011010
Country of Manufacture: Germany
Construction Year: 2021
ELECTRICAL SPECIFICATIONS
Power: 0.55 kW
Voltage: 230V
Frequency: 50 Hz
Current: 3.9 A
Power Supply Type: Single-phase
Plug Type: Standard EU Power Plug
FILTRATION SYSTEM
Filtration Type: Multi-stage filtration with HEPA H14 filter
Filtration Efficiency: 99.995% for particles ≥ 0.3 µm
Airflow Capacity: 600 m³/h
Filter Replacement Indicator: Yes
PHYSICAL SPECIFICATIONS
Weight: 35 kg
Dimensions (L × W × H): 600 × 550 × 900 mm
Housing Material: Powder-coated steel
Noise Level: ≤ 45 dB(A)
Mobility: Caster wheels with locking mechanism
OPERATING CONDITIONS
Ambient Temperature Range: 5°C to 40°C
Humidity Tolerance: Up to 80% RH (non-condensing)
Installation Type: Freestanding or wall-mounted option
Technical Details
| Model Number | VIROLINE Compact |
|---|---|
| Year of Manufacturing | 2021 |
| Model Number | VIROLINE Compact |
| Year of Manufacturing | 2021 |
| ISO 15926 Pt 4 | 7459 |
| PCA RDS Code | RDS14286497 |
| CFIHOS ID | CFIHOS-30000524 |
| Direction of Rotation | internal fan system. |
| IFC Class | IfcCompressor |
| Fluid Name | Ambient air containing fine dust, bacteria, and viruses |
| Explosion Protection Gas Group | Not applicable. |
| Explosion Protection Temperature Class | Not applicable. |
| Explosion Protection Zone | Not applicable. |
| Test Medium | Air |
| Insulation Class | Class F |
| UNSPSC Code | 40151600 |
| Compressibility Factor Z at Inlet | 1.000 |
| Molecular Weight | 28.97 g/mol |
| Upper Limit Allowable Speed | up to ~2,800 RPM |
| Lower Limit Design Outlet Temperature | 5°C or site-specific minimum ambient |
| Lower Limit Operating Suction Pressure | ~990 mbar |
| Upper Limit Design Outlet Temperature | Ambient + ~10°C |
| Specific Heat Ratio Cp/Cv at Inlet | 1.4 |
