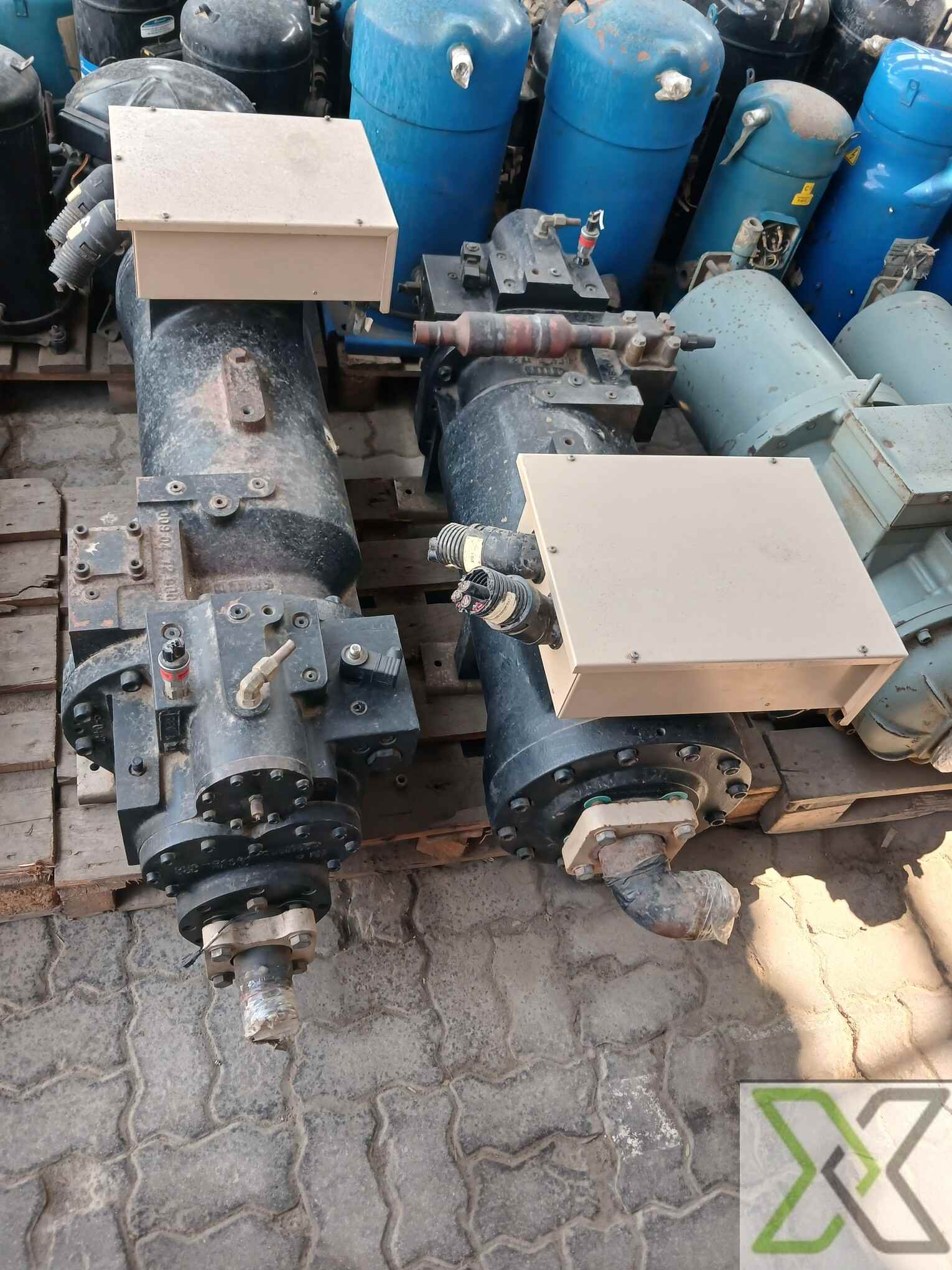

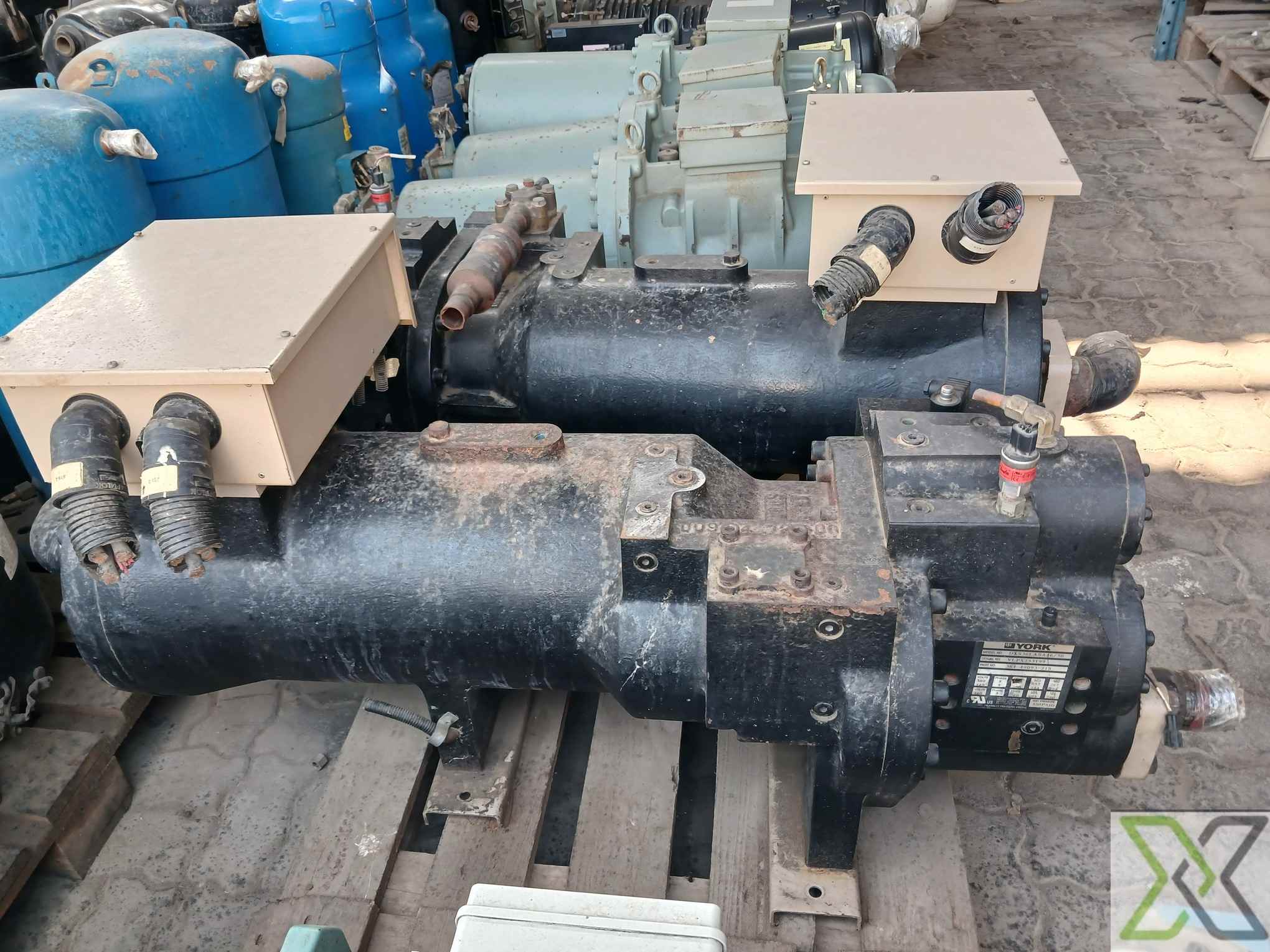

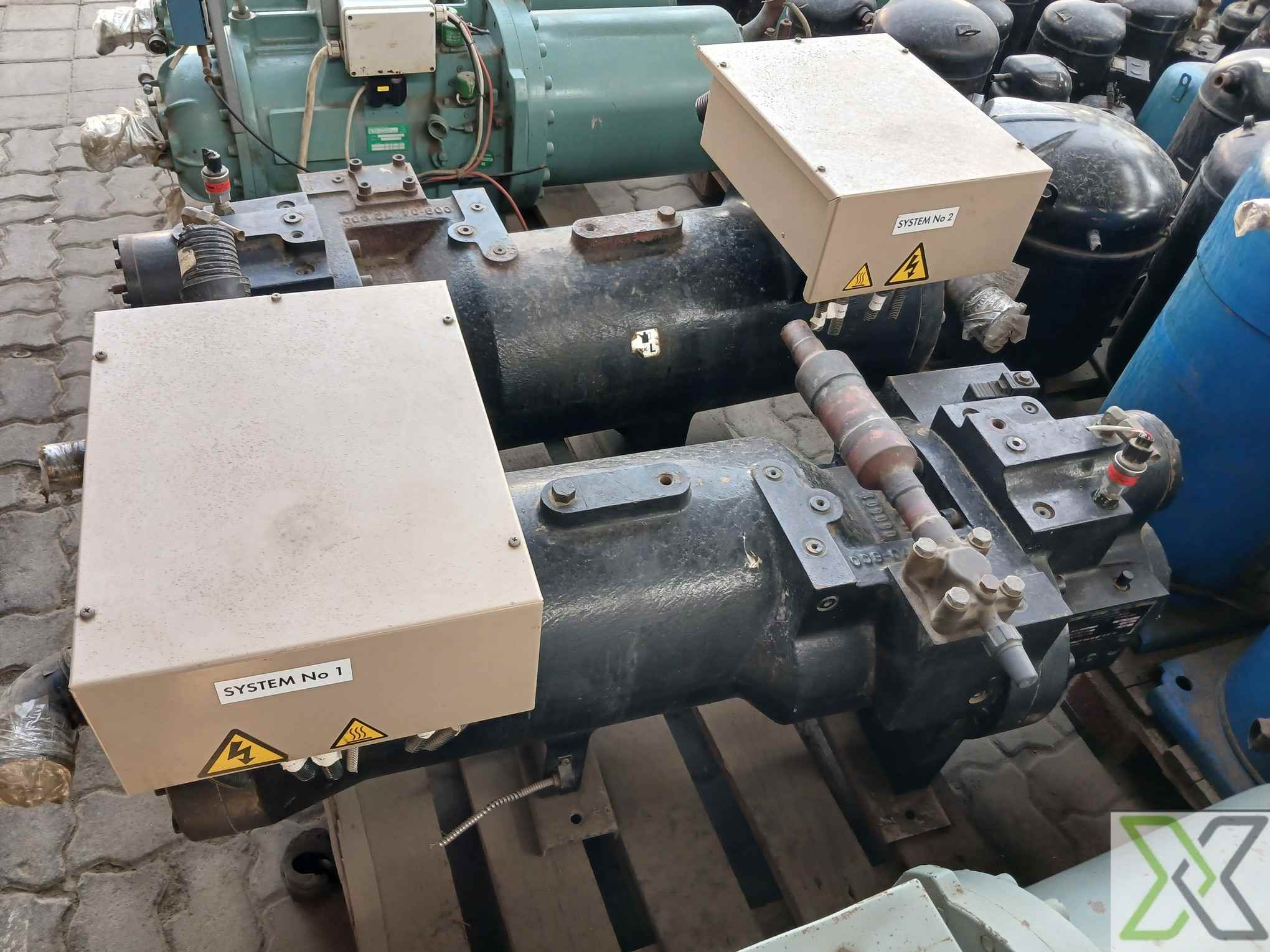

YORK - Industrial HVAC Compressor - DXS36LASA46/50

ReflowX SKU: REF-5606

Product Details

Quantity

2
Availability (Lead Time)

N/A
Product Location

United Arab Emirates
Condition
OEM

ReflowX
Equipment code

CFIHOS-30000524

Get Quotation Whatsapp

Description

YORK DXS36LASA46/50 – Full Technical Specifications

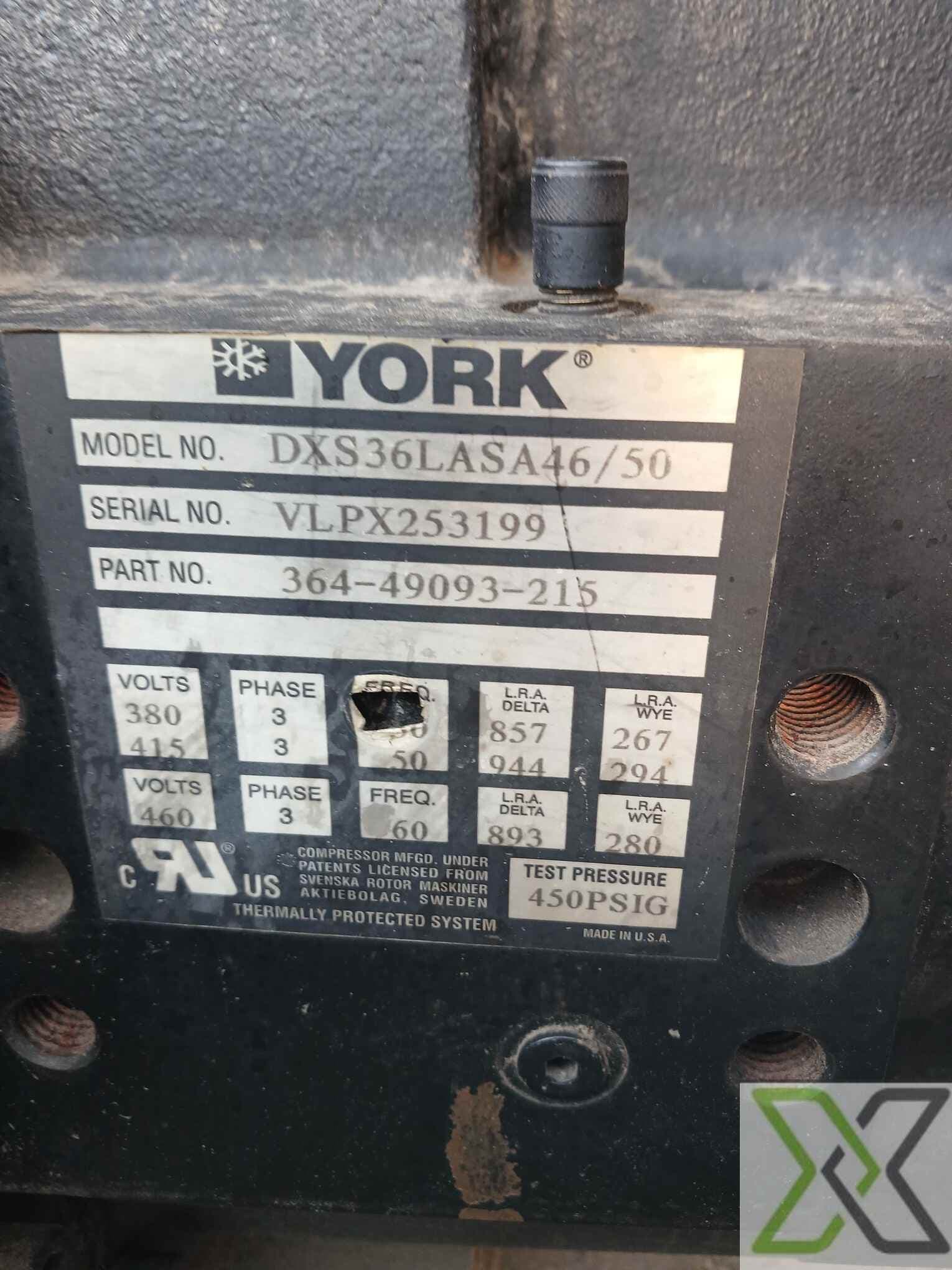

General Information

Manufacturer: YORK

Model: DXS36LASA46/50

Serial Number: VLPX253199

Part Number: 364-49093-215

Manufacturing Location: USA

Electrical Specifications

Voltage: 380V / 415V / 460V

Phase: Three-phase (3φ)

Frequency: 50Hz / 60Hz

Starting & Load Ratings

LRA (Locked Rotor Amps) Delta:

380V: 857A

415V: 944A

460V: 893A

LRA (Locked Rotor Amps) Wye:

380V: 267A

415V: 294A

460V: 280A

Mechanical & Design Features

Test Pressure: 450 PSIG (Pounds per Square Inch Gauge)

Application: Industrial & Commercial Cooling Systems

System Type: HVAC / Refrigeration Compressor

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	DXS36LASA46/50
Model Number	DXS36LASA46/50
ISO 15926 Pt 4	7459
PCA RDS Code	RDS14286497
CFIHOS ID	CFIHOS-30000524
Direction of Rotation	Clockwise
IFC Class	CFIHOS-30000524
Fluid Name	Refrigerant
Test Medium	Dry Nitrogen or Air
Test Pressure	450 PSIG (≈ 3.1 MPa)
Insulation Class	Likely Class F or H
UNSPSC Code	40151600
Compressibility Factor Z at Inlet	~0.97 – 0.99
Molecular Weight	R134a: 102.03 g/mol
Upper Limit Allowable Speed	~3600 RPM
Lower Limit Design Outlet Temperature	15°C
Lower Limit Operating Suction Pressure	~0.2 MPa
Upper Limit Design Outlet Temperature	85–95°C
Specific Heat Ratio Cp/Cv at Inlet	R134a: ~1.12
