Electric Winch with Gear Reducer and Crane Motor – Dual Speed – 220V Heater

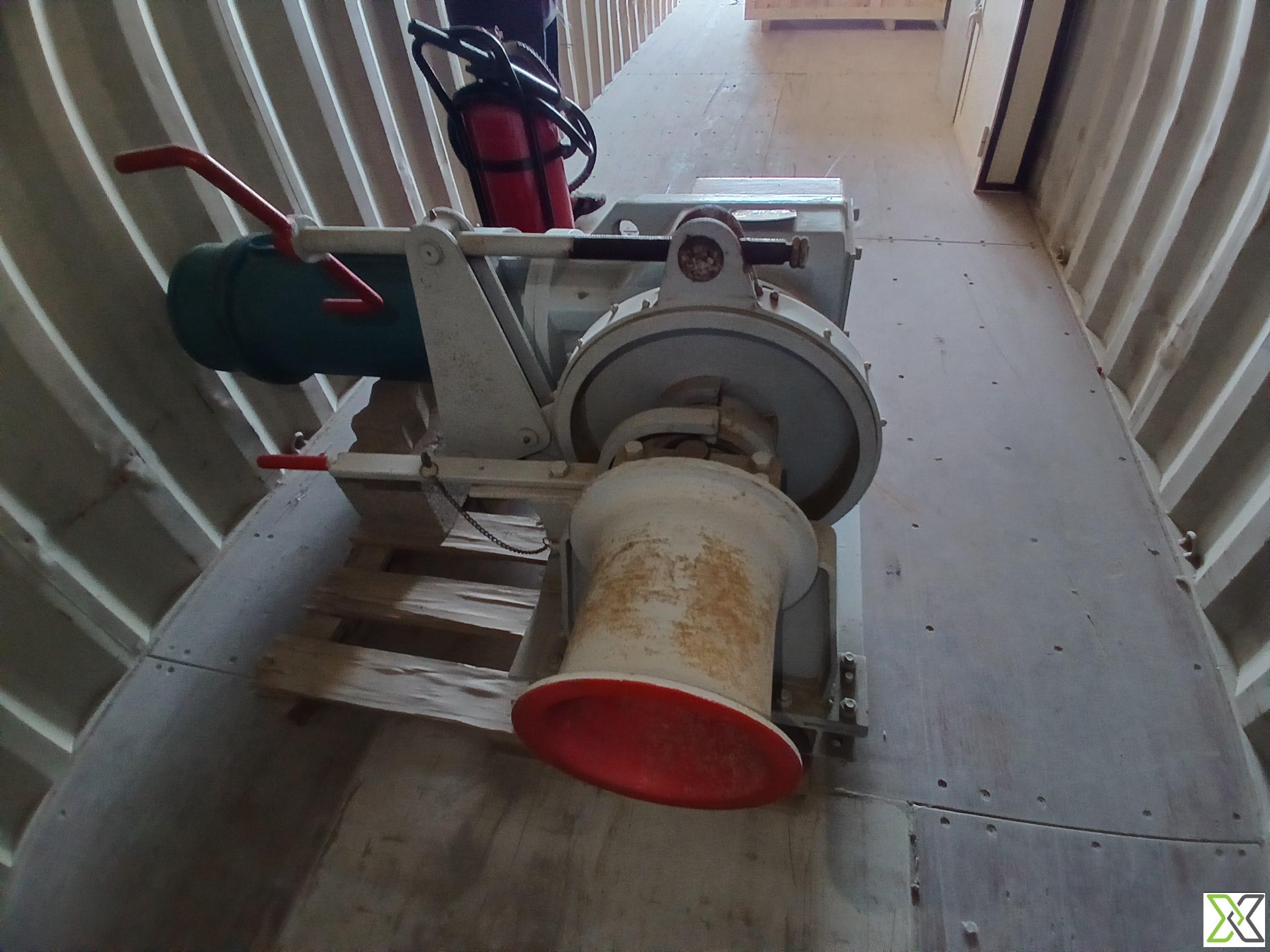

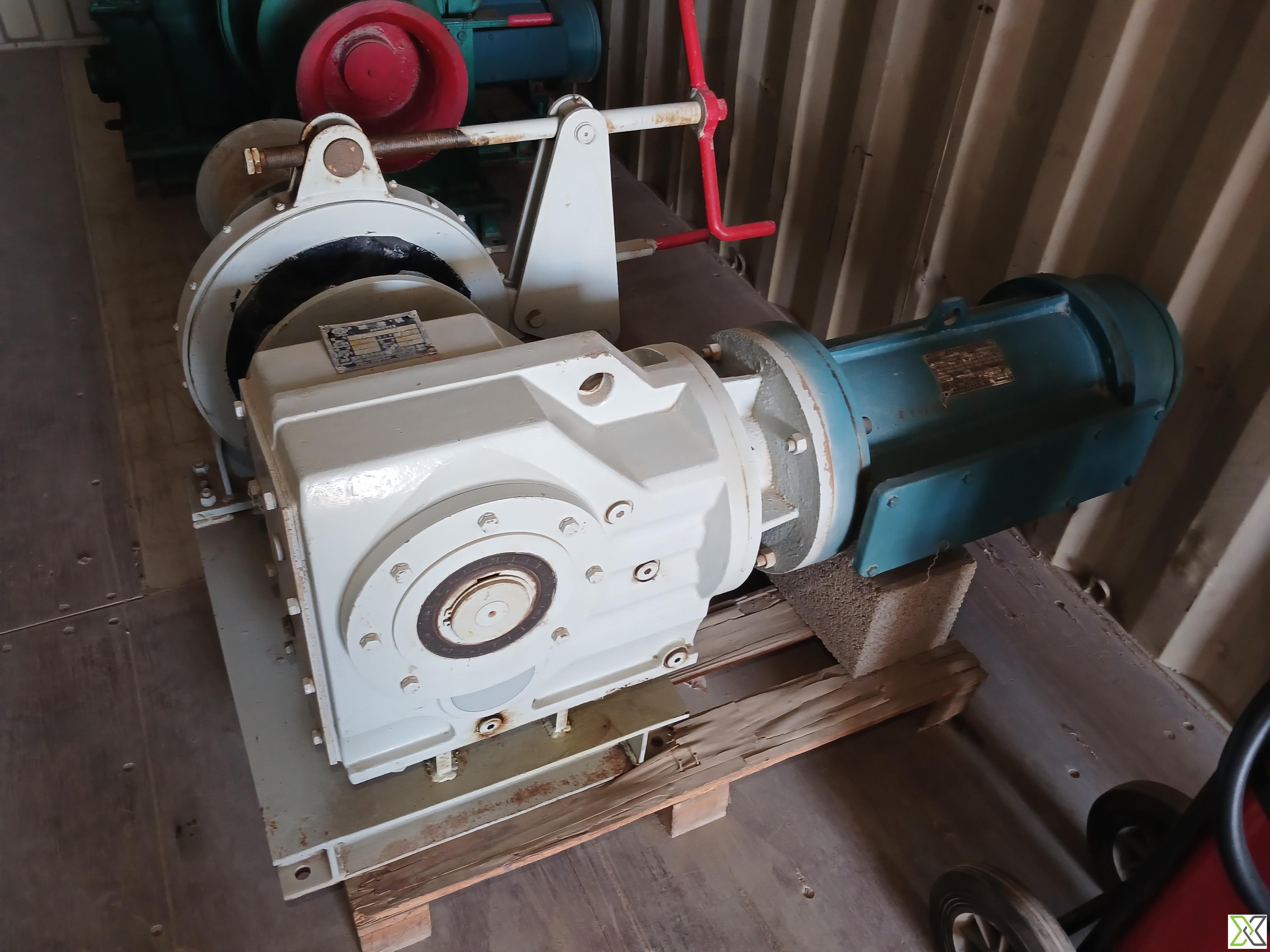

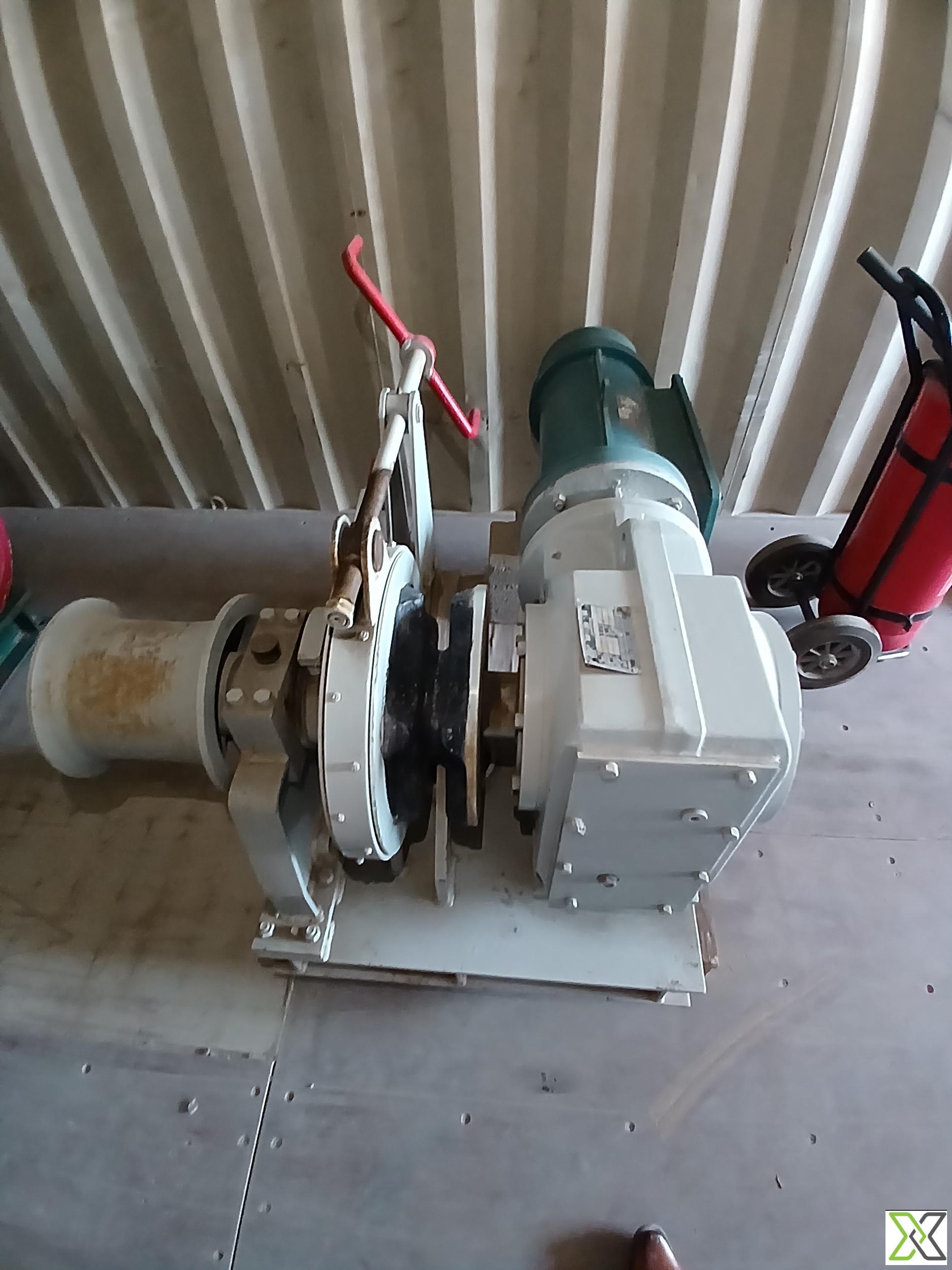

This electric winch assembly combines a powerful three-phase asynchronous crane motor, a high-ratio gear reducer, and a mechanical drum assembly for controlled lifting operations. The motor delivers dual-speed operation at 8.5 kW and 3.5 kW for adaptable hoisting needs. Designed for reliable marine use, the unit includes IP56 protection, Class F insulation, and ambient temperature tolerance from -25°C to +45°C. Integrated DC braking system ensures secure load holding, supported by a 160 Nm braking torque. The reducer is manufactured by Jiangsu Yining Gearbox with a specified output of 22 rpm and rated torque. An AC 220V anti-condensation heater is installed to prevent moisture accumulation.

Specifications:

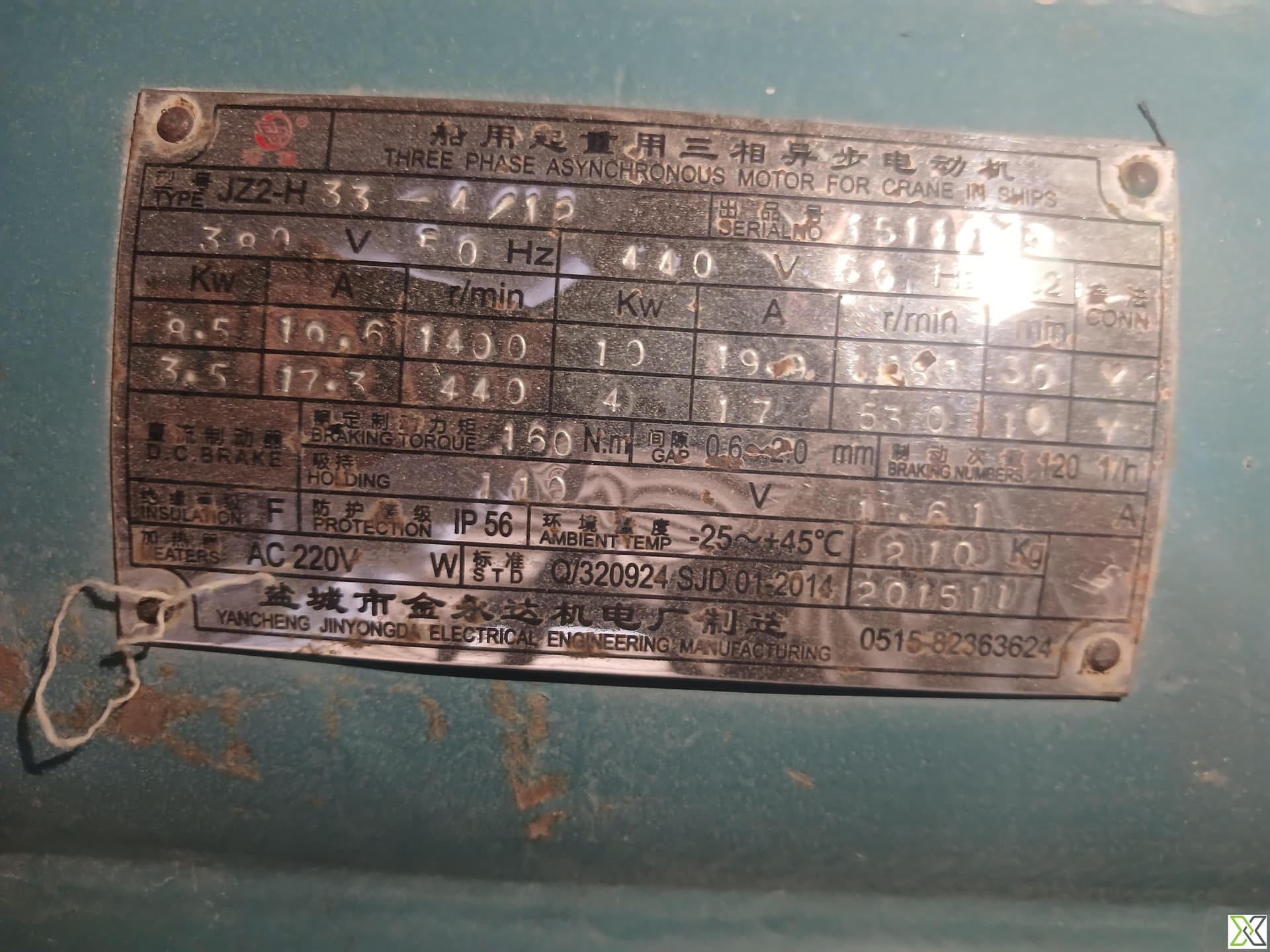

Motor (Crane Duty):
– Type: JZ2-H33
– Power: 8.5 kW / 3.5 kW (dual-speed)
– Voltage: 380 V / 440 V
– Frequency: 50 Hz
– Current: 10.6 A / 17.2 A
– Speed: 1400 rpm / 440 rpm
– Brake Torque: 160 Nm
– Brake Gap: 0.6–0.9 mm
– Brake Duty: DC Holding
– IP Rating: IP56
– Insulation Class: F
– Heater: AC 220V
– Ambient Temp: -25°C to +45°C
– Motor Weight: 121 kg
– Manufacturer: Yancheng Jinyongdi Electrical Engineering

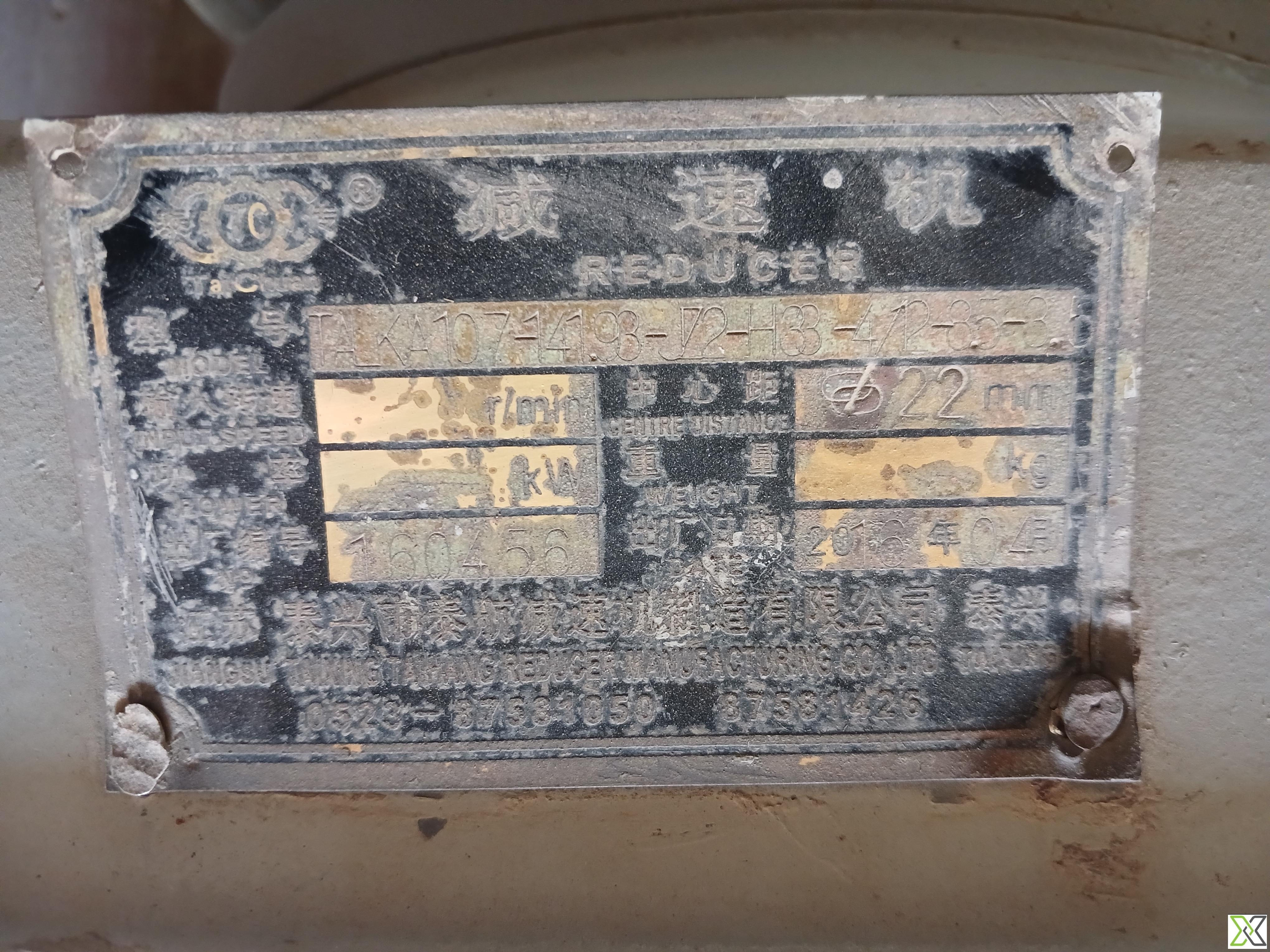

Reducer Gearbox:
– Model: KA107-43B-72-H3-12.3-2-B
– Output Torque: 160456 Nm
– Output Speed: 22 rpm
– Date: April 2016
– Manufacturer: Jiangsu Yining Reducer Manufacturing Co. Ltd.

Winch Assembly:
– Configuration: Horizontal drum, flange-mounted
– Drive: Direct coupling between gearbox and winch drum
– Brake: Electromagnetic DC brake integrated
– Construction: Painted steel housing and baseplate
– Application: Suitable for shipboard hoisting, crane base, or industrial lifting systems

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
