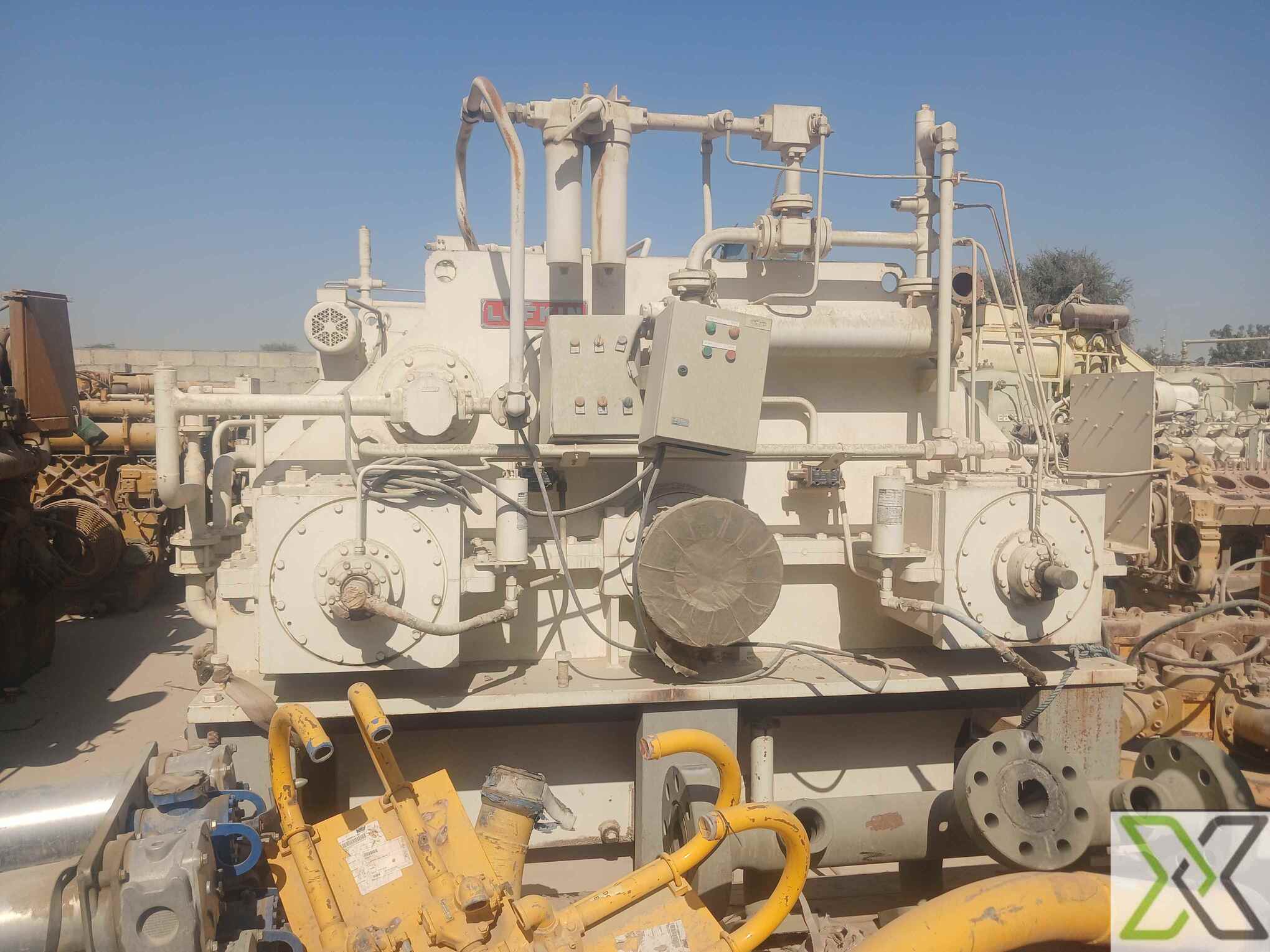

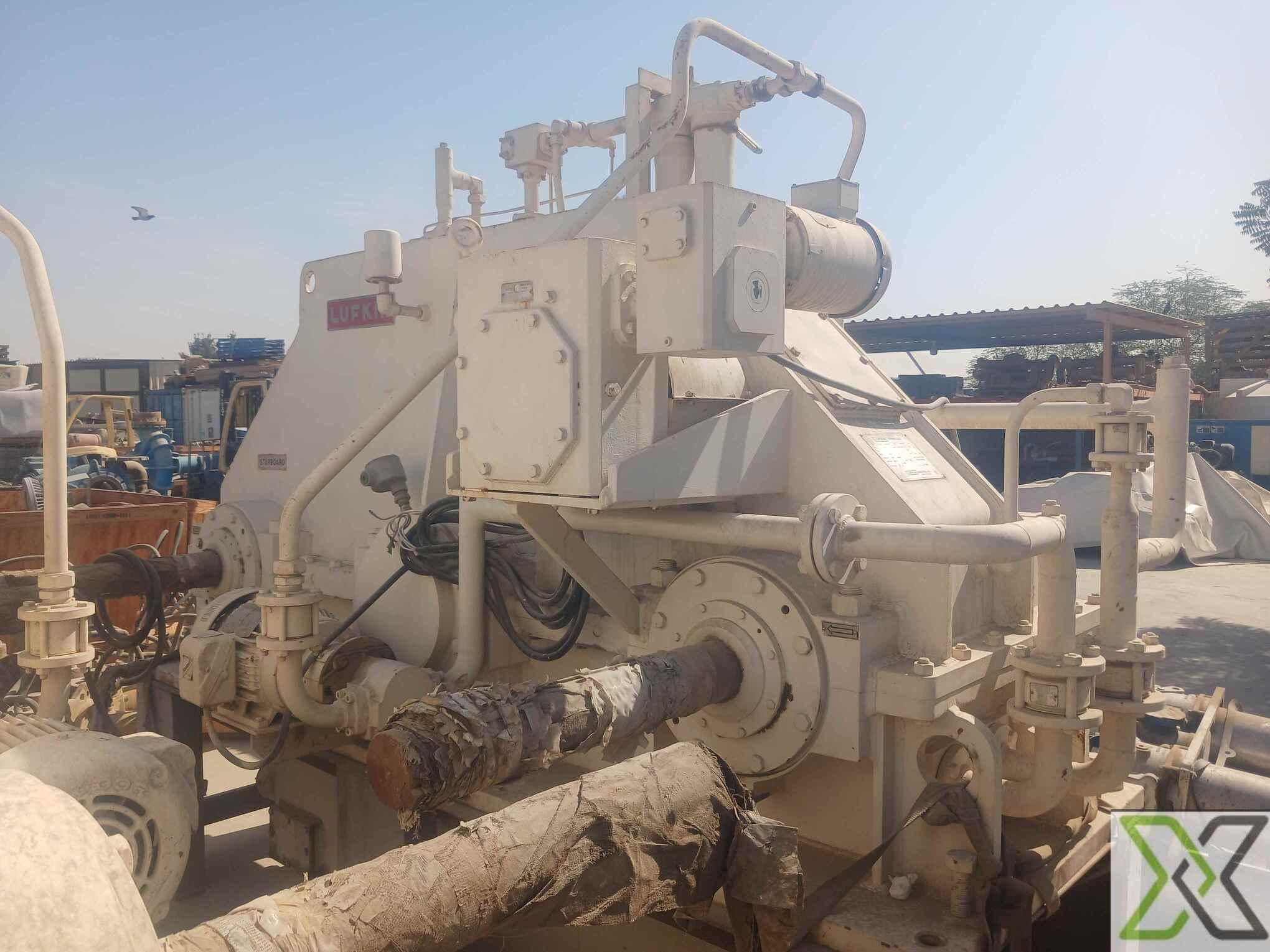

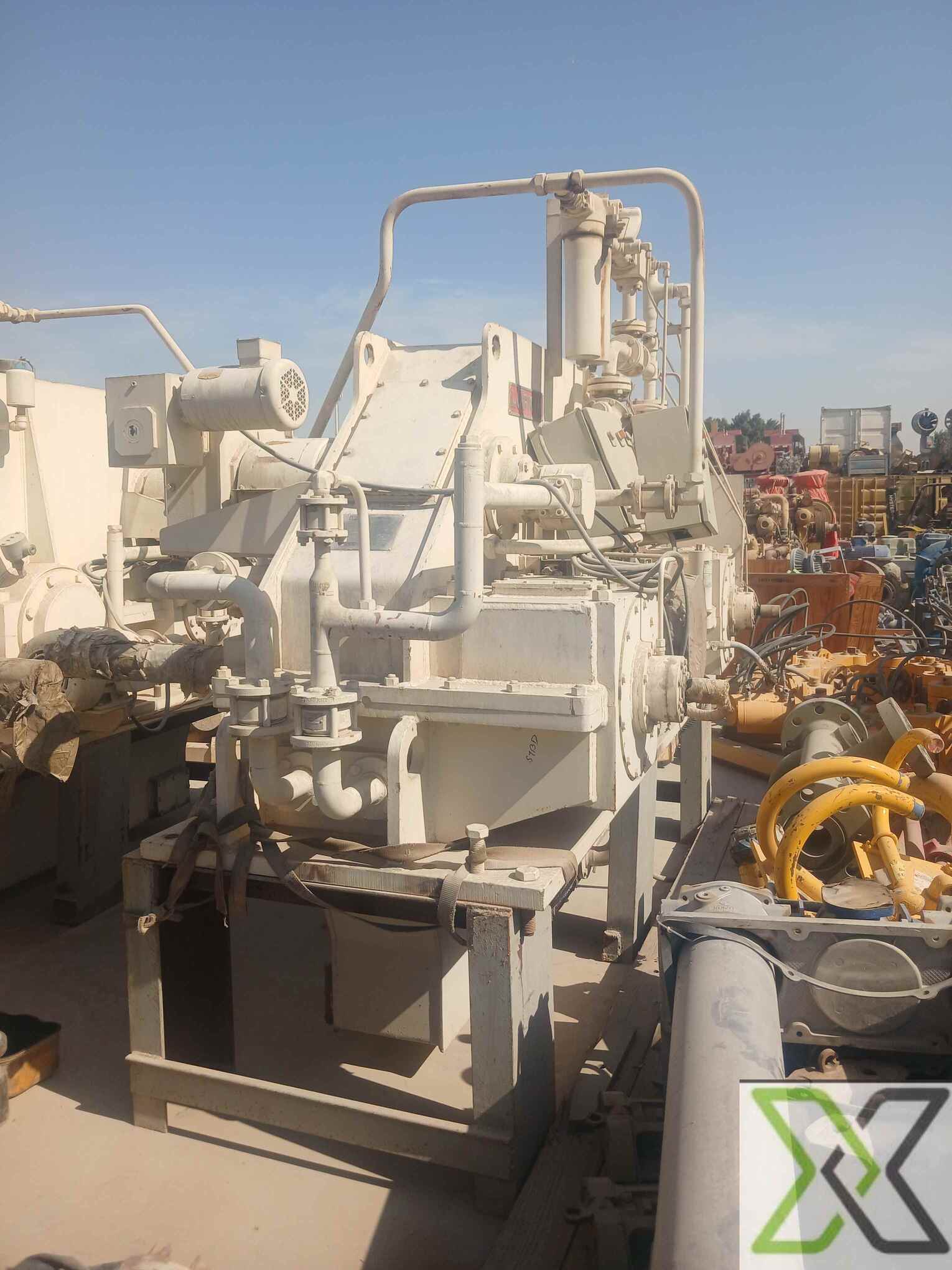

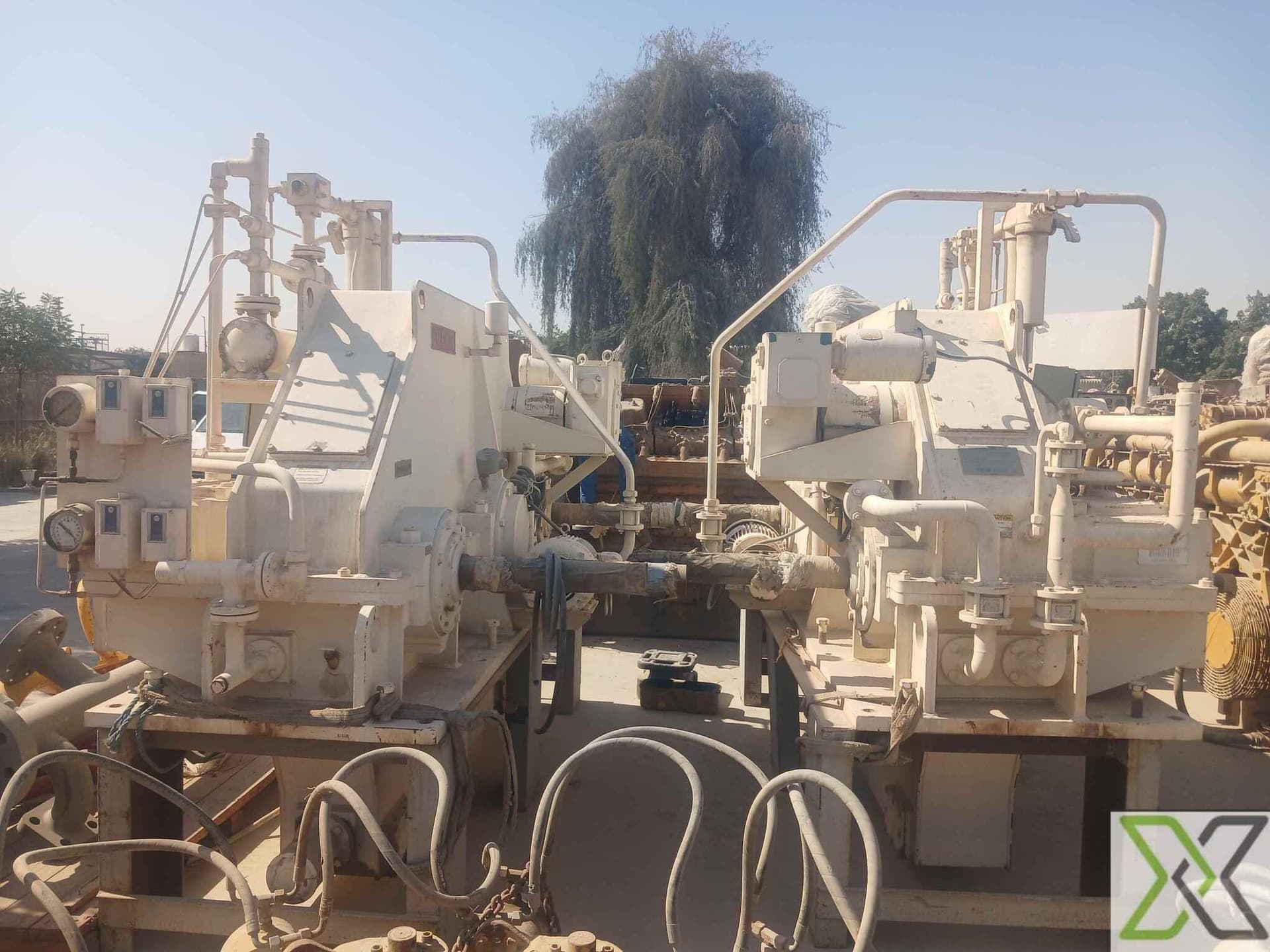

- Lufkin Marine Gearbox CG 3799
Description
Full Specification:
General Information:
- Manufacturer: Lufkin Industries, Inc.
- Type: Marine Gearbox (Marine Reduction Gear)
- Model: CG 3799 (partially visible)
- Order Number: 2023696
- Certificate Number: HCU 0430076
Technical Specifications:
- Input RPM: 1200 RPM
- Output RPM: 208 RPM
- Reduction Ratio: Approx. 5.77:1
- Operational Modes:
- Forward Speed: 1200 / 208 RPM
- Reverse Speed: 1200 / 208 RPM
- Torque Transmission: High-efficiency torque conversion for marine propulsion
Design & Performance Features:
- Gear Type: Heavy-duty marine gear with precision-cut gearing for smooth power transmission
- Housing Material: High-strength cast iron or steel alloy for durability and corrosion resistance
- Lubrication System:
- Requires AGMA standard lubricant
- Designed for continuous operation with oil circulation system
- Includes oil cooling system for prolonged operational life
- Cooling System: Integrated cooling ports for thermal management
- Mounting Configuration: Standard marine engine coupling design
- Maintenance Requirements:
- Routine oil service and periodic inspections required
- Designed for extended operational lifespan in marine environments
Applications:
- Marine propulsion systems
- Offshore vessels & cargo ships
- Workboats, tugboats, and fishing vessels
- Power transmission in heavy marine applications
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
Technical Details
| Model Number | CG 3799 |
|---|---|
| ISO 15926 Pt 4 | 7689 |
| PCA RDS Code | RDS889514 |
| CFIHOS ID | CFIHOS-30000535 |
| Direction of Rotation | Clockwise |
| Design Specification | Heavy-duty marine reduction gearbox |
| Upper Limit Design Temperature | +95°C |
| Upper Limit Operating Temperature | +85°C |
