Three Phase Marine Induction Winch Motor – Dual Speed – 415V – IP56 – YUXIN

ReflowX SKU: REF-4407

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Wuxi Lantian Electro-Motor Co., Ltd.
Equipment code

CFIHOS-30000535

Get Quotation Whatsapp

Short Description

Heavy-duty YUXIN 3-phase marine motor, 33/22/16 kW, dual-speed, 415V, IP56, integrated with winch reducer for crane operation.

Description

Three Phase Marine Induction Winch Motor – Dual Speed – 415V – IP56 – YUXIN

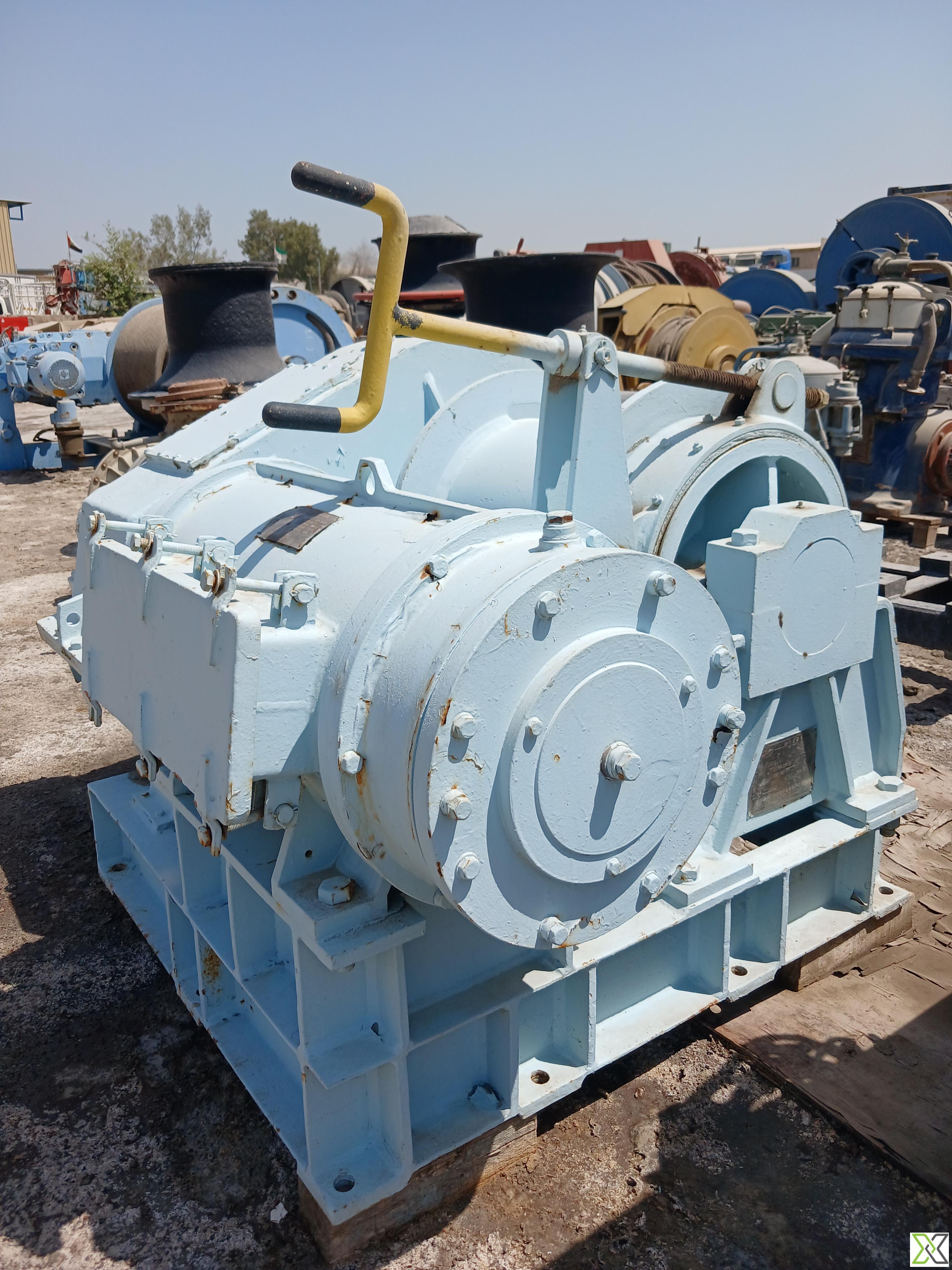

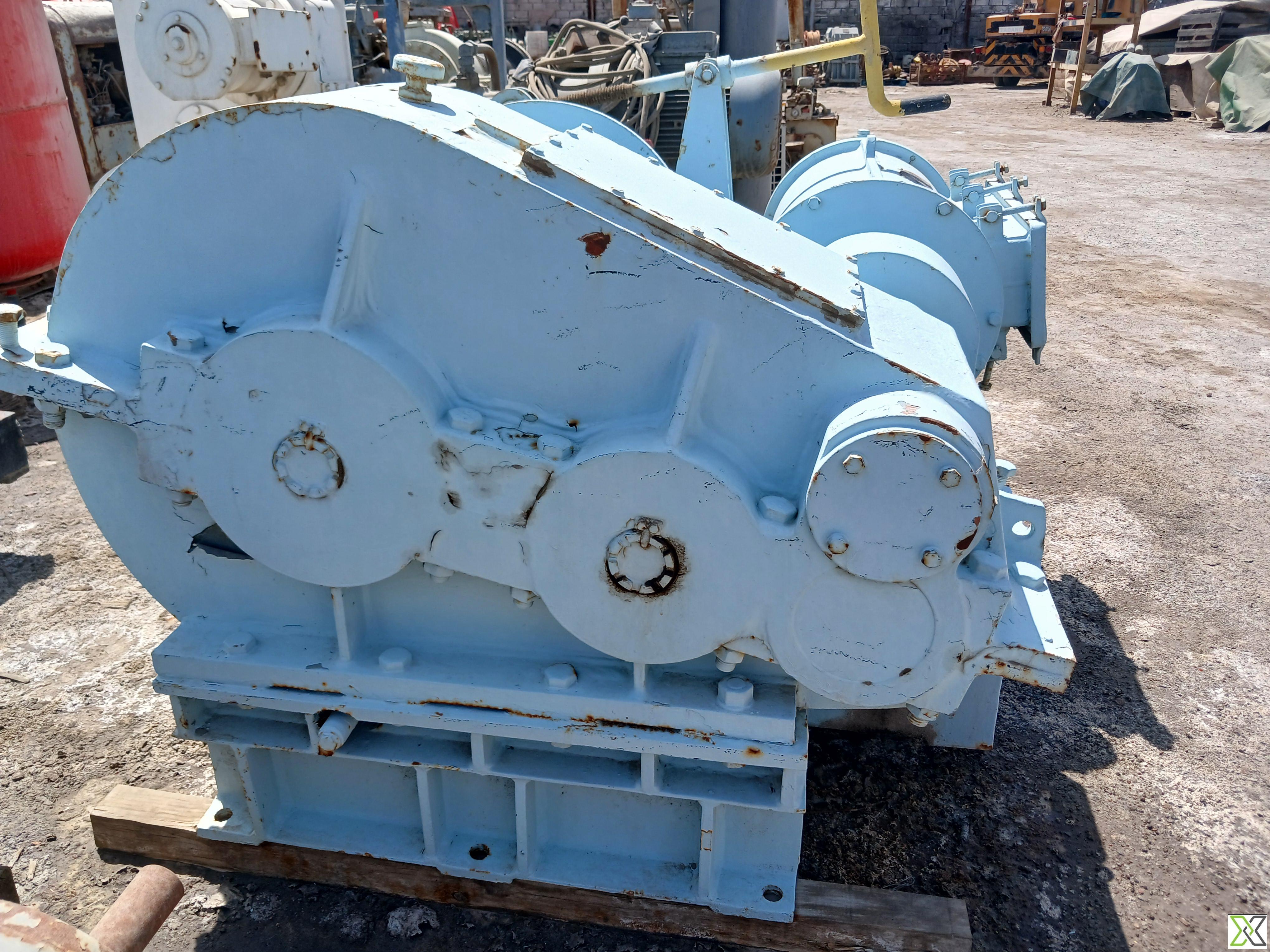

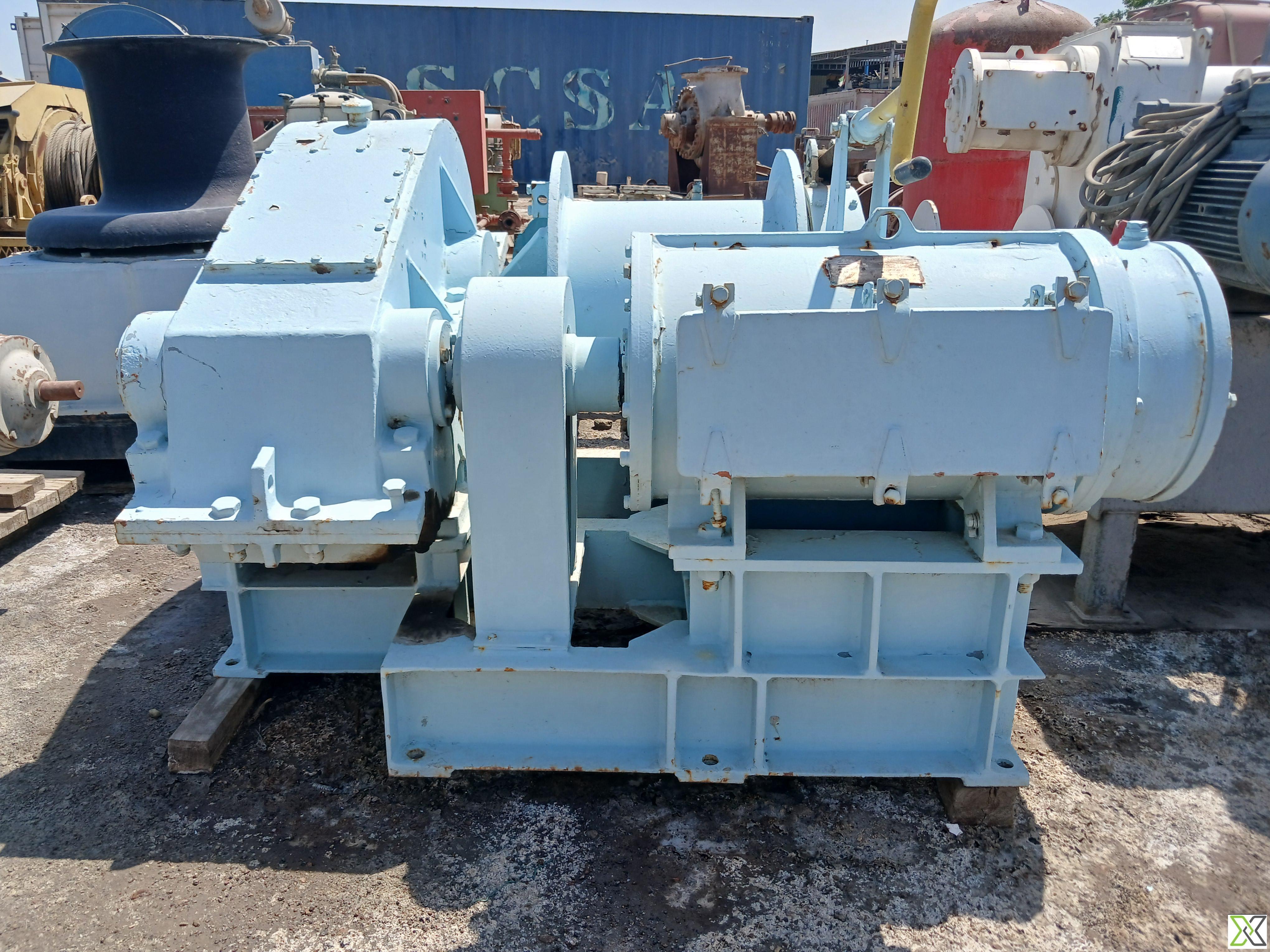

This marine-grade winch motor is a Three Phase Asynchronous Motor designed specifically for crane use onboard ships. Manufactured by YUXIN, this unit operates at 415V / 50Hz and offers triple-rated outputs of 33 kW, 22 kW, and 16 kW at varying speeds and torque configurations. It is IP56 rated for marine protection and fitted with a dual-speed gearbox reducer. The system includes a D.C. brake, insulation class F, and ambient operating capacity from -25°C to +45°C. This motor is mounted on a heavy-duty winch drum platform, making it ideal for ship deck operations involving hoisting or anchoring.

Specification:

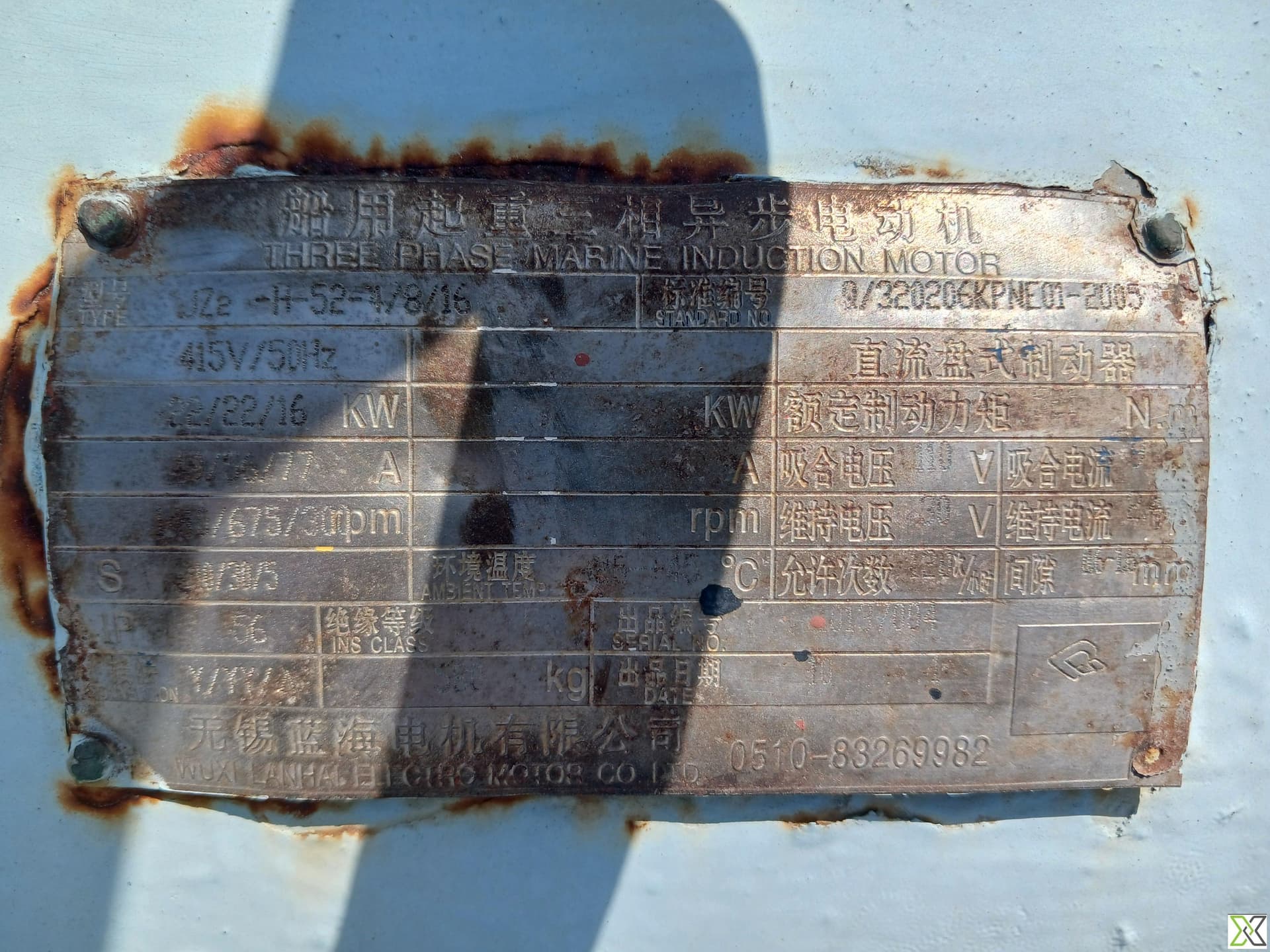

– Motor Type: Three Phase Marine Induction Motor
– Model: JZ2-H 5E-3/2/1G
– Power: 33/22/16 kW
– Voltage: 415V
– Frequency: 50 Hz
– Current: 60.1/47.7 A
– Speed: 1475 / 675 / 370 rpm
– Protection Class: IP56
– Insulation Class: F
– Ambient Temp: -25°C to +45°C
– D.C. Brake Torque: 160 Nm
– Heater Voltage: AC 220V
– Manufacturer: Wuxi Lantian Marine Electrical Motor Co.
– Net Weight: Approx. 1210 kg

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	JZ2-H52-3/8/16
Year of Manufacturing	2005
ISO 15926 Pt 4	7689
PCA RDS Code	RDS889514
CFIHOS ID	CFIHOS-30000535
