1. General Information

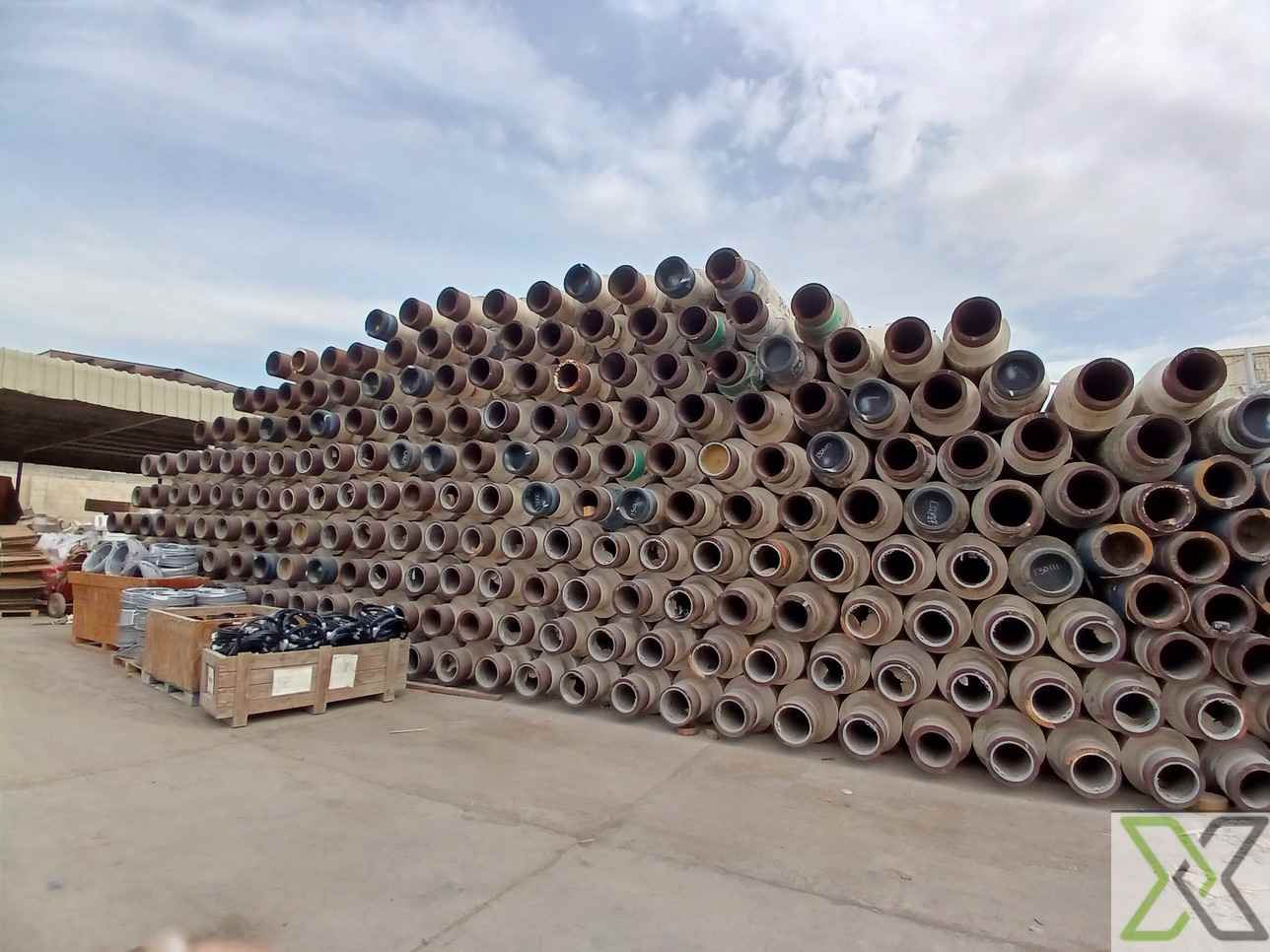

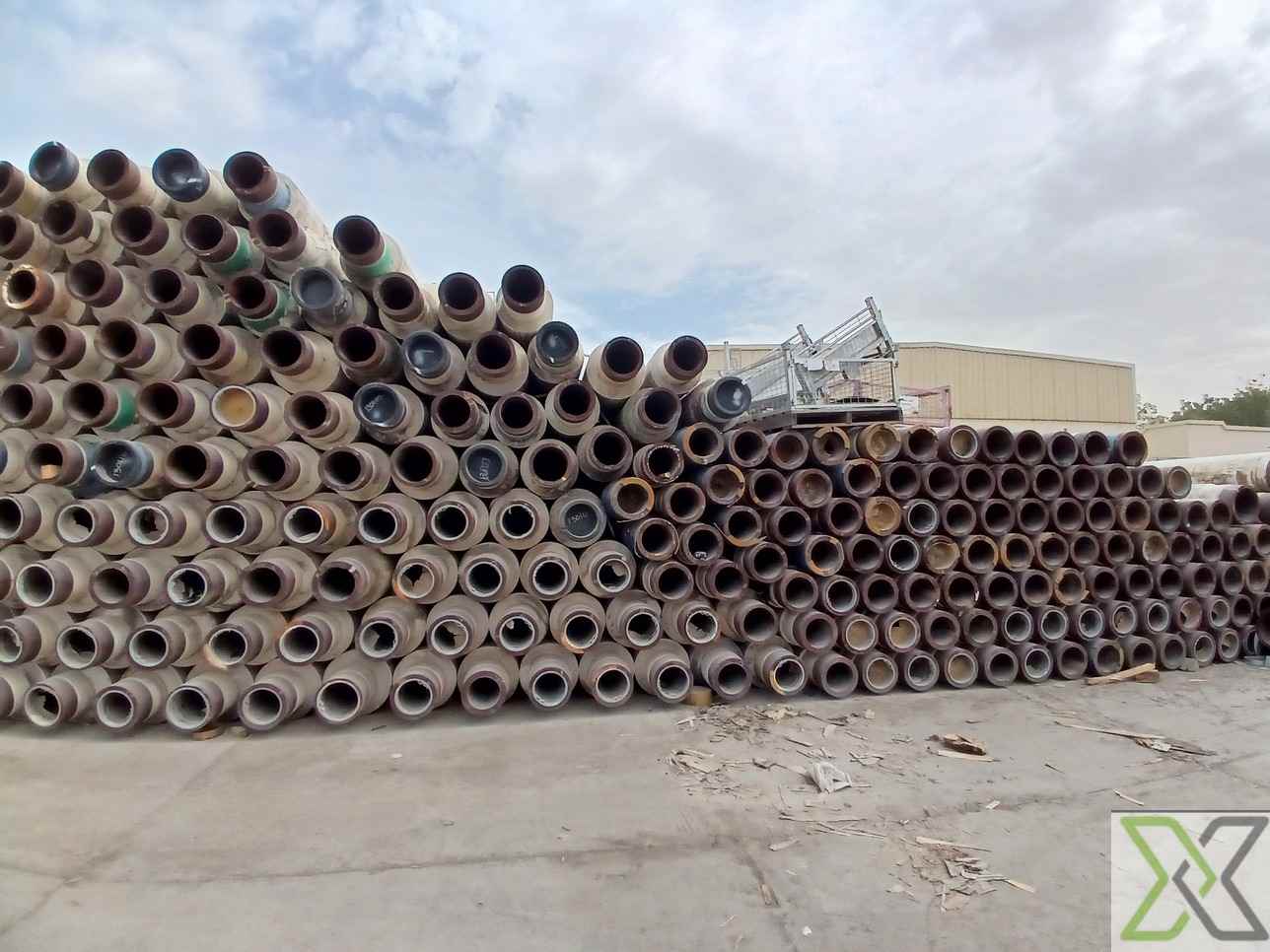

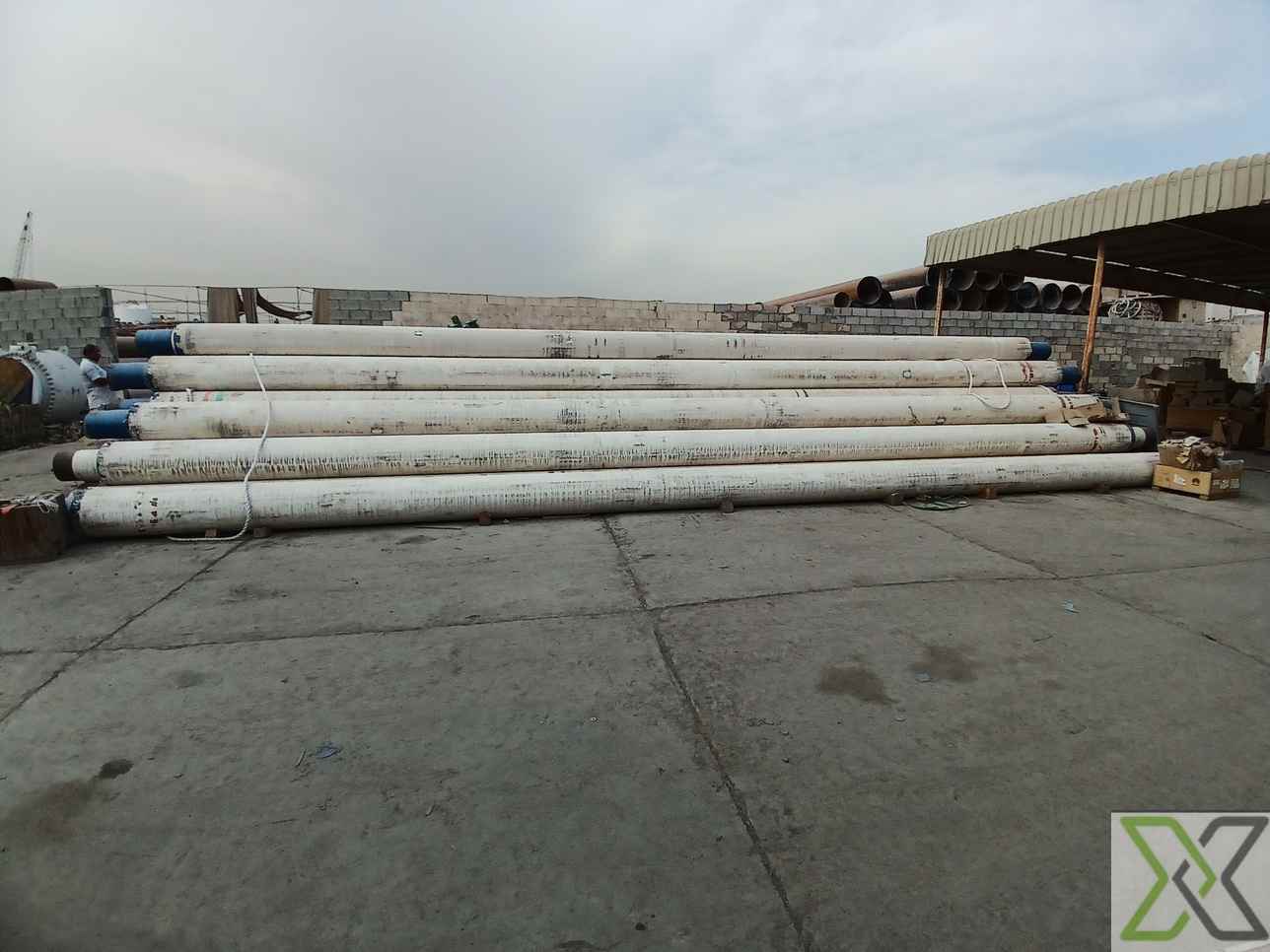

• Pipe Type: Heavy-Weight Drill Pipe (HWDP) / Specialized Casing Pipe
• Pipe Number: 22-2860 (Inventory or project designation)
• Serial Number: I7052479 (Unique production tracking identifier)
• Code: 2230 (Batch or heat number for traceability)
• Application: Oil & gas drilling, deep well operations, and high-strength casing support

2. Material & Manufacturing Details

• Material: [Specify, e.g., AISI 4145H, API 5DP, API 5CT Steel]
• Manufacturing Process: Seamless / Welded (Specify if known)
• Standard Compliance: API 7-1 (HWDP), API 5CT (Casing), ASTM A519 (Specify applicable standard)
• Heat Treatment: Quenched & Tempered (Q&T) for high-strength performance

3. Dimensional & Structural Specifications

• Outer Diameter (OD): [Specify, e.g., 5", 5.5", 6.5"]
• Wall Thickness (WT): [Specify, e.g., 0.5", 1.0"]
• Length: Range 9.0m – 10.5m (Common for HWDP) (Specify exact length if known)
• End Connections: Tool Joint / Pin & Box (Specify type, e.g., NC50, IF, FH, XH)
• Upset Design: Internal / External / Both (Specify if applicable)

4. Mechanical & Performance Properties

• Yield Strength: [Specify, e.g., 110,000 – 120,000 psi]
• Tensile Strength: [Specify, e.g., 140,000 – 160,000 psi]
• Hardness: [Specify, e.g., 285-341 HB (Brinell Hardness)]
• Bending Strength Ratio (BSR): [Specify, e.g., 240%]* (HWDP typically has a high BSR for flexibility in drilling)
• Impact Toughness: [Specify if available]

5. Lifting & Handling Features

• Lifting Attachments: Welded Lifting Pads or Lugs for Rig Handling
• Load Capacity: [Specify max load rating if available]
• Drilling Flexibility: HWDP is designed to reduce stress concentration between the drill collars and standard drill pipe

  For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
