Electropneumatic Positioner Model: SVI II (Smart Valve Interface II) : SVI2-21123121

ReflowX SKU: REF-9479

Product Details

Quantity

30
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Dresser Masoneilan
Equipment code

Get Quotation Whatsapp Chat With Seller

Share on Facebook

Share on Twitter

Share on LinkedIn

Short Description

The Masoneilan SVI II AP is an advanced digital valve positioner designed for precise control of pneumatic actuators. It utilizes a 32-bit microprocessor and non-contact position sensing technology to provide accurate and reliable valve positioning. The device supports both linear and rotary actuators and offers features such as HART communication, auto-calibration, and advanced diagnostics.

Description

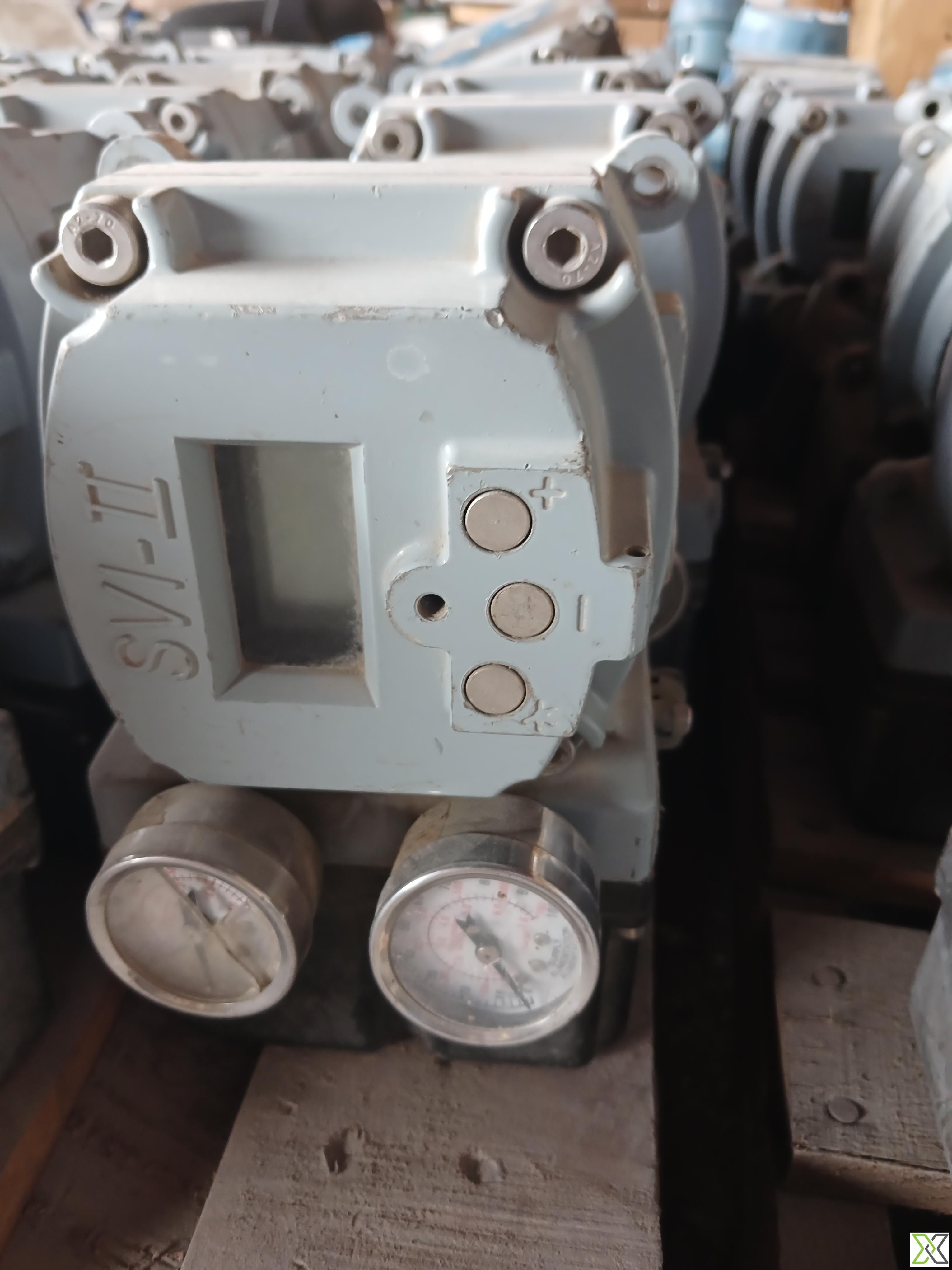

Device Name: Electropneumatic Positioner

Manufacturer: Dresser Masoneilan
Model: SVI II (Smart Valve Interface II)

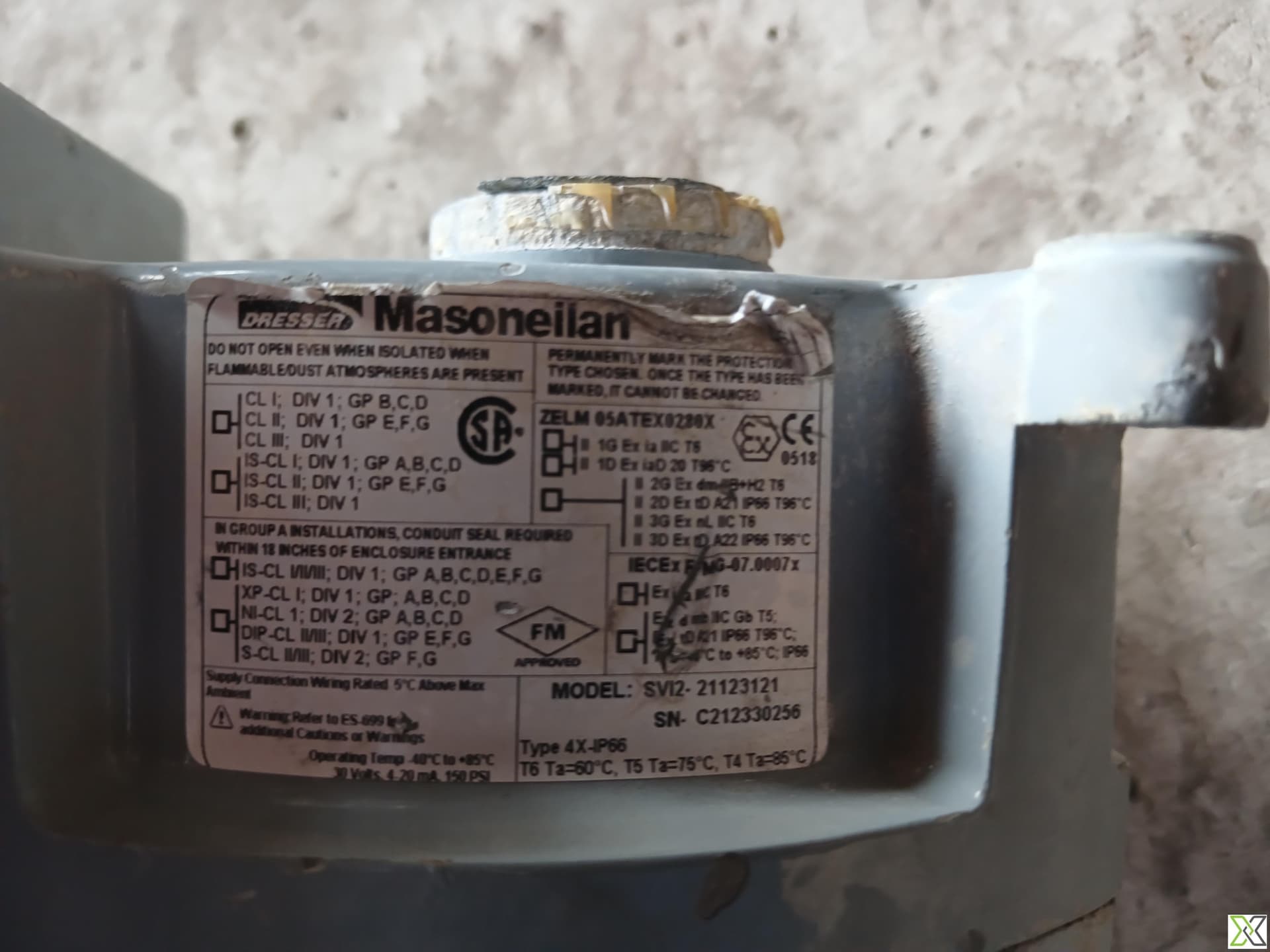

Model Number: SVI2-21123121
Serial Number: C212330256

Technical Details:

Enclosure Ratings: Type 4X / IP66
Temperature Range: Operating: -40°C to +85°C
Explosion Protection (ATEX Certified):
- Ex d [ia] IIC T6
- IS-CL I, Div 1, GP A, B, C, D
- DIP CL II/III, Div 1, GP E, F, G
Certifications:
- CE Marked
- FM Approved
- CSA Certified

Diagnostics & Features

Diagnostics:

Continuous Monitoring (e.g., valve cycles, travel, operation time)
Offline Diagnostics (e.g., step response tests)
Online Diagnostics (e.g., friction analysis)
Auto-Calibration: Automatic zero and span setting
Auto-Tuning: Automatic adjustment of control parameters
Local Interface: Optional explosion-proof LCD with pushbuttons
Position Feedback: Non-contact Hall effect sensor

Construction & Materials

Housing Material:
- Standard: Copper-Free Aluminum (ASTM B85 SG100A)
- Optional: 316L Stainless Steel
Paint: Grey Polyurethane (Category C4 per ISO 12944-2)
Internal Components: Stainless Steel, PPS, Ryton, Aluminum 6061 T6

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	SVI II (Smart Valve Interface II)
Height	190 mm
Width	145 mm
Length	110 mm
Weight	3.3 kg (7.4 lbs)
Temperature Range	–50°C to +85°C
Voltage	9.0 V at 20 mA
