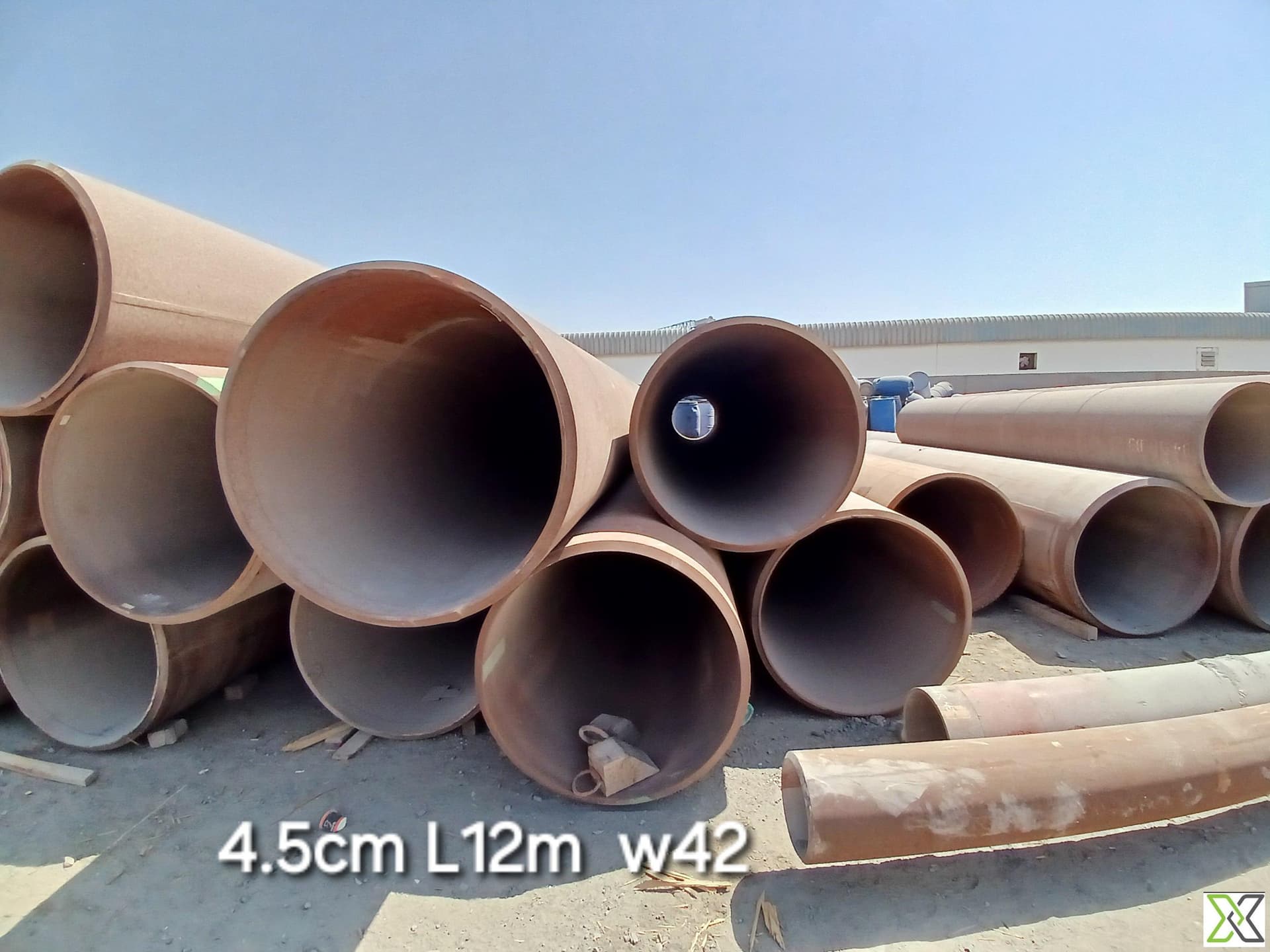

Carbon Steel Pipe – 420 mm OD × 45 mm WT × 12 m, ASTM Grade

This carbon steel pipe is engineered for demanding industrial applications requiring robust pressure containment and high mechanical performance. With an outer diameter of 420 mm, wall thickness of 45 mm, and a standard length of 12 meters, the pipe delivers optimal strength-to-weight ratio. The calculated inner diameter is approximately 330 mm, making it suitable for significant flow volumes. Available in seamless or welded construction, it meets ASTM A106 Grade B or ASTM A53 Grade B material specifications. Designed for use in oil and gas transmission, power plant systems, steam lines, and structural applications, this pipe supports temperatures and pressures consistent with heavy-duty process systems. Its mechanical properties include high tensile and yield strength, good elongation, and hardness under 187 HB. The surface is supplied bare, with various end finish options including plain, beveled, or grooved ends to suit welding, flanging, or mechanical joints.

Specifications:

– Outer Diameter (OD): 420 mm
– Wall Thickness (WT): 45 mm
– Inner Diameter (ID): ~330 mm (calculated)
– Length: 12 meters
– Shape: Circular
– Pipe Type: Seamless or Welded (based on application)
– Material Grade Options:
 • ASTM A106 Grade B
 • ASTM A53 Grade B
– Density: ~7.85 g/cm³
– Yield Strength: ≥ 240 MPa
– Tensile Strength: ≥ 415 MPa
– Elongation: ~20%
– Hardness: ≤ 187 HB
– End Finish: Plain / Beveled / Custom (based on requirement)
– Surface Finish: Bare
– Marking: Standard per material spec – OD, WT, Heat No., Grade, Manufacturer, Length
– Estimated Pipe Volume (Steel Only): ~0.214 m³
– Estimated Weight: ~1,679 kg (based on steel density)
– Temperature Range: Typically -29°C to +427°C (ASTM A106 B)
– Design Code Compatibility: ASME B31.3, EN 13480, API line pipe standards

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
