Carbon Steel Pipe – 520 mm OD × 60 mm WT × 10 m, ASTM/API Grade

ReflowX SKU: REF-8262

Product Details

Quantity

40
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

ReflowX
Equipment code

Get Quotation Whatsapp

Short Description

Heavy-duty carbon steel pipe with 520 mm outer diameter and 60 mm wall thickness, available in ASTM A106, API 5L, or ASTM A53 grades. Suitable for oil, gas, water, and steam service in high-pressure, high-temperature industrial systems.

Description

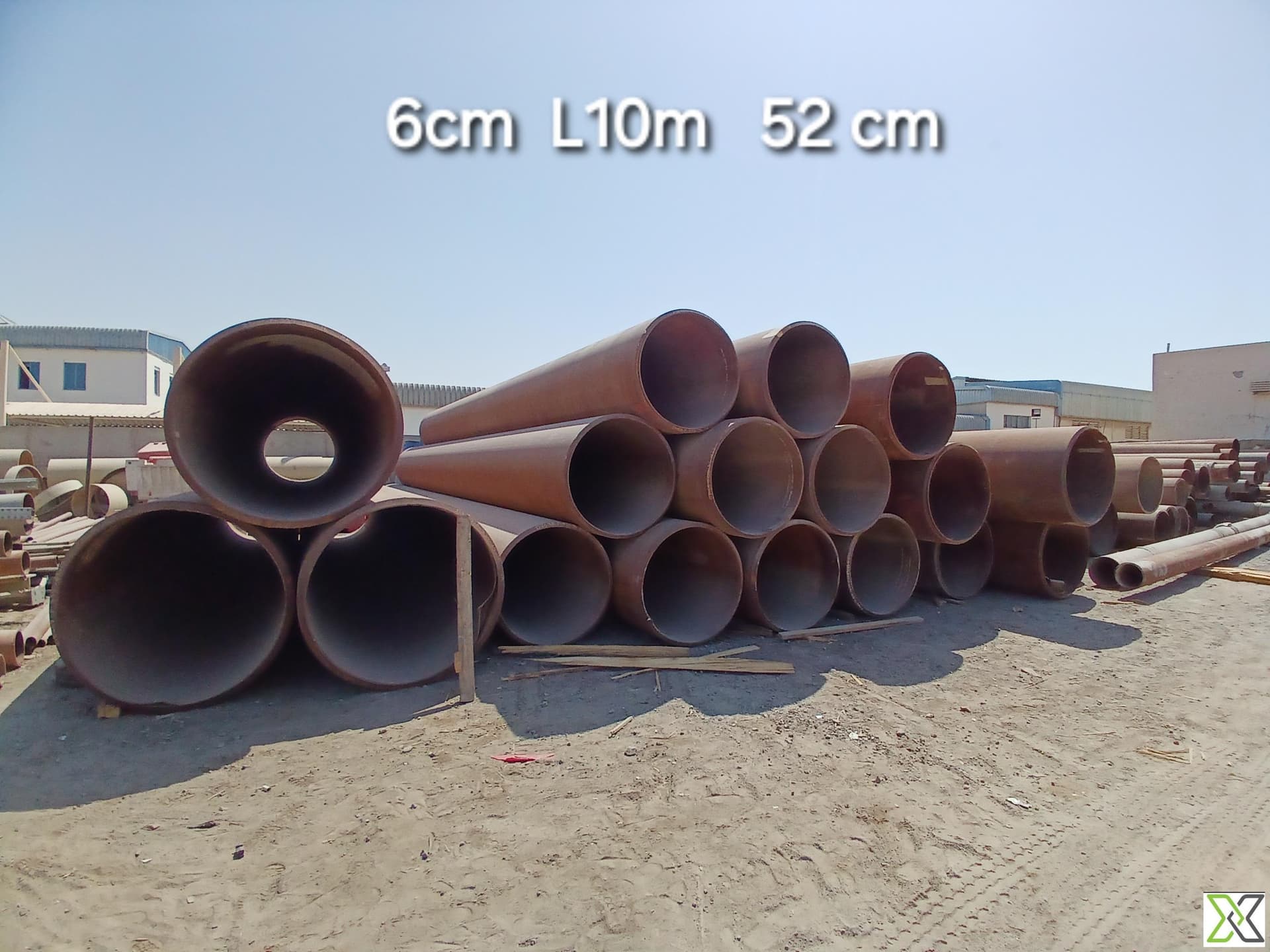

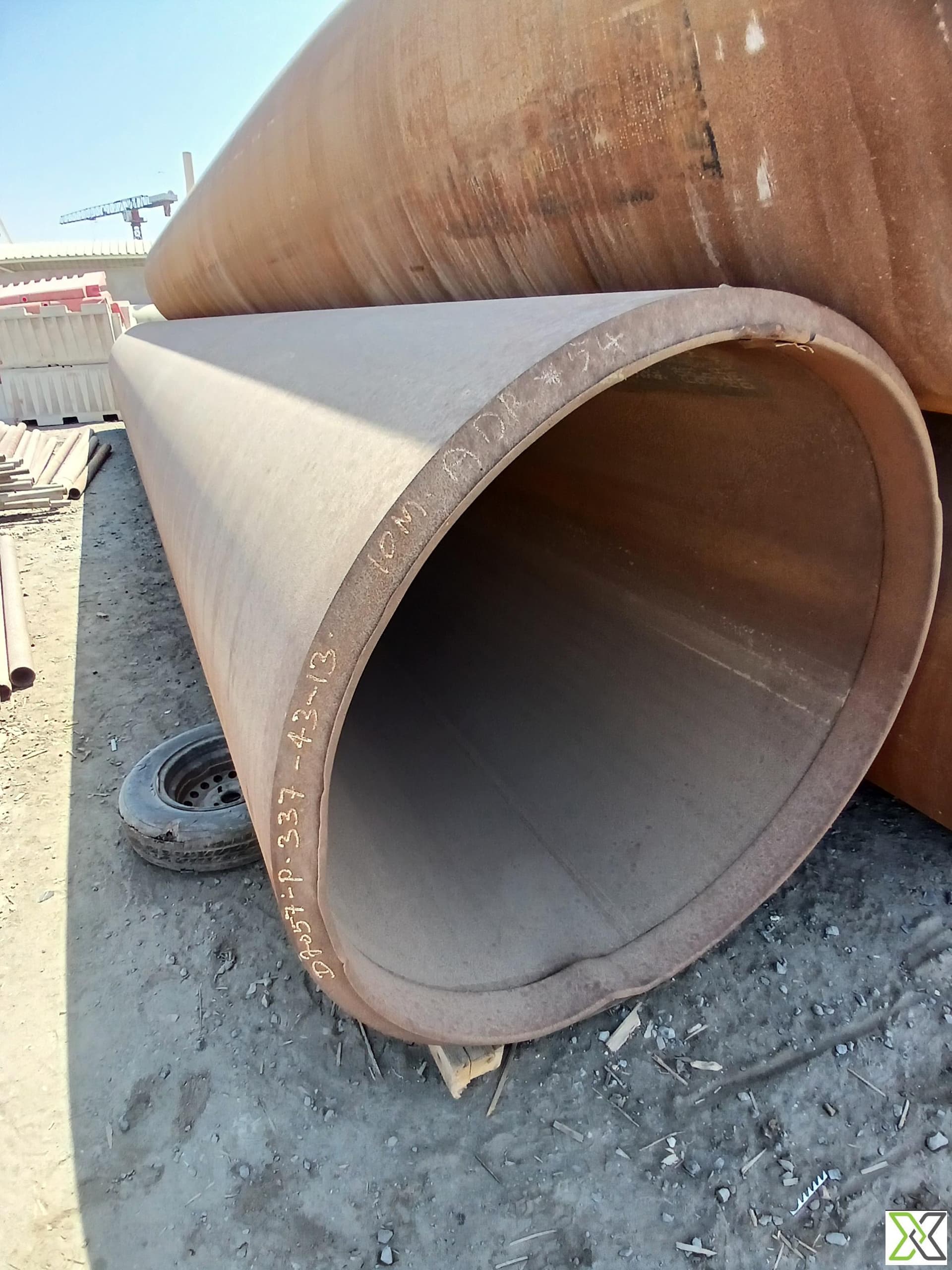

Carbon Steel Pipe – 520 mm OD × 60 mm WT × 10 m, ASTM/API Grade

This industrial-grade carbon steel pipe features a large 520 mm outer diameter and a robust 60 mm wall thickness, delivering superior strength and durability for demanding applications. With a standard length of 10 meters and cylindrical cross-section, it is available in both seamless and welded formats depending on application requirements. End finishes can be plain or beveled. The pipe is engineered from high-grade carbon steel, including ASTM A106 Grade B, API 5L Grade B/X42/X52, or ASTM A53 specifications, offering excellent mechanical performance and corrosion resistance. Designed for use in oil, gas, water, steam, and compressed air systems, this pipe supports operating temperatures up to +427°C and is compliant with industry standards like ASME B31.3 and EN 13480 for pressure piping. Each pipe is marked with full traceability including OD, wall thickness, length, heat number, and manufacturer's details.

Specifications:

– Product Type: Carbon Steel Pipe (Seamless or Welded)
– Outer Diameter (OD): 520 mm (52 cm)
– Wall Thickness (WT): 60 mm (6 cm)
– Inner Diameter (ID): 400 mm (40 cm)
– Nominal Pipe Size (Approx.): ~20"
– Length: 10 meters
– Cross-Section: Cylindrical
– End Type: Beveled / Plain End (as required)
– Pipe Volume (Metal Only): ~0.283 m³
– Approximate Weight: ~2,221 kg (based on 7.85 g/cm³ density)
– Material Grade Options:
• ASTM A106 Grade B
• API 5L Grade B / X42 / X52
• ASTM A53
– Tensile Strength: ≥ 415 MPa
– Yield Strength: ≥ 240 MPa
– Elongation: ≥ 20%
– Hardness: ≤ 95 HRB
– Density: 7.85 g/cm³
– Markings: Standard (OD, WT, Heat No., Manufacturer’s Name, Length)
– Design Pressure: Depends on material & code (ASME B31.3, EN 13480)
– Operating Temperature Range: -29°C to +427°C (typical for ASTM A106 B)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
