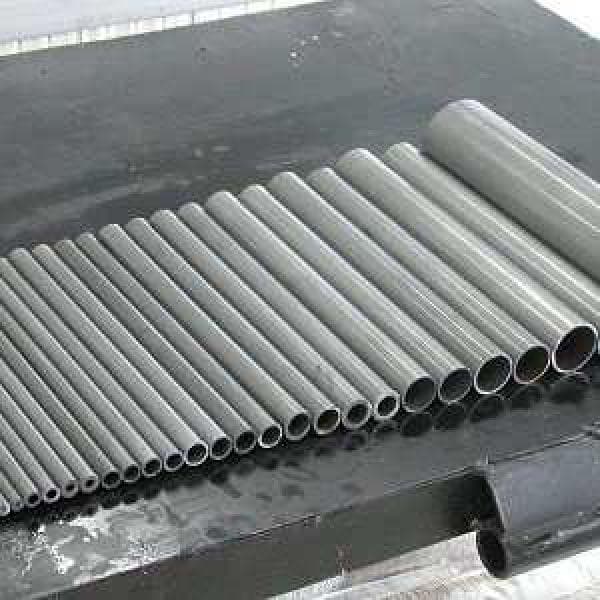

316Ti Stainless Steel Pipe – High-Temperature & Corrosion-Resistant Alloy | KCM

The 316Ti Stainless Steel Pipe from KCM is engineered for exceptional performance in high-temperature and highly corrosive environments. Alloyed with titanium, 316Ti provides enhanced resistance to intergranular corrosion and prolonged durability under elevated temperatures, making it ideal for chemical processing plants, pharmaceutical production lines, and marine infrastructure.

This stainless steel pipe maintains excellent mechanical strength, weldability, and formability, even in thermally intensive or aggressive chemical settings. It is particularly suitable for operations involving continuous exposure to temperatures above 500°C, where standard 316L would be susceptible to sensitization and corrosion.

Precision-manufactured to meet rigorous industry specifications, the 316Ti pipe guarantees dimensional accuracy, surface integrity, and compliance with international standards. Its availability in seamless and welded forms, and a wide range of sizes, allows for flexible integration into new or existing systems.

Specifications:

– Material Grade: 316Ti (1.4571) – Titanium-stabilized Austenitic Stainless Steel
– Outer Diameter Range: 6 mm to 630 mm (1/8” to 24”)
– Wall Thickness Range: SCH 5 to XXS / 0.5 mm to 30 mm
– Manufacturing Type: Seamless, Welded (ERW, TIG, Laser)
– Standards: ASTM A312, ASTM A213, EN 10216-5, DIN 17456 / 17458
– Surface Finish: Annealed & Pickled, Polished, Bright Annealed
– End Finish: Plain End, Beveled End, or Threaded (NPT/BSP)
– Length Options: Single Random, Double Random, or Custom Cut
– Temperature Resistance: Up to 850°C (Intermittent), Continuous up to 550°C
– Corrosion Resistance: Excellent in chloride environments, organic acids, and oxidizing agents
– Mechanical Properties:
 – Tensile Strength: ≥ 500 MPa
 – Yield Strength: ≥ 200 MPa
 – Elongation: ≥ 35%
– Weldability: Excellent – Suitable for fusion welding methods

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
