Description
Overview
This equipment package consists of a complete Ansaldo Energia AE94.3A combined cycle power plant configuration including a gas turbine, steam turbine, and associated generators. The unit was manufactured in 2018 and has 0 starts and 0 operating hours, having been maintained in preservation storage according to OEM preservation requirements.
The configuration includes a single-shaft AE94.3A gas turbine, a three-cylinder steam turbine, and two generators forming a full combined cycle power generation system. The equipment is designed for 50 Hz operation and configured for dual-fuel operation using natural gas as the primary fuel with distillate fuel oil as backup.
Ansaldo Energia AE94.3A
Scope of Supply
The package includes the following primary equipment and auxiliary systems:
Gas Turbine Package
1 × AE94.3A gas turbine (flange-to-flange)
Annular combustion chamber
24 Dry Low NOx burners
Steam Turbine Package
1 × Three-cylinder steam turbine unit
Downward exhaust to condenser
HP emergency stop and control valves
Combined reheat valves
AC motor-driven rotor turning gear
Generators
1 × Gas turbine generator main body
1 × Steam turbine generator main body
Pedestal bearings
Slip ring housings with filters
Gas Turbine Auxiliary Systems
Fuel gas skid
Fuel oil package
Lube oil skid with tank, pumps, and heat exchangers
Hydraulic oil system
Compressor washing system
Pneumatic blow-off actuation system
Air and Exhaust Systems
Complete air intake system including snow hoods, filter house, and inlet silencer
Exhaust gas duct with conical diffuser
These systems form a complete combined cycle configuration designed for integration with HRSG and balance-of-plant equipment.

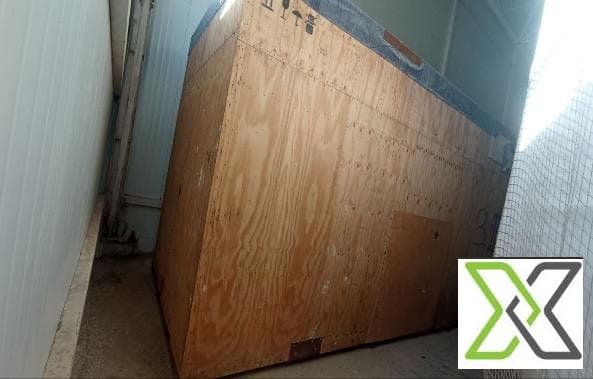

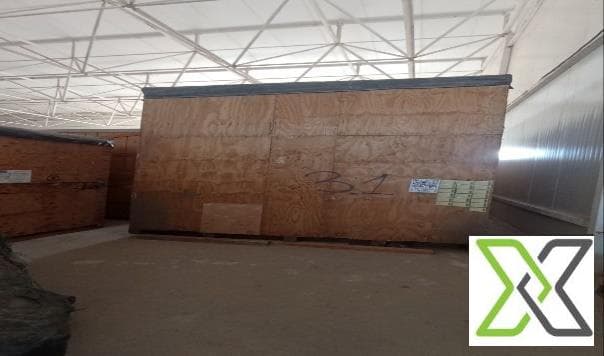

Equipment Condition and Storage
The equipment has been maintained in preservation storage in accordance with Ansaldo Energia preservation procedures.

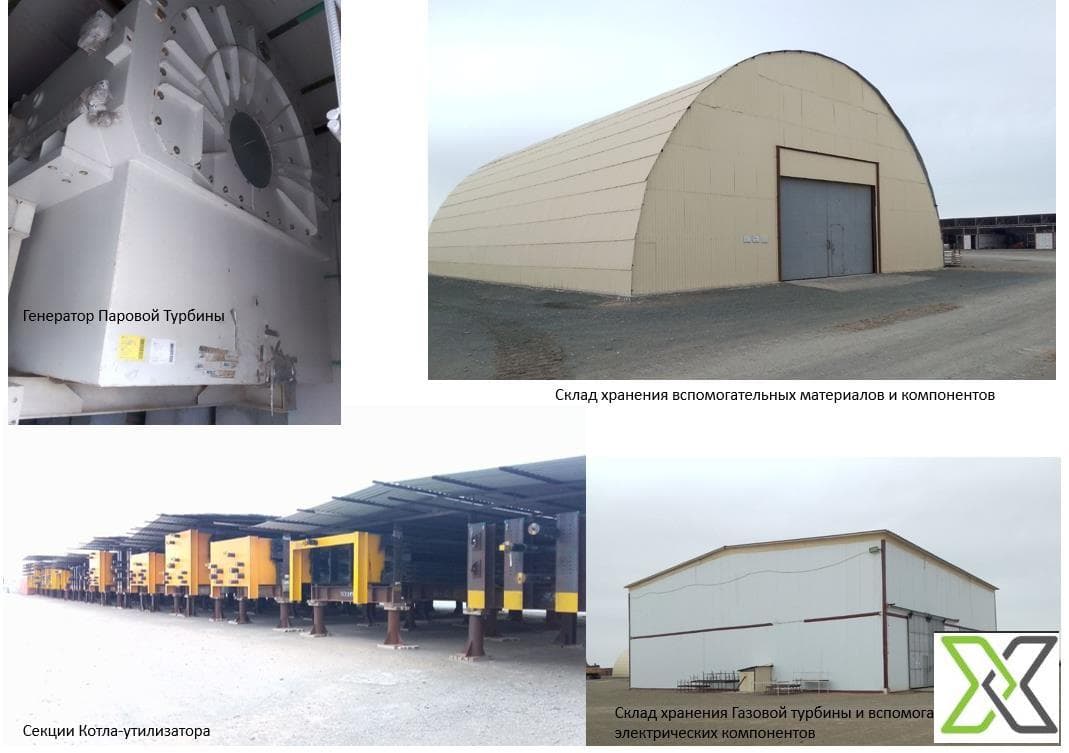

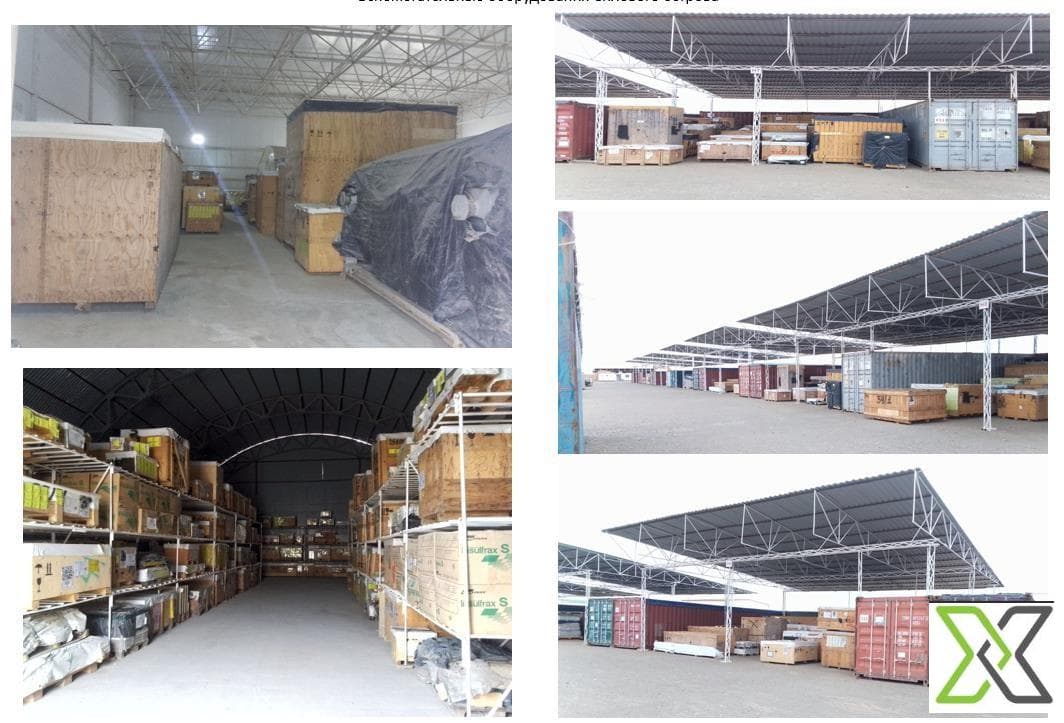

Storage conditions include:

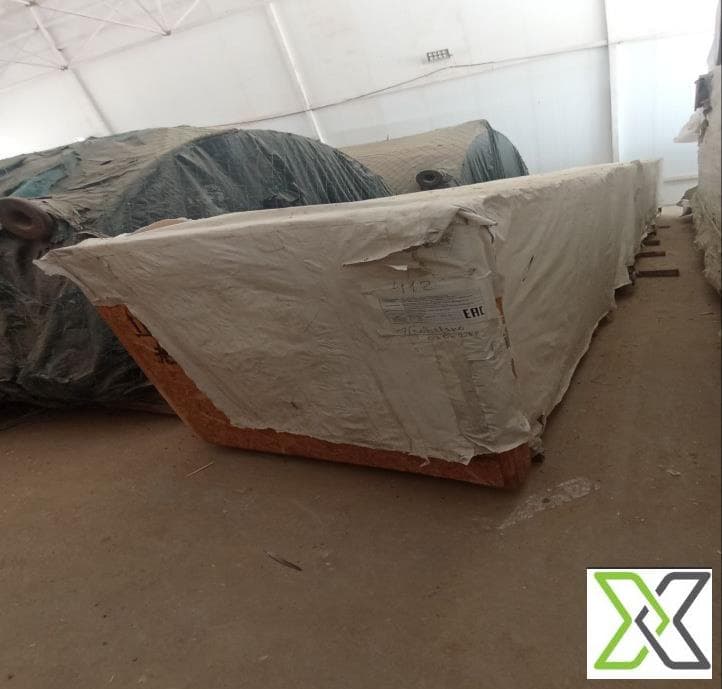

Gas turbine, GT generator, steam turbine cylinders, steam turbine rotor, and lube oil systems stored in climate-controlled warehouse facilities.

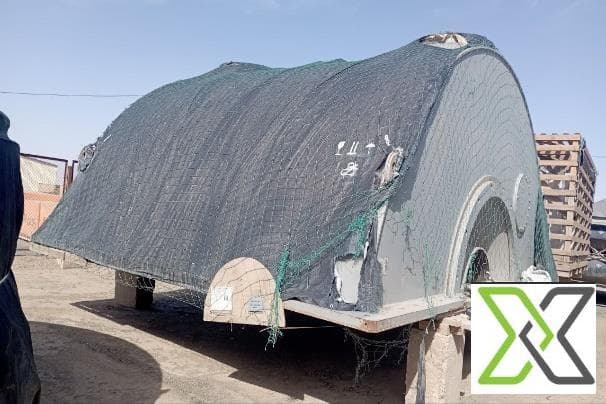

Steam turbine generator stator stored in a cold hangar.

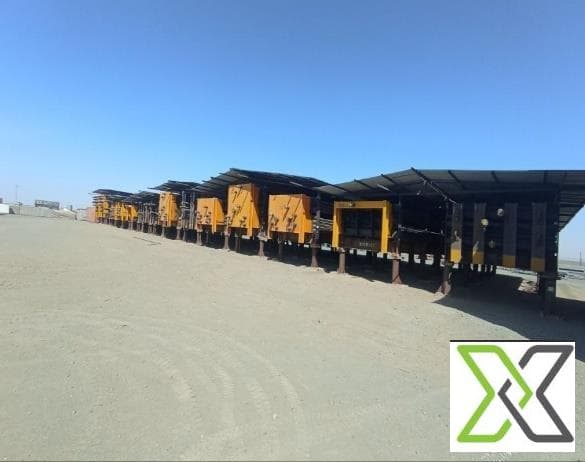

Steam turbine outer LP cylinders and HRSG modules stored outdoors under protective canopies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Ansaldo Energia |
| Gas Turbine Model | AE94.3A |
| Steam Turbine | Three-Cylinder Steam Turbine |
| Year of Manufacture | 2018 |
| Quantity Available | 1 complete combined cycle set |
| Configuration | Gas Turbine (single shaft, cold-end drive) with Steam Turbine |
| Total Gross Output | ~418.2 MW |
| Gas Turbine Output | ~280.7 MW |
| Steam Turbine Output | ~137.5 MW |
| Frequency | 50 Hz |
| Fuel Type | Dual Fuel (Natural Gas / Distillate Fuel Oil) |
| Condition | Preserved in storage |
| Starts | 0 |
| Running Hours | 0 |
If you require any further information on this listing please contact info@reflowx.com
