CAT XQ1475G Containerized Gas Generator Set – 1475 kW Continuous – 50/60 Hz Switchable

ReflowX SKU: REF-7086

Product Details

Quantity

4
Availability (Lead Time)

0-2 Weeks
Product Location

Germany
Condition

Surplus
OEM

CAT
Equipment code

Power Generation
Total Price
Per Unit Price

$ 836,000.00

Whatsapp Chat With Seller

Short Description

Rebuilt Caterpillar XQ1475G gas generator set with 1475 kW continuous output, 50/60 Hz switchable operation, enclosed in a sound-attenuated 40' ISO container. Powered by CAT G3516C engine and equipped with advanced EMCP 4.2 controls.

Description

CAT XQ1475G Containerized Gas Generator Set – 1475 kW Continuous – 50/60 Hz Switchable

Description:

Offered for sale is a rebuilt CAT XQ1475G containerized gas generator set rated for 1475 kW continuous output at 50/60 Hz. This robust and versatile generator is powered by the CAT G3516C island mode gas engine and housed within a 40' high cube ISO CSC container with acoustic insulation and exhaust silencers. Designed for durability and flexibility, it includes a permanent magnet excited SR-4B generator, EMCP 4.2 controller, and AGC-4 paralleling system for advanced load sharing and remote monitoring.

The unit supports natural gas input (methane number 55–100) with low emissions and a noise rating of just 72 dB(A) at 15 meters. The container integrates integrated lighting, access doors, spill containment, and fuel connection provisions. This generator is suited for industrial or utility operations requiring reliable, high-output continuous power.

Specifications:

– Model: CAT XQ1475G
– Engine: CAT G3516C Gas Engine
– Fuel Type: Natural Gas (3–7 psi)
– Power Output: 1475 kW (1844 kVA) Continuous
– Frequency: 50/60 Hz switchable

– Usage Hours: Around 18000
– Voltage Output: 400/230V (50Hz), 480/240V (60Hz)
– Speed: 1800 rpm

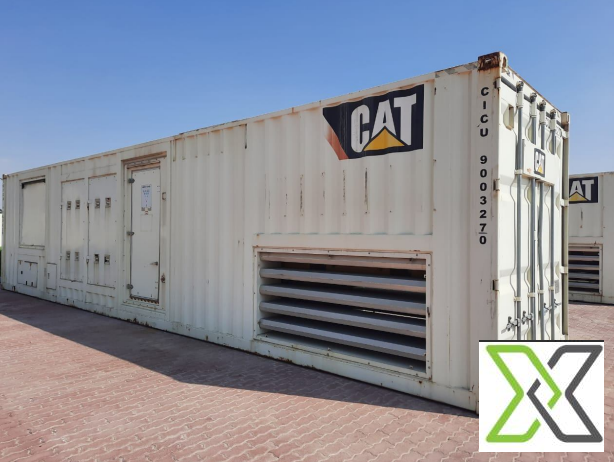

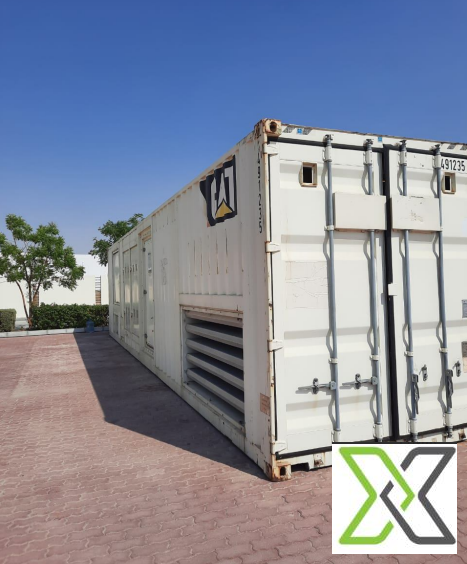

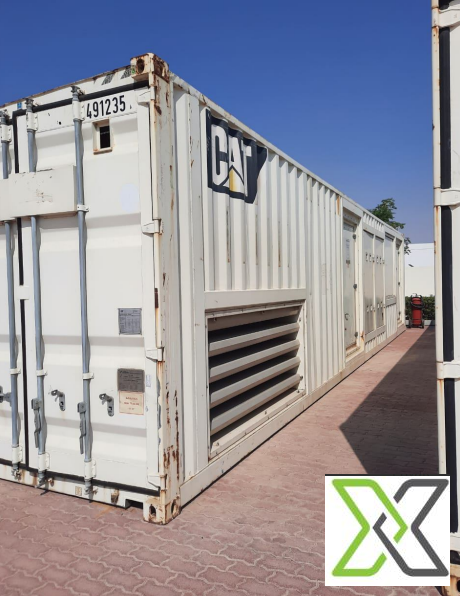

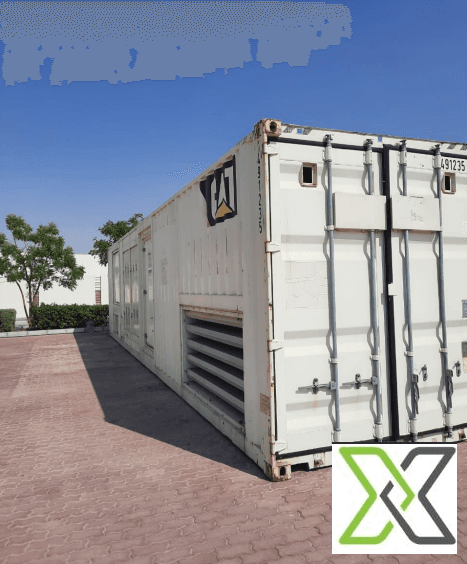

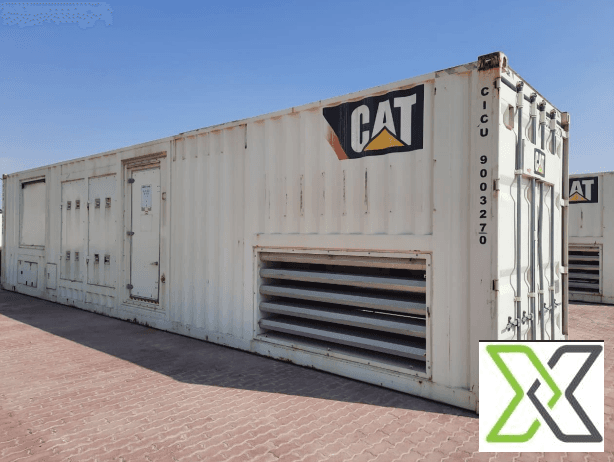

– Enclosure: Sound-attenuated 40' ISO CSC high cube container
– Noise Rating: 72 dB(A) @ 15m
– Generator Type: SR-4B, Brushless, Permanent Magnet Excited
– Insulation Class: H

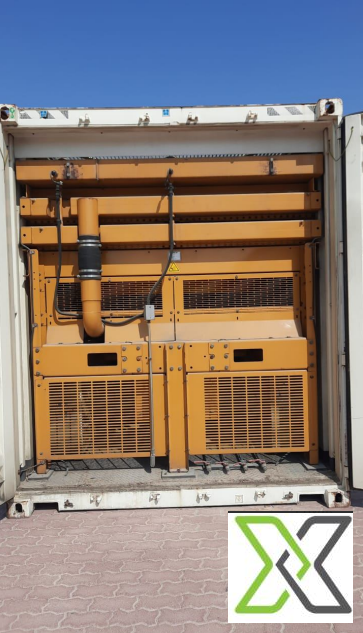

– Cooling System: 40°C ambient, VFD-driven fan
– Fuel Pressure Range: 0.206 - 0.483 bar (3–7 PSI)
– Jacket Water Outlet Temp: 98°C
– Lube Oil System: 416 L capacity
– Dimensions (without trailer):
• Length: 12,192 mm (480 in)
• Width: 2,438 mm (96 in)
• Height: 2,896 mm (114 in)
– Weight (with lube oil and coolant): 31,920 kg (70,372 lb)

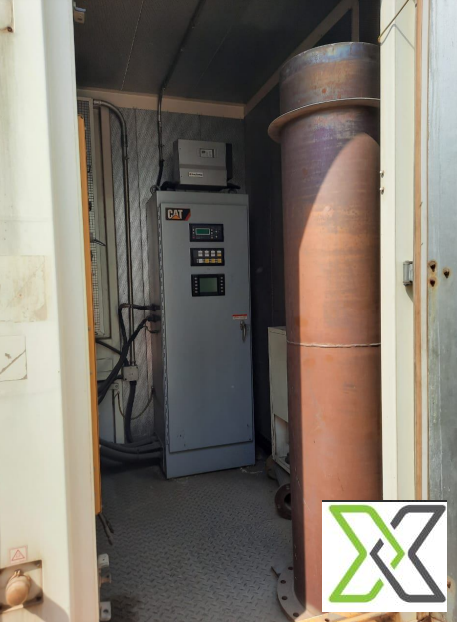

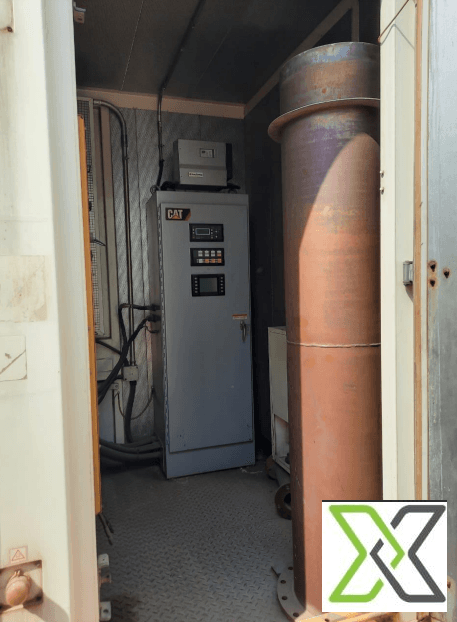

– Control Panel: EMCP 4.2, CDVR, Basler BE1-11i UMR
– Breaker Rating: 3200A, IEC rated, electrically operated
– Auxiliaries: Battery charger, jacket water heater, air intake louvers, LED lighting
– Spill Containment: 110% for engine fluids
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	CAT XQ1475G
Model Number	CAT XQ1475G
Manufacturer Name	Caterpillar
Height	2,896 mm
Width	2,438 mm
Length	12,192 mm
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas
Output Power	1475 kW continuous
Model Number	CAT XQ1475G
Manufacturer Name	Caterpillar
Height	2,896 mm
Width	2,438 mm
Temperature Range	-10°C to +40°C
Voltage	400/230V (50Hz), 480/240V (60Hz)
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Natural Gas
Output Power	1475 kW continuous
Speed	1800 rpm
Direction of Rotation	Counterclockwise
IFC Class	IfcEngineGeneratorSet
Design Specification	CAT G3516C Gas Engine
Normal Operating Temperature	Ambient operation: Up to 40°C without derate
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	Continuous operation
Upper Limit Operating Temperature	+40°C
Number Of Shafts	Single shaft
Test Medium	Natural Gas
Test Pressure	3–7 psi fuel inlet pressure
Turbine Cycle	4-stroke, turbocharged
Insulation Class	H
