Cummins Power Generation: C90D5 - 2018

ReflowX SKU: REF-8458

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

SEZ Industrial Area, Nandal, Satara, India
Equipment code

Power Generation

Get Quotation Whatsapp Chat With Seller

Share on Facebook

Share on Twitter

Share on LinkedIn

Short Description

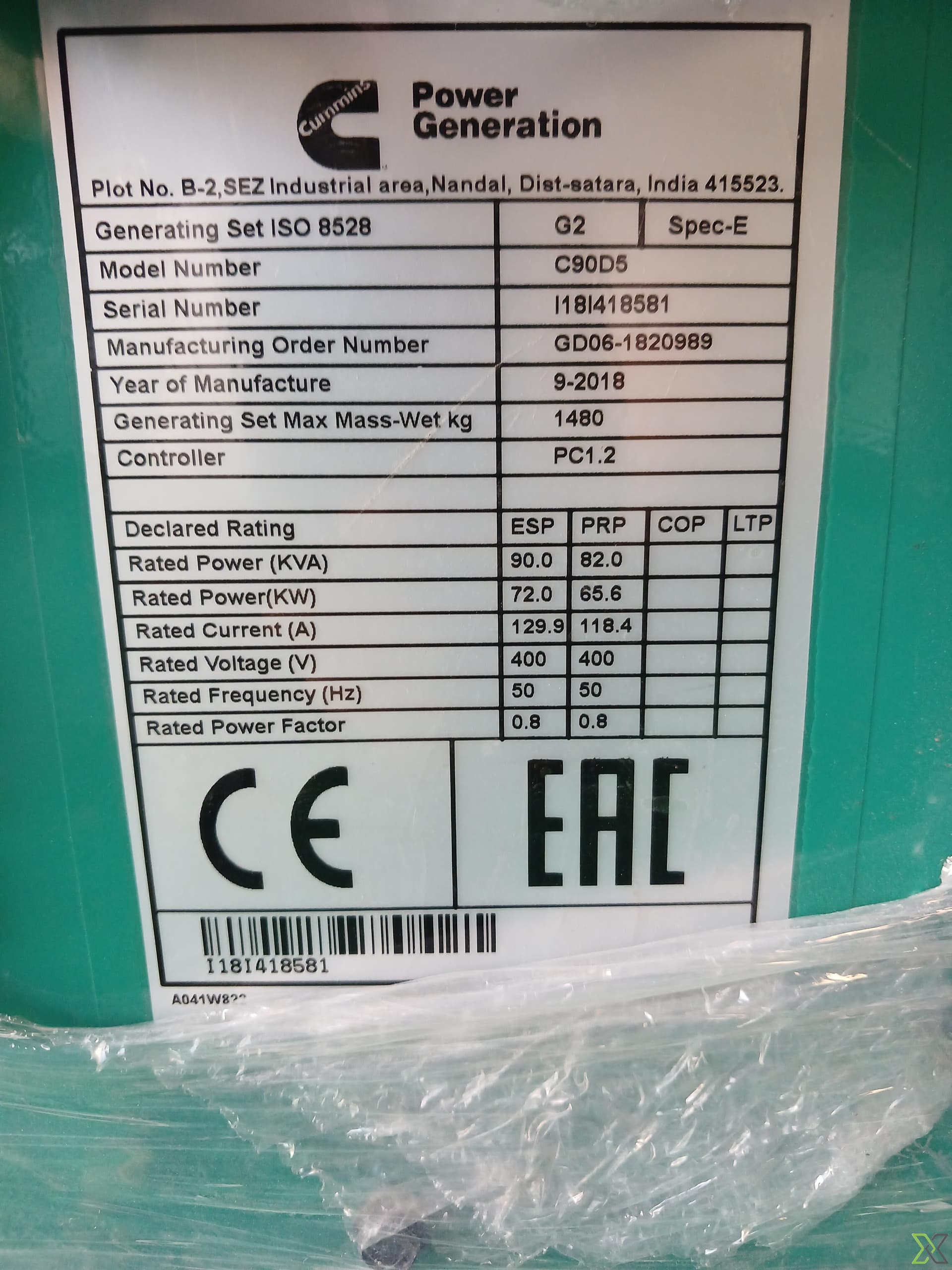

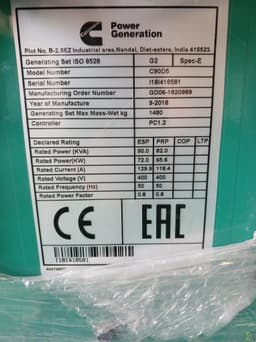

Brand: Cummins Power Generation Model Number: C90D5 Spec: E Genset Standard: ISO 8528 (G2 Class) Manufacturing Site: SEZ Industrial Area, Nandal, Satara, India Serial Number: I8I418581 Manufacturing Order Number: GD06-1820989 Year of Manufacture: September 2018 Controller: PC1.2 Wet Mass: 1480 kg

Description

General Information

Brand: Cummins Power Generation

Model: C90D5

Spec Code: E

Genset Standard: ISO 8528 – G2 Class

Year of Manufacture: September 2018

Manufacturing Site: SEZ Industrial Area, Nandal, Satara, India

Serial Number: I8I418581

Manufacturing Order Number: GD06-1820989

Controller: Cummins PC1.2

Generator Type: Fully integrated diesel generator set

Application: Industrial/Commercial continuous or standby power supply

Engine Specifications

Engine Manufacturer: Cummins

Engine Model: 6BT5.9-G1

Engine Type: 6-cylinder, 4-stroke, turbocharged, aftercooled diesel engine

Cooling System: Water-cooled (radiator type)

Aspiration: Turbocharged

Fuel Type: Diesel

Governor Type: Electronic

Fuel Consumption (at 100% load): ~20–23 L/hr (approximate)

Oil Capacity: ~16.5 liters

Coolant Capacity: ~13 liters

Alternator Specifications

Alternator Manufacturer: Stamford or Cummins (model dependent on spec code)

Type: Brushless, self-excited

Insulation Class: H

Temperature Rise: Class H at 125 °C

Voltage Regulation: ±1.0% with automatic voltage regulator (AVR)

Frequency: 50 Hz

Voltage Output: 230/400V, 3-phase

Power Factor: 0.8 lagging

Enclosure: IP23

Power Output

Prime Power Rating: 82 kVA / 65.6 kW

Standby Power Rating: 90 kVA / 72 kW

Voltage: 400/230V

Frequency: 50 Hz

Speed: 1500 RPM

Physical Specifications

Wet Mass (with fluids): 1,480 kg

Length: ~2,200 mm

Width: ~1,000 mm

Height: ~1,500 mm
(Dimensions may vary depending on the enclosure or skid base)

Control System

Controller Model: Cummins PC1.2

Features:

Auto start/stop

Engine and alternator monitoring

Protection and fault diagnostics

Voltage, current, frequency, and runtime display

Remote communication capability (optional)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	C90D5
Year of Manufacturing	2018
Model Number	C90D5
Year of Manufacturing	2018
Height	1,714 mm
Width	1,142 mm
Length	3,151 mm
Weight	1480 kg
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Diesel
Output Power	90 kVA / 72 kW
Model Number	C90D5
Year of Manufacturing	2018
Height	1,714 mm
Width	1,142 mm
Weight	1480 kg
Voltage	380–415 V
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Diesel
Output Power	90 kVA / 72 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
Normal Operating Temperature	Up to 40°C (104°F)
Lower Limit Operating Temperature	-15°C (5°F)
Operation Continuous Intermittent	continuous and intermittent operation
Upper Limit Operating Temperature	50°C (122°F)
Number Of Shafts	Single shaft design
Test Medium	Diesel fuel
Turbine Cycle	Single-stage turbocharging
