Cummins QSK23-G4 Diesel Generator Set with Q11-28-G3 Engine – 800 kVA - 2014

ReflowX SKU: REF-8390

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

STAMFORD Ramsgate, Kent, UK
Equipment code

Power Generation

Get Quotation Whatsapp

Short Description

High-capacity Cummins QSK23-G4 diesel generator set, 800 kVA rated, driven by Q11-28-G3 engine with Stamford alternator, ideal for continuous and standby power applications.

Description

Cummins QSK23-G4 Diesel Generator Set with Q11-28-G3 Engine – 800 kVA - 2014

The Cummins Power Generation QSK23-G4 is a robust industrial diesel generator set engineered for continuous or standby operations. Manufactured in 2014 at Cummins’ Ramsgate facility in the UK, it is driven by the powerful Q11-28-G3 engine, delivering up to 982 HP at 1500 RPM. This generator delivers a base power output of 800 kVA (640 kW) at 400V and 50 Hz, supported by the reliable Stamford HCI634G1 alternator. With a power factor of 0.80 and an IP23 enclosure rating, this genset is built for durability, consistent performance, and long service life. Designed to comply with international standards such as BS 5000 Part 3, IEC 34-1, ISO 8528-3, and NEMA MG 1-32, it is an ideal solution for industrial and utility-grade applications.

Specifications:

– Brand: Cummins Power Generation
– Model Number: QSK23-G4
– Engine Model: Q11-28-G3
– Assembly Location: Ramsgate, Kent, UK
– Manufacture Date: January 2014
– Serial Number: 0275199/003
– Machine ID: X10L480522

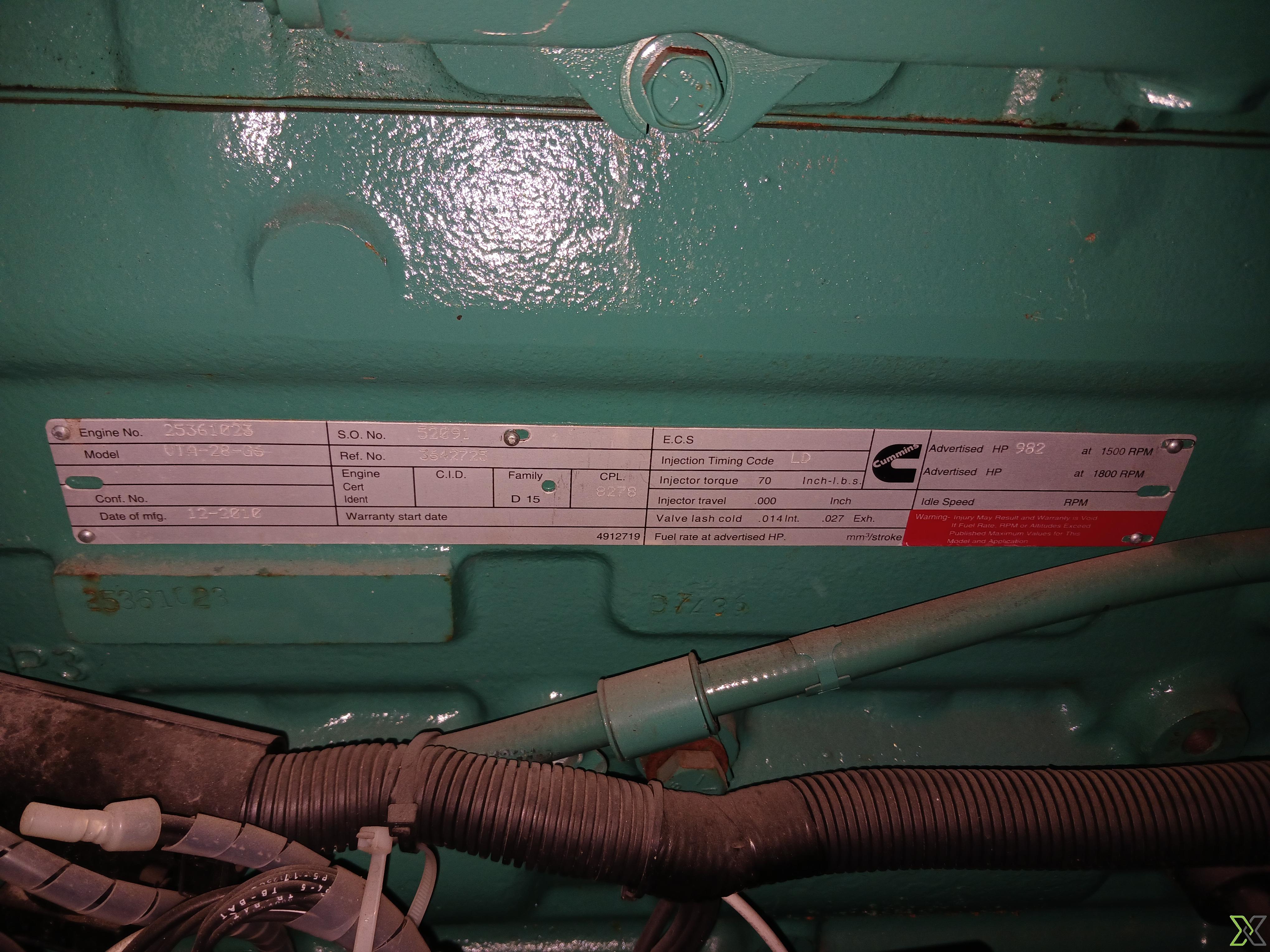

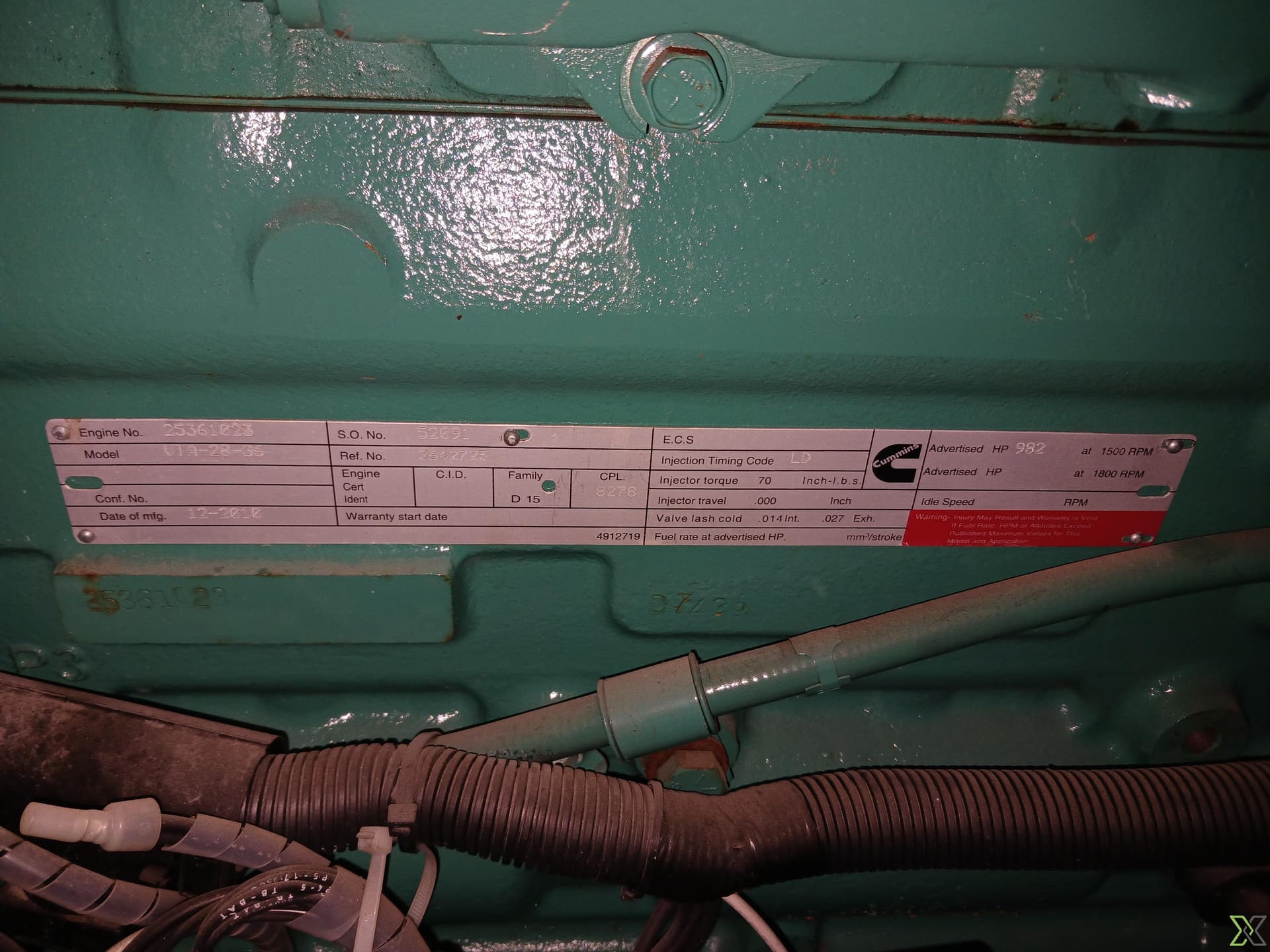

Engine Specifications:
– Engine Family: D15
– CPL: 8276
– Advertised Power: 982 HP @ 1500 RPM
– Injector Torque: 70 in-lbs
– Injector Travel: 0.000 inch
– Valve Lash: 0.014 in (intake) / 0.027 in (exhaust)
– Engine Manufacturing Date: 13-Feb-2010

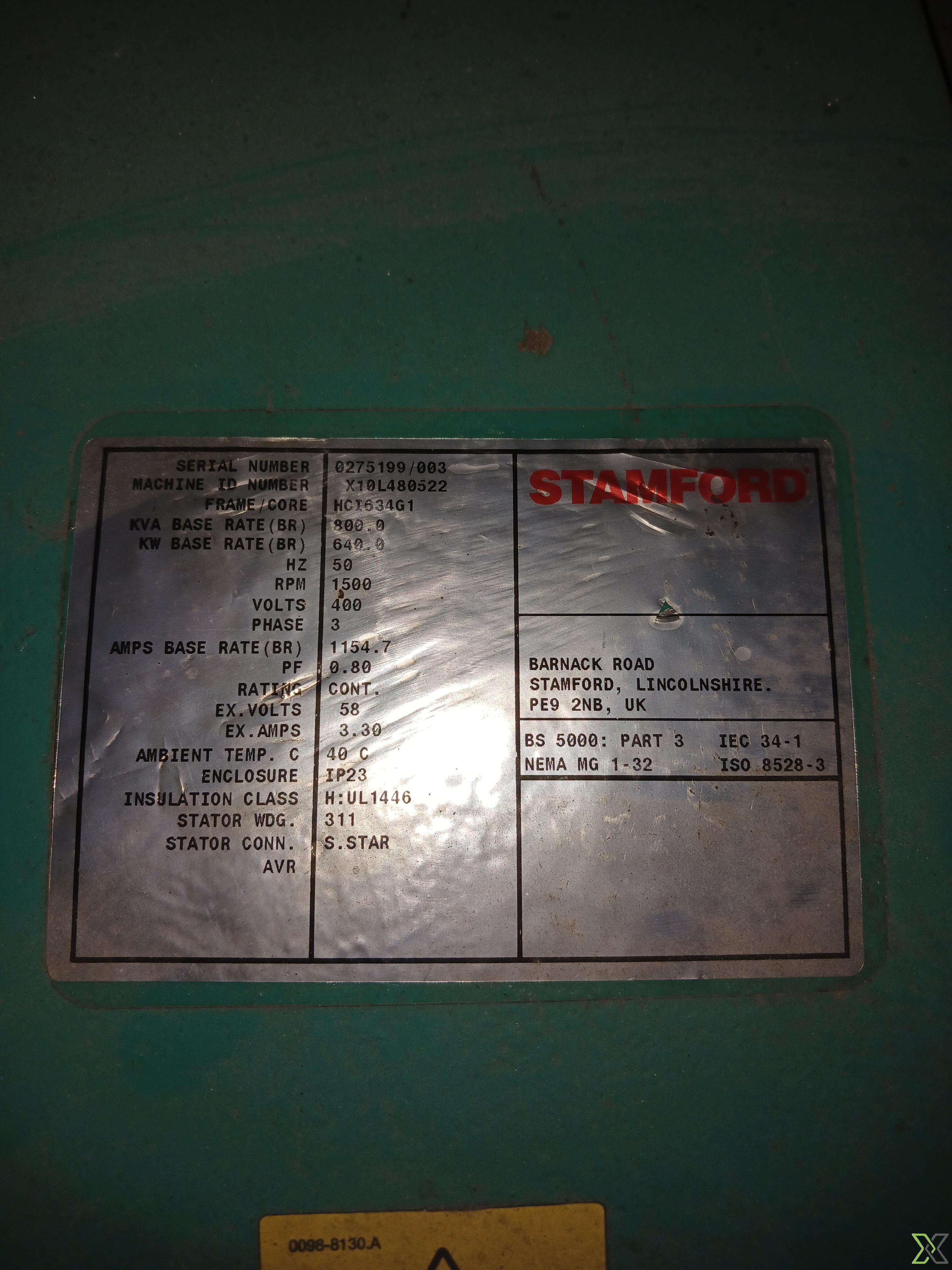

Alternator Specifications:
– Alternator Brand: STAMFORD
– Alternator Model: HCI634G1
– Frame/Core: HCI634G1
– Rated Power Output: 800.0 kVA / 640.0 kW
– Voltage / Current Output: 400 V / 1154.7 A
– Frequency / Speed: 50 Hz / 1500 RPM
– Power Factor: 0.80
– Excitation Voltage: 58 V
– Excitation Current: 3.3 A
– Insulation Class: H (UL1446)
– Enclosure Rating: IP23
– Stator Connection: Series Star (S. Star)
– Compliance Standards: BS 5000 Part 3, IEC 34-1, ISO 8528-3, NEMA MG 1-32

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	QSK23-G4
Year of Manufacturing	2014
Model Number	QSK23-G4
Year of Manufacturing	2014
Height	1,964 mm
Width	1,656 mm
Length	2,976 mm
Weight	3,245 kg
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Diesel
Model Number	QSK23-G4
Year of Manufacturing	2014
Height	1,964 mm
Width	1,656 mm
Weight	3,245 kg
Voltage	400 V / 1154.7 A
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Diesel
Speed	1500 RPM
Direction of Rotation	Clockwise
Normal Operating Temperature	Up to 50°C (122°F)
Lower Limit Operating Temperature	-18°C (0°F)
Operation Continuous Intermittent	continuous and intermittent operation
Upper Limit Operating Temperature	55°C (131°F)
Number Of Shafts	Single shaft design
Test Medium	Diesel fuel
Turbine Cycle	Single-stage turbocharging
