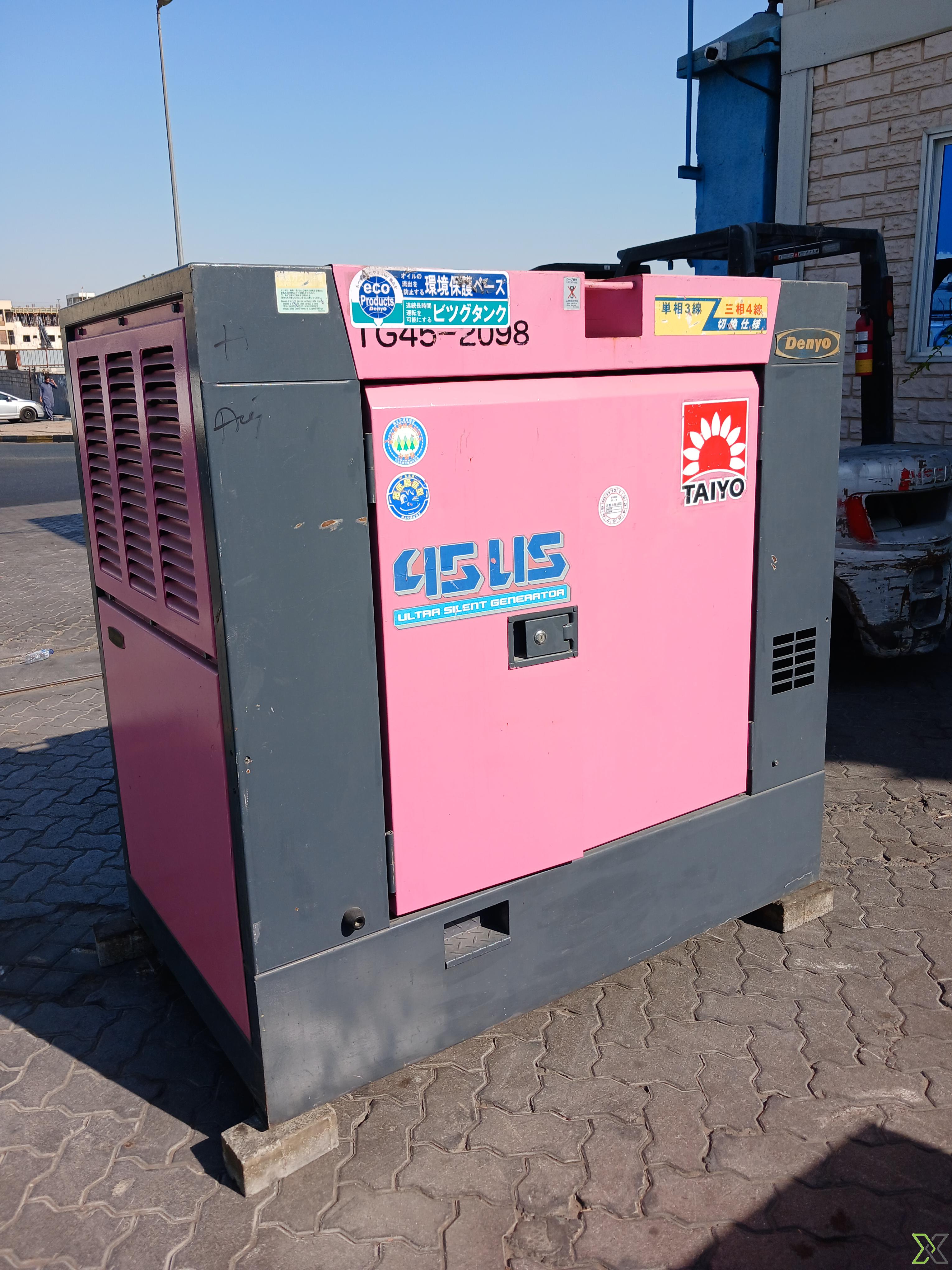

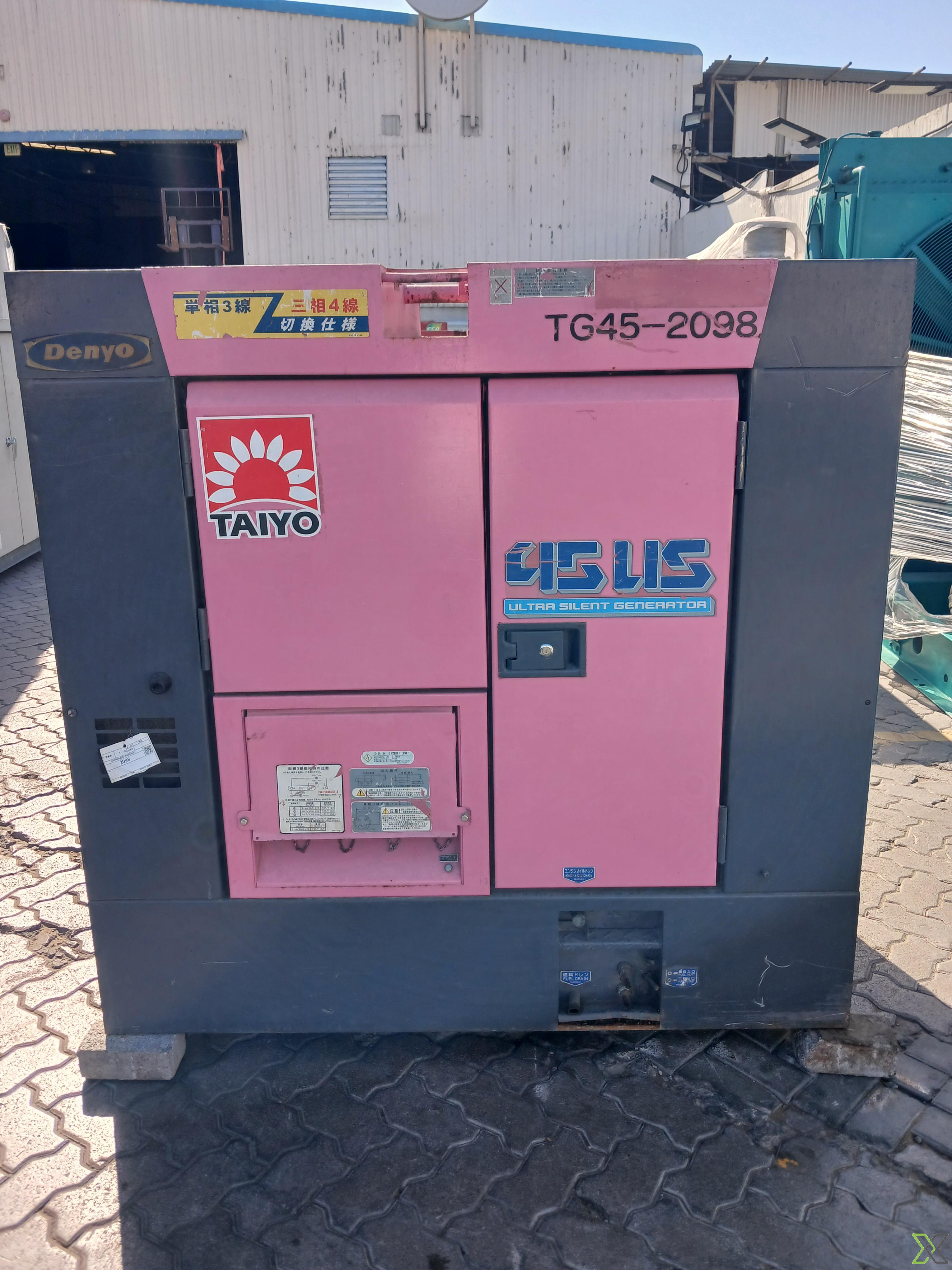

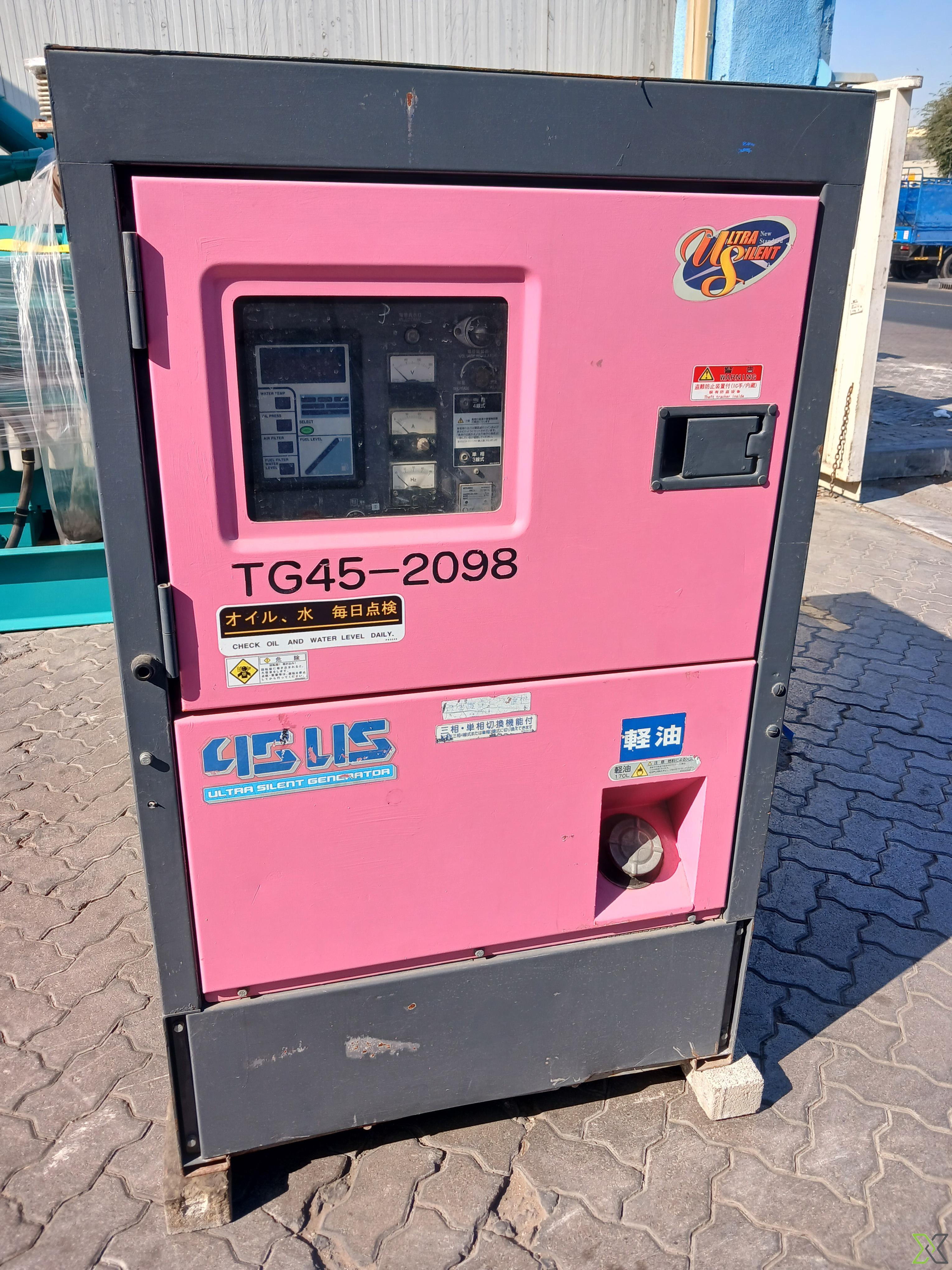

Denyo Ultra Silent Generator : DCA-45USI2

ReflowX SKU: REF-5278

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Brushless AC Generator
Equipment code

Power Generation

Get Quotation Whatsapp

Short Description

Denyo Ultra Silent Generator Model: DCA-45USI2 Type: Brushless AC Generator

Description

TECHNICAL SPECIFICATIONS

ENGINE SPECIFICATIONS

Engine Model: BB-4JG1T (ISUZU)

Engine Type: Water-cooled, 4-cycle, direct-injection, turbocharged diesel engine

Rated Output:

34.2 kW @ 1500 min⁻¹ (50 Hz)

41.2 kW @ 1800 min⁻¹ (60 Hz)

Displacement: 3.059 liters

Fuel Type: Light Oil (JIS No.2 Diesel – 軽油)

Fuel Tank Capacity: Approx. 100 liters (typical, confirm with unit plate)

Cooling System: Pressurized radiator with fan

Starting System: Electric start with battery

Lubrication System: Forced lubrication with oil filter

Air Cleaner: Dry-type

Exhaust System: Muffler with spark arrestor

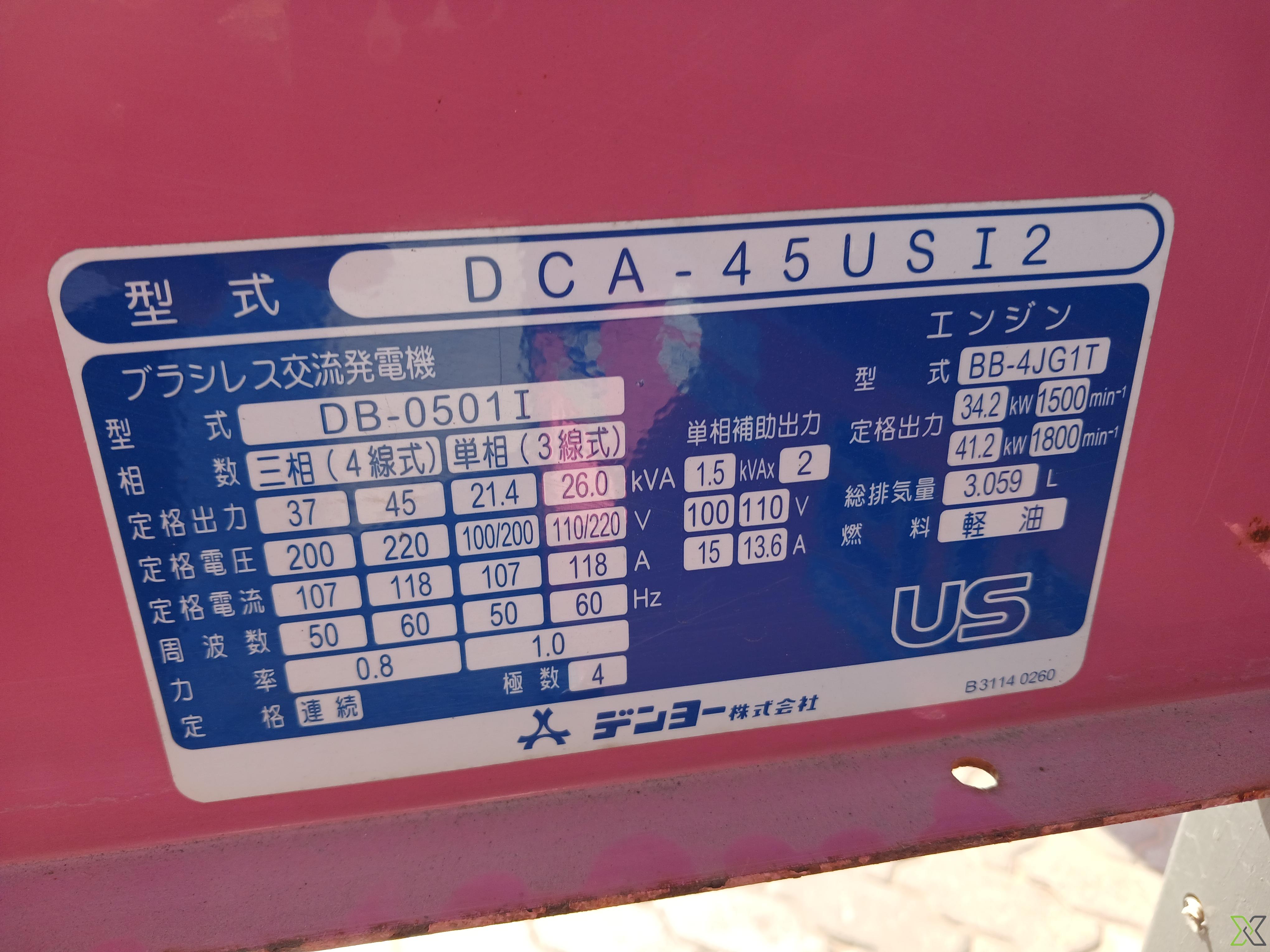

POWER GENERATION SPECIFICATIONS

Three-Phase Output (4-wire):

Rated Output: 37 kVA @ 50 Hz / 45 kVA @ 60 Hz

Rated Voltage: 200V / 220V

Rated Current: 107A @ 200V / 118A @ 220V

Frequency: 50 / 60 Hz (Selectable)

Power Factor: 0.8 (lagging)

Phase/Poles: 3-phase, 4-wire, 4-pole

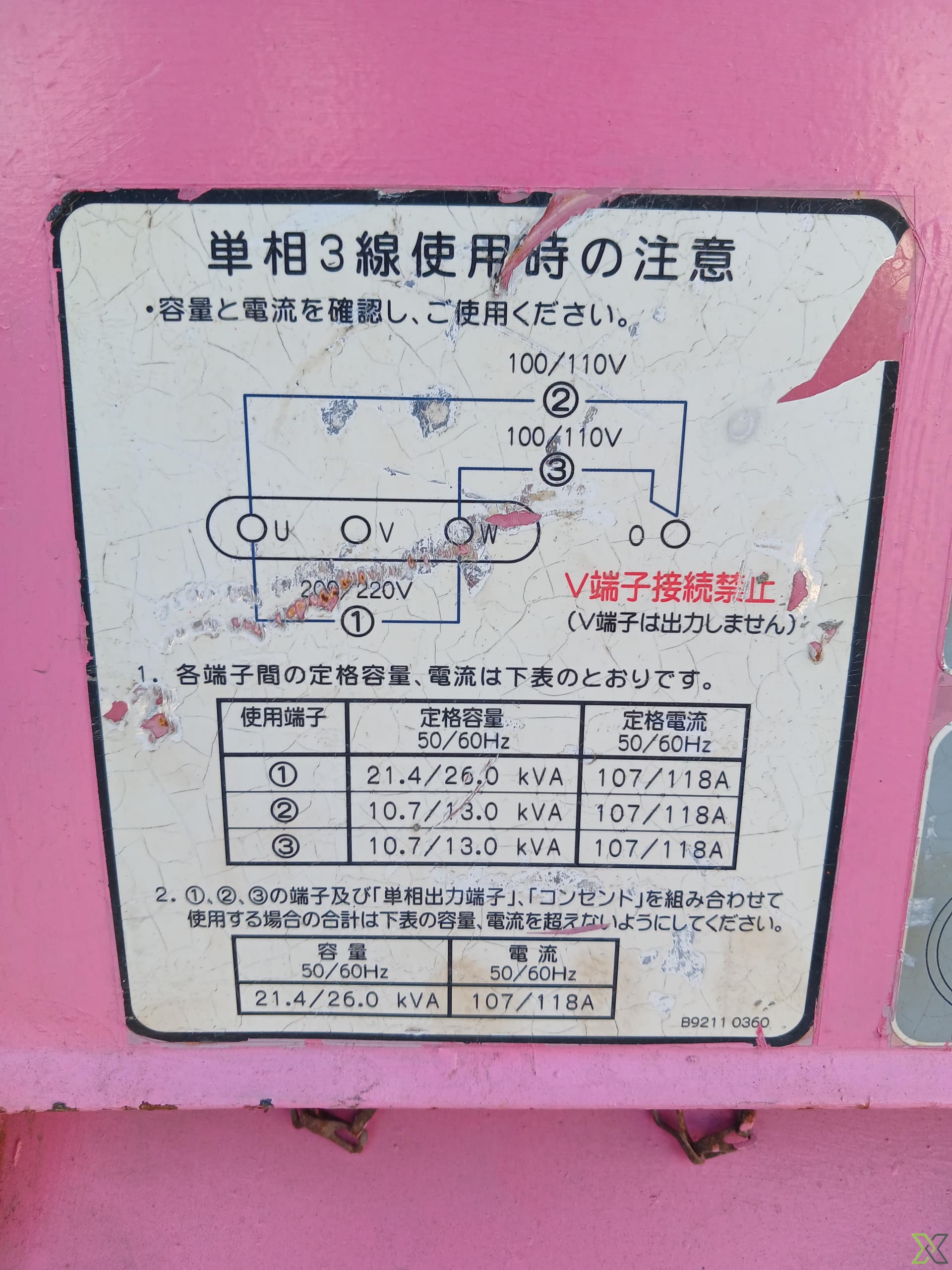

Single-Phase Output (3-wire):

Rated Output: 21.4 kVA @ 50 Hz / 26.0 kVA @ 60 Hz

Rated Voltage: 100/200V or 110/220V

Rated Current: 107A @ 200V / 118A @ 220V

Power Factor: 1.0 (unity)

Single-Phase Auxiliary Output:

Capacity: 1.5 kVA × 2 ports

Voltage: 100V / 110V

Current: 15A / 13.6A

Generator Type:

Alternator: Brushless, revolving field

Voltage Regulation: AVR (Automatic Voltage Regulator)

Insulation Class: Class F

Protection Class: IP23 or equivalent

GENERAL SPECIFICATIONS

Sound Proofing: Ultra Silent Enclosure with heavy-duty acoustic insulation

Noise Level: Approx. 58–62 dB(A) @ 7 meters under full load (manufacturer-dependent)

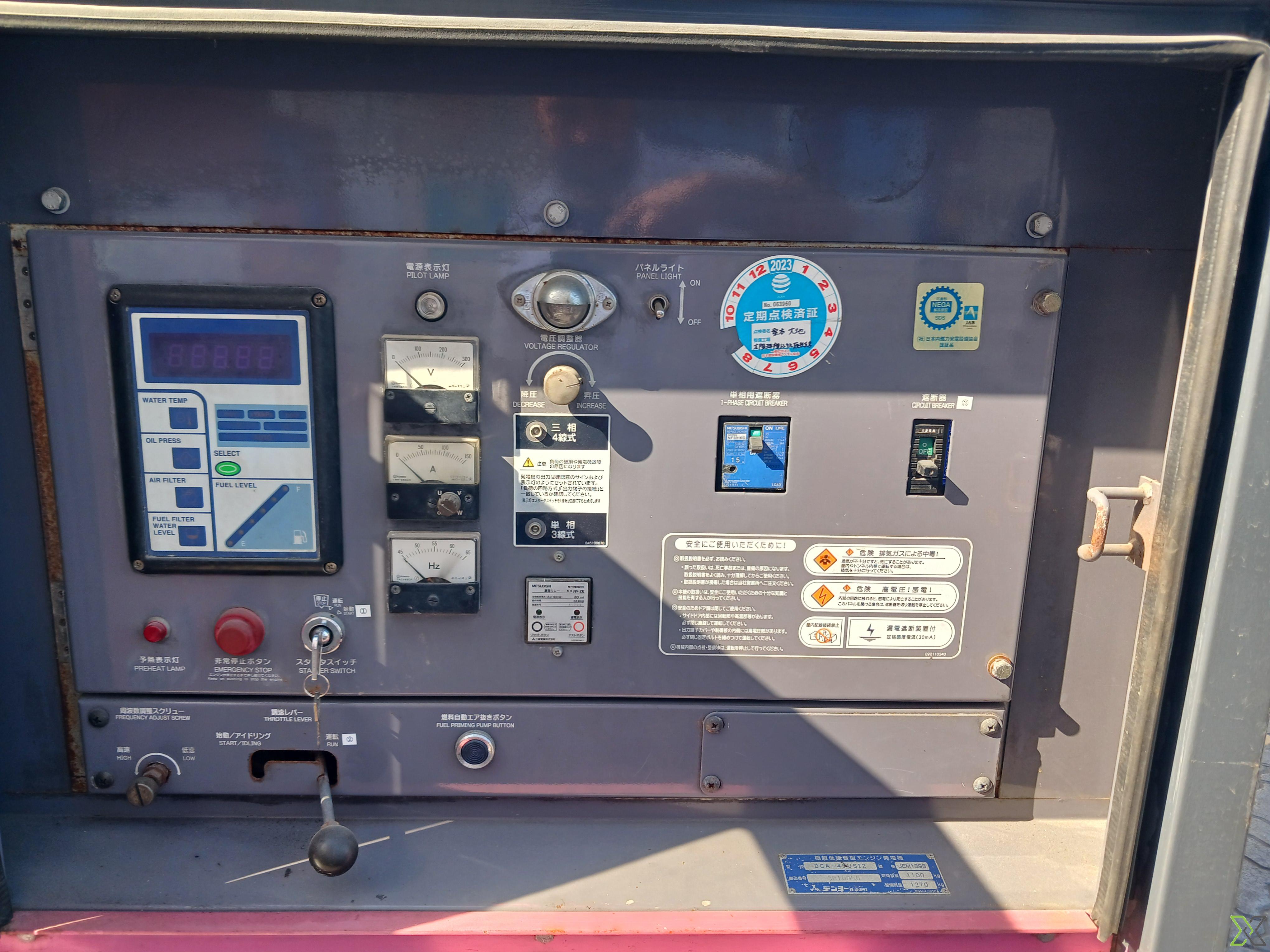

Control Panel: Integrated digital control panel with voltage, frequency, and current monitoring

Safety Features:

Low oil pressure shutdown

High coolant temperature shutdown

Over-speed and overload protection

Emergency stop switch

Fuel Consumption:

Approx. 8.0 – 10.0 L/h (load dependent)

Battery: 12V electric start battery system

Lifting & Mobility:

Central lifting hook

Forklift pockets

Skid base frame with vibration isolators

DIMENSIONS & WEIGHT

Dry Weight: 1100 kg

Operating Weight (with fuel and oil): 1270 kg

Overall Dimensions (L × W × H): Approx. 1980 × 950 × 1210 mm (verify exact model datasheet for updated dimensions)

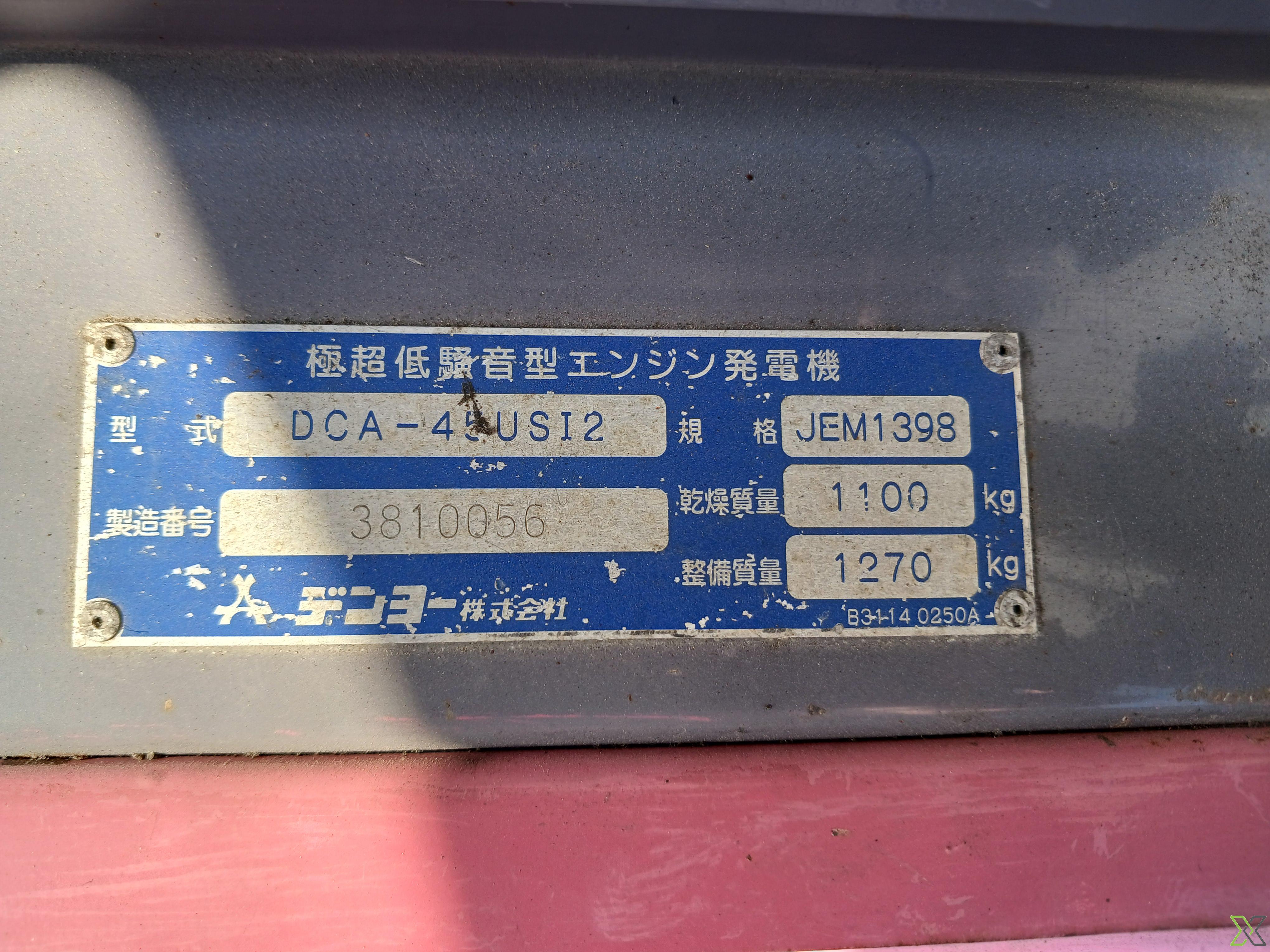

MARKINGS & IDENTIFICATION

Model Name: DCA-45USI2

Manufacturer: Denyo Co., Ltd. (Japan)

Engine Manufacturer: ISUZU Motors Ltd.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	BB-4JG1T (ISUZU)
Model Number	BB-4JG1T (ISUZU)
Height	1210 mm
Width	950 mm
Length	1980 mm
Weight	1270 kg
ISO 15926 Pt 4	7686
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Light Oil (Diesel, JIS No.2)
Output Power	37 kVA @ 50 Hz
Model Number	BB-4JG1T (ISUZU)
Height	1210 mm
Width	950 mm
Weight	1270 kg
Temperature Range	-15°C to +40°C
Voltage	200V / 220V (Three Phase)
PCA RDS Code	RDS820799
CFIHOS ID	CFIHOS-30000534
Fuel type	Light Oil (Diesel, JIS No.2)
Output Power	37 kVA @ 50 Hz
Speed	1500 RPM
Direction of Rotation	Clockwise
Design Specification	Generator: Brushless alternator with AVR
Normal Operating Temperature	85°C (coolant)
Explosion Protection Gas Group	Not rated
Explosion Protection Temperature Class	Not rated
Explosion Protection Zone	Not rated
Lower Limit Operating Temperature	-15°C
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+50°C
Number Of Shafts	Single
Test Medium	Diesel Fuel
Test Pressure	TBC
Turbine Cycle	Not applicable (diesel reciprocating engine)
Insulation Class	Class F
