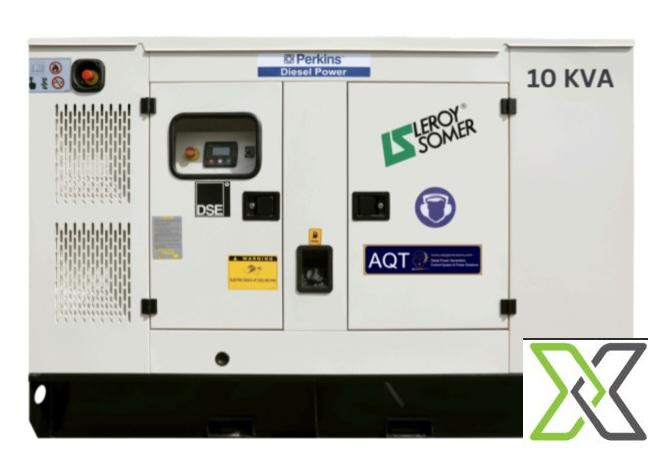

3-Phase Diesel Generator Set PM 400V – 10kVA / 12.4kVA

ReflowX SKU: REF-7317

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

AQT-10 GENERATING SET 10KVA

Description

General Generator Set Data

This diesel generator set delivers a Prime Power Rating of 10kVA and a Standby Power Rating of 12.4kVA. It operates at a rated voltage of 400V, 3-phase, 50Hz, with a power factor of 0.8. The generator runs at a standard speed of 1500 rpm with a maximum overspeed limit of 2250 rpm. Voltage regulation is maintained within ±1%, and the total harmonic factor (THF) is kept under 3.5%. The telephone influence factor (TIF) is less than 50. Cooling air flow through the alternator is 0.06 cubic meters per second.

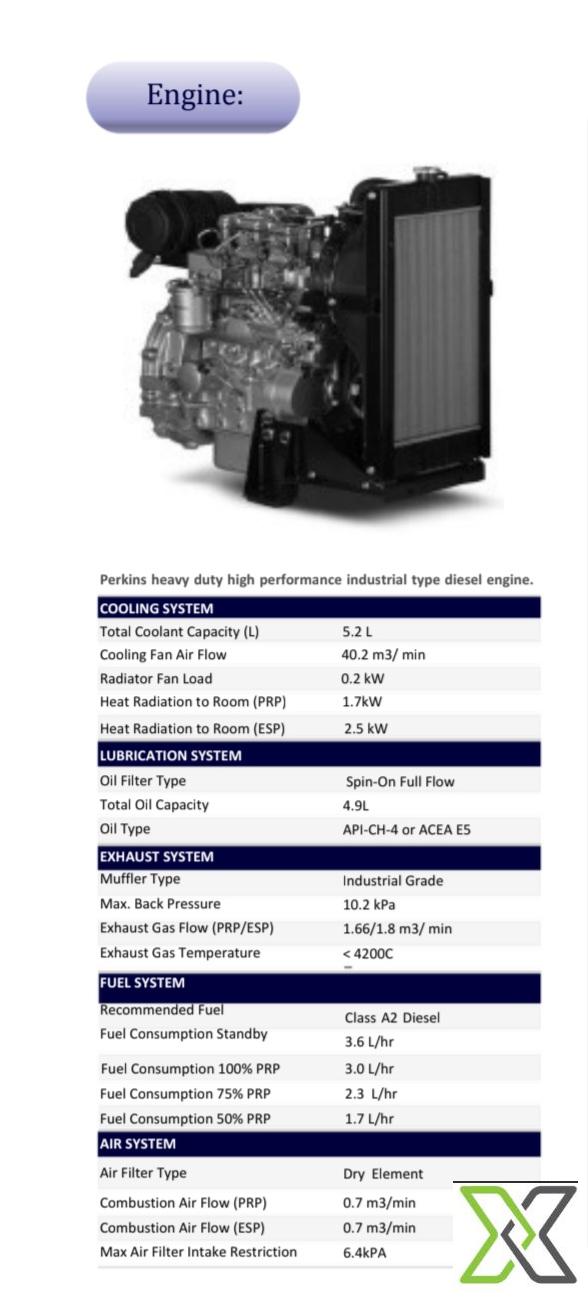

Engine Specifications

The generator is powered by a PERKINS 403A-11G1 diesel engine. This engine is a 3-cylinder, vertical in-line, 4-stroke unit, naturally aspirated and water-cooled. It uses mechanical governing of class G2 in accordance with ISO 8528-1. The engine has a compression ratio of 23:1, with a displacement of 1.131 liters, a bore of 77 mm, and a stroke of 81 mm. Fuel is delivered via direct injection, and the engine starts electrically using a 12V DC starter motor.
It is equipped with a dynamic charging alternator rated at 15A, 12V. Lubrication capacity is 5.1 liters, with a coolant capacity of 6.5 liters. Fuel consumption is approximately 2.5 liters per hour at 75% load and 3.4 liters per hour at full load.

Alternator Specifications

This generator set features either a Leroy Somer TAL-040-C or a Stamford PI044E brushless, synchronous alternator. It is a 4-pole alternator with six winding leads and a single bearing construction. The alternator has an insulation class of H, with a temperature rise of 125°C at 40°C ambient temperature. It carries an ingress protection rating of IP23.
The alternator employs a self-excited system with an Automatic Voltage Regulator (AVR), model R120. It maintains voltage regulation within ±1% under steady-state conditions, and total harmonic distortion remains below 3.5%.

Performance Data

The generator operates at a frequency of 50Hz with a rated speed of 1500 rpm, capable of withstanding up to 2250 rpm overspeed. Voltage regulation is held within ±1%, total harmonic distortion is maintained under 3.5%, and the telephone influence factor is kept below 50.
The starting system is 12V DC electric, and the unit is designed to perform efficiently at ambient temperatures up to 40°C and altitudes up to 1000 meters without performance derating.

Control Panel and Protection

The control panel can be optionally fitted with Deep Sea, ComAp, or PLC-ATS controllers, providing full generator monitoring and control including voltage, frequency, current, engine parameters, protection functions, and automatic shutdown alarms. Optional features include automatic mains failure (AMF) capability, remote monitoring, and load management.

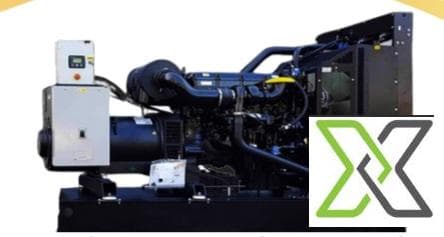

Mechanical Construction

The generator set is mounted on a heavy-duty steel base frame with anti-vibration mounts. The cooling system uses a radiator-type arrangement, suitable for up to 50°C ambient temperature.
The exhaust system includes an industrial-grade silencer to reduce operational noise. Optional configurations include soundproof or weatherproof canopies.
The fuel tank capacity is customizable based on project requirements.

Standards Compliance

The generator set complies with the following international standards:
ISO 8528-1, ISO 3046, IEC 60034, BS 5514, NEMA MG1, DIN EN, IEC 60947-2, and BS 5000. These standards ensure that the generator delivers reliable, safe, and efficient operation in various environments.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	10kVA / 12.4kVA
Year of Manufacturing	2025
Model Number	10kVA / 12.4kVA
Year of Manufacturing	2025
Height	~1,050 mm
Width	~750 mm
Length	~1,450 mm
Weight	~450 kg
Usage Hours	00
Voltage	400V AC
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	12.4 kVA (9.9 kW)
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Temperature Class	Digital controller
Lower Limit Operating Temperature	–10°C
Upper Limit Operating Temperature	+45°C
