AQT-50 GENERATING SET 50KVA

ReflowX SKU: REF-3680

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

The AQT-50 diesel generator is designed for reliable, efficient power supply in both prime and standby applications. Built around the trusted Perkins 1103A-33G engine and paired with a high-efficiency Leroy Somer or Stamford alternator, this generating set ensures stable, dependable performance for industrial, commercial, and backup installations.

Description

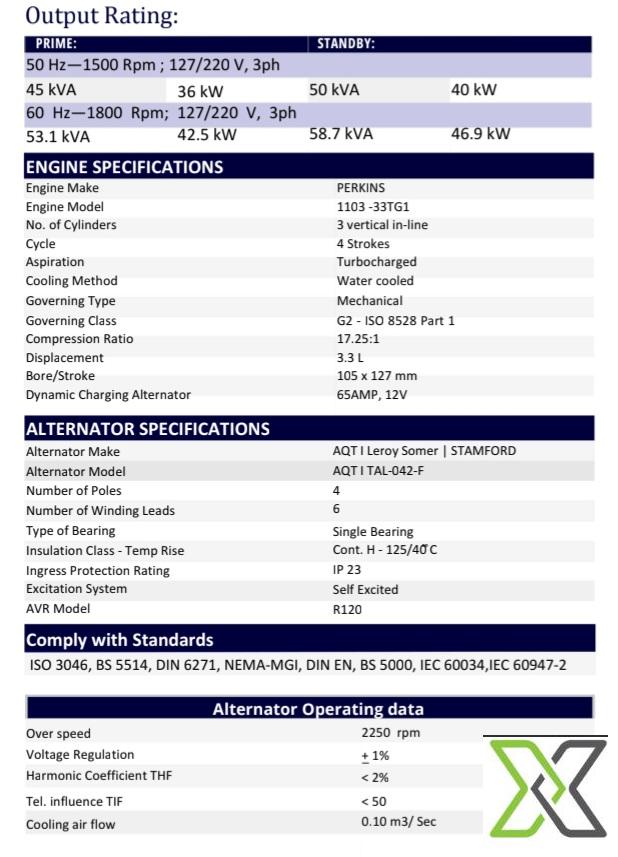

TECHNICAL SPECIFICATIONS

POWER OUTPUT

Prime Power: 45 kVA / 36 kW

Standby Power: 50 kVA / 40 kW

Frequency: 50 Hz

Speed: 1500 RPM

Voltage: 400V, 3-Phase

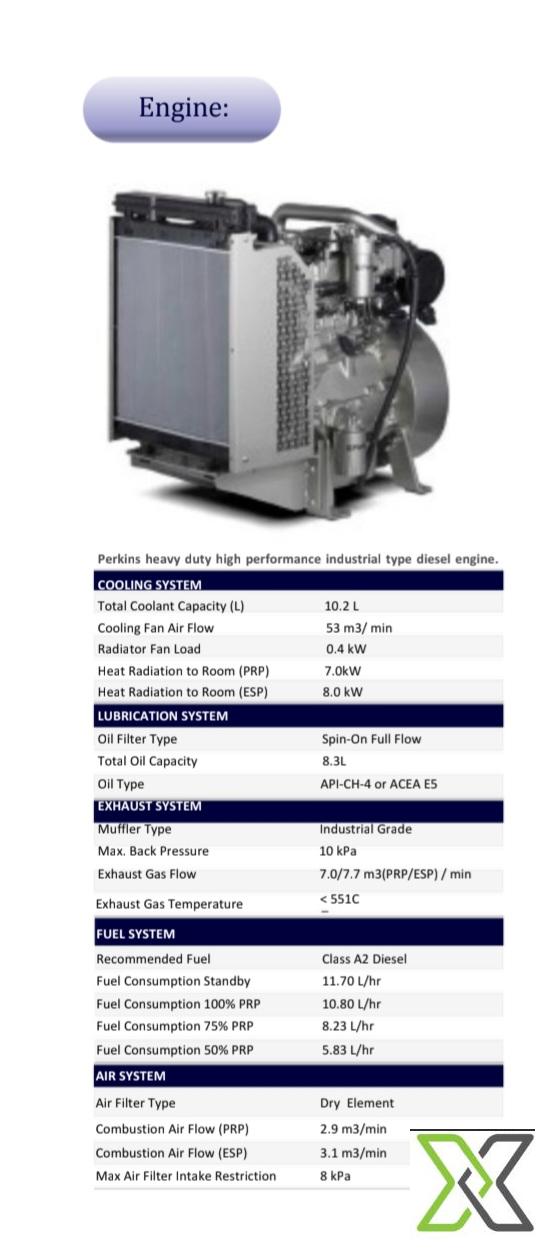

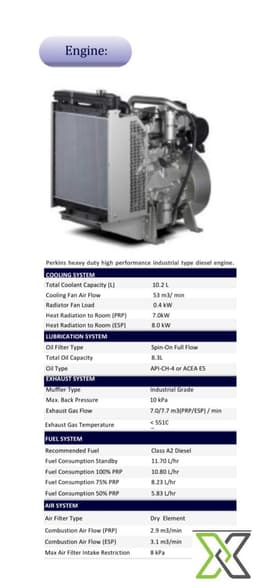

ENGINE SPECIFICATIONS

Engine Make: Perkins

Engine Model: 1103A-33G

Number of Cylinders: 3 (Vertical In-line)

Cycle: 4-Stroke Diesel

Aspiration: Naturally Aspirated

Cooling Method: Water Cooled

Governing Type: Mechanical

Governing Class: G2 - ISO 8528-1

Compression Ratio: 17.25:1

Displacement: 3.3 litres

Bore/Stroke: 105 mm x 127 mm

Fuel System: Direct Injection

Fuel Filters: Spin-on Type with Water Separator

Lube Oil Filter & Capacity: Full Flow Filter, 8.3 Litres

Starting System: 12V Electric

Dynamic Charging Alternator: 45 Amp, 12V

ALTERNATOR SPECIFICATIONS

Alternator Make: Leroy Somer / Stamford

Alternator Model: TAL-044-B (Leroy Somer) / UCI224C (Stamford)

Type: Brushless, Self-Excited

Excitation System: Self Excited

AVR Model: R150

Number of Poles: 4

Winding Leads: 6

Type of Bearing: Single Bearing

Insulation Class / Temp Rise: H Class / 125°C (40°C Ambient)

Ingress Protection Rating: IP23

Voltage Regulation: ±1%

Over Speed: 2250 RPM

Harmonic Coefficient THF: < 2.5%

Telephone Influence Factor TIF: < 50

Cooling Air Flow: 0.20 m³/sec

STANDARDS COMPLIANCE

ISO 3046

BS 5514

DIN 6271

NEMA-MG1

DIN EN

BS 5000

IEC 60034

IEC 60947-2

FEATURES

Proven Perkins 1103A-33G naturally aspirated engine

Leroy Somer or Stamford brushless alternator

IP23 protection with H class insulation

±1% voltage regulation for stable operation

Low maintenance, fuel-efficient, and reliable

Compact, quiet, and site-friendly design

Perkins @ 50 Hz (1500 RPM)
Model	Engine	Alternator	Rating		Rating
		Leroy somer	Prime	SBY	Prime	SBY
		Leroy somer	kVA		Kw
AQT- 10	403A-11G1	TAL-040-C	9	10	7	8
AQT- 15	403A-15G1	TAL-040-C	13	15	10.4	11.4
AQT- 22	404D-22G1	TAL-040-F	20	22	16	18
AQT- 33	1103A-33G	TAL-042-C	30	33	24	26
AQT-50	1103-33TG1	TAL-042-F	45	50	36	40
AQT-66	1103A-33TG2	TAL-042-H	60	66	48	53
AQT-88	1104A-44TAG2	TAL-044-C	80	88	64	70.4
AQT-110	1104C-44TAG2	TAL-044-D	100	110	80	88
AQT-150	1106A-70TAG1	TAL-044-H	135	150	108	120
AQT-165	1106A-70TAG2	TAL-044-J	150	165	120	132
AQT-200	1106A-70TAG3	TAL-046-A	180	200	144	160
AQT-220	1106A-70TAG4	TAL-046-B	200	220	160	176
AQT-250	1506A-E88TAG2 / 1206A-E70TTAG2	TAL-046-C	230	250	184	200
AQT-275	1506A-E88TAG3 / 1206A-E70TTAG3	TAL-046-D	250	275	200	220
AQT-330	1506A-E88TAG5	TAL-046-F	300	330	240	264
AQT-400	2206A-E13TAG2	TAL-046-H	350	400	280	320
AQT-450	2206A-E13TAG3	TAL-047-A	400	450	320	360
AQT-500	2506A-E15TAG1 / 2506D-E15TAG1	TAL-047-B	455	500	364	400
AQT-550	2506A-E15TAG2	TAL-047-C	500	550	400	440
AQT-650	2806A-E18TAG3	TAL-047-F	600	650	480	520
AQT-660	2806C-E18TAG1A	TAL-047-E	600	660	480	528
AQT-700	2806A-E18TAG2	TAL-047-F	650	700	520	560
AQT-825	4006-23TAG2A	TAL-049-B	750	825	600	660
AQT-850	2806A-E18TTAG5	TAL-049-B	771	850	617	678
AQT-900	4006-23TAG3A	TAL-049-C	800	900	640	720
AQT-1000	4008-TAG1	TAL-049-D	900	1000	720	800
AQT-1100	4008-TAG2	TAL-049-E	1000	1100	800	880
AQT- 1385	4012-46TWG2A	LSA50.2M	1253	1385	1002	1108
AQT-1650	4012-46TAG2A	LSA50.2 L8	1500	1650	1200	1320
AQT-1856	4012-46TAG3A	LSA53.3 S5	1688	1856	1350	1485
AQT-2000	4016-TAG1A	LSA52.3 S5	1844	2028	1476	1622
AQT-2250	4016-TAG2A	LSA52.3 S6	2000	2250	1600	1800
AQT-2500	4016-61TRG3	LSA52.3 L9	2250	2500	1800	2000

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Perkins 1103A-33G
Model Number	Perkins 1103A-33G
Height	1300 mm
Width	950 mm
Length	2150 mm
Weight	Approx. 950 kg
Usage Hours	00
Voltage	400V / 480V
ISO 15926 Pt 4	ClassOfIndividual DieselEngineDrivenGeneratorSet
PCA RDS Code	RDS873359
CFIHOS ID	2353
Output Power	59.4 kVA / 47.5 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcElectricGenerator
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–10°C (standard), –25°C with optional cold weather kit
Operation Continuous Intermittent	Continuous (Prime) / Intermittent (Standby)
Upper Limit Operating Temperature	+50°C (derating applies above 40°C)
