Blue Diamond DCA-60ESI2 Silent Diesel Generator

ReflowX SKU: REF-31

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Denyo Co., Ltd.
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Silent diesel generator set by Blue Diamond, powered by Denyo alternator and BB-4BG1T engine, delivering 50–60 kVA output with 3-phase configuration for continuous duty.

Description

Blue Diamond DCA-60ESI2 Silent Diesel Generator

The Blue Diamond DCA-60ESI2 is a high-performance silent diesel generator designed for reliable, continuous power generation in demanding environments. Manufactured by Denyo Co., Ltd. and branded by Blue Diamond Machinery, this generator features a brushless AC alternator model DH-0640I and a powerful BB-4BG1T diesel engine. It supports both 50 Hz and 60 Hz operations with a rated output of 50 kVA and 60 kVA respectively. The set is configured in a 3-phase, 4-wire system and operates at a power factor of 0.8, ensuring efficient and balanced power delivery. Housed in a sound-attenuated enclosure, the unit is ideal for applications where noise reduction is essential.

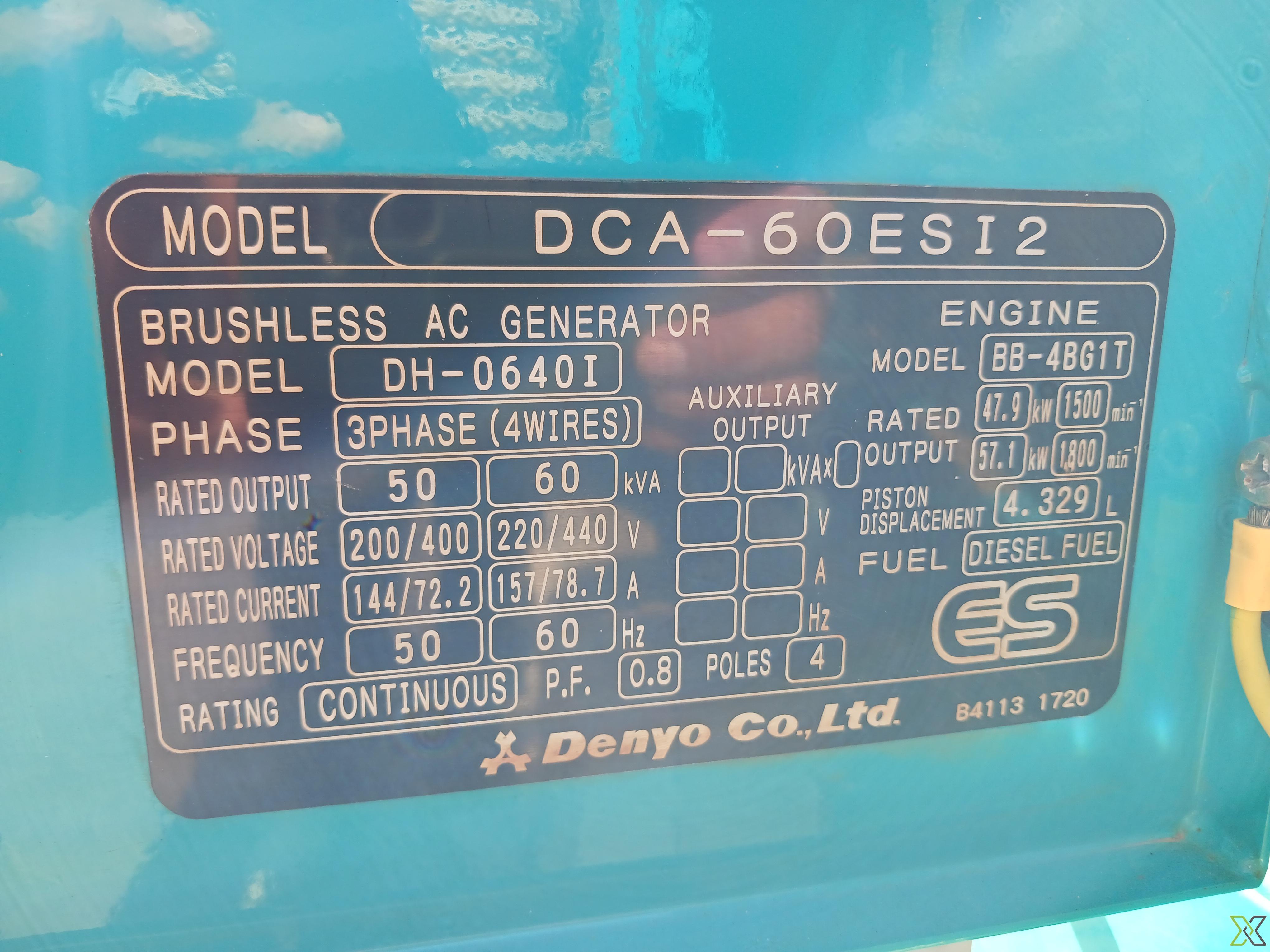

Specifications:

– Brand: Blue Diamond Machinery
– Model: DCA-60ESI2
– Set ID: SR60-008
– Generator Manufacturer: Denyo Co., Ltd.
– Alternator Model: DH-0640I
– Generator Type: Brushless AC Generator
– Phase Configuration: 3 Phase, 4 Wire
– Rated Output (50 Hz): 50 kVA
– Rated Output (60 Hz): 60 kVA
– Rated Voltage (50 Hz): 200 / 400 V
– Rated Voltage (60 Hz): 220 / 440 V
– Rated Current (50 Hz): 144 A / 72.2 A
– Rated Current (60 Hz): 157 A / 78.7 A
– Frequency: 50 / 60 Hz
– Power Factor: 0.8
– Poles: 4
– Duty Rating: Continuous

Engine Specifications:
– Engine Manufacturer: Denyo Co., Ltd.
– Engine Model: BB-4BG1T
– Rated Output @ 1500 rpm: 47.9 kW
– Rated Output @ 1800 rpm: 57.1 kW
– Piston Displacement: 4.329 L
– Fuel Type: Diesel
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Height	1,250 mm
Width	880 mm
Length	2,200 mm
Weight	1,120 kg
Temperature Range	−10°C to +50°C
Pressure Rating	Not pressure-rated
Voltage	380–440 V / 380–480 V
Color	Blue
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	50/60 kVA
Speed	1500 RPM (50 Hz) / 1800 RPM (60 Hz)
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	−10°C
Normal Output Power	50/60 kVA
Operation Continuous Intermittent	Continuous duty
Upper Limit Operating Temperature	+50°C
