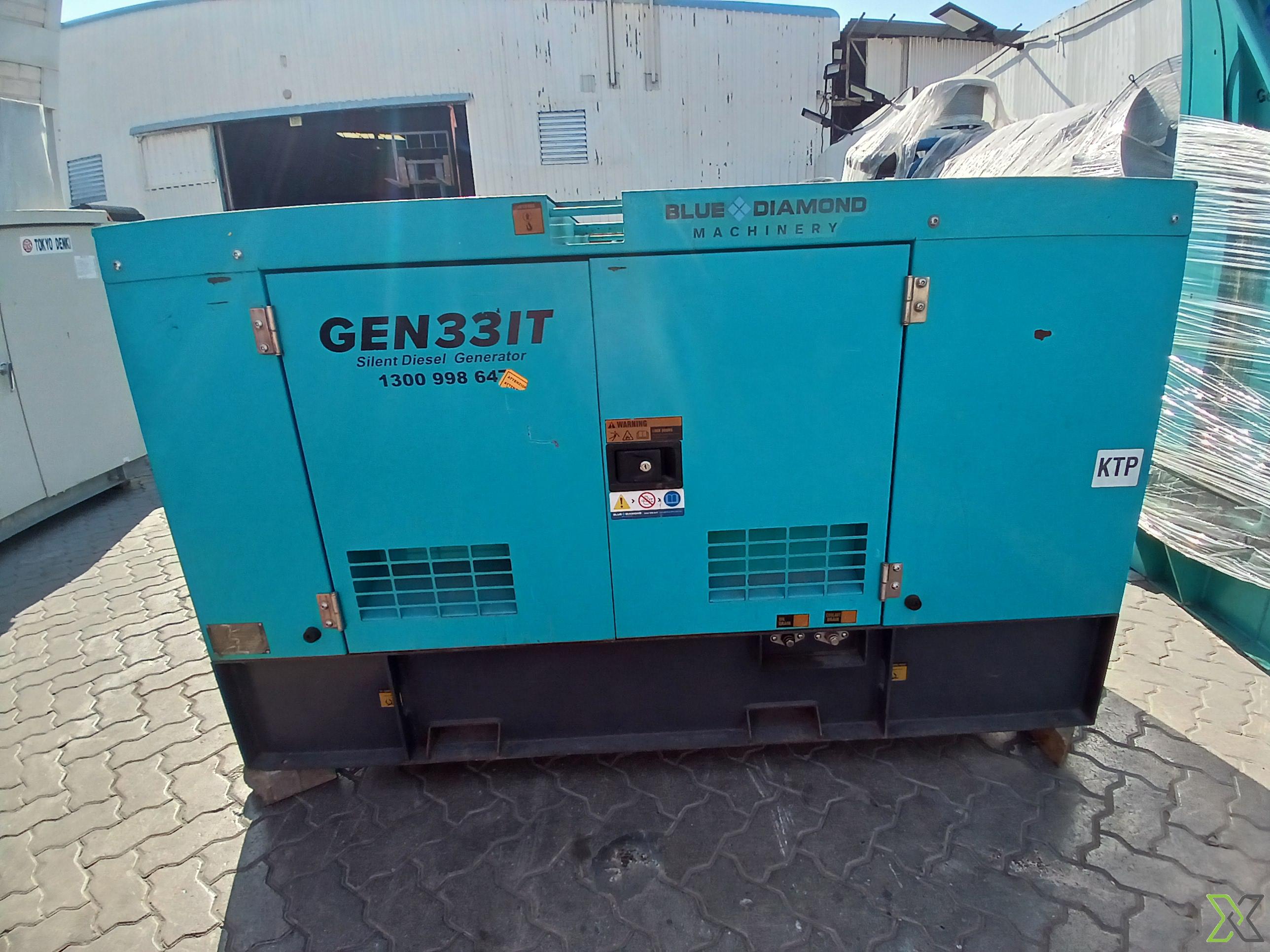

Blue Diamond GEN33IT Silent Diesel Generator : GEN33IT

ReflowX SKU: REF-8149

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Denyo Co., Ltd.
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Brand: Blue Diamond Machinery Model: GEN33IT Type: Silent Diesel Generator Serial Number: GEN33IT1910081540

Description

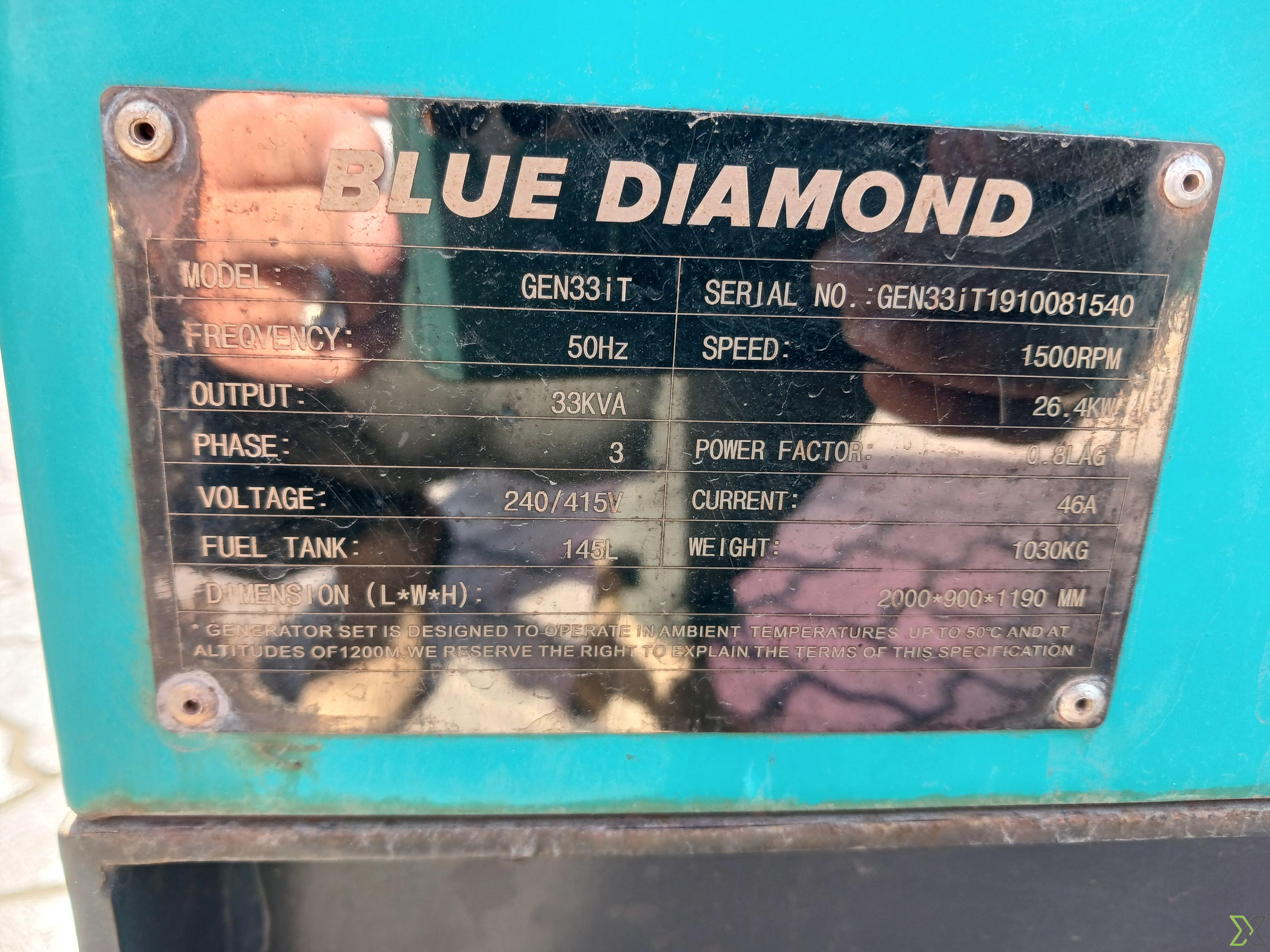

Generator Overview

Brand: Blue Diamond Machinery
Model: GEN33IT
Type: Silent Diesel Generator
Serial Number: GEN33IT1910081540

Electrical Specifications

Power Output: 33 kVA

Rated Power: 26.4 kW

Power Factor: 0.8 (lagging)

Frequency: 50 Hz

Voltage: 240 / 415 V

Phase: 3 Phase

Current: 46 A

Speed: 1500 RPM

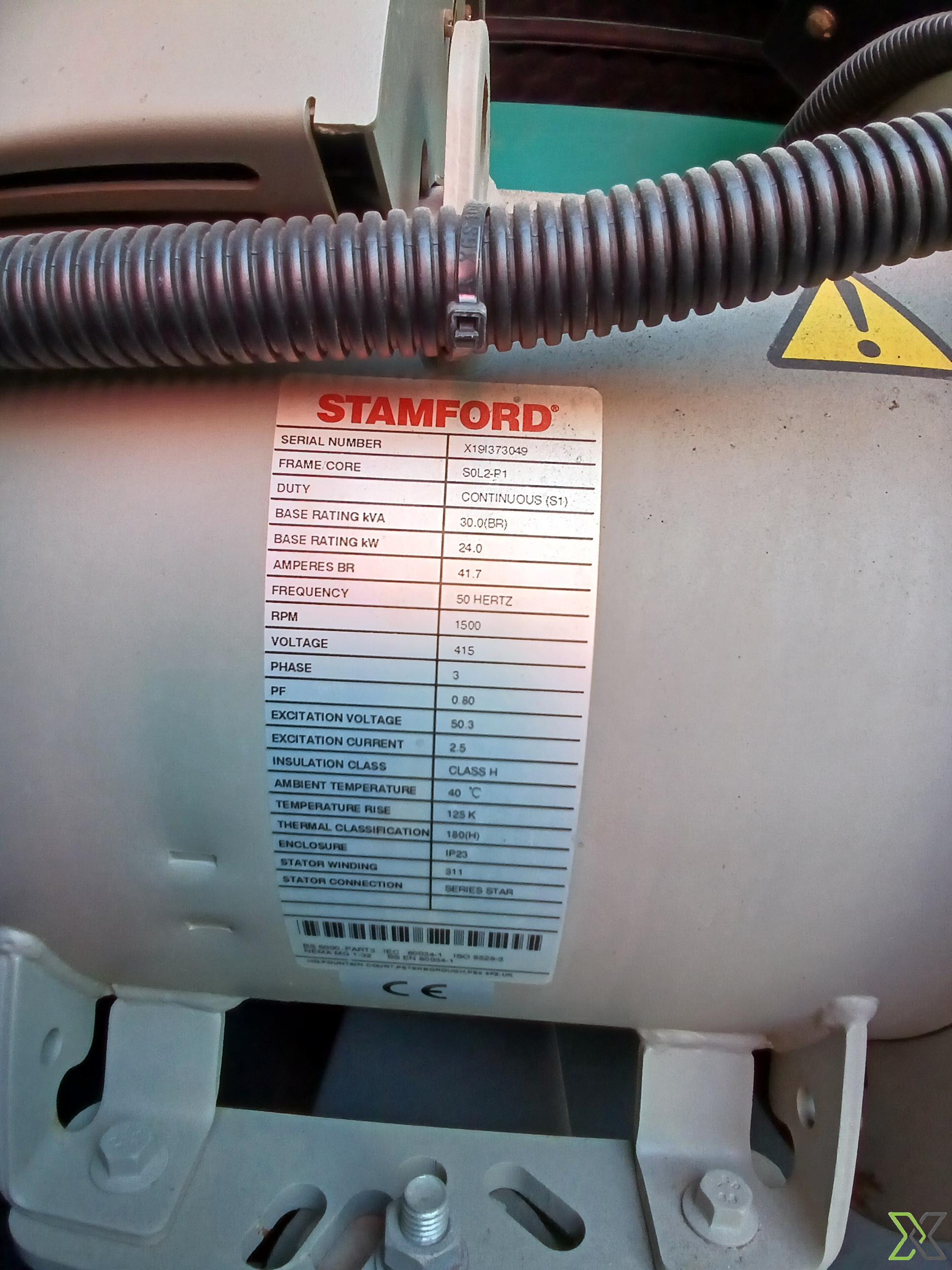

Alternator Details (Stamford)

Frame/Core: S0L2-P1

Serial Number: X19J373049

Base Rating:

kVA: 30.0 (BR)

kW: 24.0

Amperes (BR): 41.7

Voltage: 415 V

Frequency: 50 Hz

Phase: 3

Excitation Voltage: 50.3 V

Excitation Current: 2.5 A

Insulation Class: Class H

Ambient Temperature: 40°C

Temperature Rise: 125K

Thermal Classification: 180(H)

Enclosure: IP23

Stator Winding: 311

Stator Connection: Series Star

Mechanical & Physical Specifications

Fuel Tank Capacity: 145 L

Weight: 1030 kg

Dimensions (L × W × H): 2000 × 900 × 1190 mm

Operating Conditions: Up to 50°C and 1200m altitude

Technical Details

Model Number	GEN33IT
Model Number	GEN33IT
Height	1,190 mm
Width	900 mm
Length	2,000 mm
Weight	1,000 kg (dry weight)
Temperature Range	−10°C to +50°C
Pressure Rating	Not pressure-rated
Voltage	240V/415V
Color	Blue
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	33 kVA
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	−10°C
Normal Output Power	30 kVA (continuous)
Operation Continuous Intermittent	Continuous duty
Upper Limit Operating Temperature	+50°C
