Blue Perkins-Stamford Diesel Generator – 1500 kVA, 4008-TAG1 Engine

ReflowX SKU: REF-2327

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Cummins Generator Technologies (China) Co. Ltd., Wuxi
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Robust diesel generator featuring Perkins 4008-TAG1 engine and STAMFORD HC.I544F1 alternator, delivering 1500 kVA at 400V, 50 Hz. Ideal for industrial applications requiring continuous, reliable power.

Description

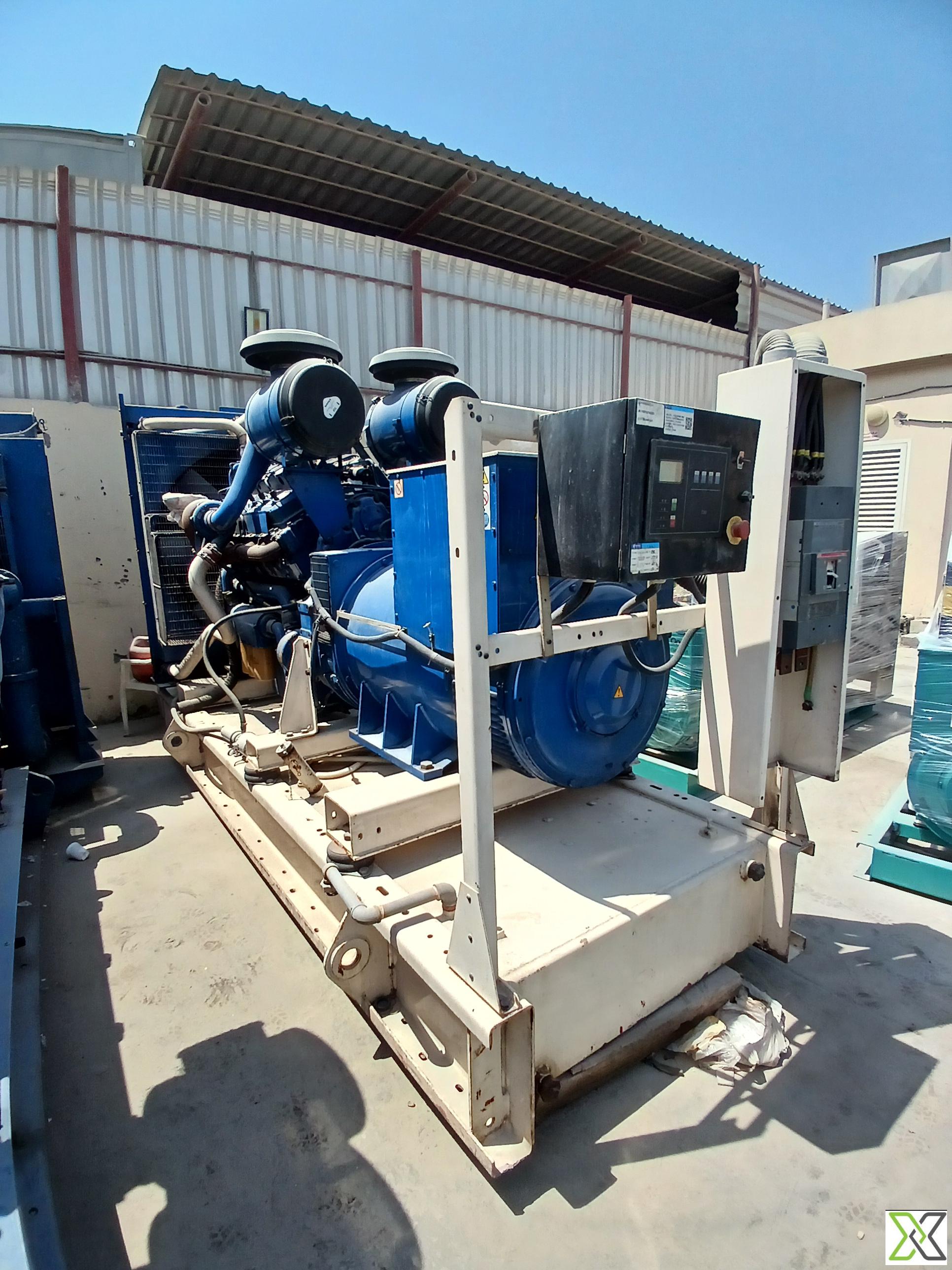

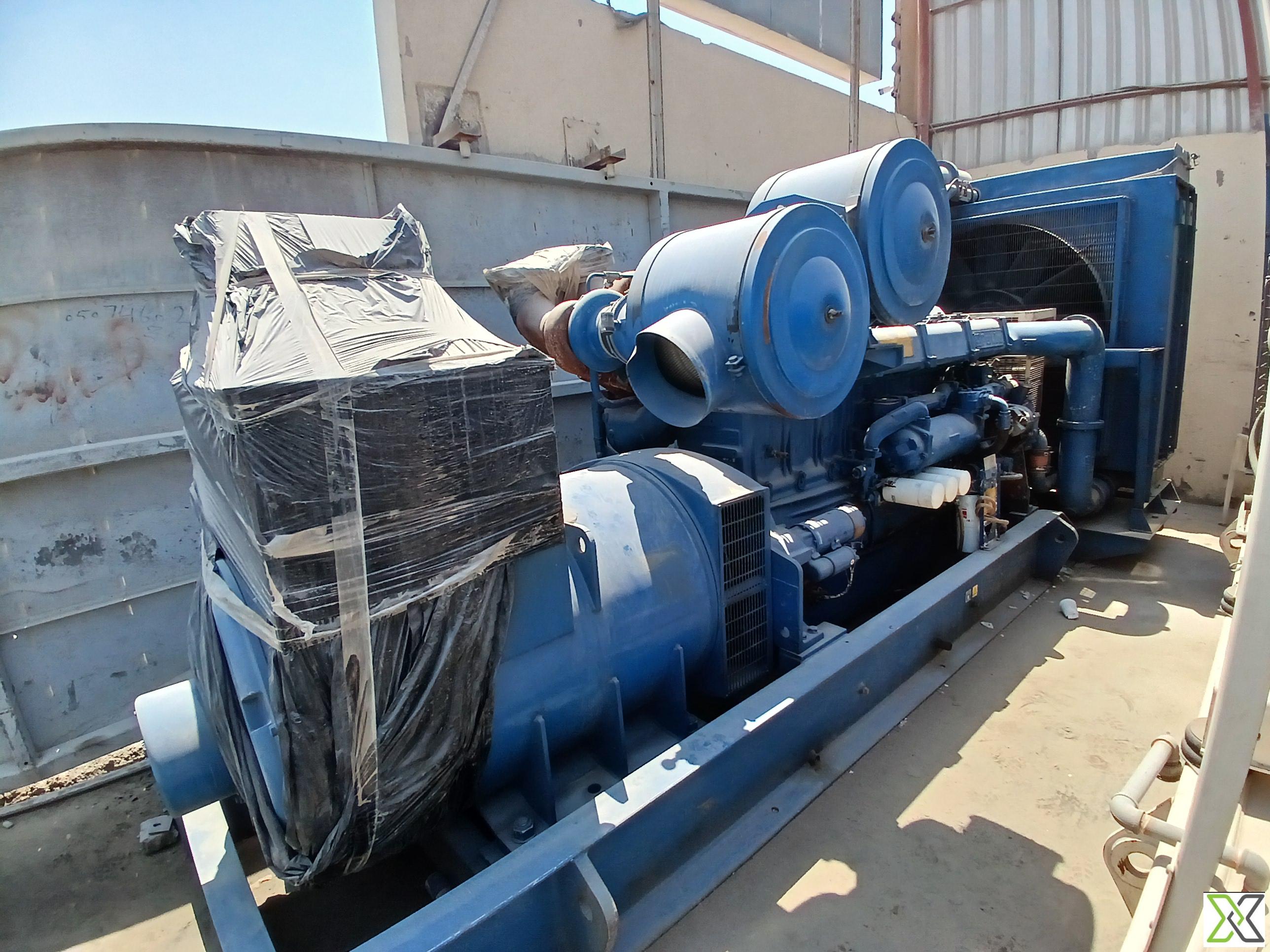

Blue Perkins-Stamford Diesel Generator – 1500 kVA, 4008-TAG1 Engine

The Blue Perkins-Stamford Diesel Generator integrates the renowned Perkins 4008-TAG1 diesel engine with a high-capacity STAMFORD HC.I544F1 alternator, delivering dependable power output for industrial and commercial use. Engineered for 1500 kVA base rating with a 0.8 power factor, this 3-phase generator set operates at 1500 RPM with a 400V output and 50 Hz frequency. With a BHP of 1032 and mechanical output of 770 kWb, it is built to handle demanding loads while ensuring efficient fuel consumption and thermal stability. The system is fully compliant with BS 5000, IEC 60034-1, ISO 8528-3, and NEMA MG 1-32 standards, providing assurance of quality and performance. It features Class H insulation, IP23 enclosure, STAR stator connection, and an IC01 air-cooling method. This unit is manufactured in Stafford, England, with alternator production by Cummins Generator Technologies in Wuxi, China.

Specifications:

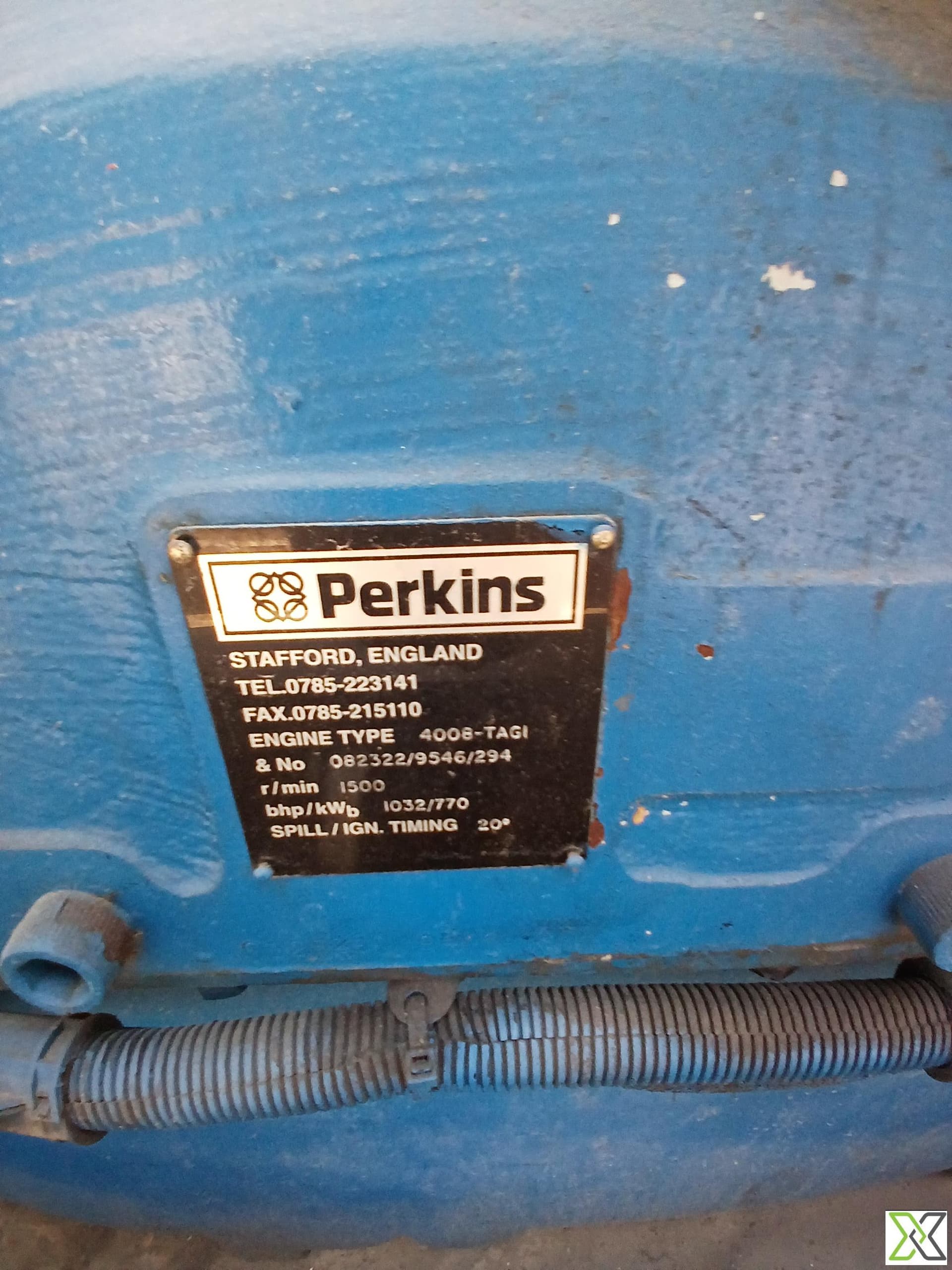

– Brand: Perkins
– Engine Type: 4008-TAG1
– Rated RPM: 1500
– Engine Output Power:
– BHP: 1032
– kWb: 770
– Ignition Timing: 20°
– Engine Serial Numbers: 082322 / 9546 / 294
– Engine Origin: Stafford, England

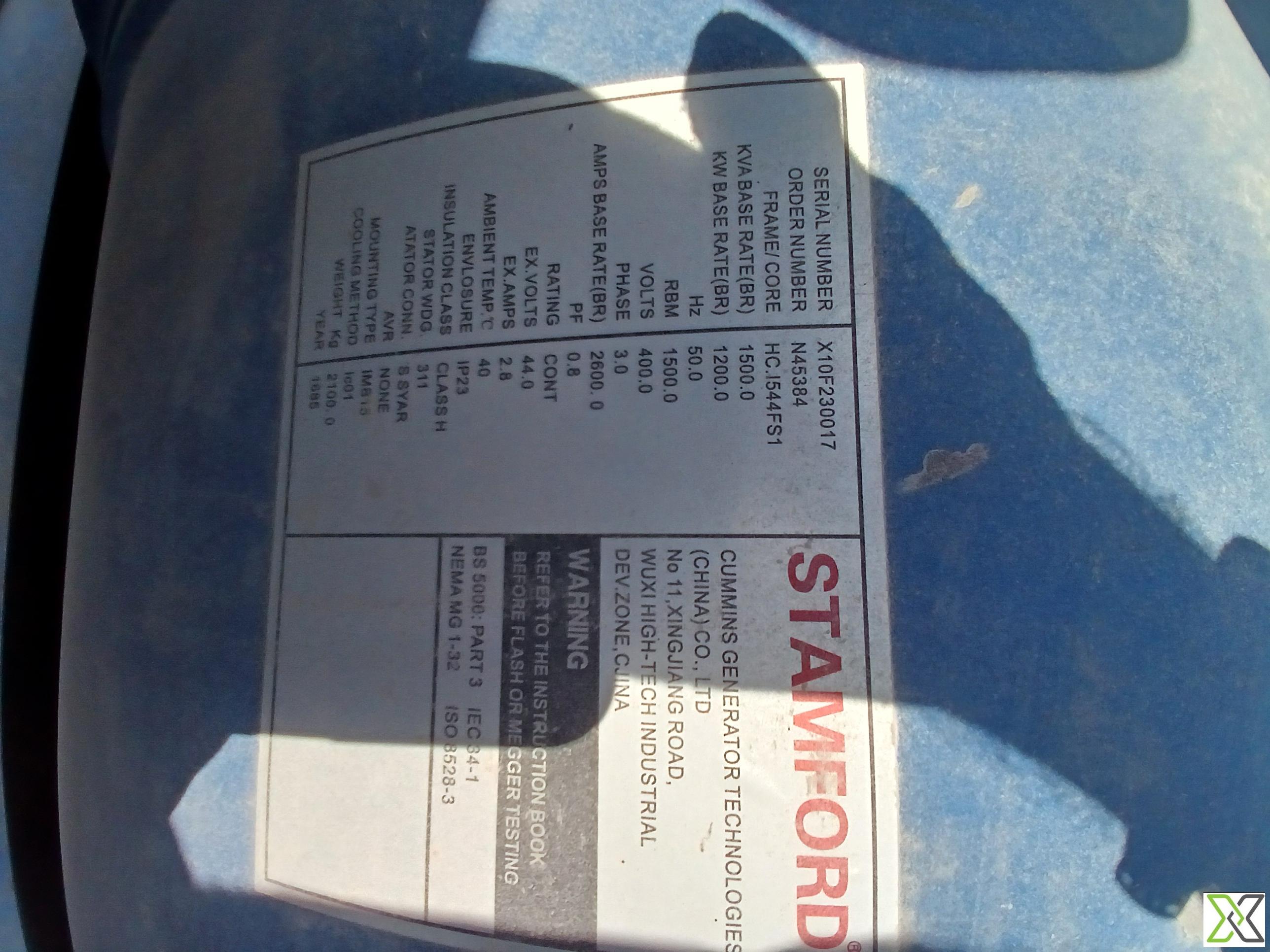

– Alternator Brand: STAMFORD
– Manufacturer: Cummins Generator Technologies (China) Co. Ltd., Wuxi
– Alternator Type/Frame: HC.I544F1
– Alternator Serial Number: X10F230017
– KVA Base Rating: 1500 kVA
– KW Base Rating: 1200 kW
– Frequency: 50 Hz
– Voltage: 400V
– Phase Configuration: 3-Phase
– Power Factor: 0.8
– Current Output (Base Rating): 2165.0 A
– Excitation Voltage: 40 V
– Enclosure Protection: IP23
– Ambient Temperature Rating: 40°C
– Insulation Class: H
– Cooling Method: IC01 (Air-Cooled)
– Stator Winding Code: 311
– Stator Connection: STAR
– Mounting Type: IM B35
– Weight: 1985 kg
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	X10F230017
Model Number	X10F230017
Height	1,698 mm
Width	1,122 mm
Length	2,777 mm
Weight	2,150 kg
Temperature Range	-10°C to +50°C.
Voltage	400V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	107 kVA
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	-10°C
Operation Continuous Intermittent	continuous operation
Upper Limit Operating Temperature	+50°C
