CAT 3516 Generator Set – 1640 kW / 2050 kVA – 50 Hz – 2006

ReflowX SKU: REF-4851

Product Details

Quantity

6
Availability (Lead Time)

0-2 Weeks
Product Location

Indonesia
Condition

Used
OEM

Caterpillar Inc.
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

Used CAT 3516 diesel generator set with 1640 kW continuous output and 2050 kVA standby rating, 50 Hz, 415V, manufactured in 2006. Reliable power solution with 6-wire configuration and Class H insulation.

Description

CAT 3516 Generator Set – 1640 kW / 2050 kVA – 50 Hz

Description:

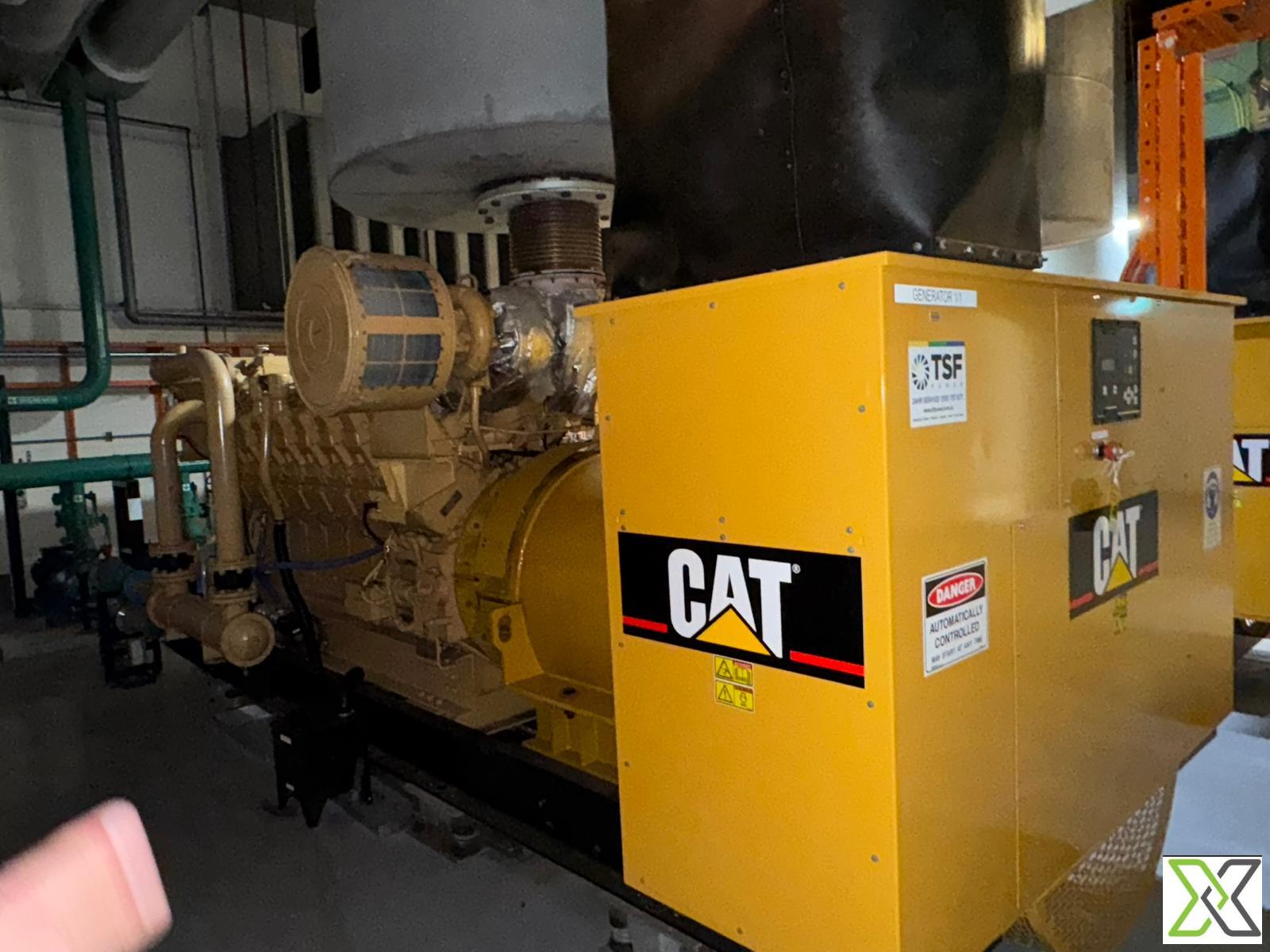

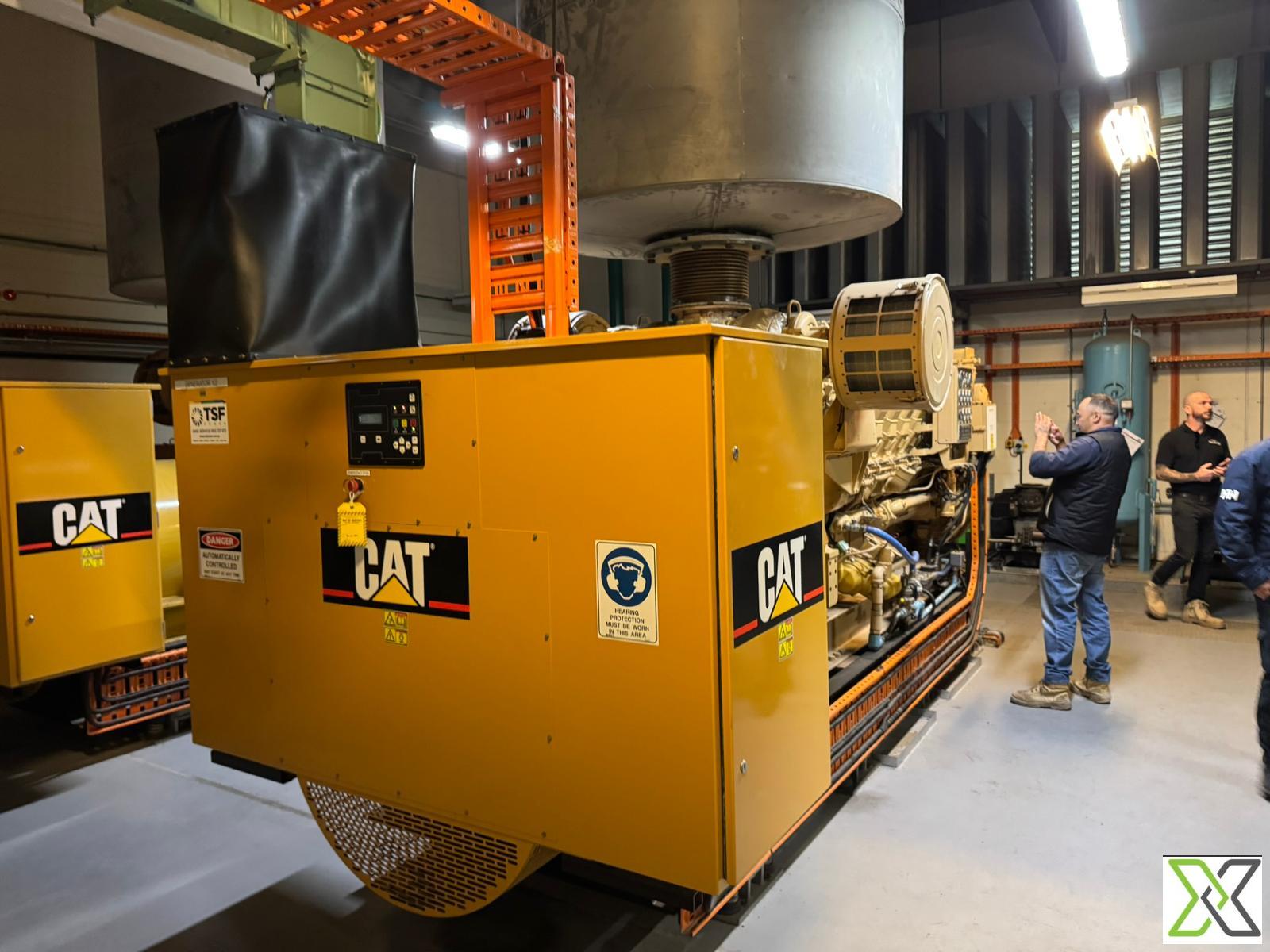

Available for sale are 6 units of Caterpillar 3516 generator sets, each delivering 1640 kW continuous power and 2050 kVA standby capacity. Built in 2006, these generators operate at 50 Hz and 415V output. The sets are configured in 6-wire WYE connection, with 3-phase output and Class H insulation. Each unit features a 3516 diesel engine, 1500 RPM operating speed, and a maximum temperature rise of 105°C by resistance. These high-capacity gensets are suitable for critical power supply applications in industrial, commercial, or backup power systems.

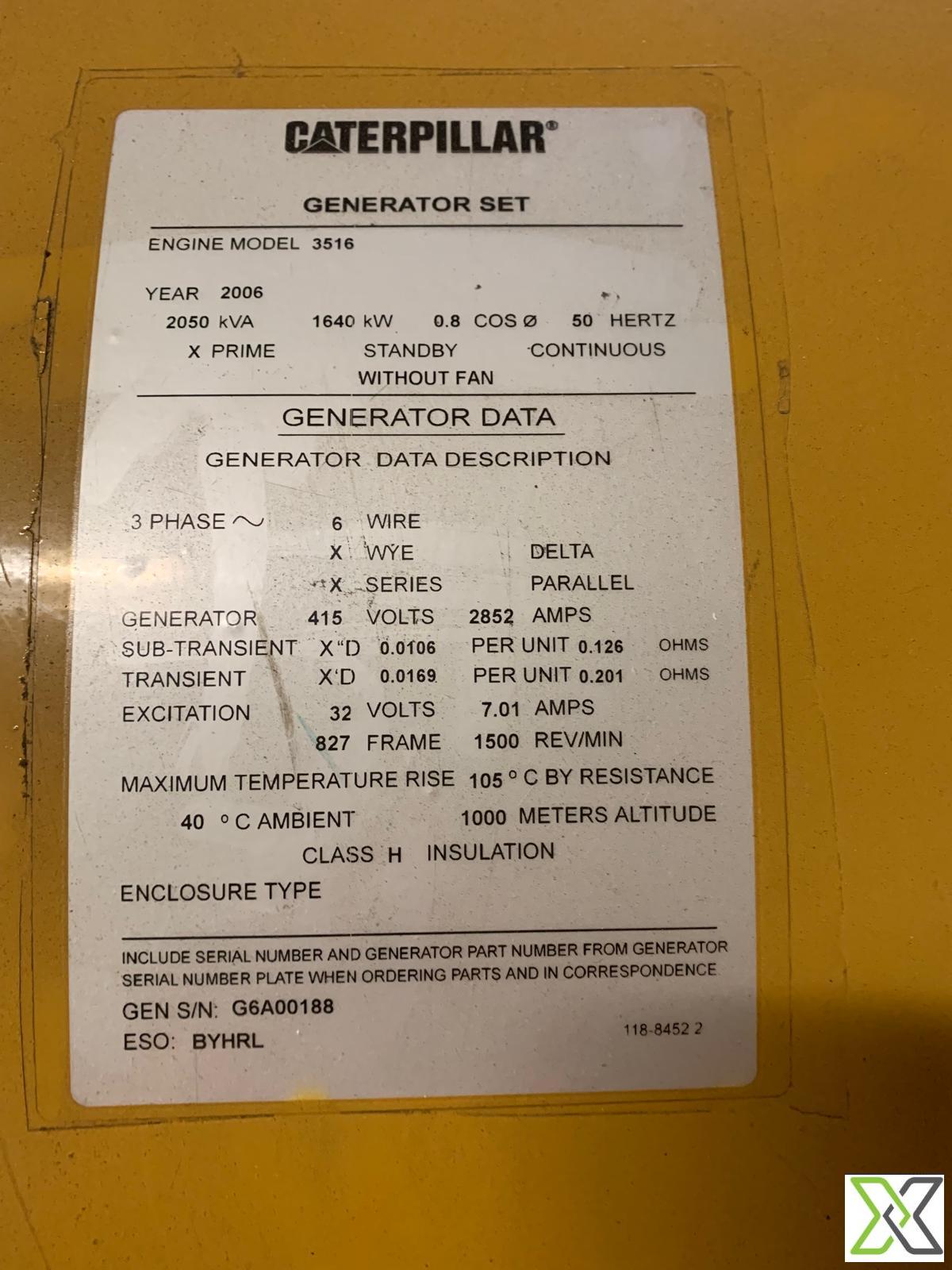

Specifications:

– Make: Caterpillar
– Model: 3516
– Year: 2006
– Power Output (Continuous): 1640 kW
– Power Output (Standby): 2050 kVA
– Voltage: 415 V
– Frequency: 50 Hz
– Phase: 3-Phase
– Wire Configuration: 6-Wire WYE
– Frame: 827
– Rated Speed: 1500 RPM
– Amps: 2852 A
– Excitation: 32V / 7.01 A
– Sub-Transient Reactance X”d: 0.0106 pu
– Transient Reactance X’d: 0.0169 pu
– Maximum Temp Rise: 105°C
– Ambient Temp: 40°C
– Altitude Rating: 1000 meters
– Insulation Class: H
– Quantity: 6 Units
– Condition: Used
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	3516
Year of Manufacturing	2006
Model Number	3516
Year of Manufacturing	2006
Manufacturer Name	Caterpillar
Height	2,463 mm (97 in)
Width	2,235 mm (88 in)
Length	5,842 mm (230 in)
Weight	12,000 kg
Temperature Range	-10°C to +50°C
Pressure Rating	Turbocharged air intake system
Voltage	415 V
Color	Yellow
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	2050 kVA
Speed	1500 RPM
Direction of Rotation	Counterclockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	-10°C
Normal Output Power	1640 kW
Operation Continuous Intermittent	– Continuous: 1640 kW – Standby: 2050 kVA
Upper Limit Operating Temperature	+50°C

General Terms

ReflowX and the seller retain the right to evaluate and approve offers.
Buyers should verify quantities and conditions upon delivery.
After successful engagement, both buyer and seller manage communication for payment terms and delivery schedule.
All parties agree to adhere to ReflowX Terms and Conditions in transactions.
Buyers can request value-added services such as pre-purchase inspections, Expediting & Delivery Services through ReflowX. Contact us!
