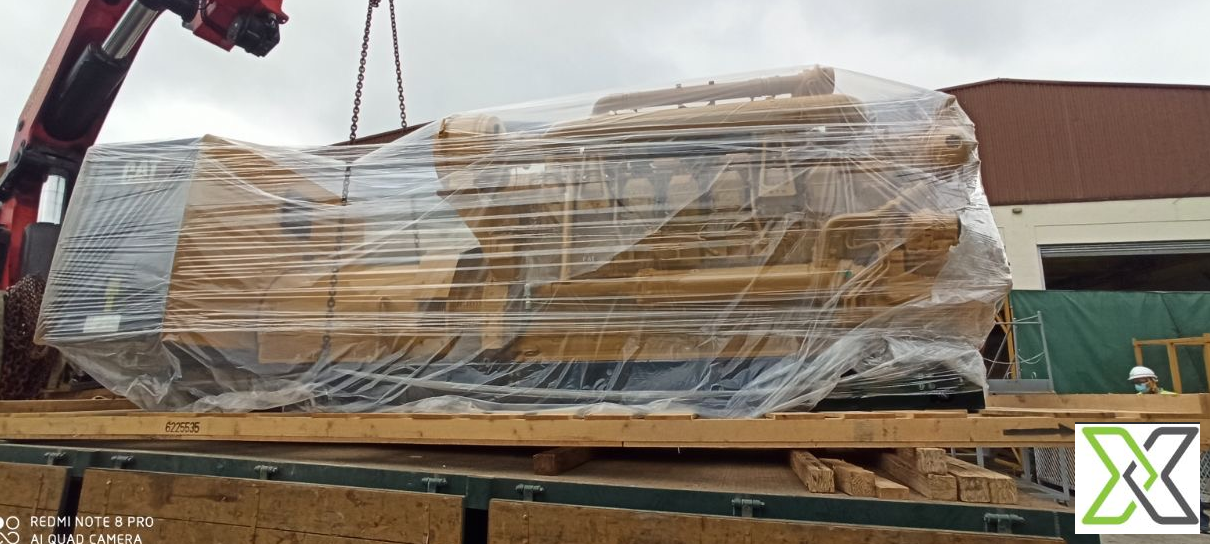

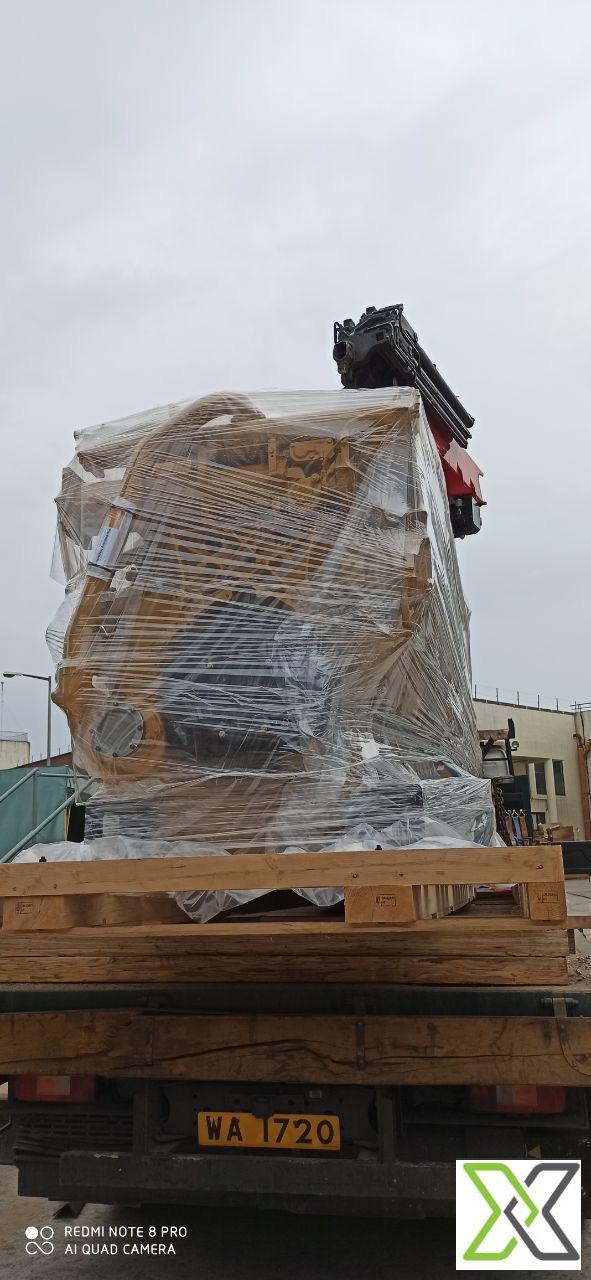

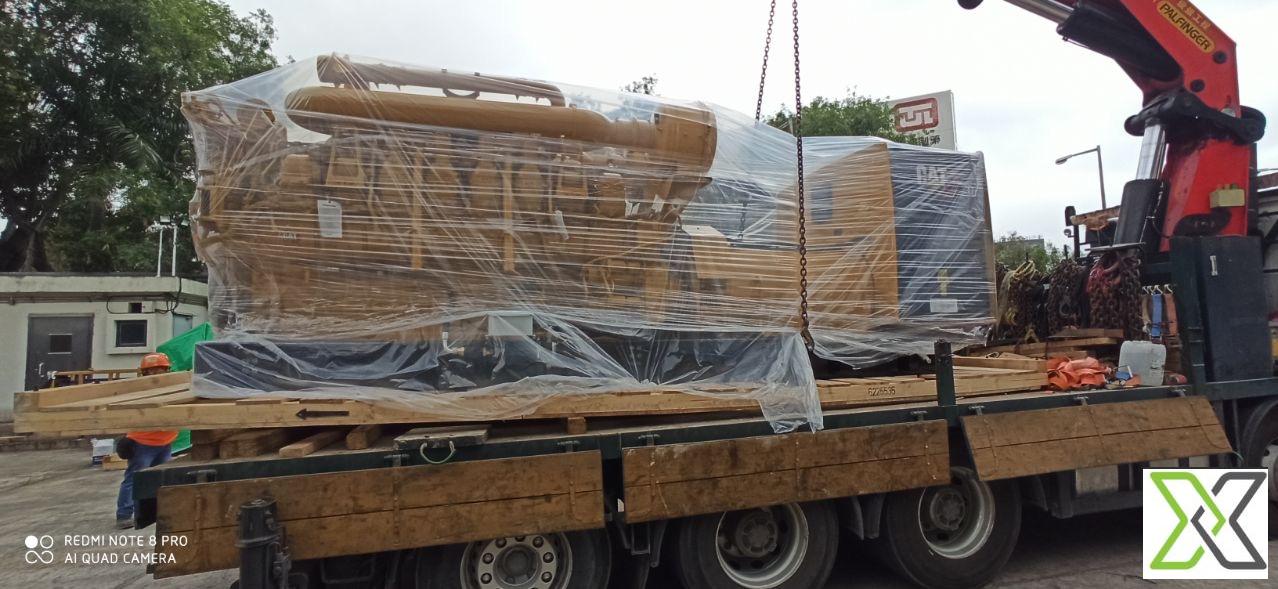

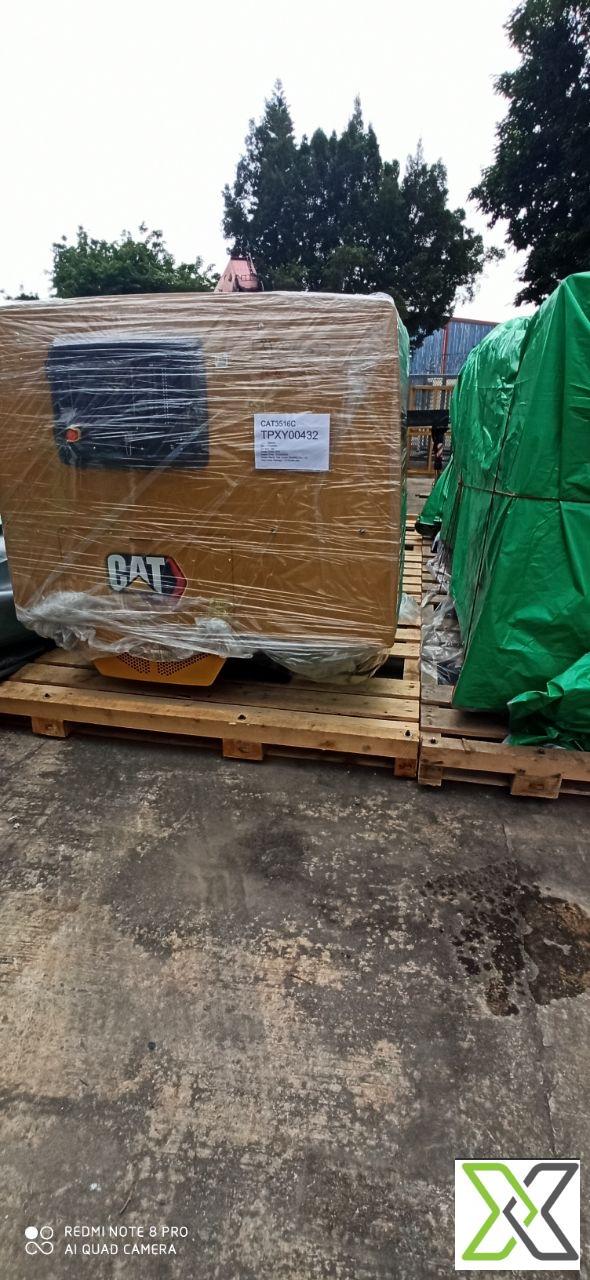

Caterpillar 3516C Diesel Generator Set – 2500 kVA Standby - 2023

The Caterpillar 3516C diesel generator set is engineered for continuous and standby power applications where reliable, heavy-duty performance is essential. Rated at 2500 kVA (standby) and 2750 kVA (prime), it operates at 380V, 50 Hz, with a 0.8 lagging power factor. The generator is driven by the proven CAT 3516C V-16 diesel engine, equipped with electronic ADEM™ A4 governing, turbocharged-aftercooled aspiration, and Caterpillar's high-efficiency SR5 brushless alternator.

The unit is radiator-cooled and skid-mounted, complete with lube oil, fuel filtration, jacket water heater, and dual 24V electric start motors. Its robust design ensures stable voltage regulation (±0.5%) and high thermal resilience with Class H insulation and a 125°C rise. It offers ~400 L/h fuel consumption at 100% load (prime), ~320 m³/min exhaust flow, and ~480°C exhaust temperature. The generator is designed for demanding operations in industrial plants, remote sites, and large infrastructure systems.

Specifications:

– Model: CAT 3516C
– Standby Power Rating: 2500 kVA / 2000 kW
– Prime Power Rating: 2750 kVA / 2200 kW
– Voltage: 380 V
– Frequency: 50 Hz
– Power Factor: 0.8 (lagging)
– Phase: 3-Phase
– Rated Speed: 1500 rpm
– Aspiration: Turbocharged-Aftercooled (TA)
– Emissions Compliance: Non-certified (upgradable)
– Fuel Type: Diesel
– Governor Type: Electronic (ADEM™ A4)
– Cooling Method: Radiator-cooled, mounted
– Fuel Consumption at 100% Load (Prime): ~400 L/h
– Exhaust Gas Flow: ~320 m³/min
– Exhaust Temperature: ~480°C
– Heat Rejection to Jacket Water: ~620 kW

Engine Specifications:
– Engine Model: Caterpillar 3516C
– Engine Type: V-16, 4-stroke, diesel
– Bore × Stroke: 170 mm × 190 mm
– Displacement: 69 liters
– Compression Ratio: 14.7:1
– Oil System Capacity: ~240 liters
– Cooling System Capacity: ~320 liters
– Starting System: 24V electric motor
– Fuel System: EUI (Electronic Unit Injection)

Alternator Specifications:
– Brand: Caterpillar SR5
– Excitation: Brushless, self-excited
– Insulation Class: H
– Temperature Rise: Class H (125°C)
– Voltage Regulation: ±0.5% steady state
– Enclosure: IP23
– Bearing Type: Single-bearing
– Mounting: Integral with engine skid

Included Components:
– CAT 3516C diesel engine
– SR5 high-efficiency alternator
– Radiator and cooling system
– Electronic governor (ADEM A4)

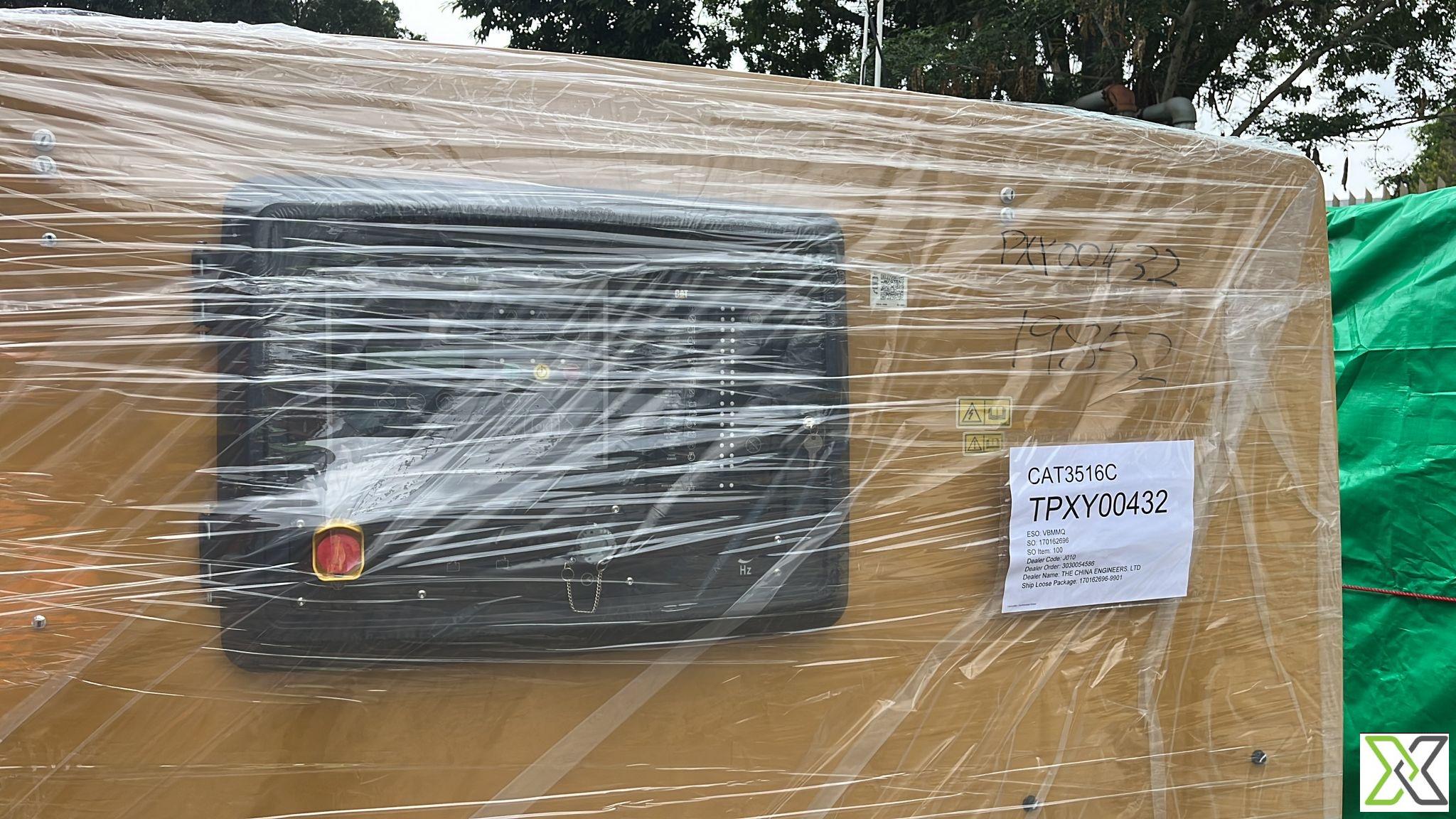

– EMCP 4.4 control panel
– Emergency stop push-button
– Skid-mounted base frame
– Lube oil system
– Fuel system (filters, pump)
– Jacket water heater
– Vibration isolators
– 24V dual battery starting system

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
