CAT C18 Marine Generator Set – 500 kW Diesel | Leroy-Somer Alternator | 0 Hours | 2015

CAT C18 Marine Generator Set – 500 kW, 0 Hours, 2015, Leroy-Somer Alternator

ReflowX SKU: REF-5653

Product Details

  • Quantity
    5
  • Availability (Lead Time)
    0-2 Weeks
  • Product Location
    China
  • Condition
    New
  • OEM
    MAN
  • Equipment code
    gen-d
  • Total Price
  • Per Unit Price
    $ 291,500.00
Whatsapp

Short Description

Brand new 500 kW Caterpillar C18 marine diesel generator set with 0 hours runtime, manufactured in 2015, equipped with Leroy-Somer alternator and explosion-proof motor, ready for immediate delivery.

Description

CAT C18 Marine Generator Set – 500 kW, 0 Hours, 2015, Leroy-Somer Alternator

Description:

The CAT C18 Marine Generator Set is a robust, high-performance power generation unit built to meet the demanding needs of marine and offshore applications. Manufactured in 2015 and completely unused with 0 running hours, this generator set ensures reliability and longevity for critical operations.

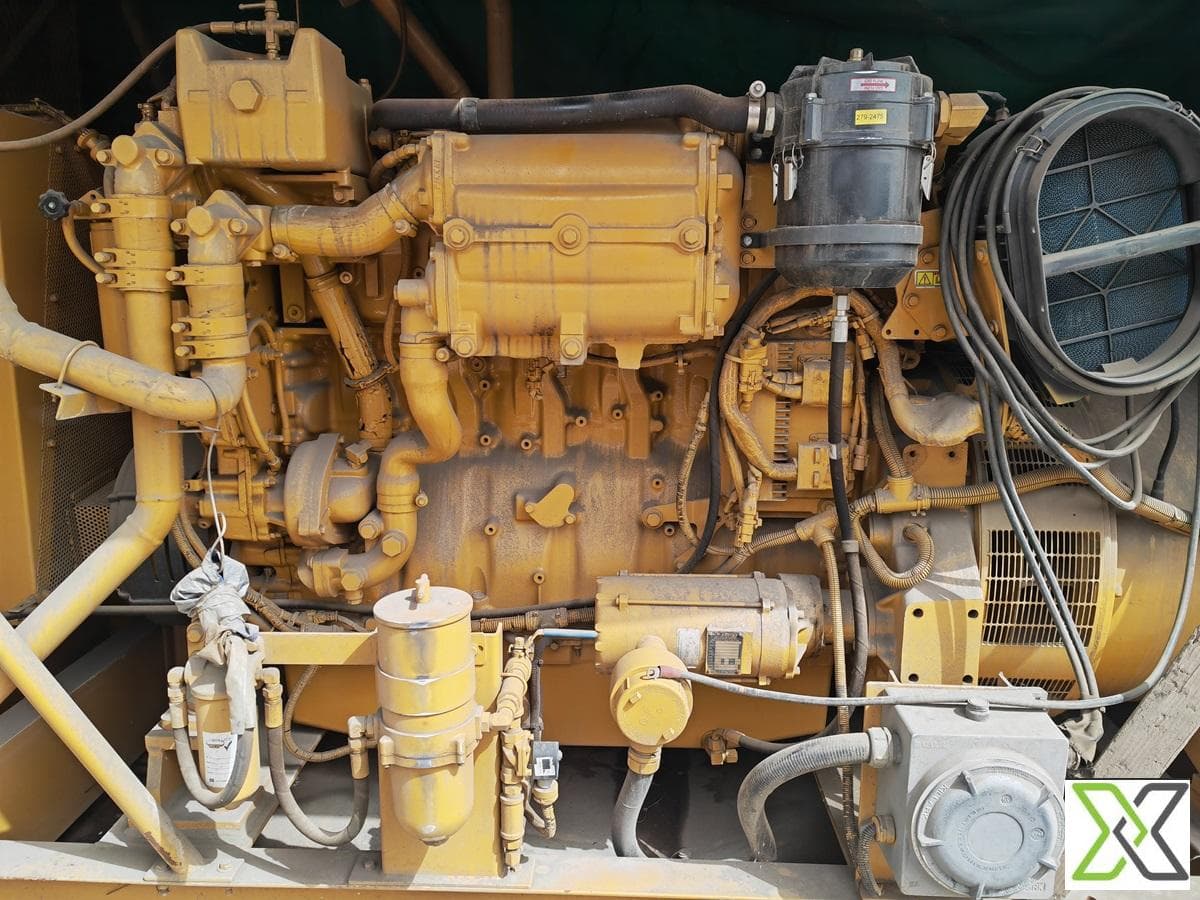

Each unit is powered by the Caterpillar C18 diesel engine, renowned for its durability and fuel efficiency. The system includes a Leroy-Somer LSAM49.1S4 alternator, capable of delivering 625 kVA (500 kW) at 480V, 60 Hz with a power factor of 0.8. The generator is complemented by a U.S. Energy Corporation explosion-proof motor rated at 12 HP, 24VDC, making it suitable for hazardous locations (Class I Div 1, Group D, and Class II Groups F & G).

Cooling is provided by an Ultra Jet Marine HJ6573E8-C18 system, pressure-tested and designed for continuous marine operation. All five units are immediately available, located FOB China Port, and ideal for shipbuilding, offshore platforms, and other marine projects requiring dependable power.

Specifications:

-Manufacturer: Caterpillar

-Model: C18

-Type: Marine Generator Set

-Fuel: Diesel

-Year of Manufacture: 2015

-Running Hours: 0 (Unused)

-Quantity Available: 5 Units

-Availability: Immediate

-Location: FOB China Port

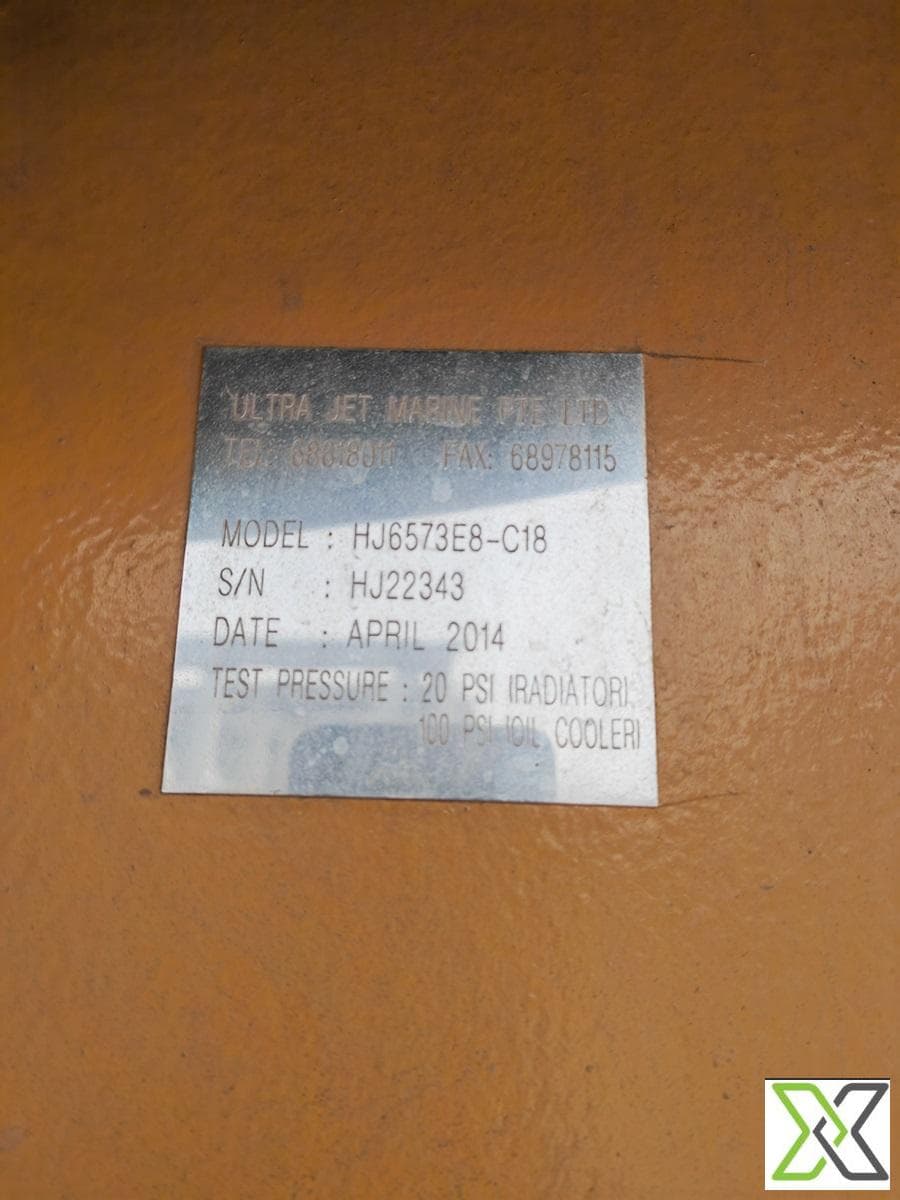

-Engine Cooling System

-Model: HJ6573E8-C18

-Serial Number: HJ22343

-Manufacturer: Ultra Jet Marine PTE LTD

-Manufacture Date: April 2014

-Test Pressures: Radiator: 20 PSI, Oil Cooler: 100 PSI

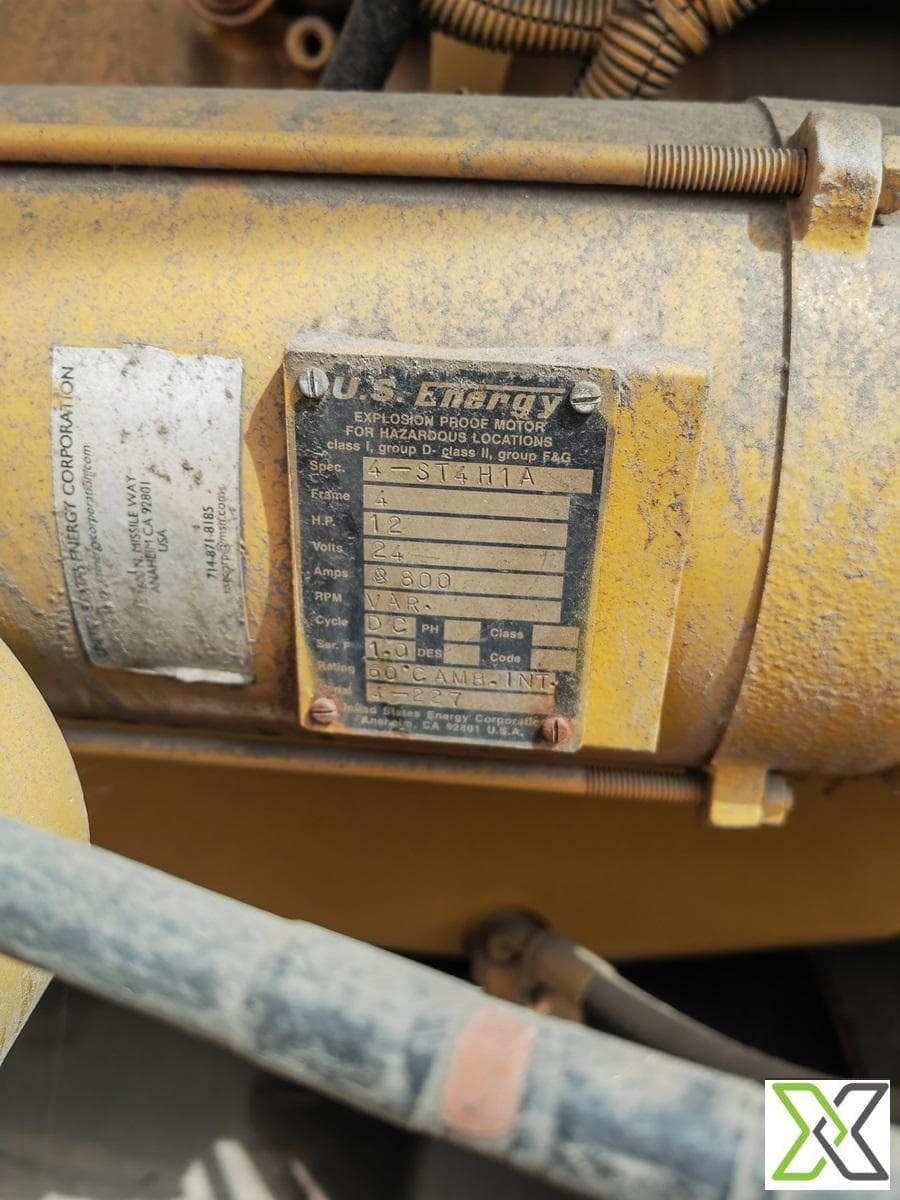

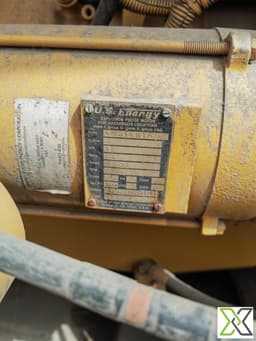

-Explosion-Proof Motor

-Brand: United States Energy Corporation

-Frame: ST4H1A

-Horsepower: 12 HP

-Voltage: 24V DC

-Amperage: 800 A

-Duty: Continuous

Classifications:

Class I, Division 1, Group D

Class II, Groups F & G

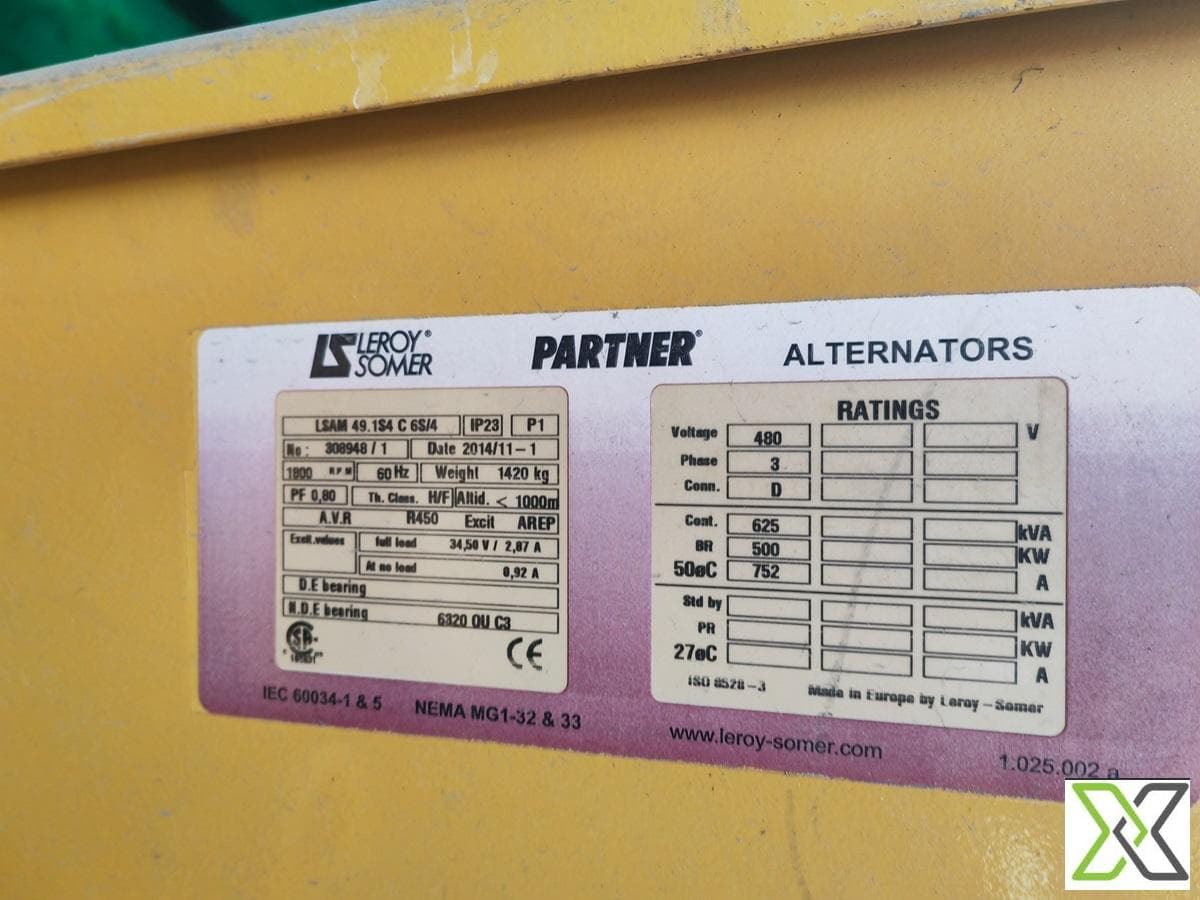

Alternator

-Brand: Leroy-Somer

-Model: LSAM 49.1S4 C 6S/4

-Serial Number: 308948 / 1

-Manufacture Date: 01-Nov-2014

-Speed: 1800 RPM

-Frequency: 60 Hz

-Power Factor: 0.80

-Temperature Class: H/F

-Altitude Rating: ≤ 1000 m

-Excitation System: AREP with R450 AVR

-Weight: 1420 kg

-Rated Output

-Voltage: 480V

-Phase: 3-Phase

-Connection: Delta (D)

-Continuous Rating (at 50°C): 625 kVA

-Base Rating: 500 kW

-Current Output: 752 A

Bearings:

-Drive End (D.E): 6320 OU C3

-Non-Drive End (N.D.E): 6320 OU C3

-Excitation Voltage

-Full Load: 34.50V / 2.87A

-No Load: 0.92A

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number
C18
Year of Manufacturing
2015
Model Number
C18
Year of Manufacturing
2015
Manufacturer Name
Caterpillar
Height
1600 mm
Width
1200 mm
Length
3000 mm
Weight
4200 kg
Usage Hours
00
Temperature Range
-25°C to +50°C
Pressure Rating
20 PSI
Voltage
480 V
Color
Yellow
ISO 15926 Pt 4
2353
PCA RDS Code
RDS873359
CFIHOS ID
CFIHOS-30000804
Output Power
500 kW
Speed
1800 RPM
Direction of Rotation
Counterclockwise
IFC Class
IfcEngineGenerator
Explosion Protection Gas Group
Group IIA / IIB
Explosion Protection Temperature Class
Class T3
Explosion Protection Zone
Zone 1 / Zone 2 compliant
Lower Limit Operating Temperature
-25°C
Normal Output Power
500 kW
Operation Continuous Intermittent
Continuous Duty Rated
Upper Limit Operating Temperature
+50°C
