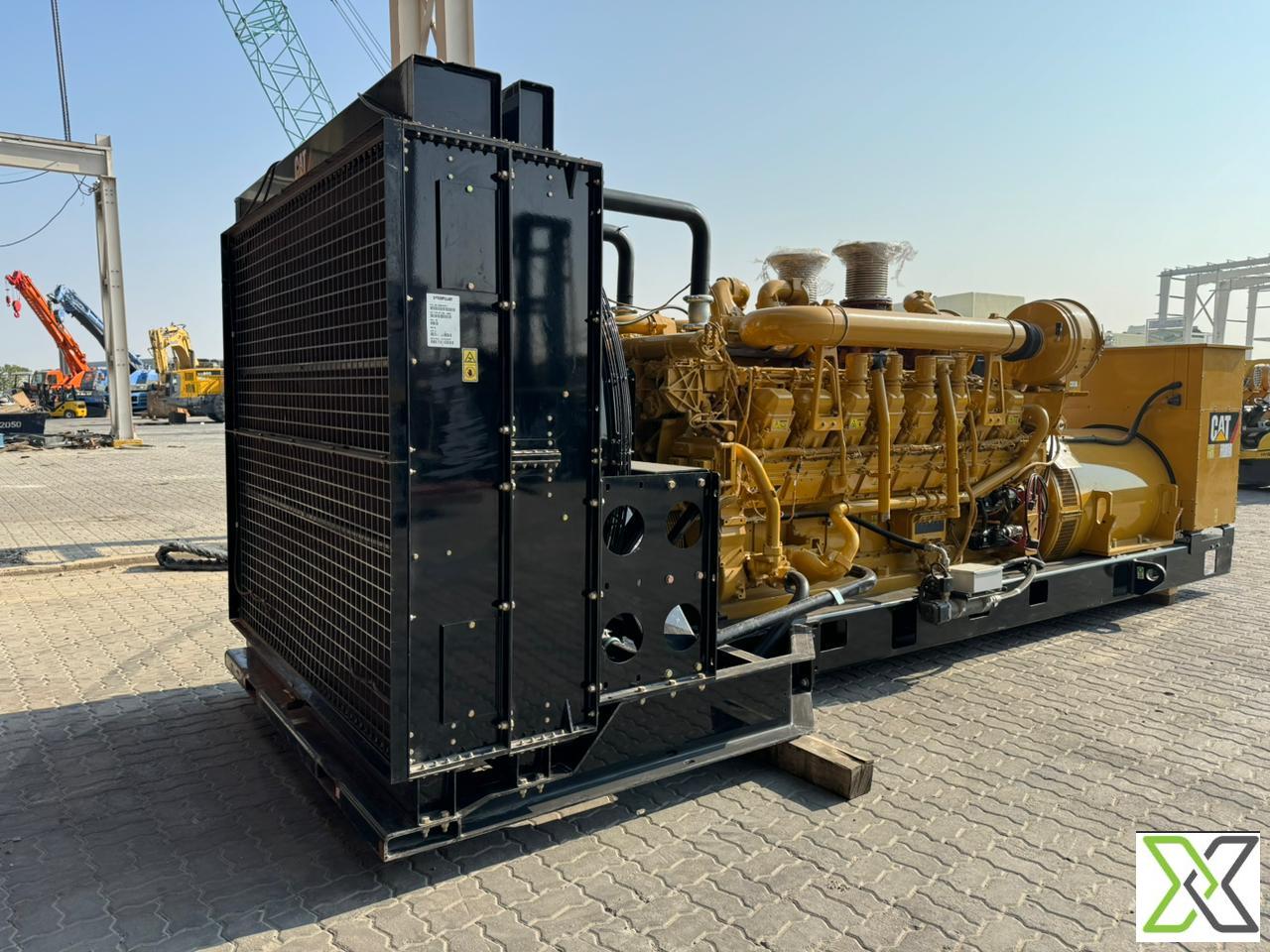

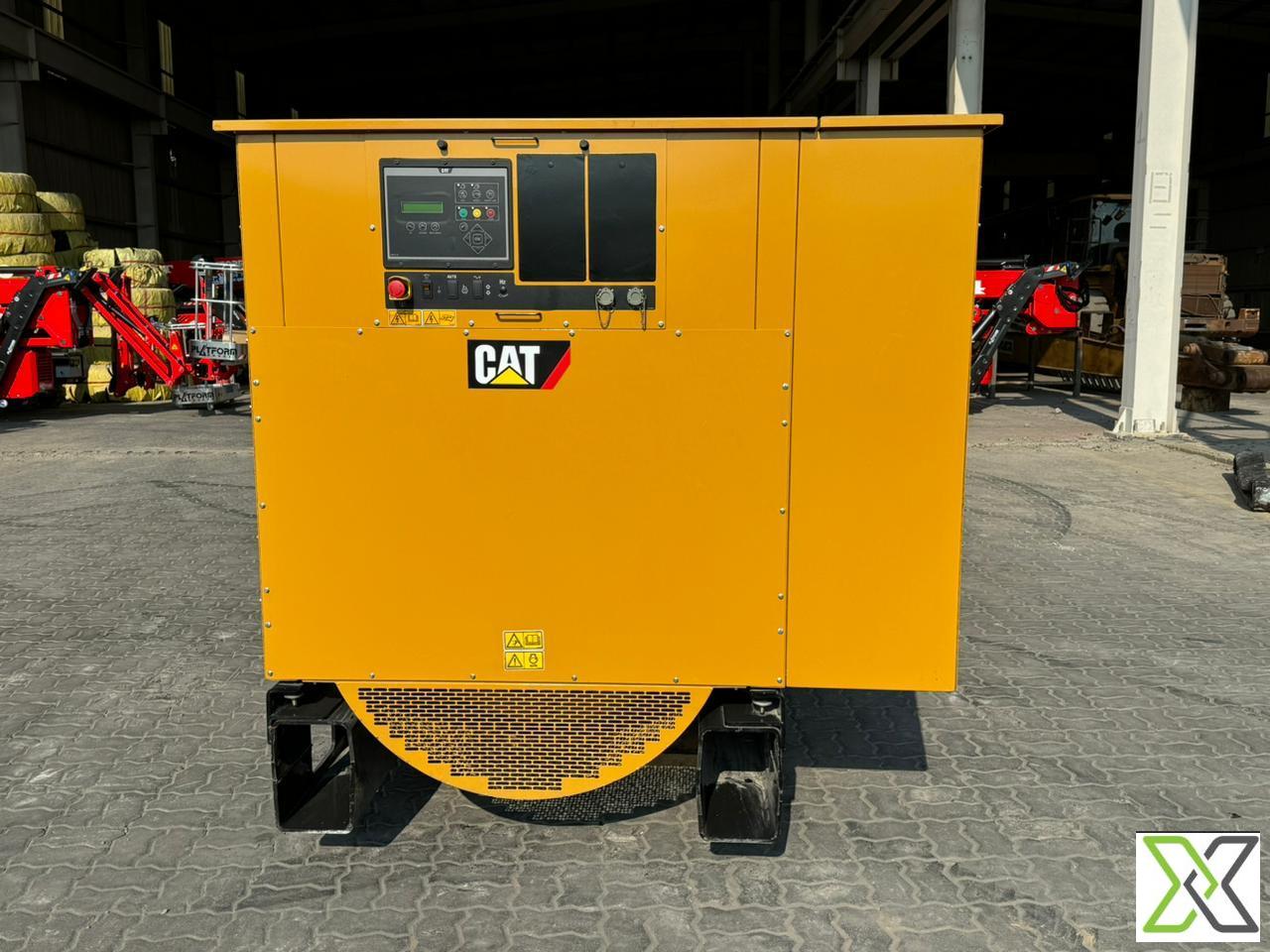

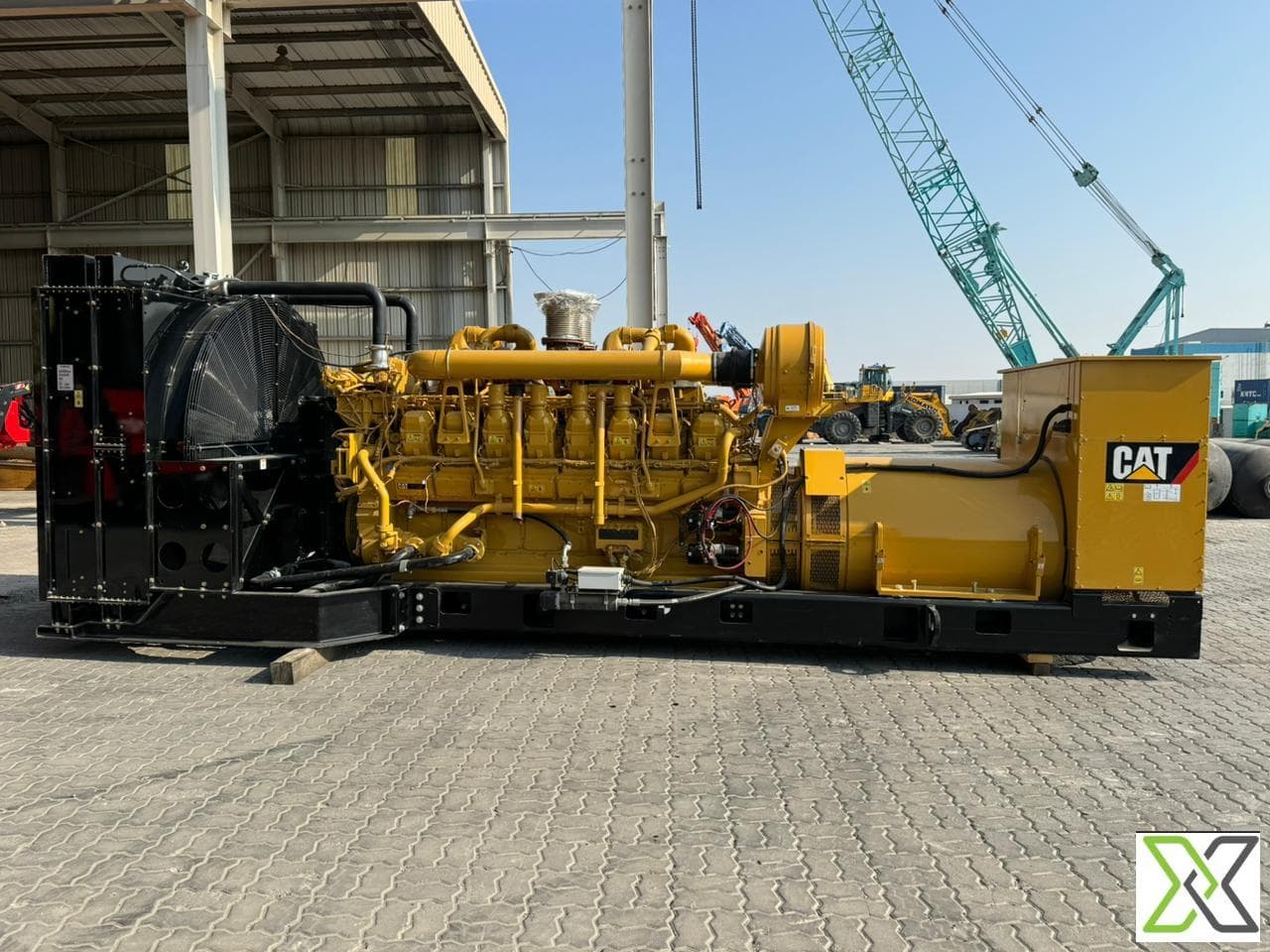

Caterpillar 2500 kVA Diesel Generator Set – Model 3516B – 3-Phase – 400/230V
Description:

The Caterpillar 3516B Diesel Generator Set offers a robust and reliable power solution with a standby power rating of 2500 kVA (2000 kW). Manufactured in September 2017, this brand new unit is engineered for dependable performance in demanding environments. Operating at 1500 RPM and 50 Hz frequency, the generator is equipped with a 3-phase output at 400/230 volts and delivers a rated current of 3609 A. The unit conforms to ISO 8528-3 standards, with an S-star connection, insulation class H, and IP23-rated enclosure. The generator uses excitation voltage of 56V and excitation current of 4.21 A. It is built to operate in ambient temperatures up to 50°C and a maximum altitude of 152.4 m. Ideal for critical operations, it combines Caterpillar’s trusted engineering with high-efficiency output for commercial and industrial use.

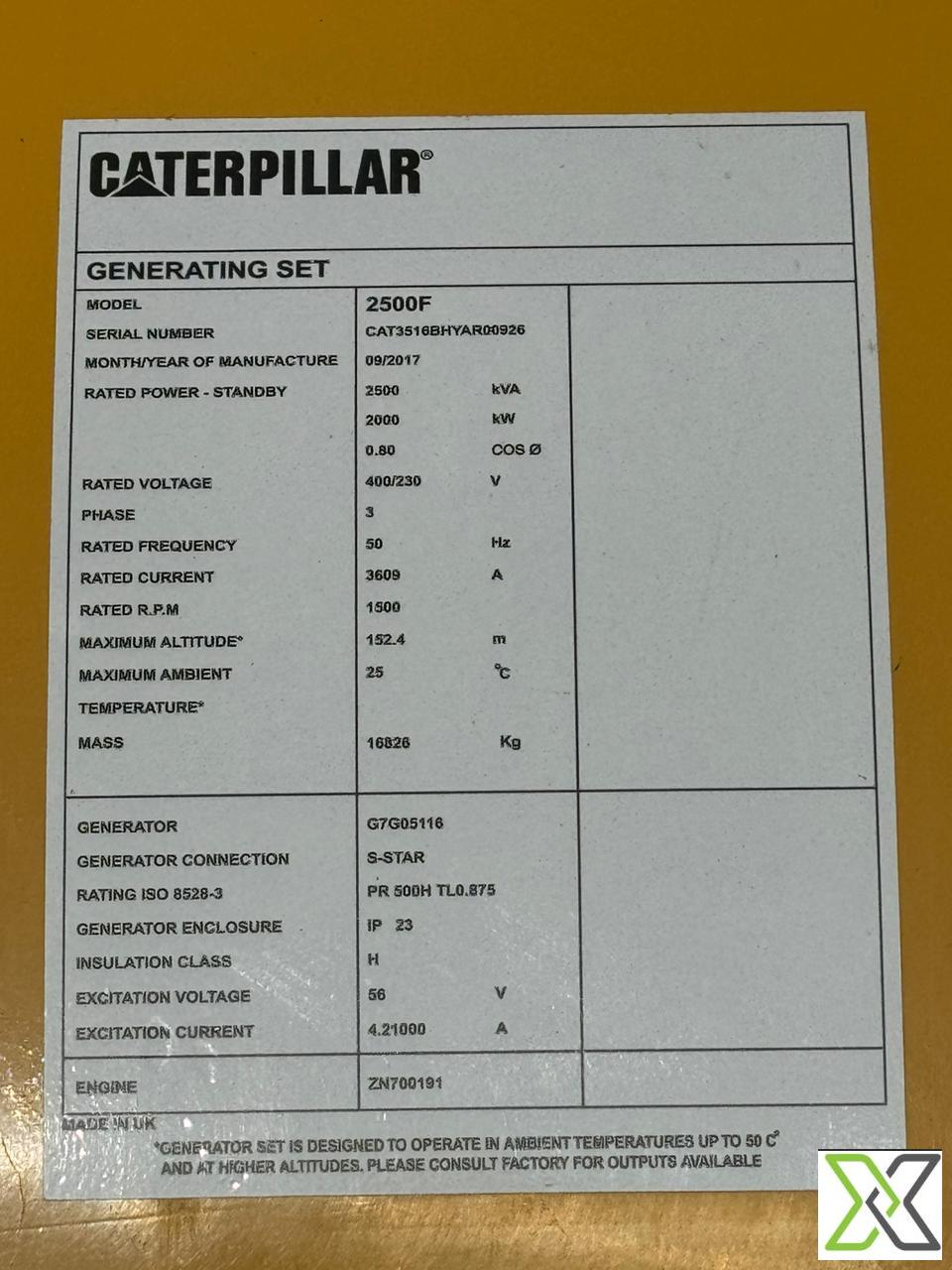

Specifications:

– Model: 2500F

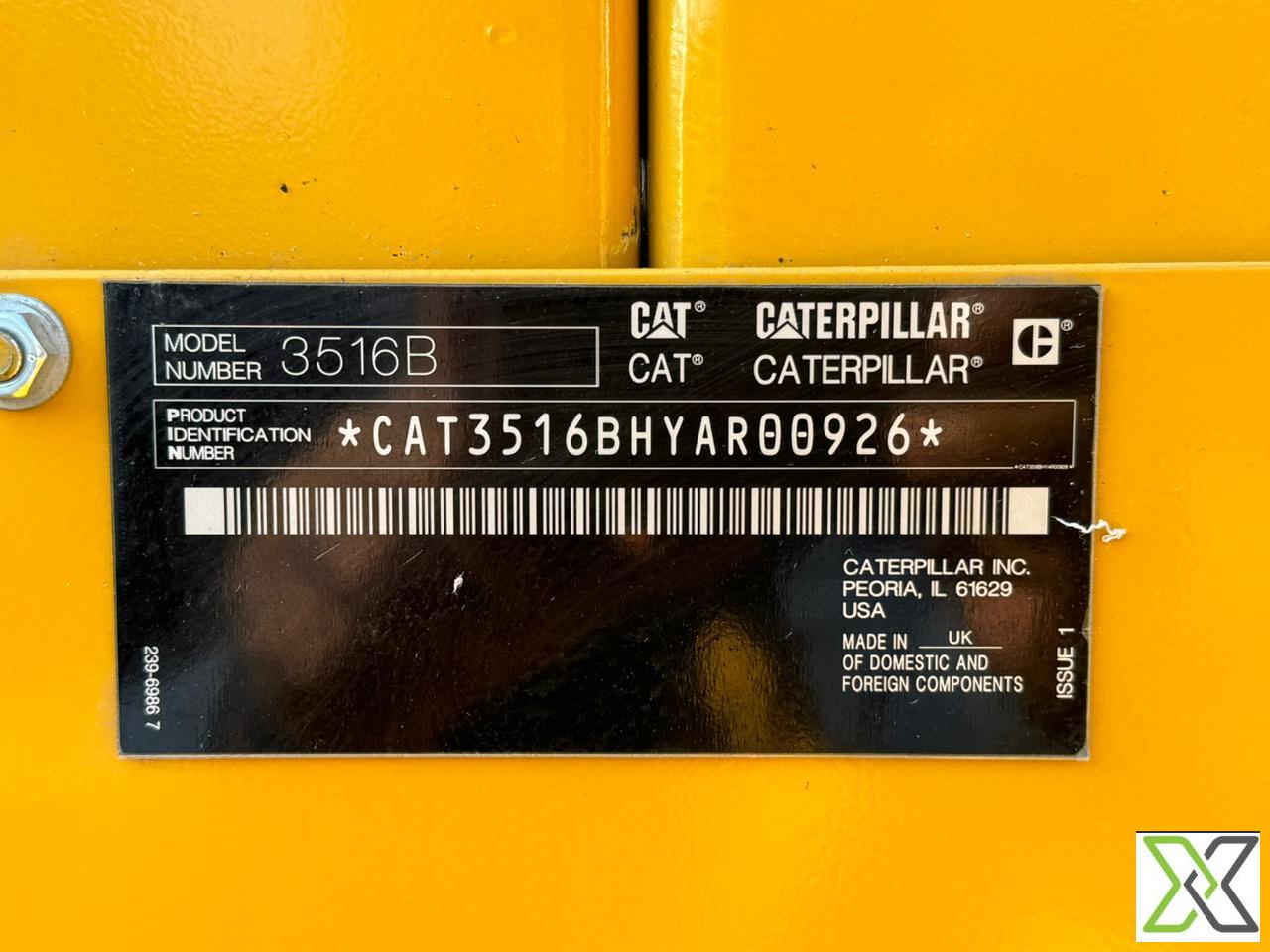

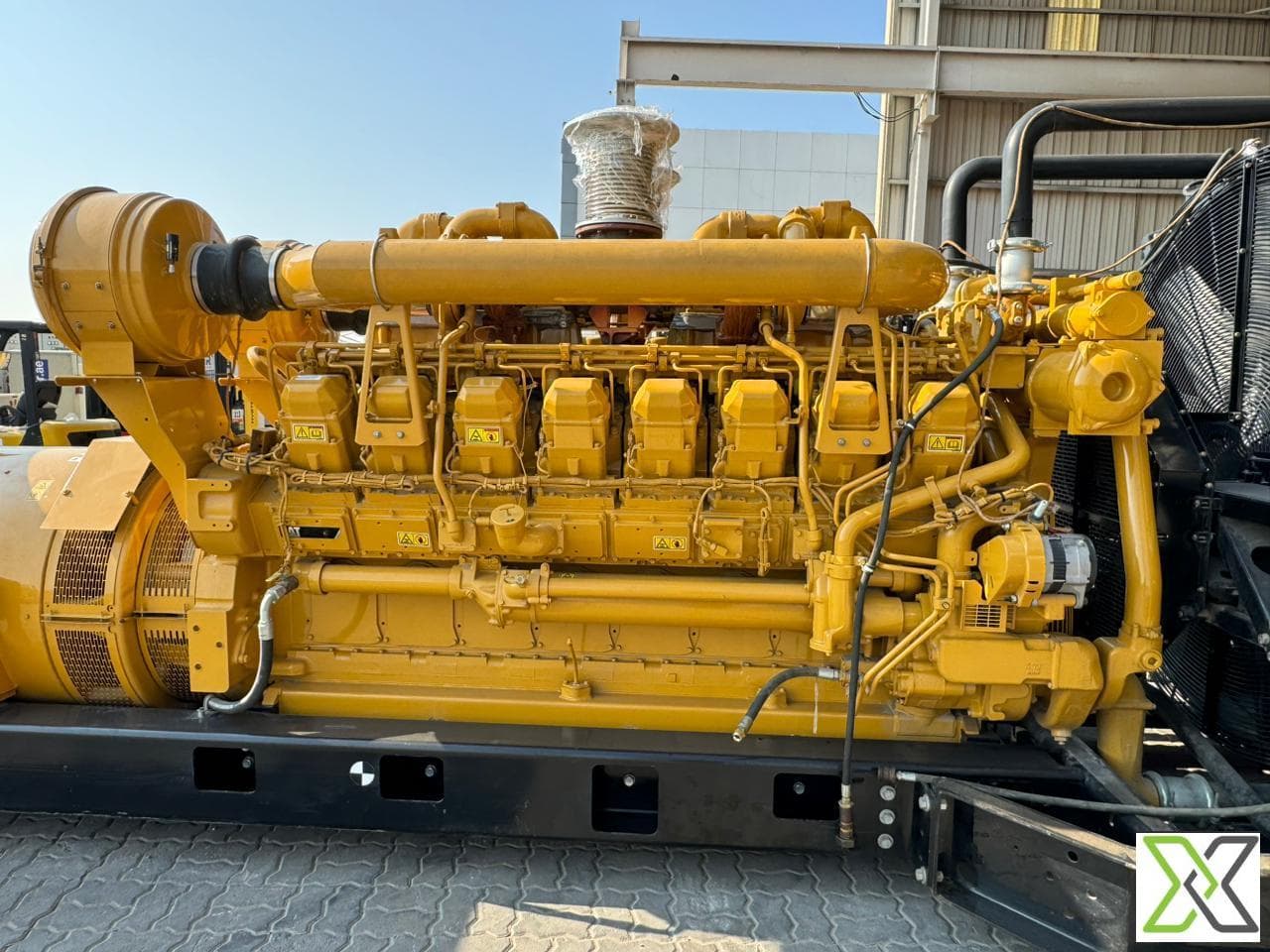

– Engine Model: CAT 3516B
– Rated Power – Standby: 2500 kVA / 2000 kW
– Power Factor: 0.80
– Rated Voltage: 400/230 V
– Rated Current: 3609 A
– Rated Frequency: 50 Hz
– Rated Speed: 1500 RPM
– Phase: 3
– Enclosure: IP23
– Insulation Class: H
– Generator Model: G7G05116
– Connection Type: S-STAR
– Rating Standard: ISO 8528-3 PR 500h TLO.875
– Excitation Voltage: 56 V
– Excitation Current: 4.21 A
– Mass (Weight): 16,826 kg
– Max Ambient Temperature: 50°C (design limit)
– Max Altitude: 152.4 m
– Manufacture Date: 09/2017
– Condition: Brand New
– Made in: United Kingdom
– Color: Caterpillar Yellow
– Direction of Rotation: Standard (Clockwise viewed from drive end – assumed typical for 3516B)
– Operation: Standby (can be adapted for continuous use)
– Explosion Protection: Not applicable (standard industrial model)
– Temperature Range: Up to 50°C ambient
