Caterpillar 3000 kVA Diesel Generator Set – Model C175-16 – 3-Phase – 400V – Brand New - 2017

ReflowX SKU: REF-1247

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

MAN
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Brand new Caterpillar C175-16 diesel generator, 3000 kVA standby power, 3-phase, 400V, 50 Hz, manufactured in 2017, built for high-performance and heavy-duty industrial power needs.

Description

Caterpillar 3000 kVA Diesel Generator Set – Model C175-16 – 3-Phase – 400V
Description:

The Caterpillar C175-16 is a premium 3000 kVA standby-rated diesel generator set engineered to deliver robust and reliable power in industrial environments. Manufactured in 2017 and kept in brand-new condition, this generator features a high-efficiency 16-cylinder C175-series engine with an integrated alternator capable of 2400 kW output at 50 Hz frequency. It operates at 1500 RPM and includes advanced insulation Class H and Wye connection configuration for optimal safety and performance.

The unit is factory-built in Lafayette, Indiana, USA, and includes a robust excitation system, low sub-transient reactance, and high synchronous reactance—perfect for resilient operation under varying loads. It features a temperature rise of 125°C and is designed for use in ambient temperatures up to 40°C.

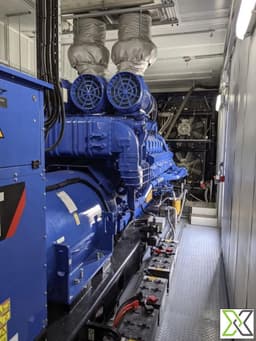

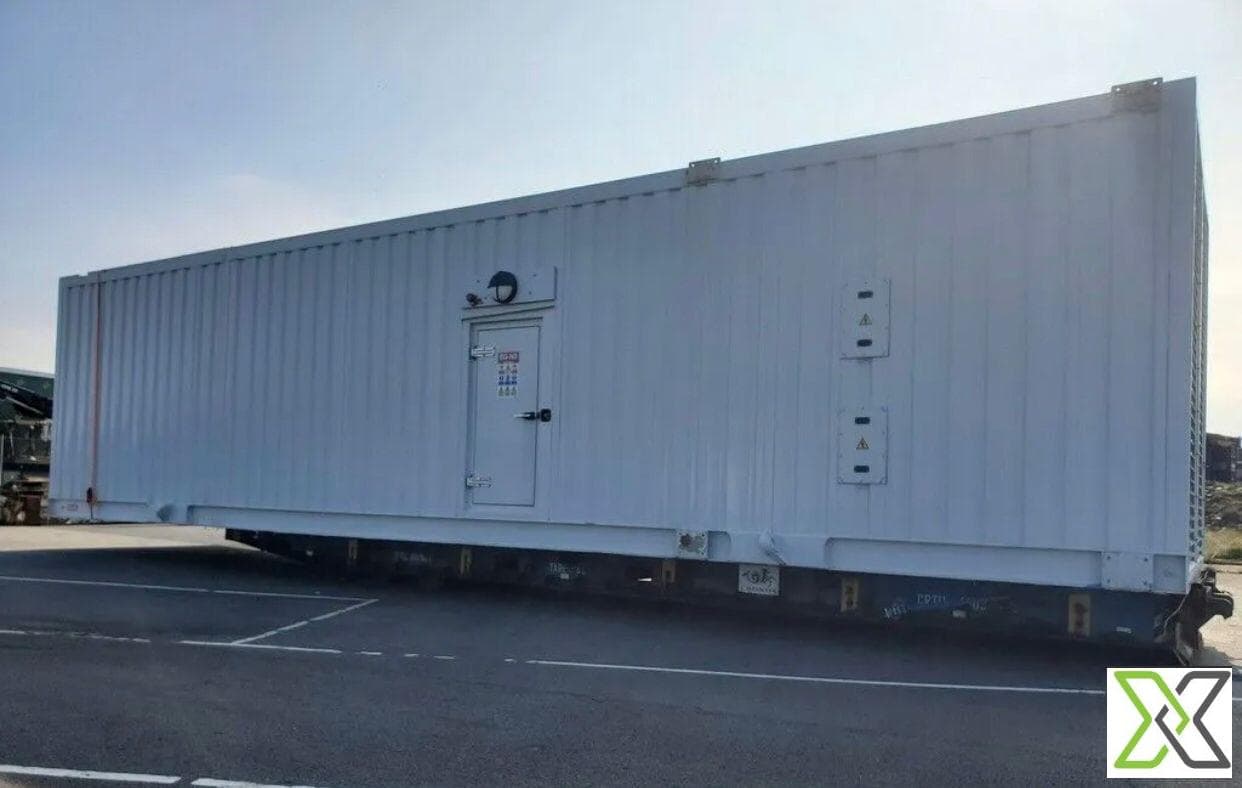

This containerized generator is ideal for mission-critical applications, including power plants, data centers, and industrial facilities. Shipping time to Jebel Ali is approximately two months.

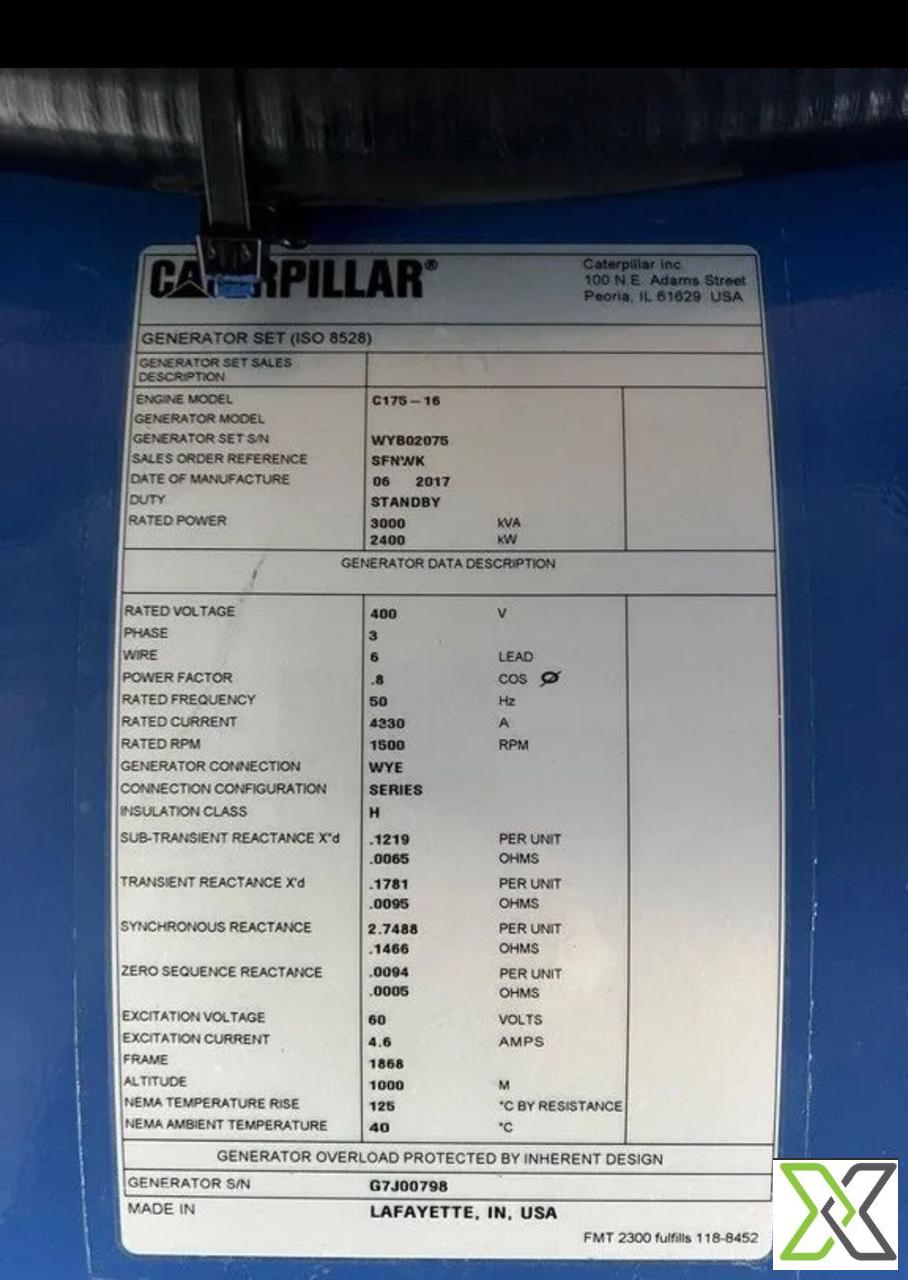

Specifications:

– Model: C175-16
– Engine Model: CAT C175-16
– Rated Power – Standby: 3000 kVA / 2400 kW
– Power Factor: 0.80
– Rated Voltage: 400 V
– Rated Current: 4330 A
– Rated Frequency: 50 Hz
– Rated Speed: 1500 RPM
– Phase: 3
– Enclosure: IP23
– Insulation Class: H
– Generator Model: WYB02075
– Connection Type: WYE (Star)
– Rating Standard: ISO 8528 (Standby Duty)
– Excitation Voltage: 60 V
– Excitation Current: 4.6 A
– Mass (Weight): Approx. 18,000–20,000 kg (estimated, containerized)
– Max Ambient Temperature: 40°C
– Max Altitude: 1000 m
– Manufacture Date: 06/2017
– Condition: Brand New
– Made in: United States (Lafayette, Indiana)
– Color: Caterpillar Blue (Custom Painted)
– Direction of Rotation: Standard (Clockwise viewed from drive end – assumed)
– Operation: Standby
– Explosion Protection: Not applicable (standard industrial model)
– Temperature Range: Up to 40°C ambient (NEMA standard)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	CAT C175-16
Year of Manufacturing	2017
Model Number	CAT C175-16
Year of Manufacturing	2017
Manufacturer Name	Caterpillar
Height	2,800 mm
Width	2,438 mm
Length	6,058 mm
Weight	18,000–20,000 kg
Usage Hours	00
Temperature Range	-10°C to +40°C
Voltage	400 V
Color	Caterpillar Blue
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	3000 kVA
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	-10°C
Normal Output Power	2400 kW
Operation Continuous Intermittent	Intermittent
Upper Limit Operating Temperature	+40°C
