Caterpillar 650F Generator Set – 600 kVA – 3412TTA Engine – 1999

ReflowX SKU: REF-141

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Uk
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Used Caterpillar 650F diesel generator set with CAT 3412TTA turbocharged engine, delivering 600 kVA prime power at 1500 RPM and 50 Hz, ideal for heavy-duty industrial applications.

Description

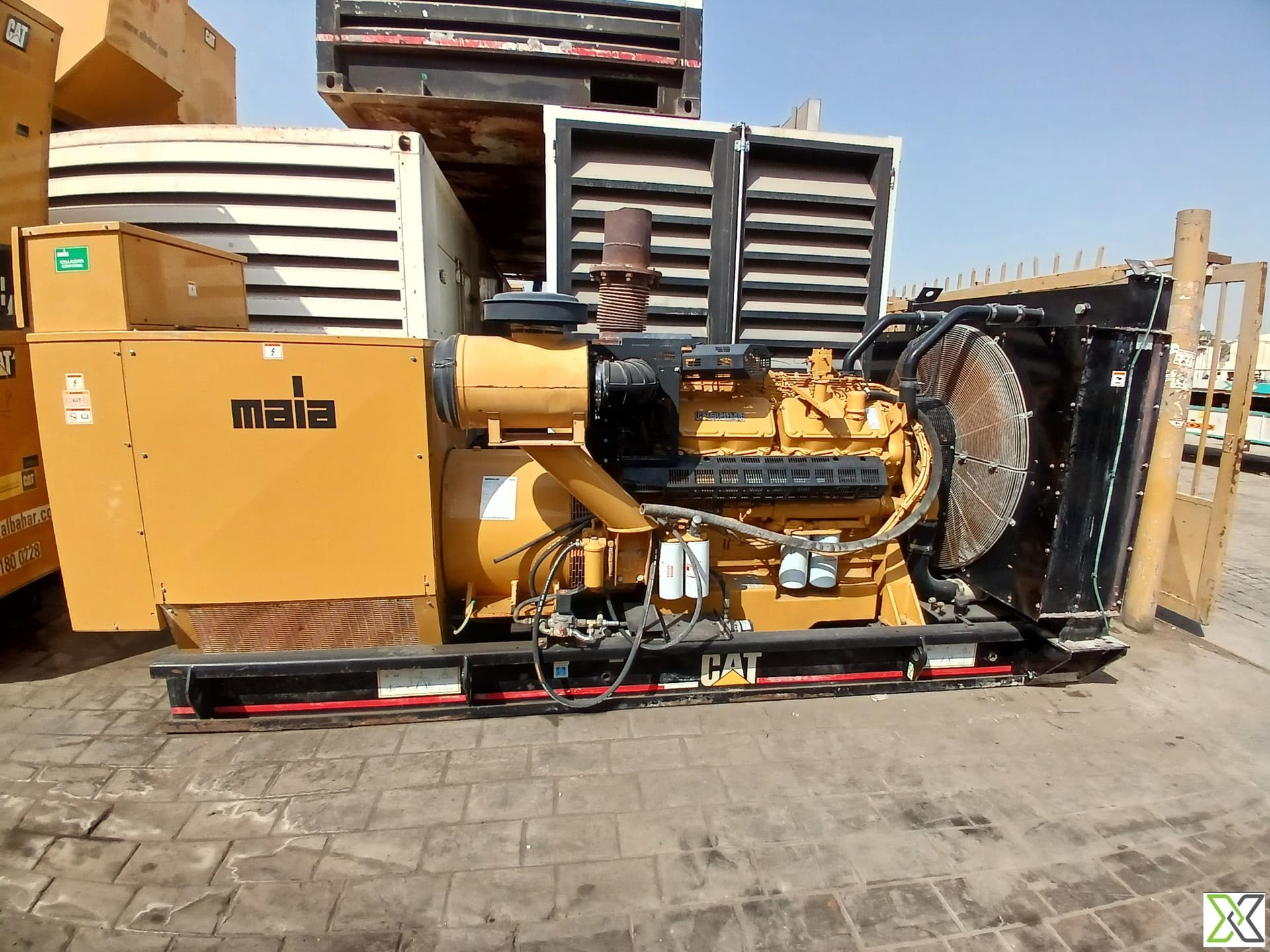

Caterpillar 650F Diesel Generator Set – 600 kVA – 3412TTA Engine – 1999

The Caterpillar 650F diesel generator set is a robust and reliable power solution designed for industrial and commercial use. Powered by the durable CAT 3412TTA turbocharged engine, this unit delivers 600 kVA / 480 kW of prime-rated power. It operates at 1500 RPM and 50 Hz frequency, suitable for three-phase systems with a voltage rating of 400/230V.
This generator is equipped with a Caterpillar alternator configured in star connection and is built to perform efficiently in high ambient temperatures up to 50°C. Manufactured in 1999, the generator demonstrates Caterpillar’s legacy in delivering performance and durability for critical power needs.

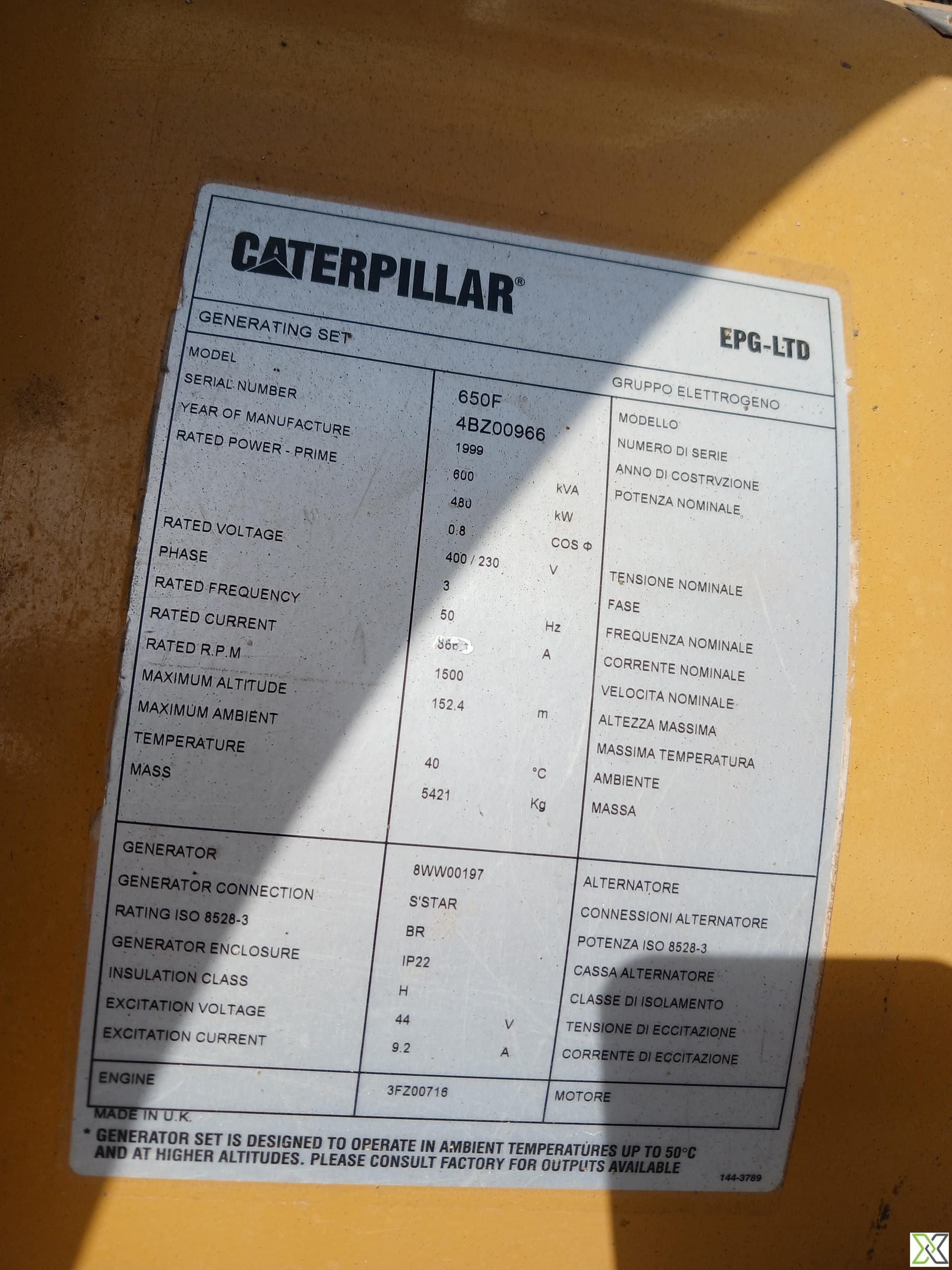

Specifications:

– Generator Set Model: 650F
– Year of Manufacture: 1999
– Rated Power (Prime): 600 kVA / 480 kW
– Voltage: 400/230 V
– Frequency: 50 Hz
– Phase: 3
– Rated RPM: 1500
– Power Factor: 0.8

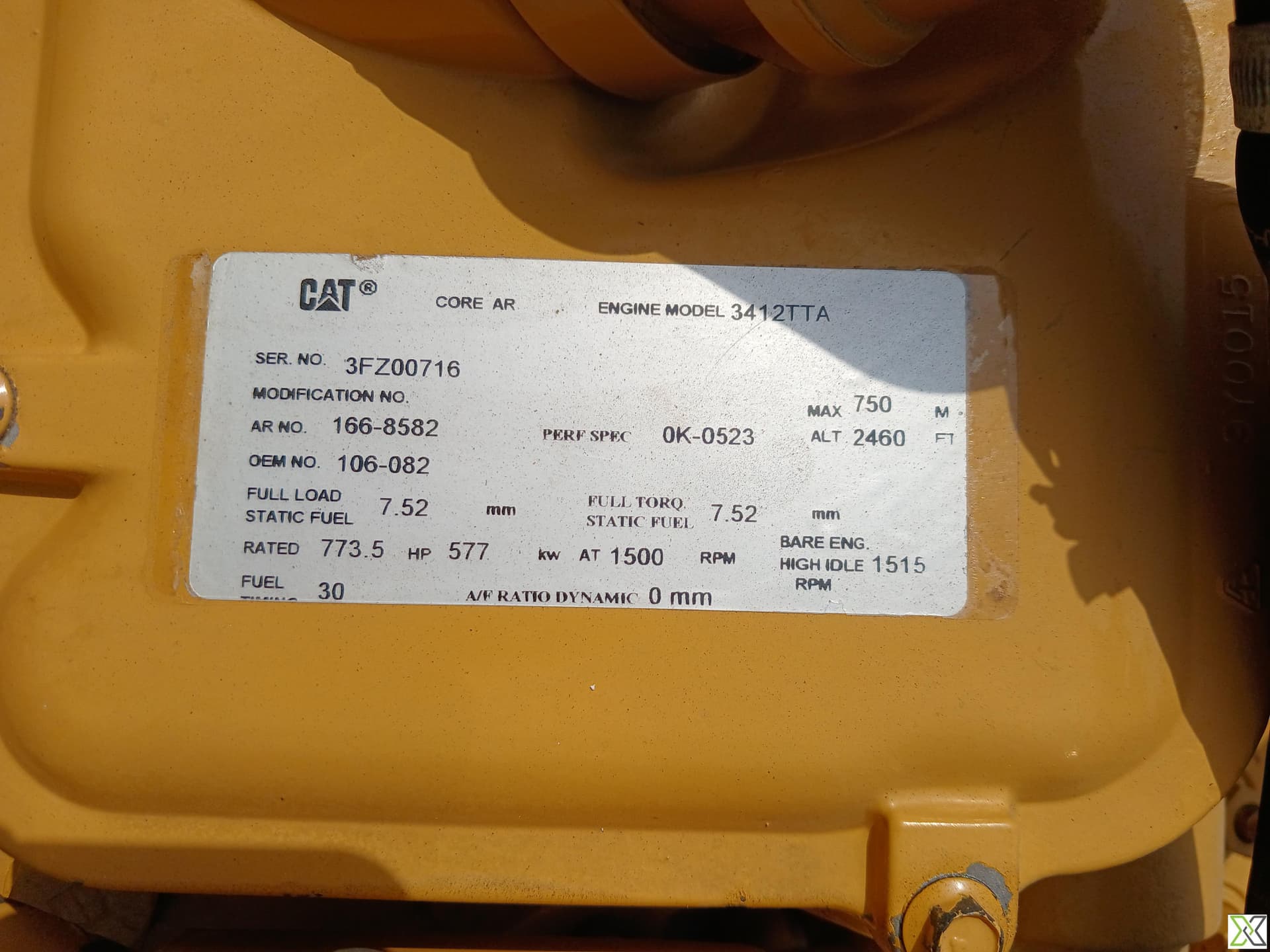

– Engine Model: CAT 3412TTA
– Engine Serial Number: 3FZ00716
– Engine Rated Power: 773.5 HP (577 kW) @ 1500 RPM
– Fuel Type: Diesel
– Alternator Model: 8WW00197
– Alternator Insulation Class: H
– Enclosure: IP22
– Excitation Voltage / Current: 44 V / 9.2 A
– Max Altitude: 1500 m
– Max Ambient Temperature: 40°C
– Weight: 5421 kg
– Country of Manufacture: U.K.

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	650F
Year of Manufacturing	1999
Model Number	650F
Year of Manufacturing	1999
Manufacturer Name	Caterpillar
Height	2,190 mm
Width	1,650 mm
Length	4,800 mm
Weight	5421 kg
Temperature Range	–10°C to +50°C
Pressure Rating	1.0 to 1.5 bar
Voltage	400/230 V AC
Color	Caterpillar Yellow
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	600 kVA / 480 kW
Speed	1,500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	–10°C
Normal Output Power	480 kW
Operation Continuous Intermittent	Continuous Operation
Upper Limit Operating Temperature	+50°C
