Caterpillar C-18 Generator Set – 880 kW / 1100 kVA – 415V, 50 Hz – 3 Phase (Used)

ReflowX SKU: REF-7221

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Caterpillar
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Used CAT C-18 diesel generator set rated at 880 kW prime power (1100 kVA), 415V, 50 Hz, 3-phase. High-performance standby or prime power unit with DSG 62S alternator.

Description

Caterpillar C-18 Generator Set – 880 kW / 1100 kVA – 415V, 50 Hz – 3 Phase

Description:

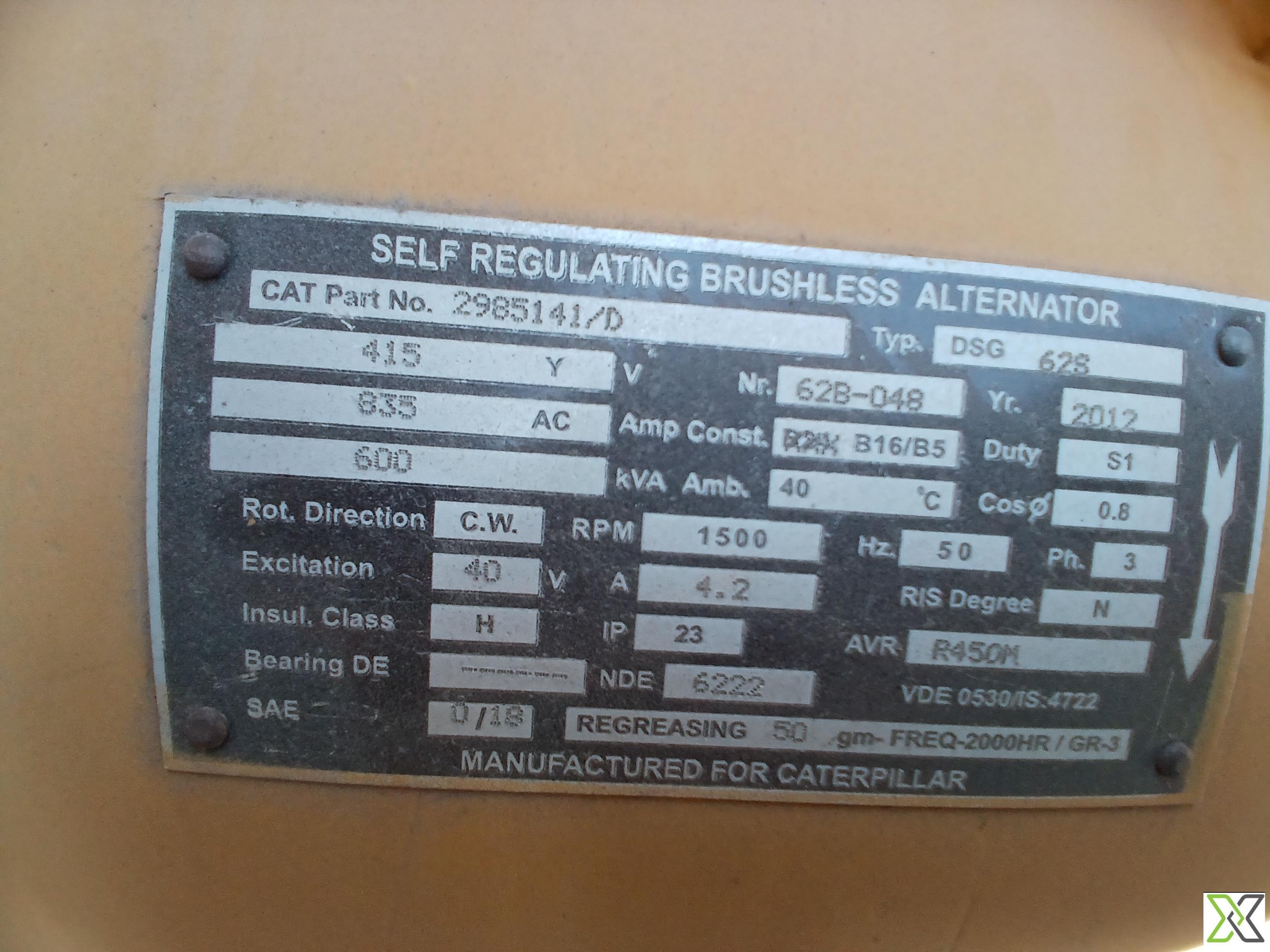

Offered for sale is a Caterpillar C-18 diesel generator set, providing 880 kW (1100 kVA) of prime-rated power at 50 Hz in a 3-phase, 415V configuration. Built for reliable industrial power generation, this unit is equipped with a DSG 62S self-regulating brushless alternator manufactured in 2012, featuring IP23 protection, insulation class H, and clockwise rotation. The alternator is driven at 1500 RPM and operates efficiently in ambient temperatures up to 40°C.

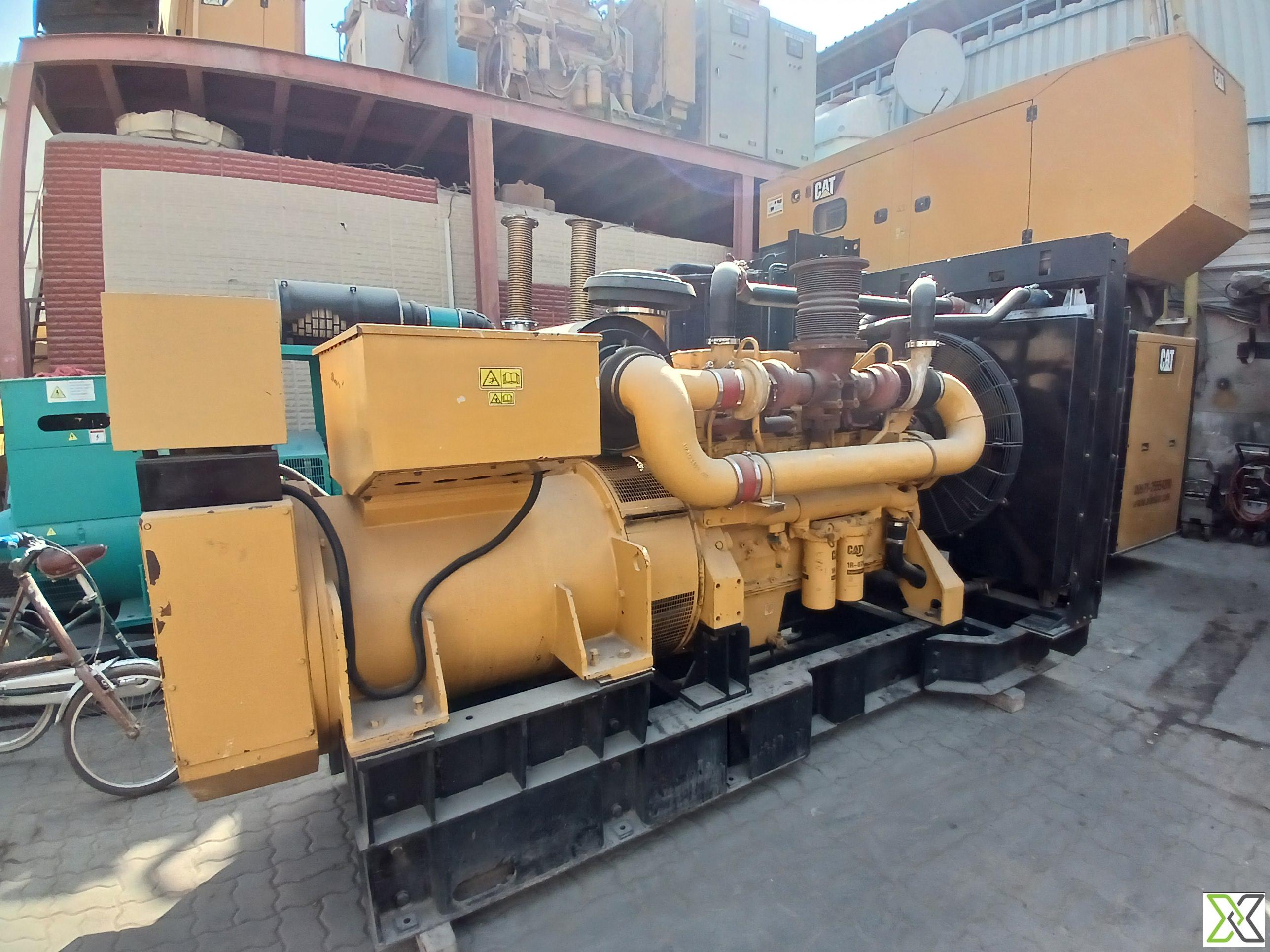

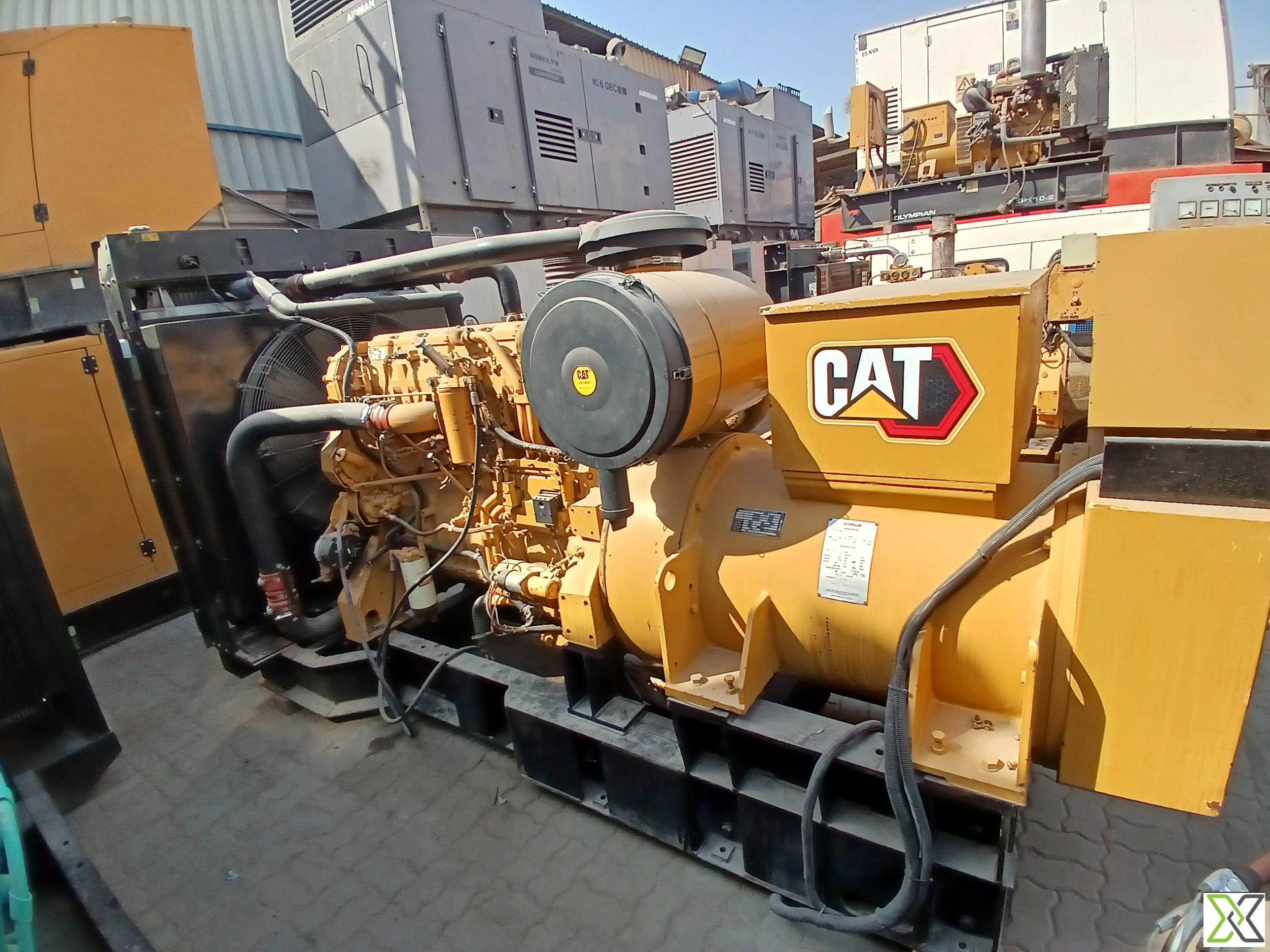

Designed for rugged deployment, the generator is mounted on a heavy-duty open skid and comes with a CAT control panel and industrial-grade exhaust system. Ideal for mining, construction, utility backup, and heavy-duty site operations.

Specifications:

– Manufacturer: Caterpillar
– Model: C-18
– Fuel Type: Diesel
– Rated Power (Prime): 880 kW
– Apparent Power: 1100 kVA
– Voltage: 415V
– Frequency: 50 Hz
– Phases: 3 Phase
– Power Factor: 0.8
– Alternator Model: DSG 62S
– Alternator Manufacturer: Stamford
– Excitation Voltage: 40 V
– Excitation Current: 4.2 A
– Speed: 1500 RPM
– Insulation Class: H
– Protection Class: IP23
– Ambient Temp Rating: 40°C
– Direction of Rotation: Clockwise (C.W.)
– Enclosure Type: Open skid-mounted
– Color: Caterpillar Yellow
– Year of Manufacture (Alternator): 2012
– Duty Type: Continuous (S1)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	C18
Year of Manufacturing	2012
Model Number	C18
Year of Manufacturing	2012
Manufacturer Name	Caterpillar
Height	2000 mm
Width	1200 mm
Length	4000 mm
Weight	5,500 kg
Temperature Range	Up to 40°C
Voltage	415V
Color	Yellow
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	880 kW / 1100 kVA
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	Typically 5°C
Normal Output Power	880 kW Prime
Operation Continuous Intermittent	Continuous Prime Rated
Upper Limit Operating Temperature	40°C
