Caterpillar DE275E0 Generator Set – 200 kW / 250 kVA – 400/230V, 50 Hz – 3 Phase

ReflowX SKU: REF-5719

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Caterpillar Inc.
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Used CAT DE275E0 diesel generator set rated at 200 kW (250 kVA) prime power, 400/230V, 50 Hz, 3-phase. Manufactured in 2018, with IP23 enclosure and reliable Caterpillar C9 engine.

Description

Caterpillar DE275E0 Generator Set – 200 kW / 250 kVA – 400/230V, 50 Hz – 3 Phase

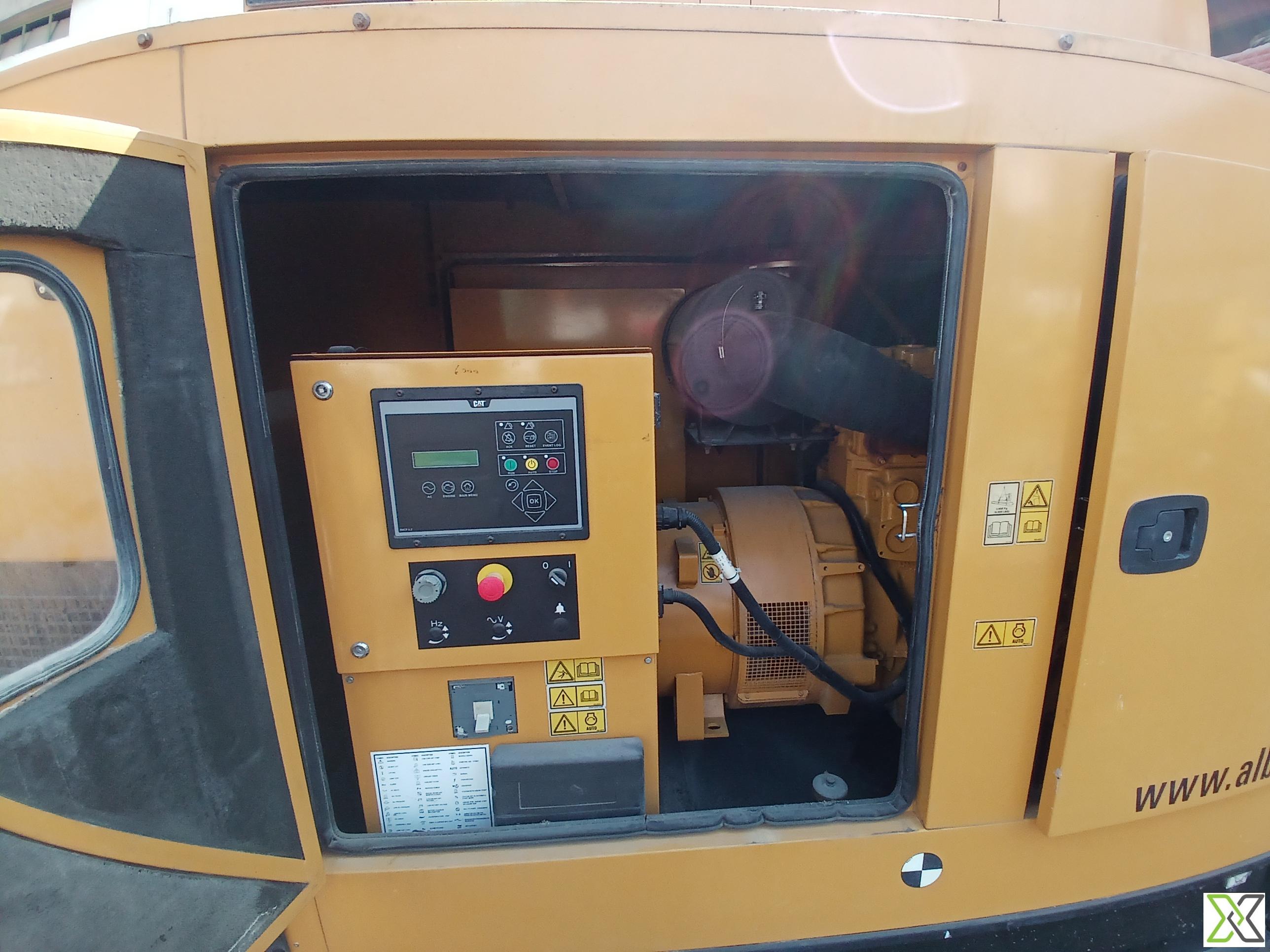

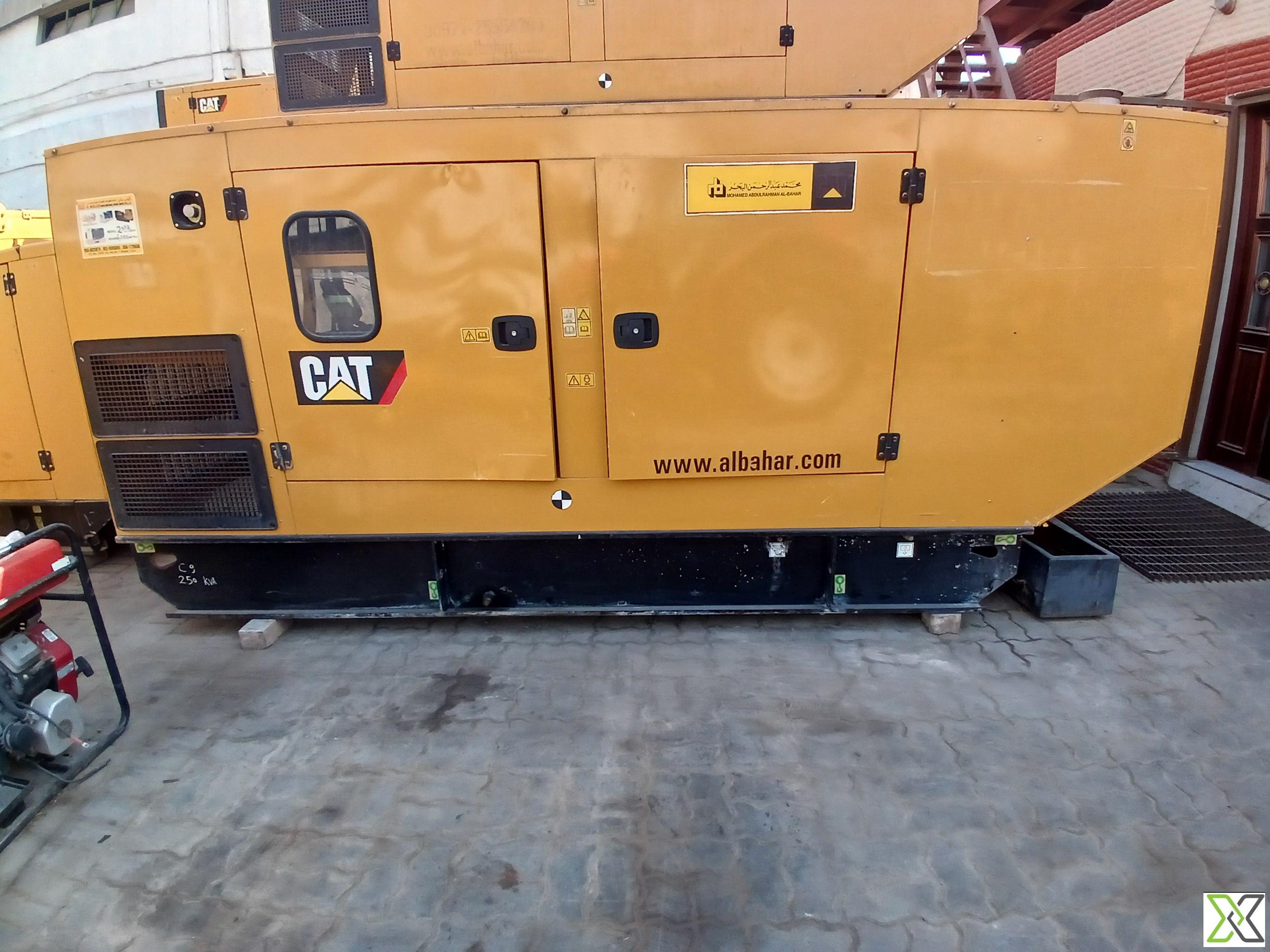

Available for sale is a Caterpillar DE275E0 diesel generator set, delivering 200 kW (250 kVA) of prime-rated power at 50 Hz, with a voltage rating of 400/230V in a 3-phase setup. Manufactured in September 2018, this generator is equipped with a Caterpillar C9 engine and a robust IP23-rated enclosure. It is engineered for demanding industrial and commercial applications.

The unit features class H insulation, 27V excitation voltage, and an excitation current of 3.50A, offering efficient and stable power performance. Built under ISO 8528-3 standards, it’s ideal for various operating conditions with a 25°C ambient temperature rating and a 100 m altitude capacity.

Specifications:

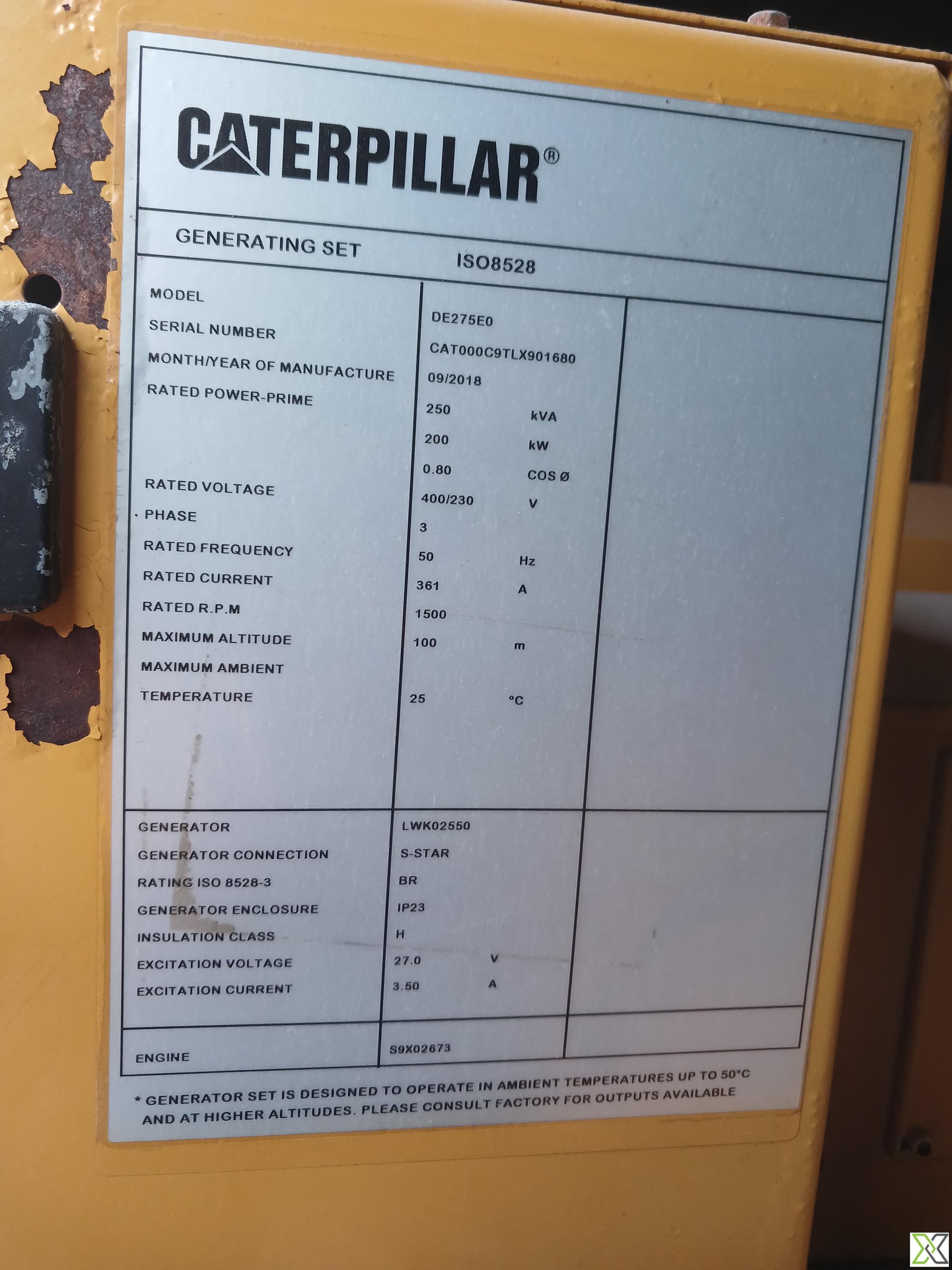

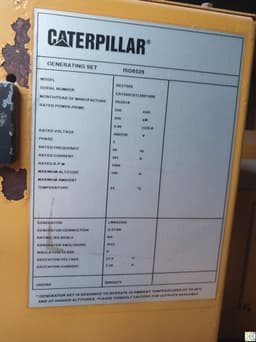

– Manufacturer: Caterpillar
– Model: DE275E0

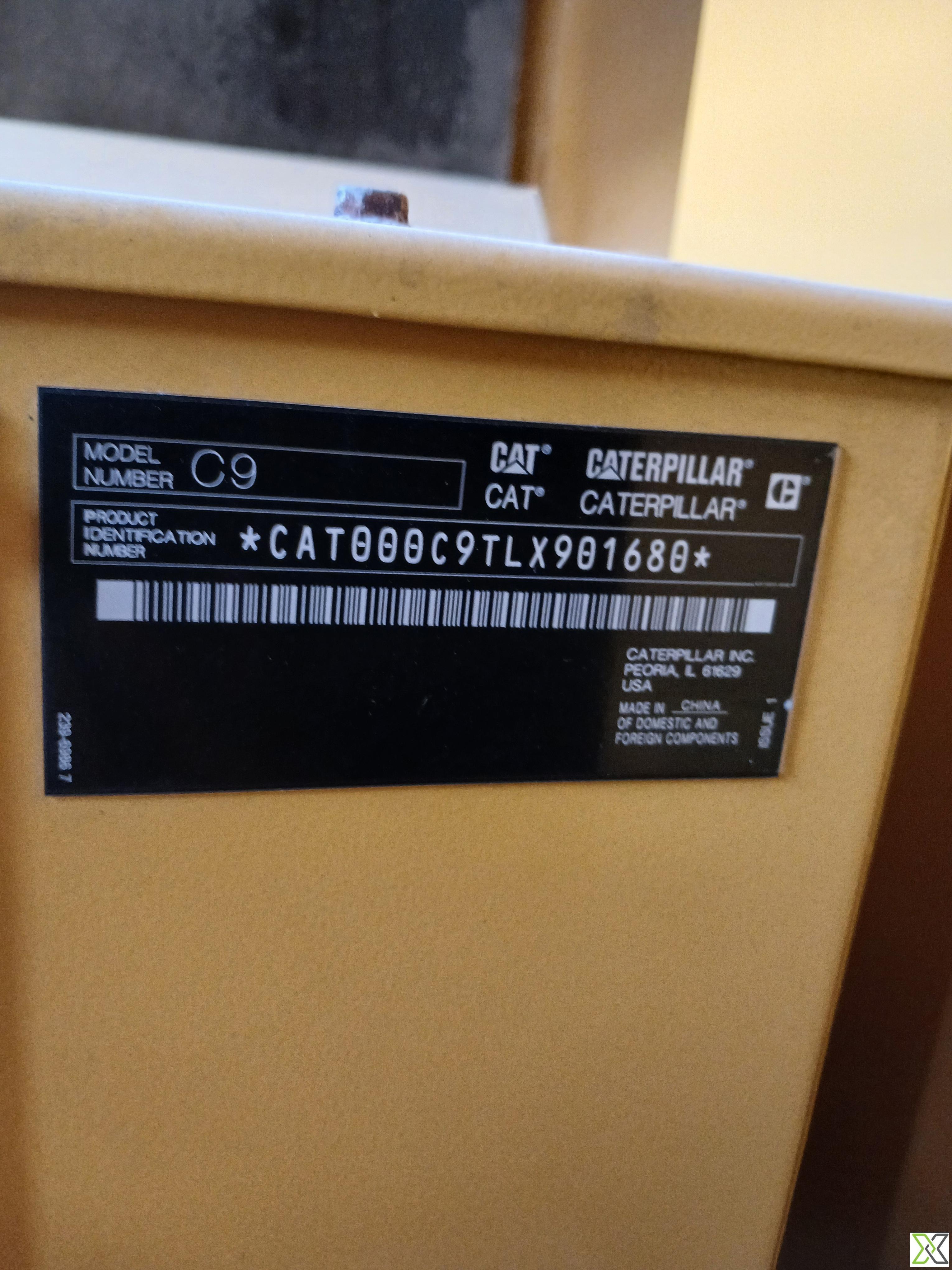

– Serial Number: CAT00C9TLX901680
– Year of Manufacture: 09/2018
– Condition: Used
– Fuel Type: Diesel
– Rated Power (Prime): 200 kW
– Apparent Power: 250 kVA
– Voltage: 400/230V
– Frequency: 50 Hz
– Phases: 3 Phase
– Power Factor: 0.8
– Speed: 1500 RPM
– Rated Current: 361 A
– Excitation Voltage: 27.0 V
– Excitation Current: 3.50 A
– Generator Model: LWK02550
– Generator Connection: S-STAR
– Generator Enclosure: IP23
– Insulation Class: H
– Related Standard: ISO 8528-3
– Maximum Ambient Temperature: 25°C
– Maximum Altitude: 100 m
– Engine Model: C9
– Enclosure Type: Soundproof
– Color: Caterpillar Yellow

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	DE275E0
Year of Manufacturing	2018
Model Number	DE275E0
Year of Manufacturing	2018
Manufacturer Name	Caterpillar
Weight	2,500–3,000 kg
Temperature Range	Up to 50°C
Voltage	400/230V
Color	Yellow
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	200 kW / 250 kVA
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	5°C to 10°C
Normal Output Power	200 kW
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	50°C ambient
