Caterpillar Generator Set – Engine Model 3412 – 681 kVA / 545 kW – 60 Hz – Prime Power

ReflowX SKU: REF-897

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Used
OEM

MAN
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Caterpillar generator set with 3412 engine model, rated at 681 kVA (545 kW) for prime power applications. 3-phase, 12-wire, Wye connection, 208 Volts, 1893 Amps, 60 Hertz.

Description

Caterpillar Generator Set – Engine Model 3412 – 681 kVA / 545 kW – 60 Hz – Prime Power

Description:

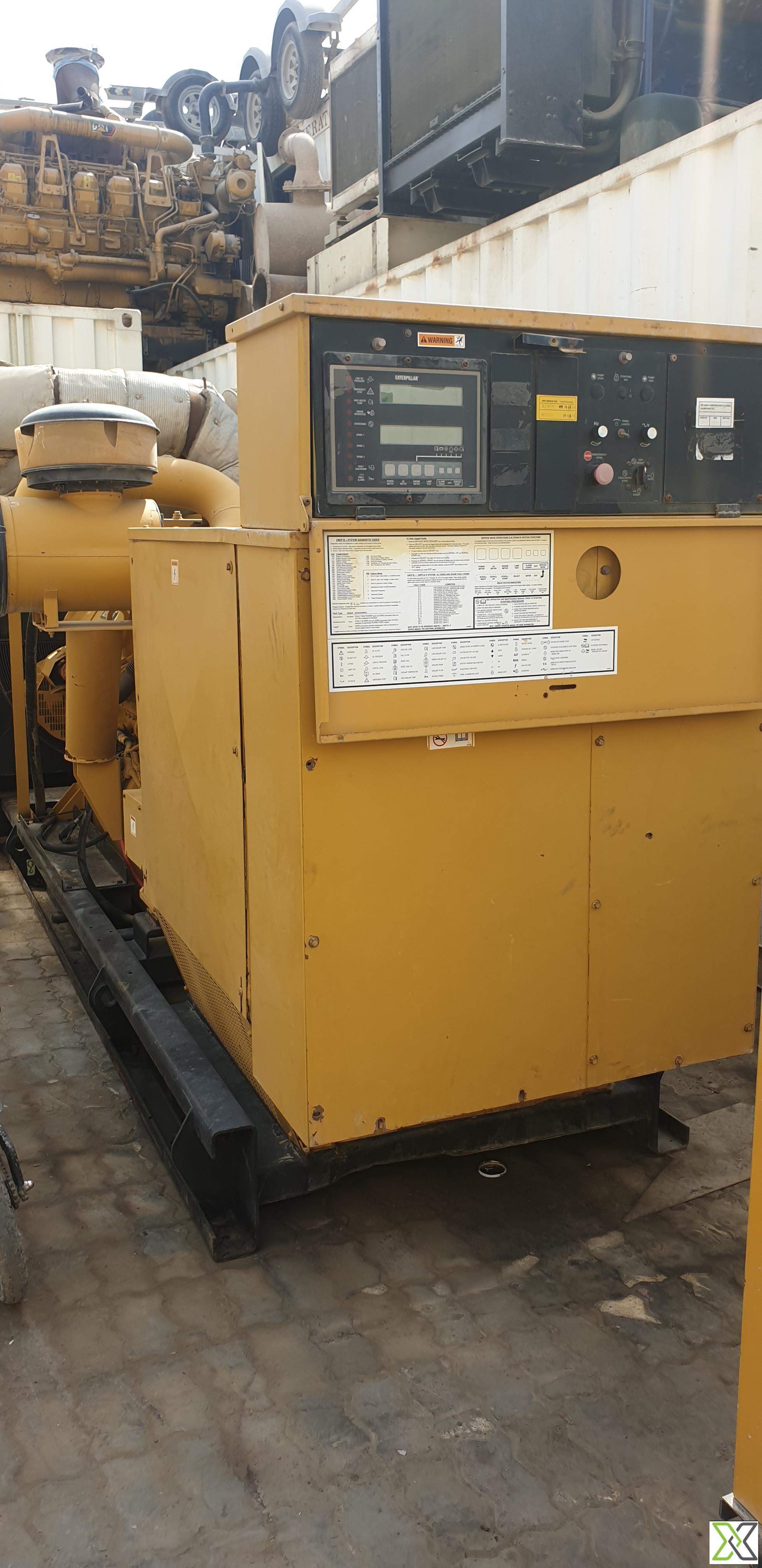

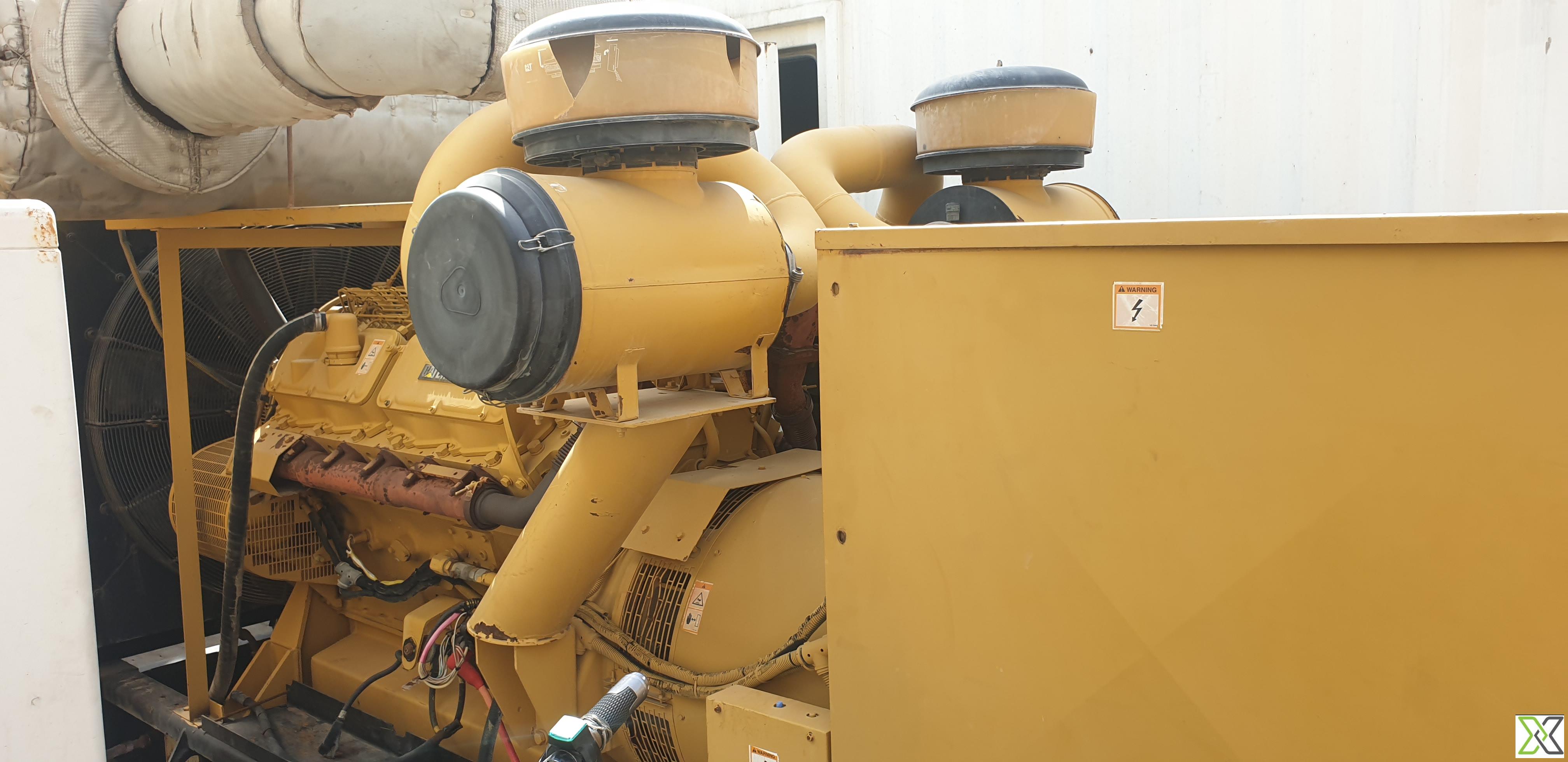

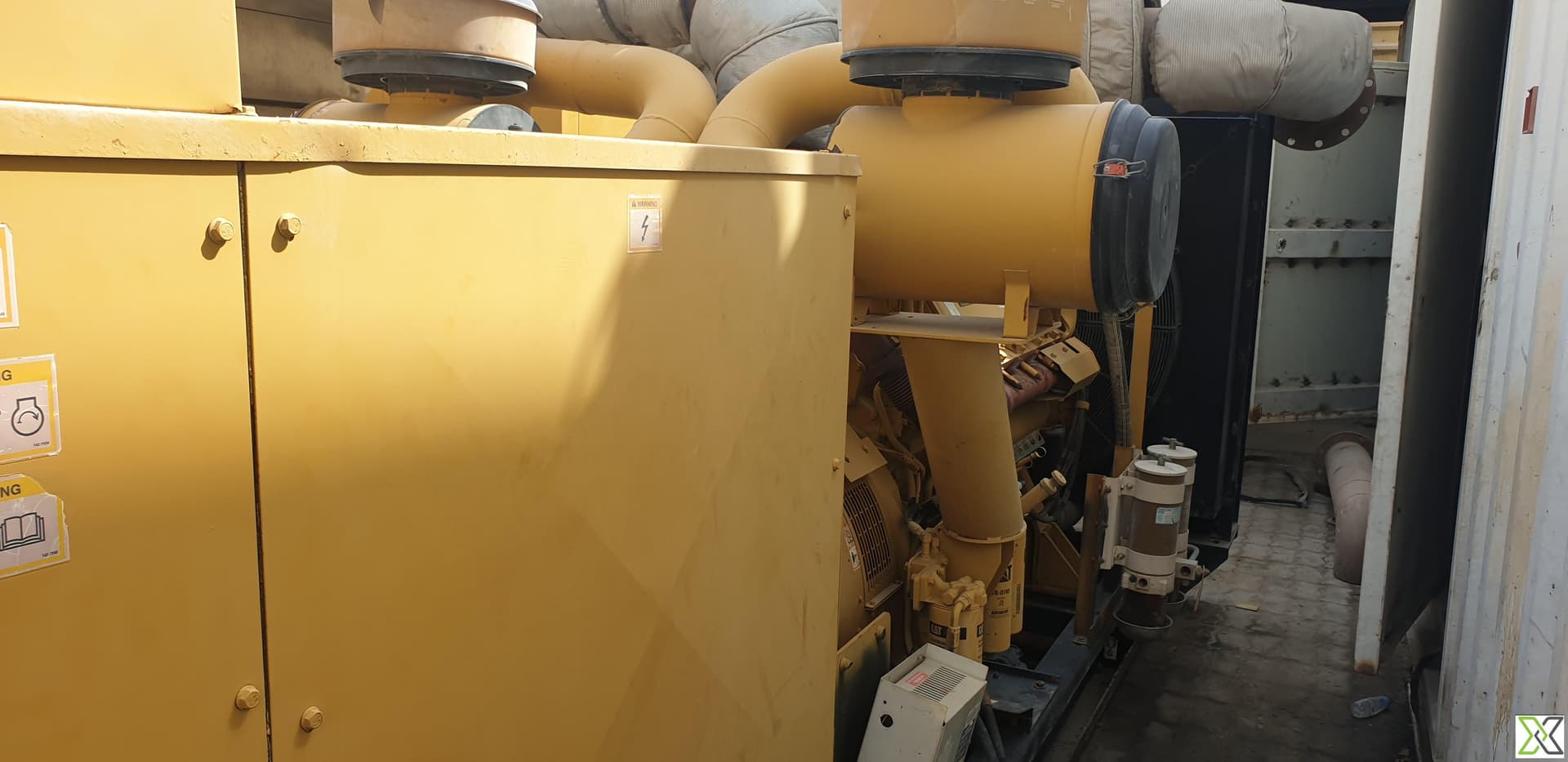

Offered is a Caterpillar Generator Set featuring the 3412 engine model. This unit provides 681 kVA and 545 kW power output suitable for prime power use. It operates at 60 Hertz frequency with a 0.8 power factor.

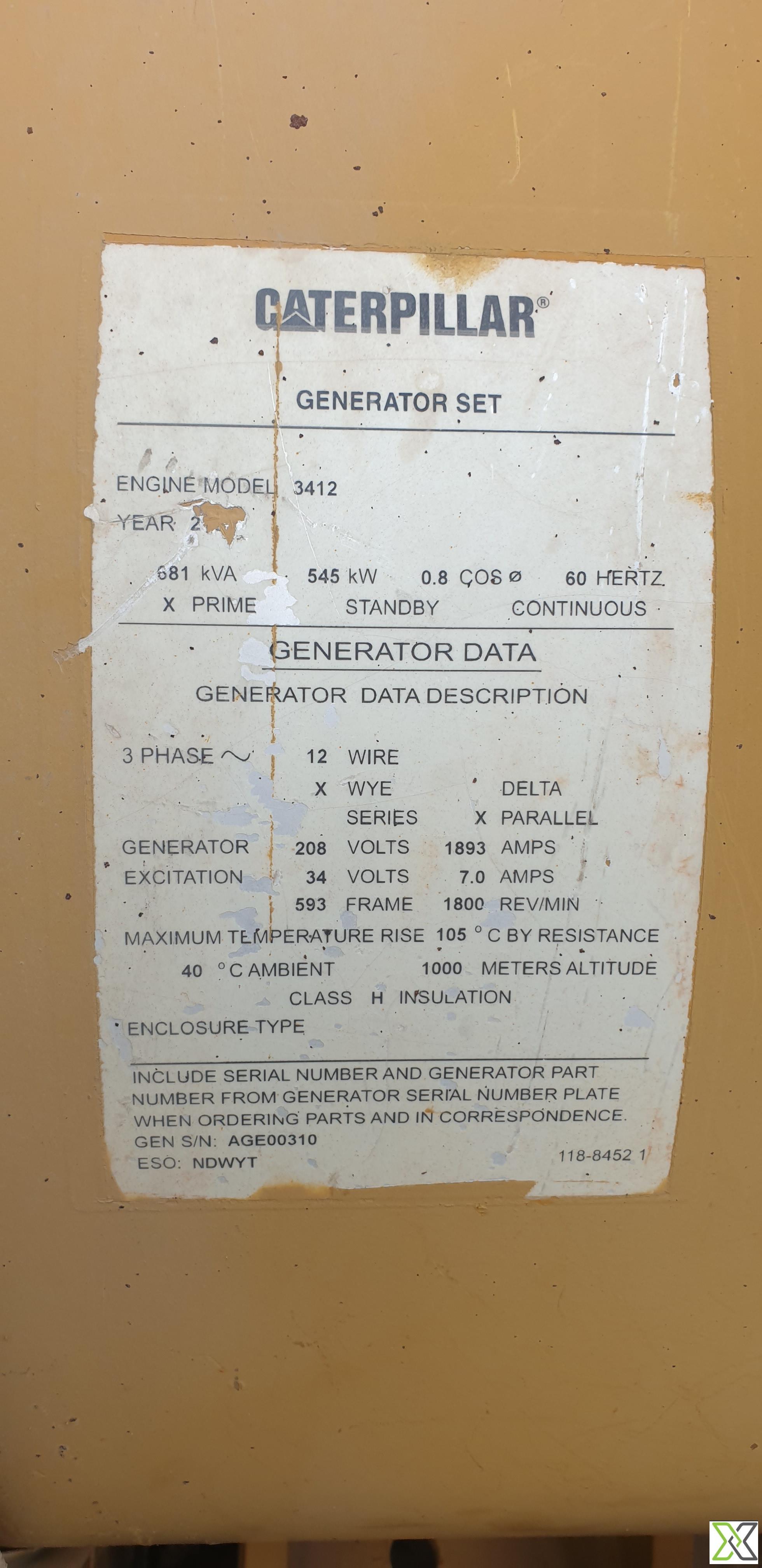

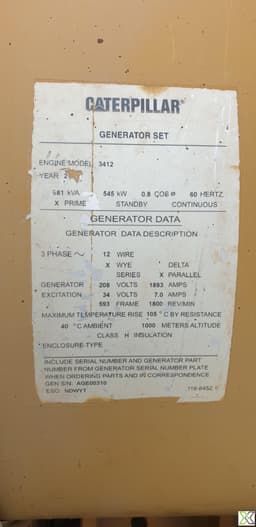

The generator has a 3-phase, 12-wire Wye configuration delivering 208 Volts and 1893 Amps. It includes an excitation voltage of 34 Volts at 7.0 Amps, with a 593 frame size operating at 1800 RPM.

Designed for reliable continuous and standby power applications with maximum temperature rise of 105°C by resistance in an ambient temperature of 40°C at 1000 meters altitude. Insulation class H.

Specifications:

– Manufacturer: Caterpillar
– Engine Model: 3412
– Power Rating: 681 kVA / 545 kW
– Frequency: 60 Hertz
– Phase: 3-Phase
– Wire: 12 Wire
– Connection: Wye
– Voltage: 208 Volts
– Current: 1893 Amps
– Excitation Voltage: 34 Volts
– Excitation Current: 7.0 Amps
– Frame Size: 593
– Speed: 1800 RPM
– Temperature Rise: 105°C by resistance
– Ambient Temperature: 40°C
– Altitude Rating: 1000 meters
– Insulation Class: H
– Serial Number: AGE00310
– Condition: Used
– Quantity: 1
– Location: UAE
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	3412
Model Number	3412
Manufacturer Name	Caterpillar
Height	2.3 meters
Width	1.2 meters
Length	3.5 meters
Weight	4000 kg
Temperature Range	-20°C to +40°C
Voltage	208 Volts
Color	Yellow
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	545 kW
Speed	1800 RPM
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	-20°C
Normal Output Power	545 kW
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	40°C
