Caterpillar PM1360 Diesel Generator Set – CAT3512B – 1500 kVA  – 3-Phase – 400V
Description:

This used Caterpillar PM1360 diesel generator set features a reliable CAT3512B engine and has been maintained in excellent condition, despite 140,000 hours of runtime. Built in 2014 and compliant with ISO 8528, the unit is capable of delivering 1500 kVA prime power and 1200 kW at 50 Hz, with 0.8 power factor. It includes a robust enclosure, IP-rated protection, and a max ambient temperature tolerance of 40°C. Designed for heavy-duty industrial applications and continuous performance, this genset remains a dependable power solution.

Specifications:

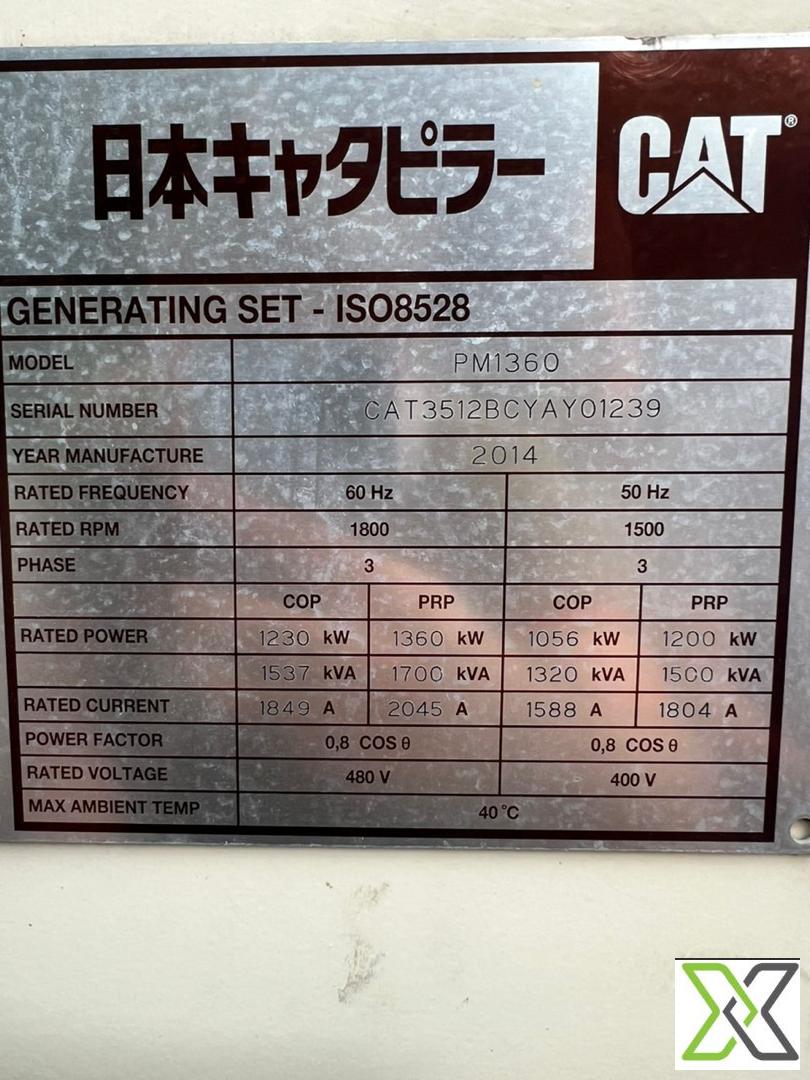

–Model: PM1360

–Engine Model: CAT3512B

–Rated Power (PRP): 1500 kVA / 1200 kW (50 Hz)

–Rated Power (COP): 1320 kVA / 1056 kW (50 Hz)

–Power Factor: 0.8

–Rated Voltage: 400 V

–Rated Frequency: 50 Hz

–Rated Speed: 1500 RPM

–Rated Current: 1804 A (PRP at 50 Hz)

–Phase: 3

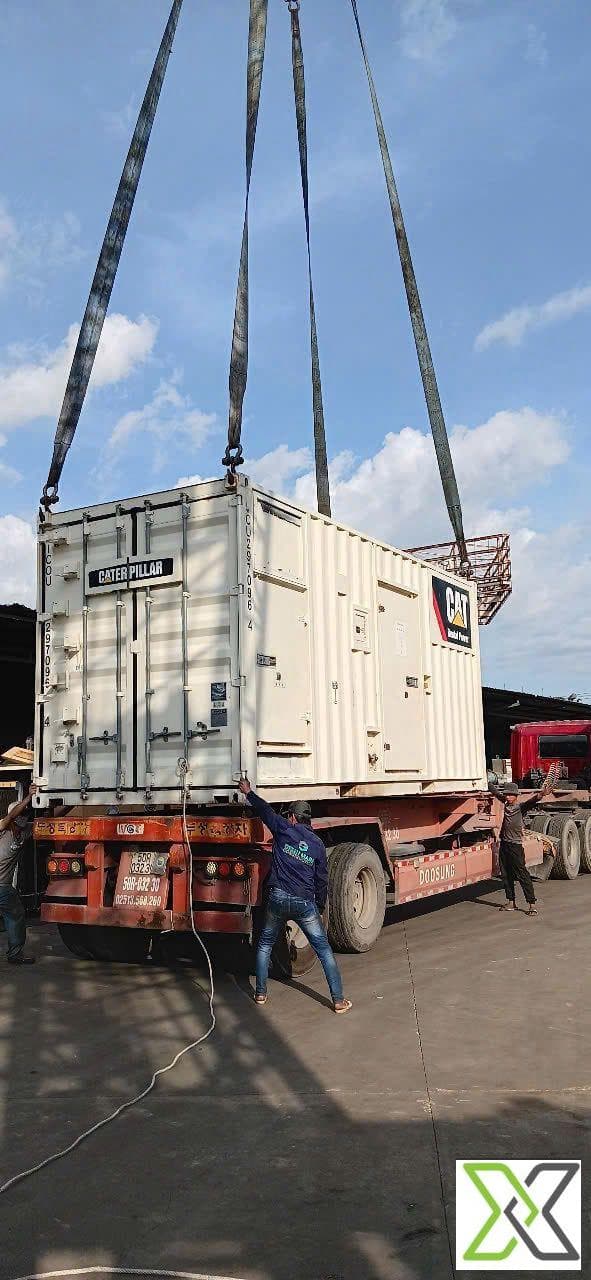

–Enclosure: Containerized

–Insulation Class: Likely H (standard for CAT)

–Related Standard: ISO 8528

–Max Ambient Temperature: 40°C

–Operation: Continuous / Prime

–Speed: 1500 RPM

–Direction of Rotation: Standard (Clockwise from drive end)

–Explosion Protection Zone: Not specified (industrial standard, not ATEX-rated)

–Explosion Protection Gas Group: Not applicable

–Explosion Protection Temperature Class: Not applicable

–Lower Limit Operating Temperature: Typically -10°C (standard diesel range)

–Upper Limit Operating Temperature: 40°C

–Normal Output Power: 1500 kVA

vColor: Caterpillar Beige / Yellow

–Voltage: 400V

–Height: Approx. 2.6 m (containerized unit estimate)

–Width: Approx. 2.5 m

–Length: Approx. 6.0 m (20-ft container unit)

–Weight: Approx. 18,500 kg

–Manufacture Year: 2014

–Condition: Used (well-maintained)

–Working Hours: Approx. 140,000 h

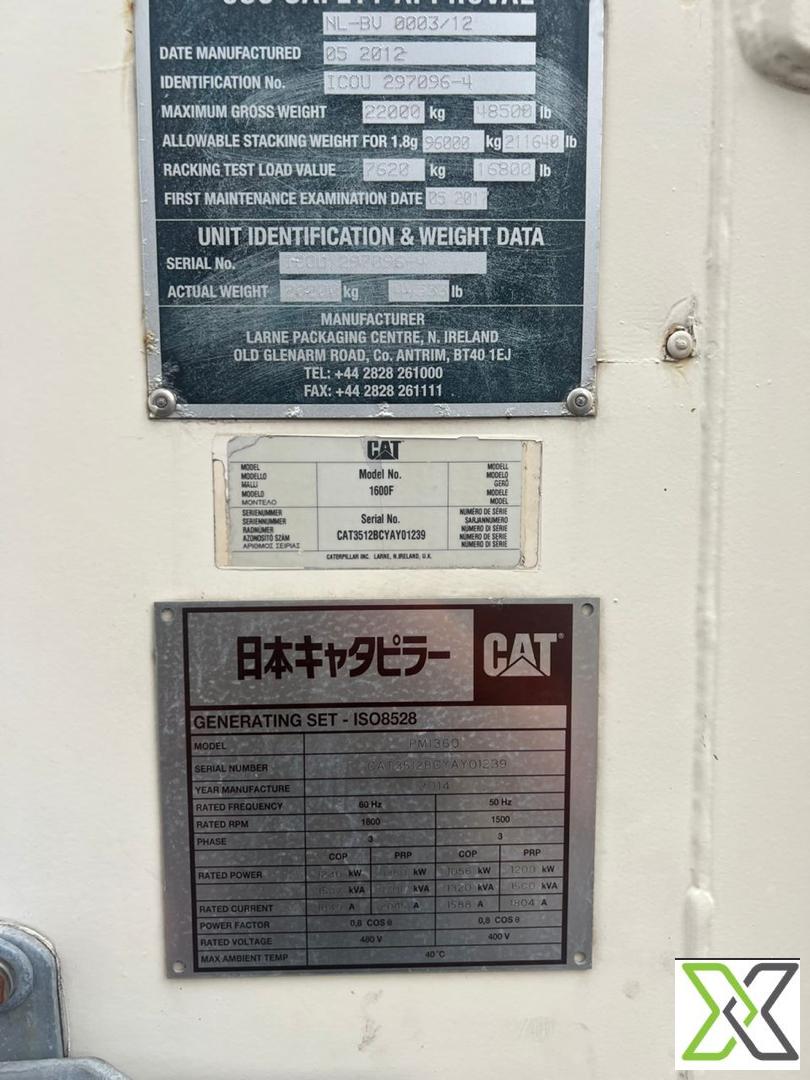

–Made in: United Kingdom (Larne Packaging Centre, N. Ireland)
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
