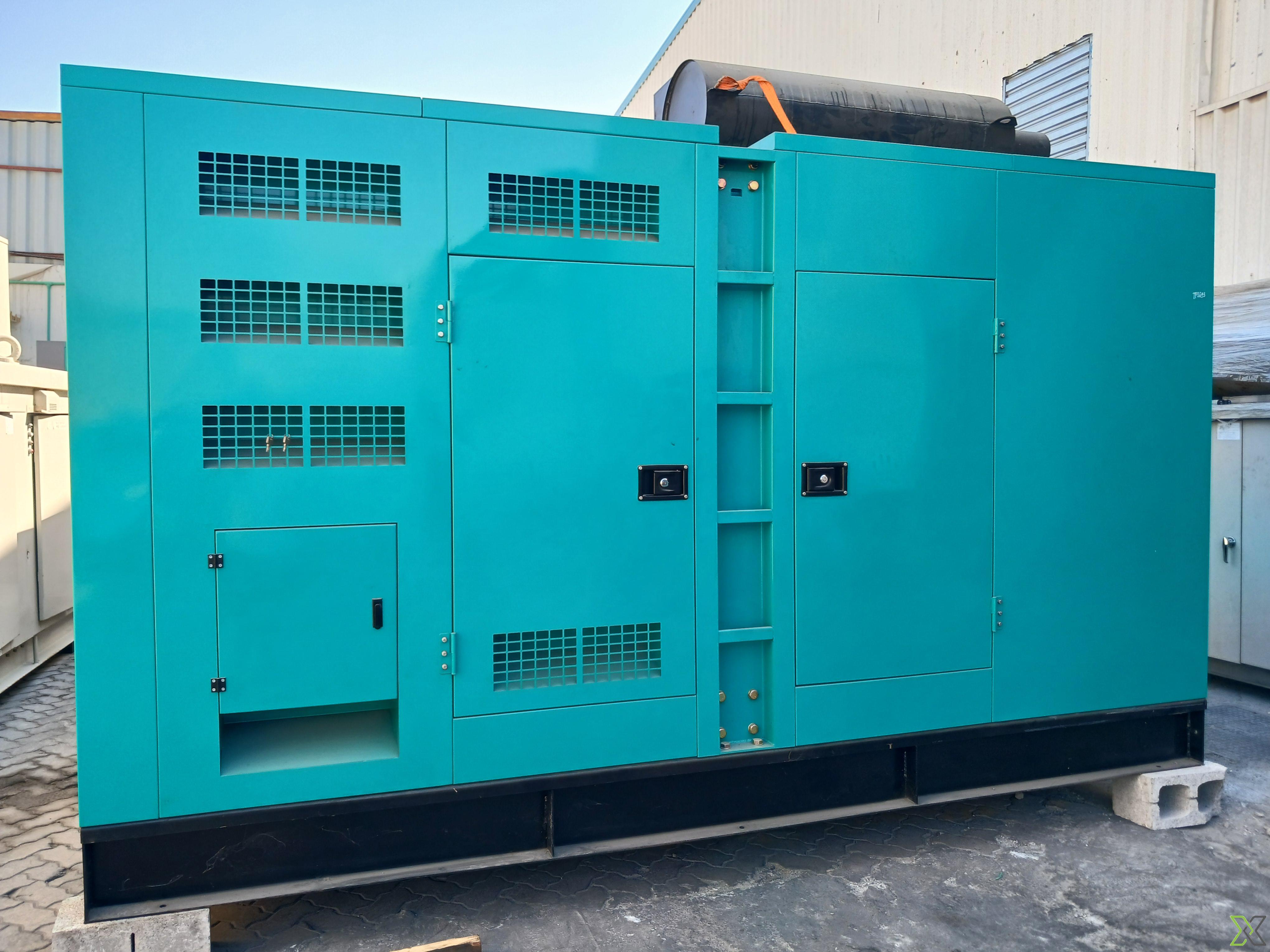

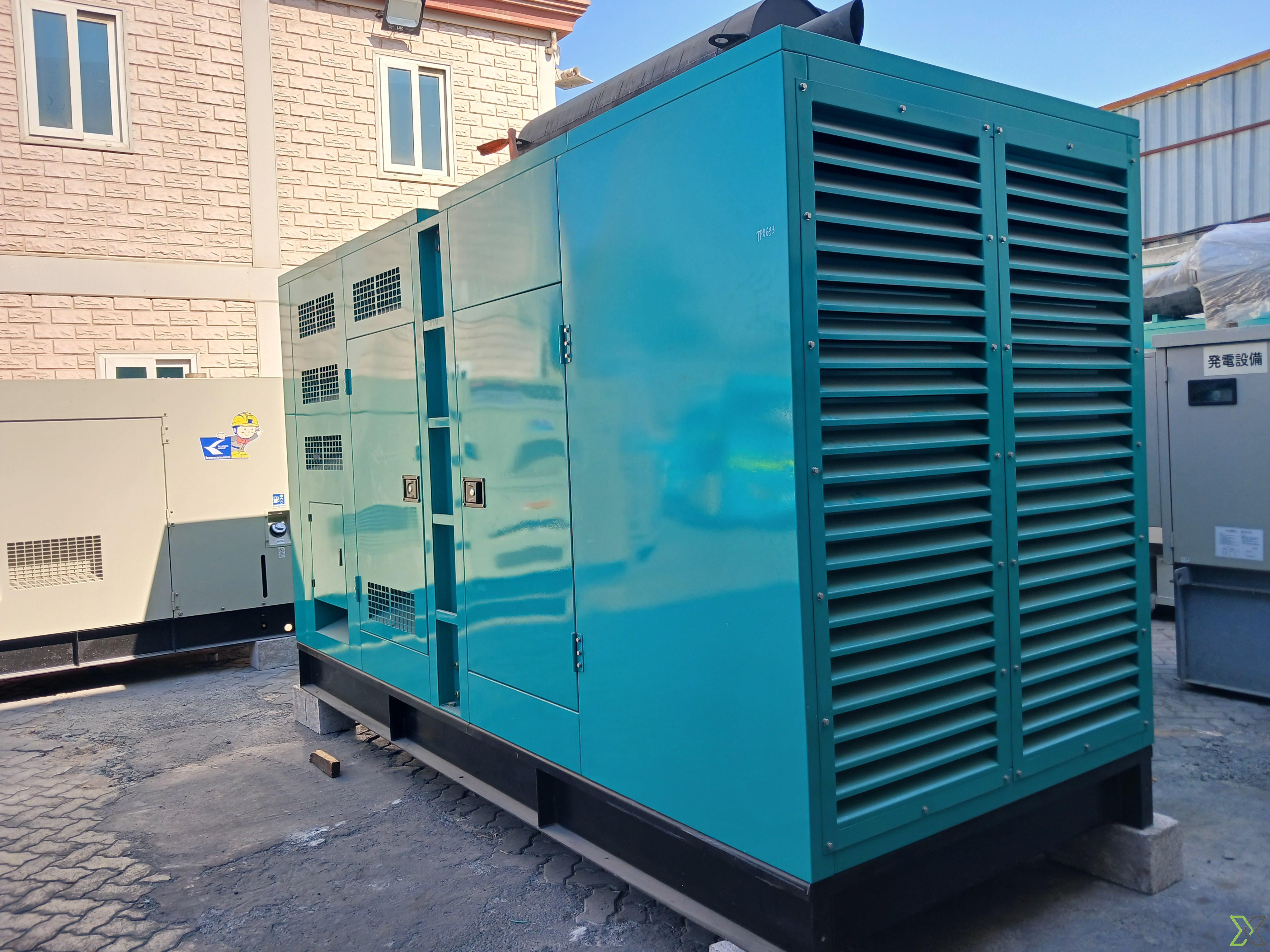

Cummins Diesel Generator : 500 DF EC

ReflowX SKU: REF-2899

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Stamford
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

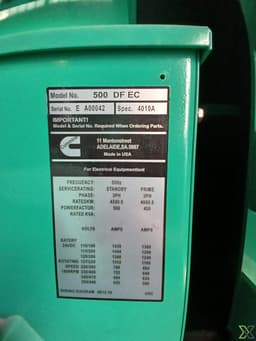

Brand: Cummins Model: 500 DF EC Spec: 4010A Serial No.: E A00042 Made in: USA Facility: 11 Manton Street, Adelaide, SA, 5007 Generator Alternator Brand: Stamford

Description

General Information

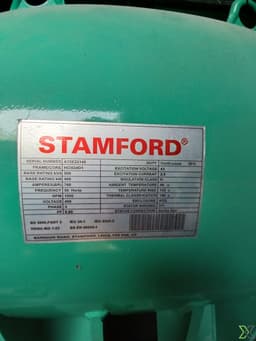

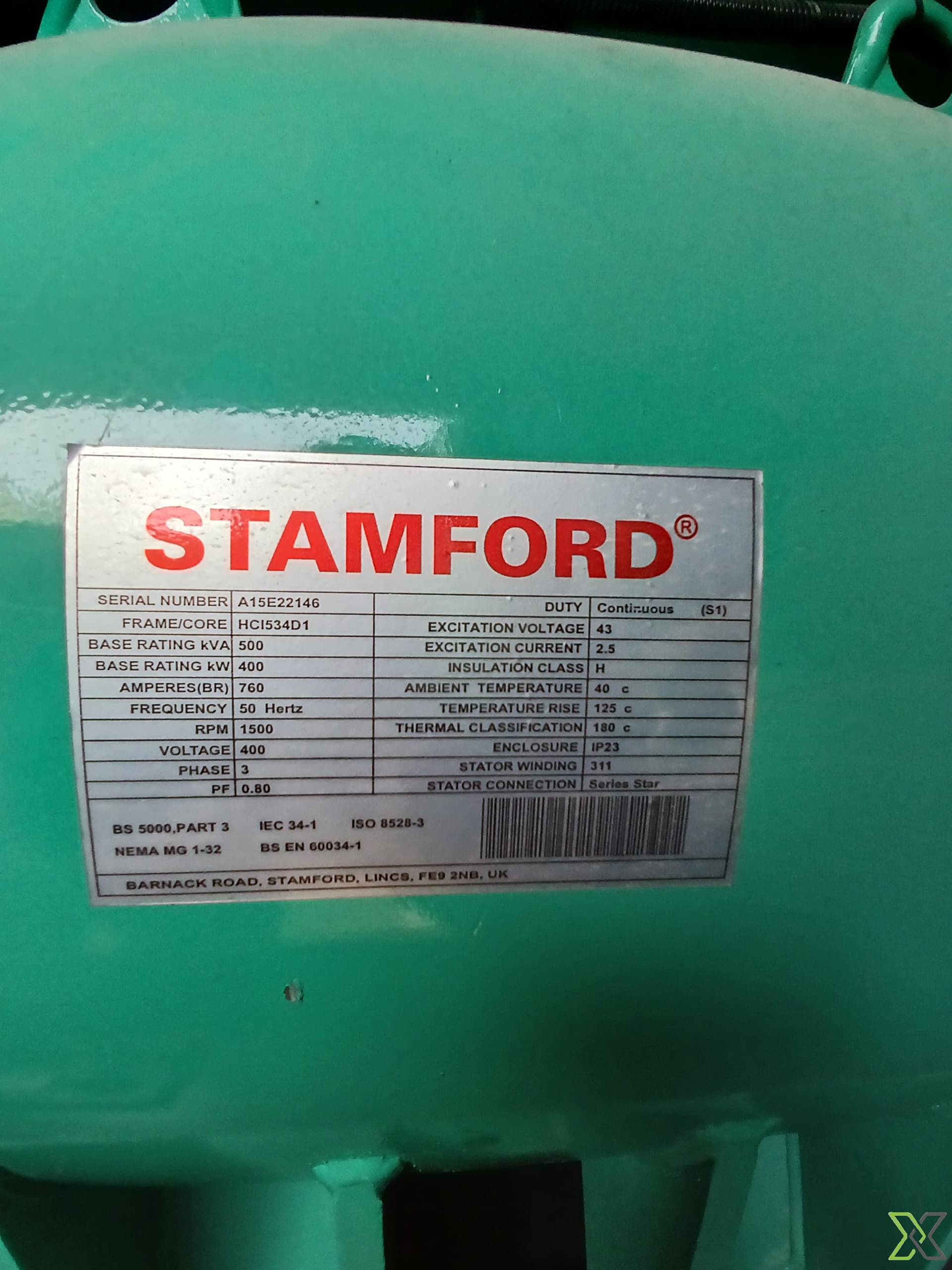

Manufacturer: Cummins Power Generation

Model: 500 DF EC

Serial Number: A15E22146

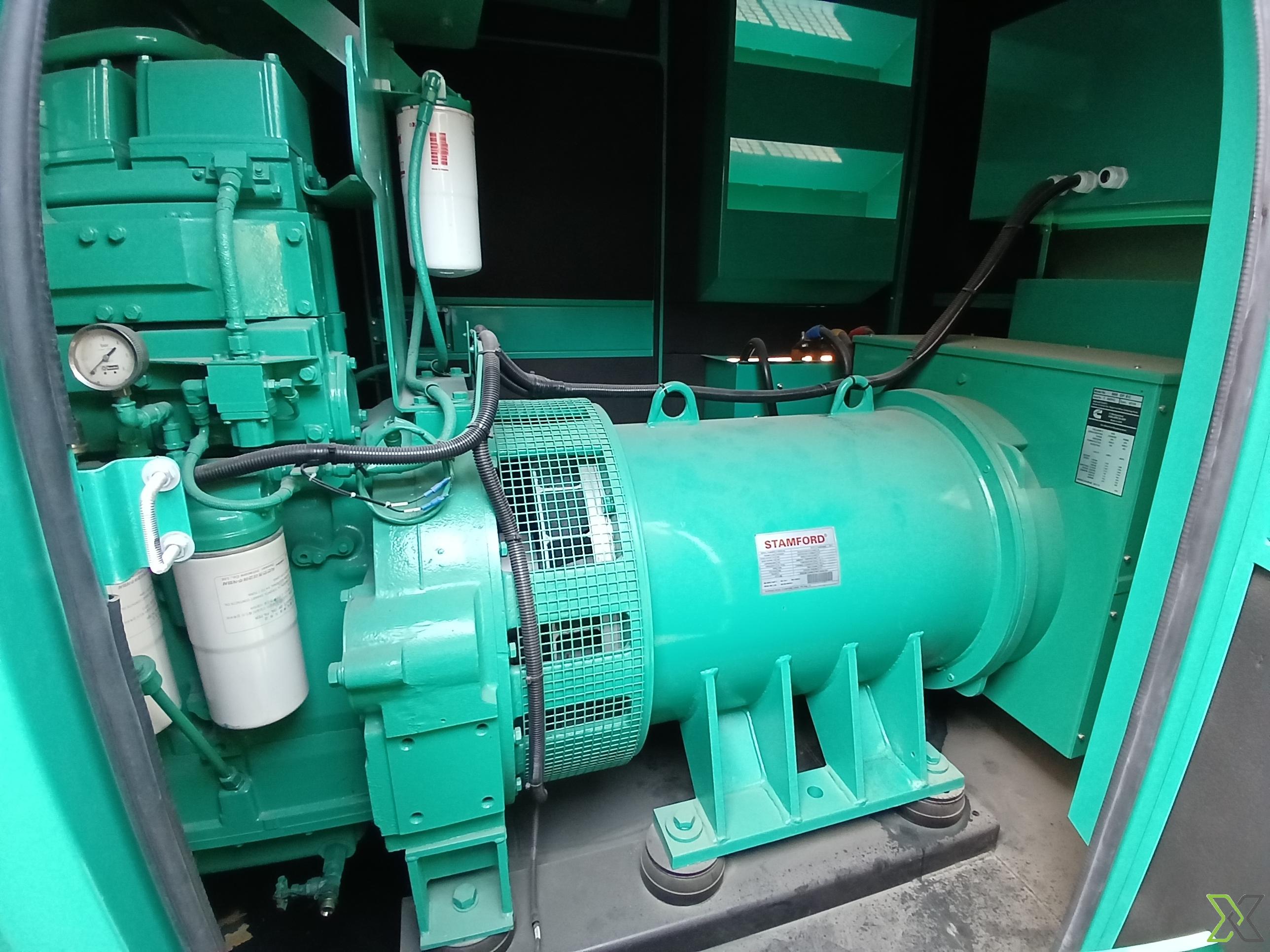

Alternator Frame/Core: HCI534D1

Application: Industrial/Commercial continuous or standby power supply

Standards Compliance:

BS 5000

IEC 34-1

ISO 8528-3

NEMA MG 1-32

BS EN 60034-1

Generator Performance Specifications

Base Rating:

kVA: 500 kVA

kW: 400 kW

Power Factor: 0.8 lagging

Phase Configuration: 3-phase

Voltage Output: 400 V

Current Output: 760 A

Frequency: 50 Hz

Operating Speed: 1500 RPM

Stator Connection: Series Star

Excitation and Electrical Characteristics

Excitation Type: Brushless with AVR

Excitation Voltage: 43 V

Excitation Current: 2.5 A

Voltage Regulation: ±1% (typical with AVR)

Insulation Class: H

Enclosure Protection: IP23 (open drip-proof; protected from solid objects >12mm and water spray up to 60° from vertical)

Thermal Ratings and Environmental Conditions

Ambient Temperature Rating: 40°C

Temperature Rise: 125°C

Maximum Winding Temperature (Class Limit): 180°C

Cooling Method: Air-cooled (standard open frame configuration)

Altitude Capability: Typically rated up to 1000 m without derating (check specific derating curves for higher altitudes)

Mechanical Features

Construction:

Rigid base frame mount

Class H winding materials

Double bearing (optional configurations may vary)

Dynamically balanced rotor for reduced vibration

Bearings: Sealed for life (or grease-lubricated depending on alternator option)

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	500 DF EC
Model Number	500 DF EC
Height	1700 mm
Width	1100 mm
Length	3300 mm
Weight	3100 kg
Temperature Range	-15°C to +40°C
Pressure Rating	Not applicable
Voltage	400 V
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	500 kVA / 400 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
IFC Class	IfcEngineGenerator
Explosion Protection Gas Group	Not applicable
Explosion Protection Temperature Class	Not applicable
Explosion Protection Zone	Not applicable
Lower Limit Operating Temperature	-15°C
Normal Output Power	400 kW
Operation Continuous Intermittent	Continuous or Standby
Upper Limit Operating Temperature	+40°C
