Cummins Diesel Generator Set – 500 kW / 625 kVA – 400V – 50 Hz – 3 Phase

ReflowX SKU: REF-4937

Product Details

Quantity

1
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

Surplus
OEM

Suzhou Defeng Electric Machinery Co. Ltd
Equipment code

gen-d

Get Quotation Whatsapp

Short Description

Used Cummins diesel generator set rated at 500 kW continuous (625 kVA), 400V, 50 Hz, 3-phase. Brushless synchronous alternator. Ready for reliable industrial backup

Description

Cummins Diesel Generator Set – 500 kW / 625 kVA – 400V – 50 Hz – 3 Phase

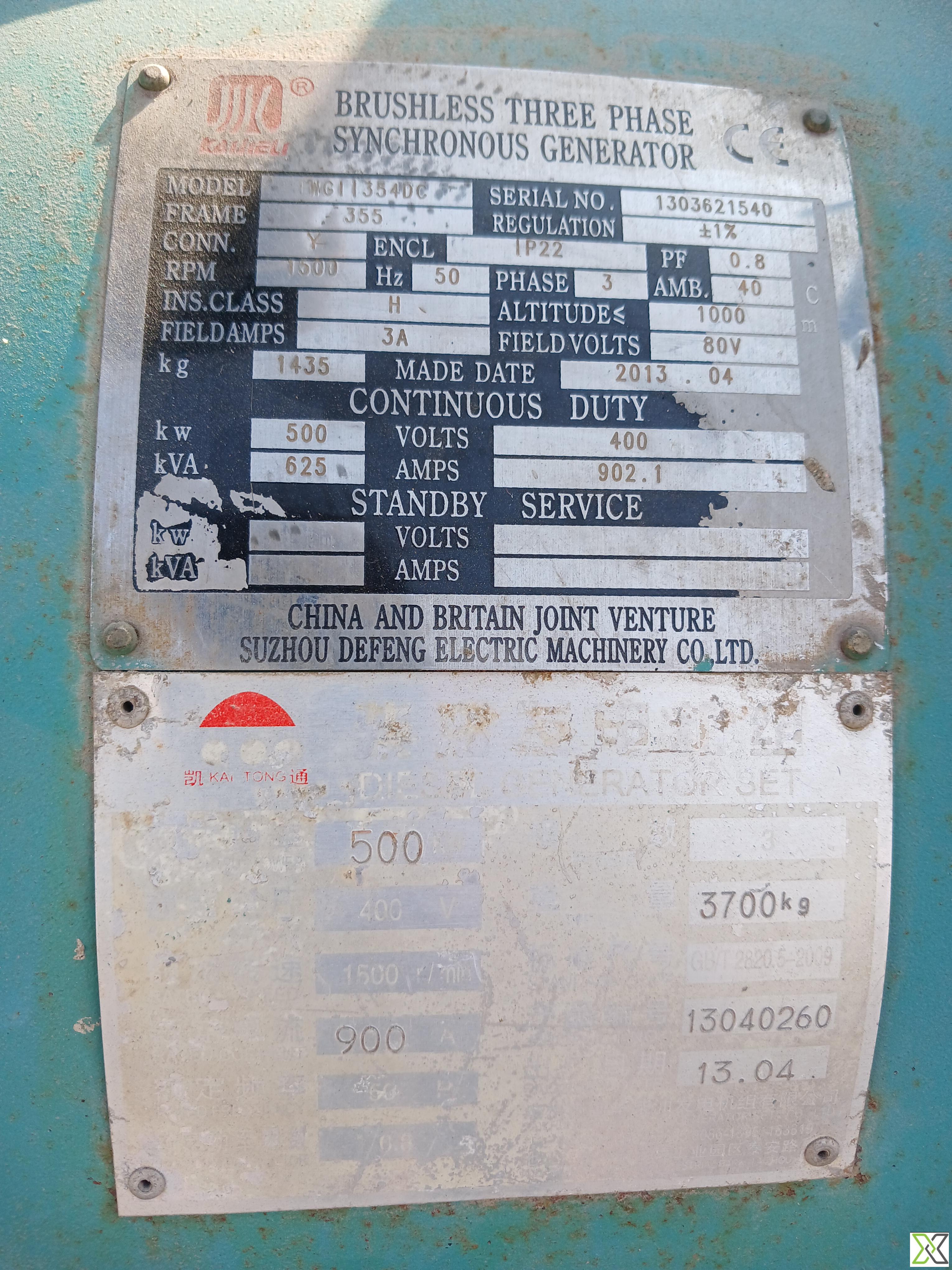

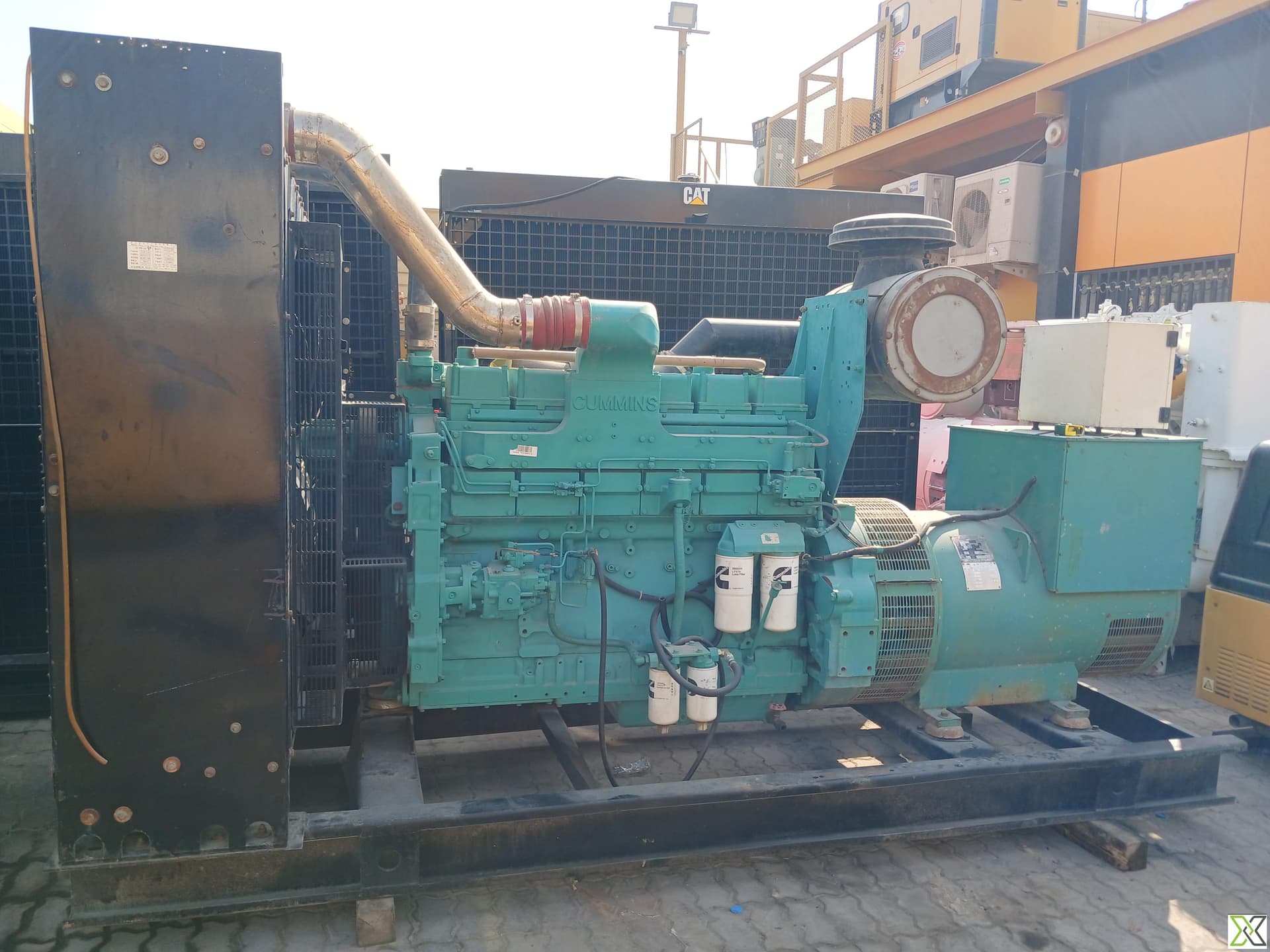

This Cummins diesel generator set, model MG11354DC, offers 500 kW (625 kVA) continuous output at 400V, 50 Hz in a 3-phase configuration. Featuring a brushless three-phase synchronous alternator with IP22 enclosure, H class insulation, and rated at 1500 RPM, this unit is well-suited for industrial, commercial, or heavy-duty backup applications. Built in 2013, the system includes a rugged design and reliable performance suited for use in ambient conditions up to 40°C. Maintained in good operational condition.

Specifications:

– Manufacturer: Cummins / Suzhou Defeng Electric Machinery Co., Ltd.
– Model: MG11354DC
– Year: 2013
– Fuel Type: Diesel
– Rated Power (Continuous): 500 kW
– Apparent Power: 625 kVA
– Voltage: 400V
– Frequency: 50 Hz
– Phase: 3 Phase
– Power Factor: 0.8
– Speed: 1500 RPM
– Enclosure: IP22
– Insulation Class: H
– Excitation: Brushless
– Excitation Voltage: 80V
– Excitation Current: 3A
– Ambient Temperature: 40°C
– Altitude: 1000m
– Weight: 1435 kg
– Condition: Used
– Location: UAE
For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	MG11354DC
Year of Manufacturing	2013
Model Number	MG11354DC
Year of Manufacturing	2013
Manufacturer Name	Cummins
Height	1800 mm
Width	1500 mm
Length	3600 mm
Weight	1435 kg
Temperature Range	-10°C to +40°C
Voltage	400V
Color	Cummins Teal engine with Blue/Black alternator housing
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	500 kW
Speed	1500 RPM
Direction of Rotation	clockwise
IFC Class	IfcEngineGenerator
Lower Limit Operating Temperature	-10°C
Normal Output Power	500 kW continuous
Operation Continuous Intermittent	Continuous
Upper Limit Operating Temperature	+40°C ambient
