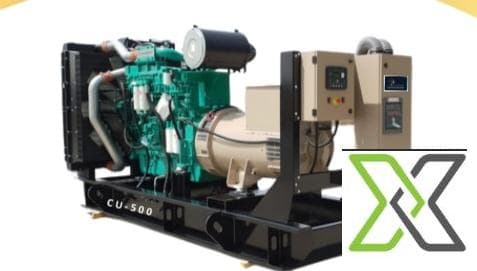

CUMMINS GENERATING SET CU — 500 kVA

ReflowX SKU: REF-837

Product Details

Quantity

2
Availability (Lead Time)

0-2 Weeks
Product Location

United Arab Emirates
Condition

New
OEM

Perkins
Equipment code

gen-d

Get Quotation Whatsapp Chat With Seller

Short Description

Cummins CU-500 Diesel Generator, 500kVA Prime / 550kVA Standby, 50Hz, Leroy Somer Alternator.

Description

Specifications:

– Model: CU-500
– Quantity: 2 Units
– Prime Rating: 500 kVA / 400 kW
– Standby Rating: 550 kVA / 440 kW
– Voltage & Frequency: 400V, 3-Phase, 50Hz
– Speed: 1500 rpm
– Power Factor: 0.8
– Engine Make & Model: Cummins KTA19-G4
– No. of Cylinders: 6 (Vertical In-line)
– Cycle: 4-Stroke
– Aspiration: Turbocharged & Aftercooled
– Cooling: Water-Cooled
– Governor Type: Electronic
– Displacement: 18.9 Litres
– Fuel System: Direct Injection
– Fuel Consumption @ 100% Load: ~105 L/hr
– Alternator Make: Stamford / Leroy Somer
– Alternator Model: HCI544D / TAL-047-C
– Winding Leads: 6
– Alternator Type: Single Bearing, Brushless
– Insulation Class: H
– Temperature Rise: 125°C (at 40°C Ambient)
– Ingress Protection: IP23
– Excitation System: Self-Excited
– AVR Model: R150
– Voltage Regulation: ±1%
– THF: < 2%
– TIF: < 50
– Cooling Air Flow: 0.9 m³/sec

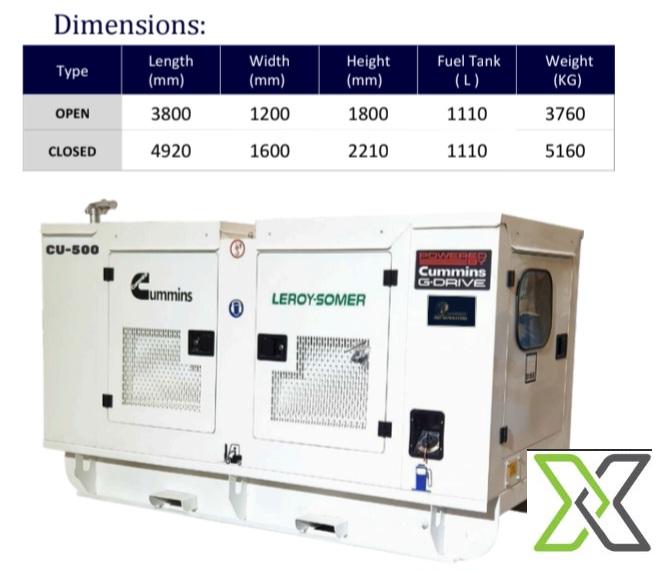

– Dimensions (Closed): 4920 x 1600 x 2210 mm
– Fuel Tank Capacity: 1110 Litres
– Weight (Closed): 5160 kg
– Condition: New Surplus
– Location: United Arab Emirates

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com

Technical Details

Model Number	Cummins KTA19-G4
Model Number	Cummins KTA19-G4
Height	2200 mm
Width	1400 mm
Length	3700 mm
Weight	~3800 kg
Temperature Range	–15°C (standard), –25°C
Voltage	400 V (Optional 480 V, 3 Phase, 50 Hz)
ISO 15926 Pt 4	2353
PCA RDS Code	RDS873359
CFIHOS ID	CFIHOS-30000804
Output Power	455 kVA / 364 kW
Speed	1500 RPM
Direction of Rotation	Clockwise
Explosion Protection Temperature Class	T3 or T4
Explosion Protection Zone	Zone 2
Lower Limit Operating Temperature	–15°C (standard), –25°C (with winterization kit)
Normal Output Power	500 kVA / 400 kW
Operation Continuous Intermittent	Continuous (Prime) or Intermittent (Standby)
Upper Limit Operating Temperature	+50°C (standard ambient derating above 40°C)
