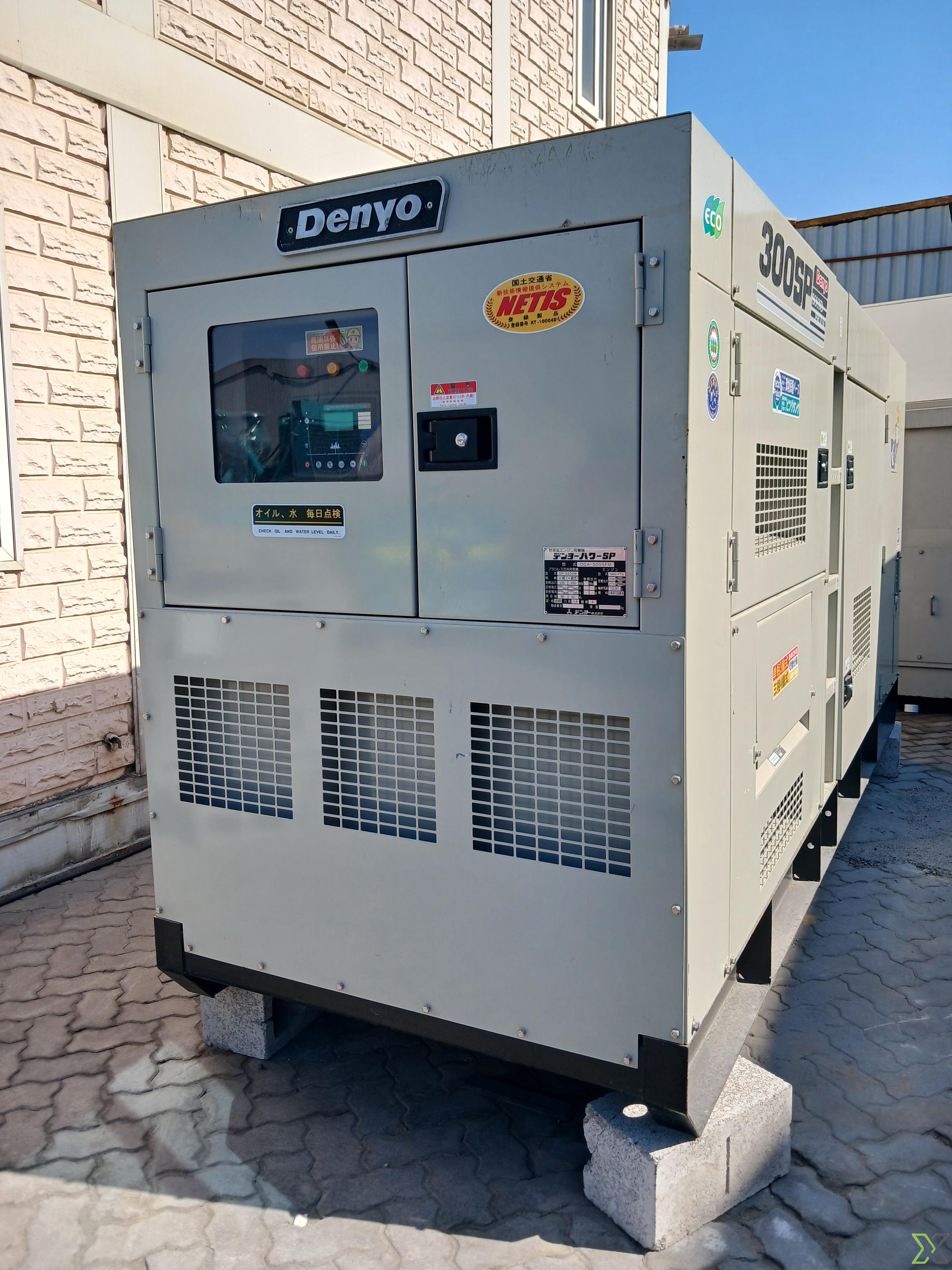

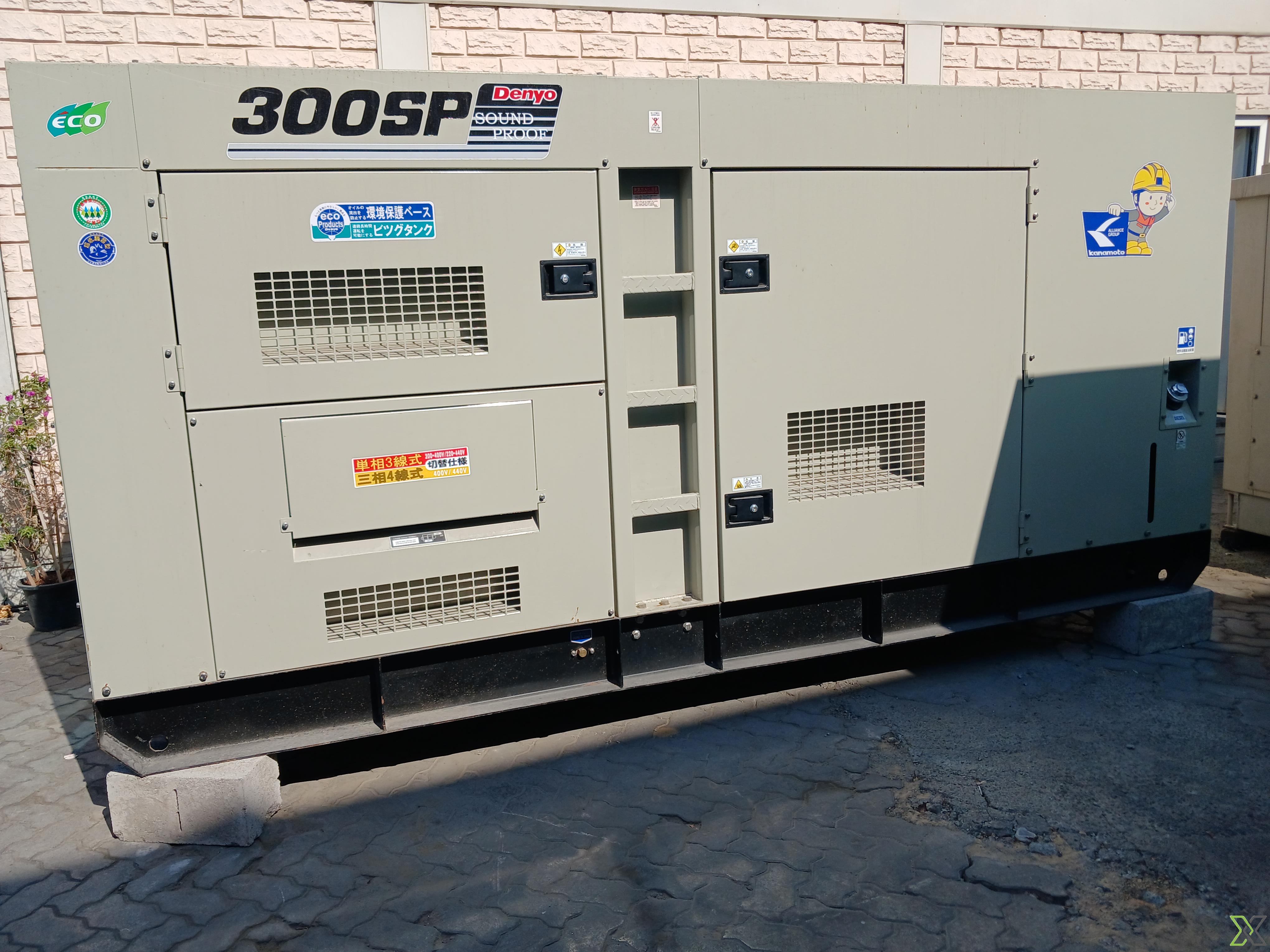

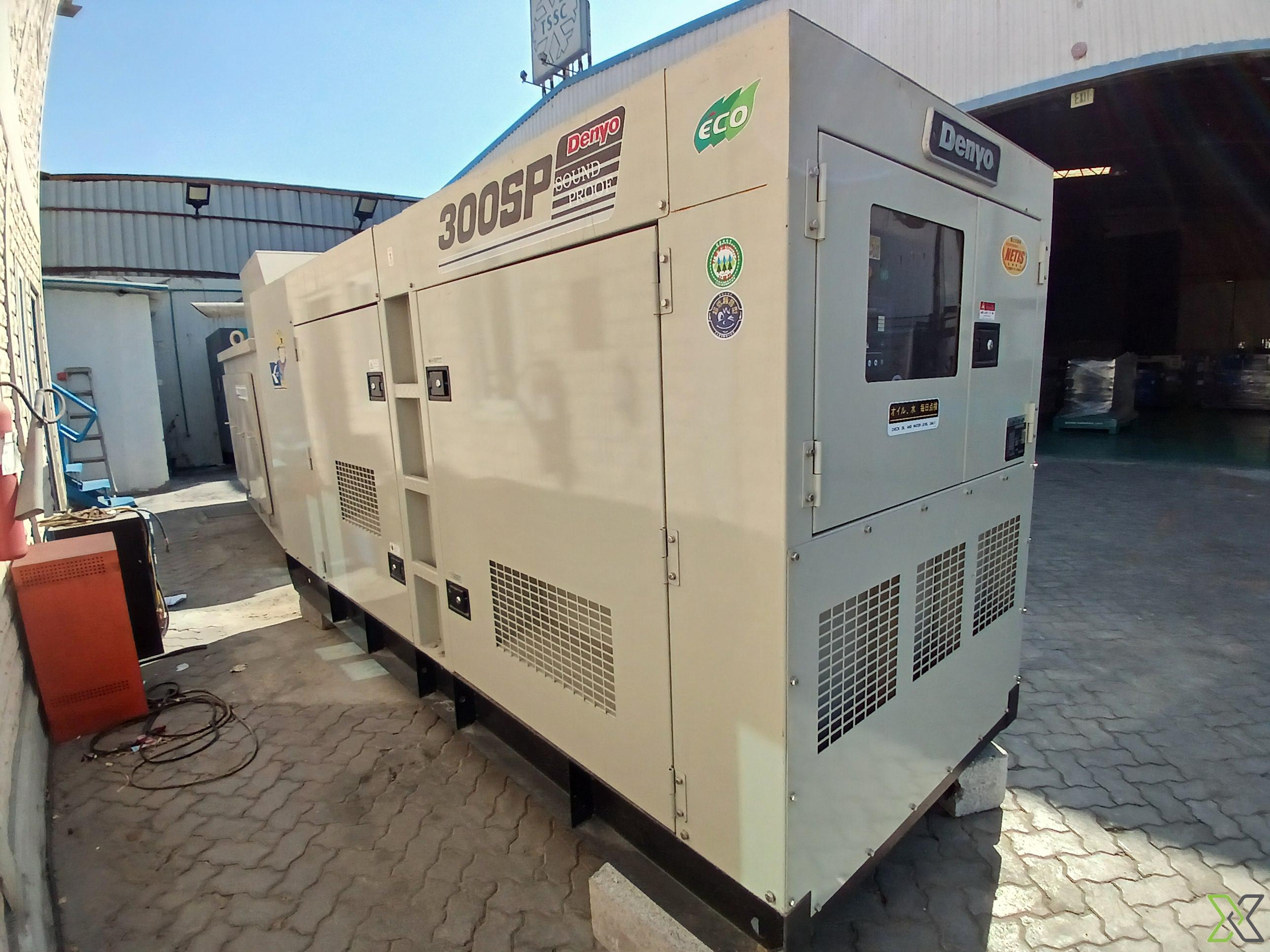

Denyo DCA-300SPM Diesel Generator – 300 kVA Power-SP Series, 3-Phase

The Denyo DCA-300SPM diesel generator from the Power-SP Series is designed for robust and continuous power generation, integrating a high-performance Mitsubishi Electric brushless alternator. Built to meet JEC-114-1979 standards, this three-phase generator delivers 250 kVA at 50 Hz and 300 kVA at 60 Hz with a selectable frequency mode and 220 V output. Its reliable SAS excitation system ensures steady voltage regulation, while the insulation Class F rating provides thermal resilience under demanding operations. Designed for outdoor and industrial environments, the DCA-300SPM includes a sound-attenuated enclosure and a water-cooled diesel engine, making it ideal for construction sites, remote facilities, and critical backup scenarios.

Specifications:

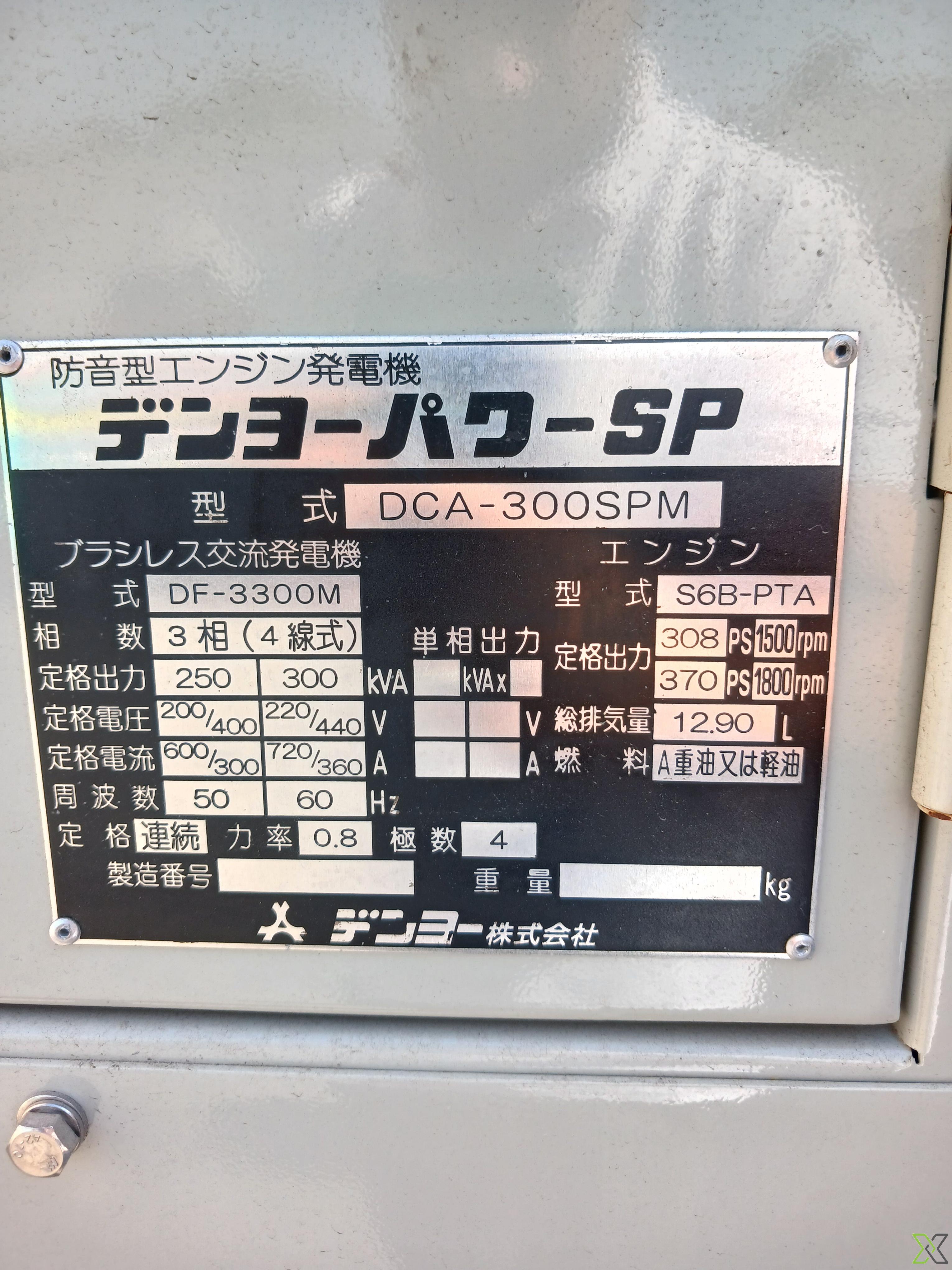

– Model: DCA-300SPM
– Series: Denyo Power-SP Series
– Generator Type: Diesel Engine Generator
– Manufacturer: Denyo Co., Ltd.

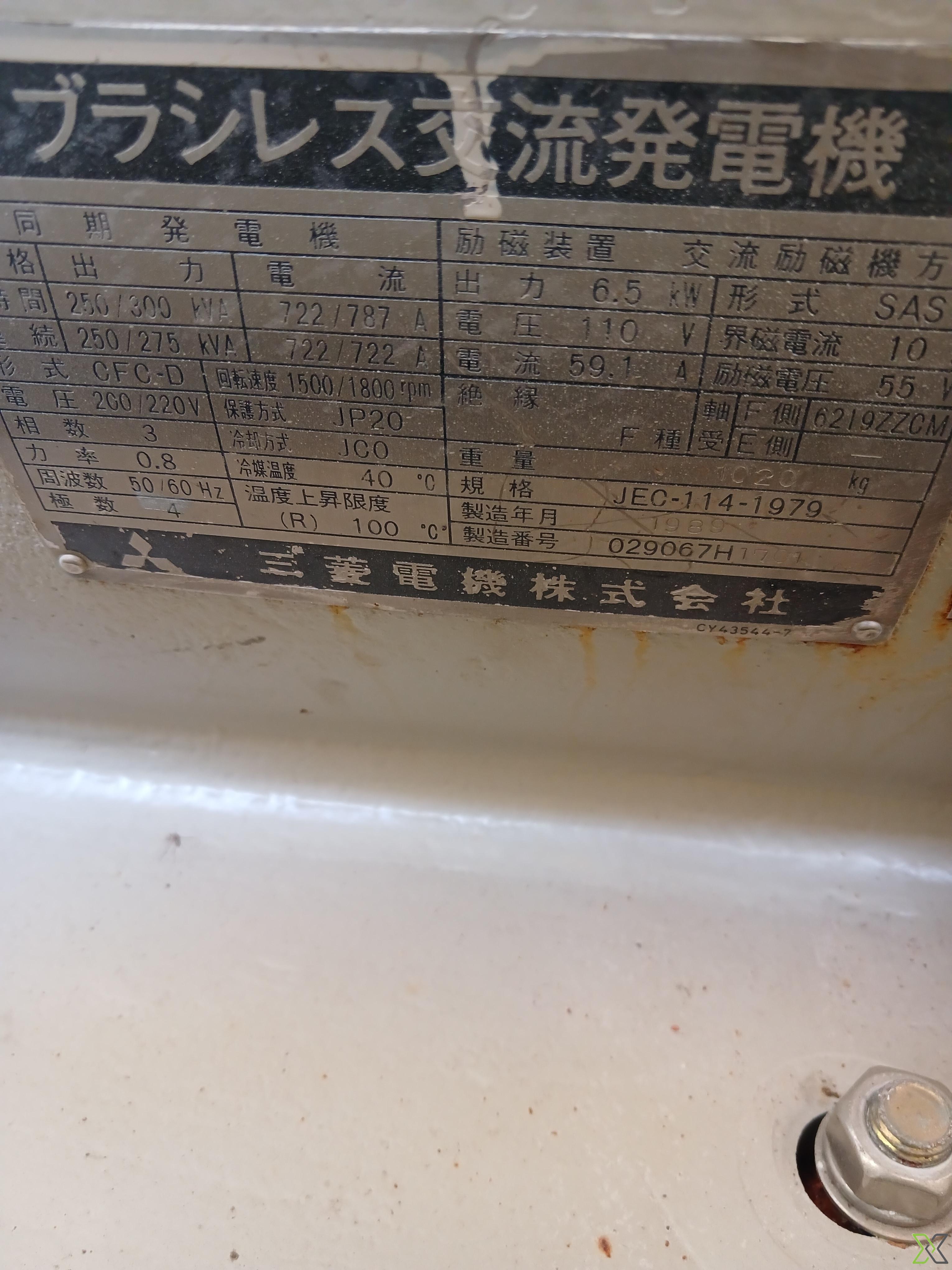

– Alternator Manufacturer: Mitsubishi Electric Corporation
– Manufacturing Date: October 2003
– Standards Compliance: JEC-114-1979
– Rated Capacity: 250 kVA (50 Hz) / 300 kVA (60 Hz)
– Rated Voltage: 220 V (Selectable 50/60 Hz)
– Frequency: 50 Hz / 60 Hz
– Speed: 1500 rpm (50 Hz) / 1800 rpm (60 Hz)
– Phase Configuration: 3-Phase
– Power Factor: 0.8 (lagging)
– Insulation Class: F (155°C thermal endurance)
– Excitation Method: SAS (交流励磁装置 – AC Excitation System)
– Exciter Output: 6.5 kW
– Exciter Voltage: 110 V
– Exciter Current: 10 A

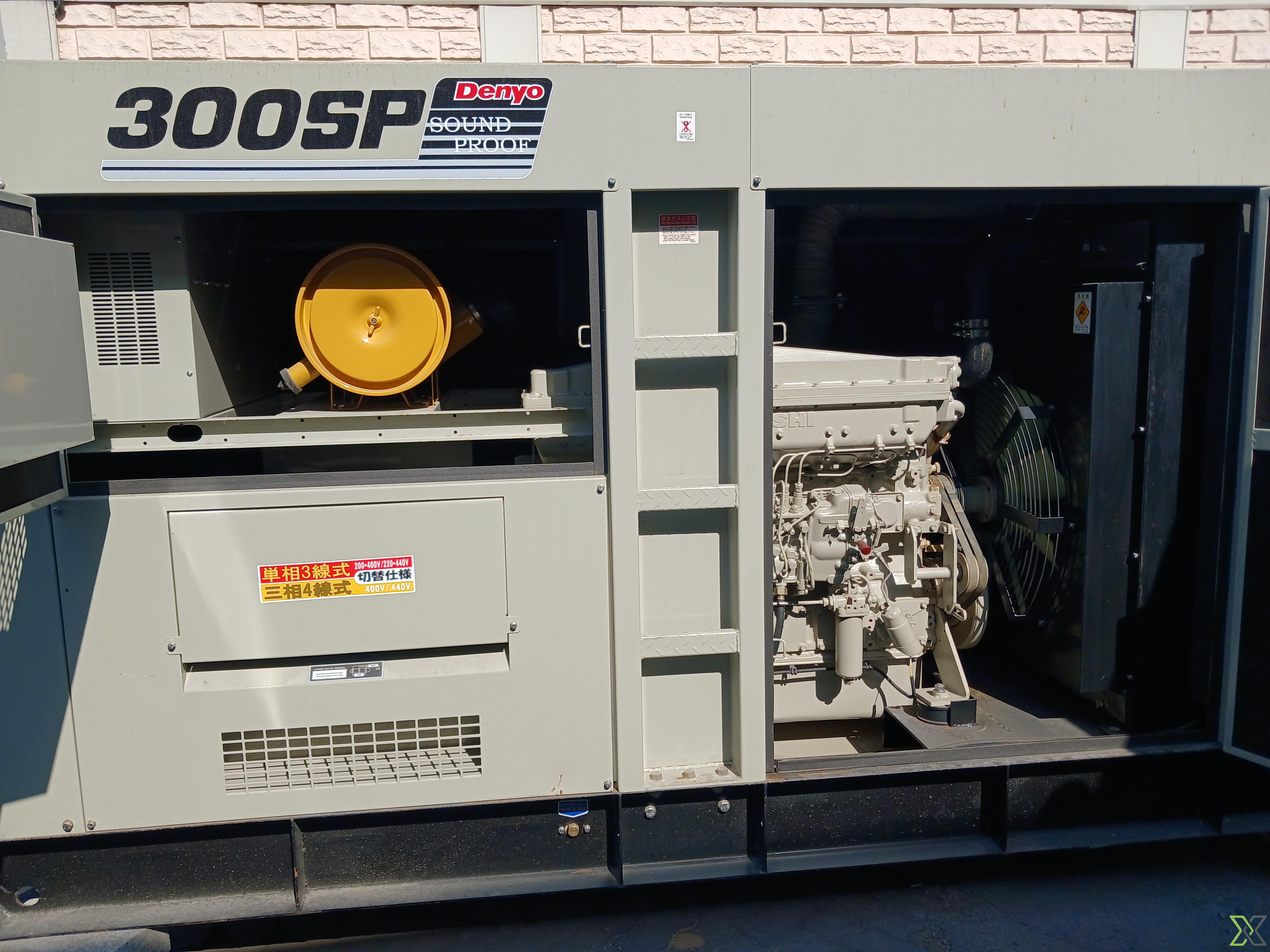

– Cooling System: Water-cooled diesel engine, forced air alternator cooling
– Design Type: Brushless, self-regulated alternator
– Enclosure Type: Weatherproof and soundproof (typical Denyo housing)
– Typical Sound Level: <75 dBA @ 7 meters
– Fuel Type: Diesel
– Typical Fuel Tank Capacity: 400–600 liters

For further specifications or to inquire about this equipment and ReflowX's logistics services, Please contact ReflowX at info@reflowx.com
